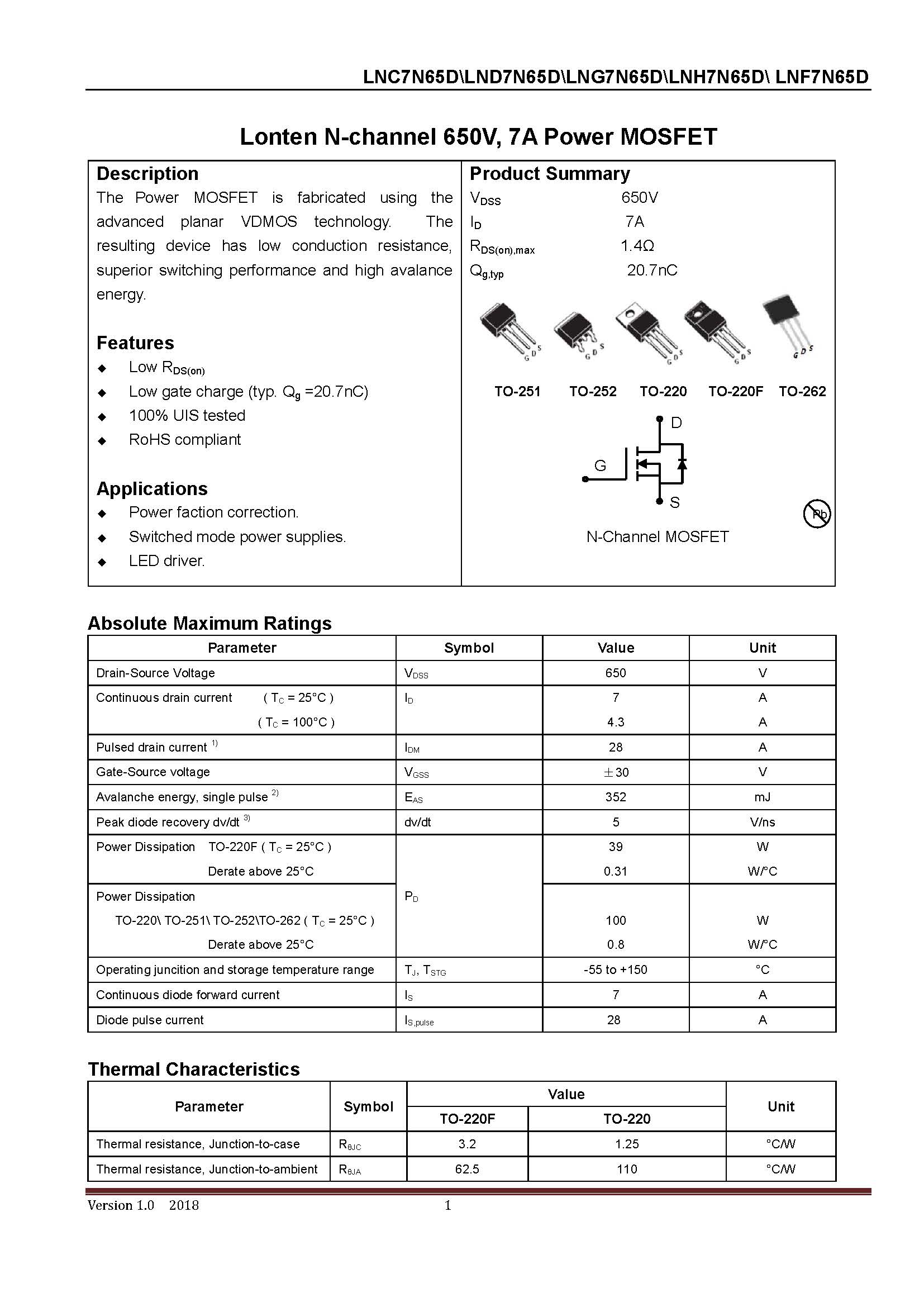

LNG7N65D
Product Name:

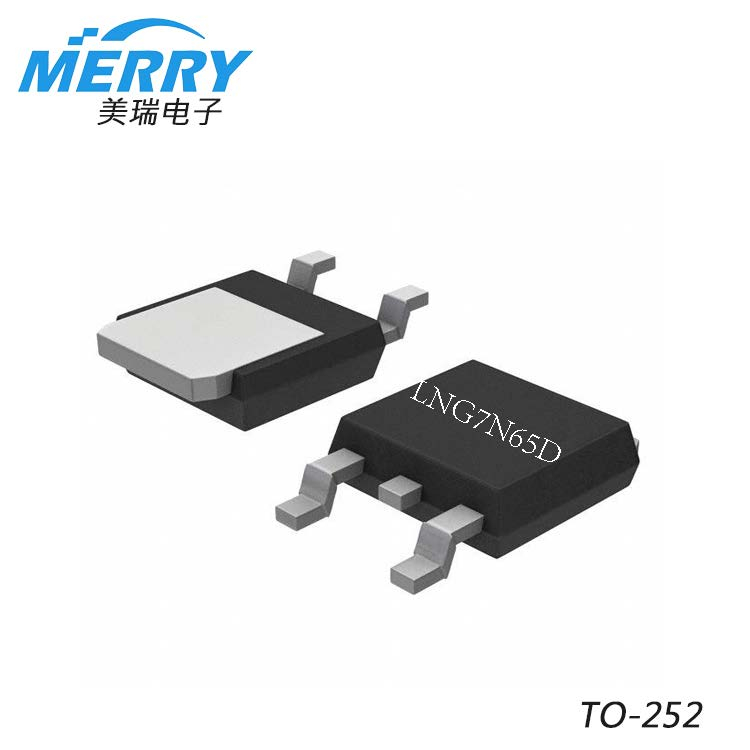

High Voltage Lonten N-channel 650V, 7A Power MOSFET LNG7N65D
Product Description:
Description:
The Power MOSFET is fabricated using the
advanced planar VDMOS technology. The
resulting device has low conduction resistance,
superior switching performance and high avalance
energy.
Features:
Low RDS(on)
Low gate charge (typ. Qg =20.7nC)
100% UIS tested
RoHS compliant
Applications:
Power faction correction.
Switched mode power supplies.
LED driver.
Product Summary:
VDSS: 650V
ID: 7A
RDS(on),max: 1.4Ω
Qg,typ: 20.7nC
Introducing the High Voltage Lonten N-channel 650V, 7A Power MOSFET LNG7N65D – the ultimate solution for switching and amplifying electronic signals in electronic devices.
Designed with utmost precision and cutting-edge technology, this power MOSFET is engineered to deliver exceptional performance and reliability in high voltage applications. With a voltage rating of 650V and a current handling capacity of 7A, the LNG7N65D is the go-to choice for demanding electronic circuits.
Equipped with advanced switching capabilities, this N-channel power MOSFET ensures seamless and efficient signal control, enabling smooth transitions and precise amplification. Whether you're working with audio equipment, power supplies, or industrial automation systems, the LNG7N65D guarantees optimal signal management and enhanced overall performance.
Not only does the LNG7N65D excel in functionality, but it also boasts a robust construction that ensures longevity and durability. Its high-quality materials and meticulous craftsmanship make it resistant to extreme temperatures, voltage fluctuations, and other environmental factors, ensuring reliable operation even in the harshest conditions.
Furthermore, the LNG7N65D adheres to the highest industry standards, guaranteeing safe and secure usage. With comprehensive protection features against overcurrent, overvoltage, and thermal overload, you can have peace of mind knowing that your electronic devices are safeguarded from potential risks.
When it comes to professional-grade power MOSFETs, the High Voltage Lonten N-channel 650V, 7A Power MOSFET LNG7N65D stands out from the competition. Its exceptional switching and amplifying capabilities, combined with its rugged design and utmost reliability, make it the ideal choice for discerning engineers and electronic enthusiasts. Upgrade your electronic devices with the LNG7N65D and experience unparalleled performance and precision.
Product Specifications:
Product Name:
High Voltage Lonten N-channel 650V, 7A Power MOSFET LNG7N65D
Product Description:
Description:
The Power MOSFET is fabricated using the
advanced planar VDMOS technology. The
resulting device has low conduction resistance,
superior switching performance and high avalance
energy.
Features:
Low RDS(on)
Low gate charge (typ. Qg =20.7nC)
100% UIS tested
RoHS compliant
Applications:
Power faction correction.
Switched mode power supplies.
LED driver.
Product Summary:
VDSS: 650V
ID: 7A
RDS(on),max: 1.4Ω
Qg,typ: 20.7nC
Introducing the High Voltage Lonten N-channel 650V, 7A Power MOSFET LNG7N65D – the ultimate solution for switching and amplifying electronic signals in electronic devices.
Designed with utmost precision and cutting-edge technology, this power MOSFET is engineered to deliver exceptional performance and reliability in high voltage applications. With a voltage rating of 650V and a current handling capacity of 7A, the LNG7N65D is the go-to choice for demanding electronic circuits.
Equipped with advanced switching capabilities, this N-channel power MOSFET ensures seamless and efficient signal control, enabling smooth transitions and precise amplification. Whether you're working with audio equipment, power supplies, or industrial automation systems, the LNG7N65D guarantees optimal signal management and enhanced overall performance.
Not only does the LNG7N65D excel in functionality, but it also boasts a robust construction that ensures longevity and durability. Its high-quality materials and meticulous craftsmanship make it resistant to extreme temperatures, voltage fluctuations, and other environmental factors, ensuring reliable operation even in the harshest conditions.
Furthermore, the LNG7N65D adheres to the highest industry standards, guaranteeing safe and secure usage. With comprehensive protection features against overcurrent, overvoltage, and thermal overload, you can have peace of mind knowing that your electronic devices are safeguarded from potential risks.
When it comes to professional-grade power MOSFETs, the High Voltage Lonten N-channel 650V, 7A Power MOSFET LNG7N65D stands out from the competition. Its exceptional switching and amplifying capabilities, combined with its rugged design and utmost reliability, make it the ideal choice for discerning engineers and electronic enthusiasts. Upgrade your electronic devices with the LNG7N65D and experience unparalleled performance and precision.
