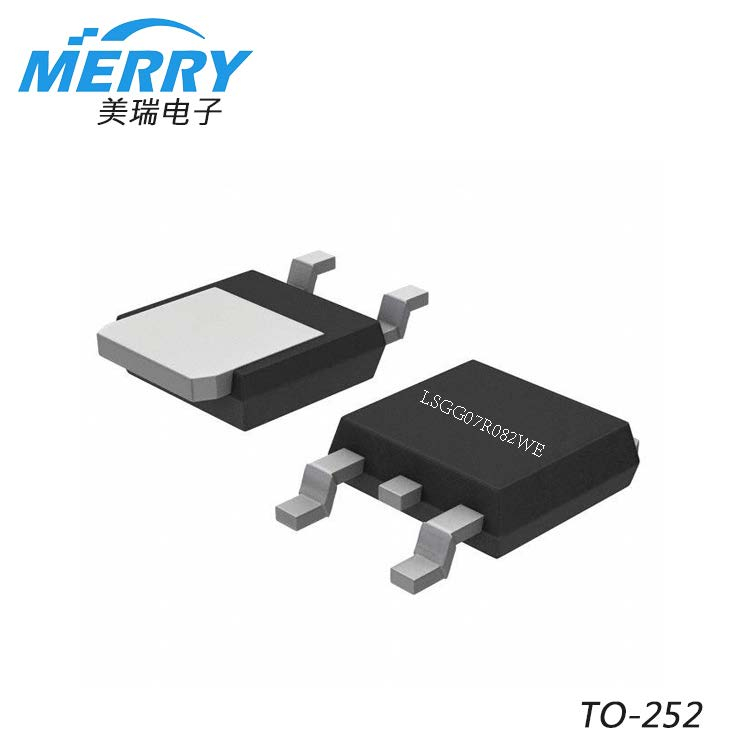

Lonten Low Voltage N-channel 70V, 65A, 8.2mΩ Power MOSFET LSGG07R082WE TO-252

Product Name:

Lonten Low Voltage N-channel 70V, 65A, 8.2mΩ Power MOSFET LSGG07R082WE TO-252

Product Description:

Description:

These N-Channel enhancement mode power field

effect transistors are using shielded gate trench

DMOS technology. This advanced technology has

been especially tailored to minimize on-state

resistance,provide superior switching performance,

and with stand high energy pulse in the avalanche

and commutation mode. These devices are well

suited for high efficiency fast switching applications.

Features:

 70V,65A,RDS(on).max=8.2mΩ@VGS = 10V

 Improved dv/dt capability

 Fast switching

 100% EAS Guaranteed

 Green device available

Applications:

 Motor Drives

 UPS

 DC-DC Converter

Product Summary:

VDSS: 70V

RDS(on).max VGS=10V 8.2mΩ

ID: 65A

Introducing the Lonten Low Voltage N-channel 70V, 65A, 8.2mΩ Power MOSFET LSGG07R082WE TO-252. This high-quality component is designed for switching and amplifying electronic signals in a wide range of electronic devices. Trust in the reliability and performance of this MOSFET for your electronic applications.

Product Specifications:

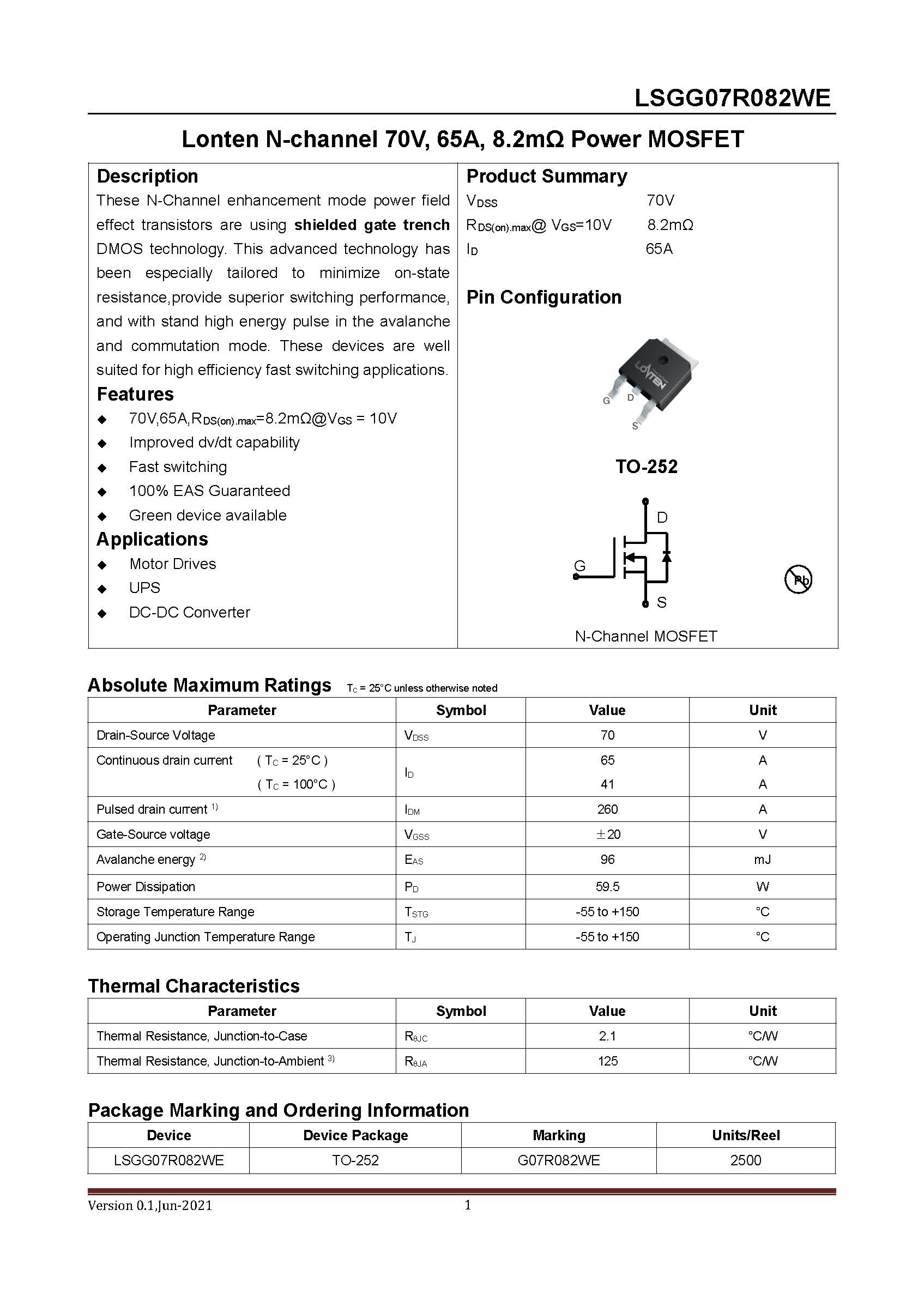

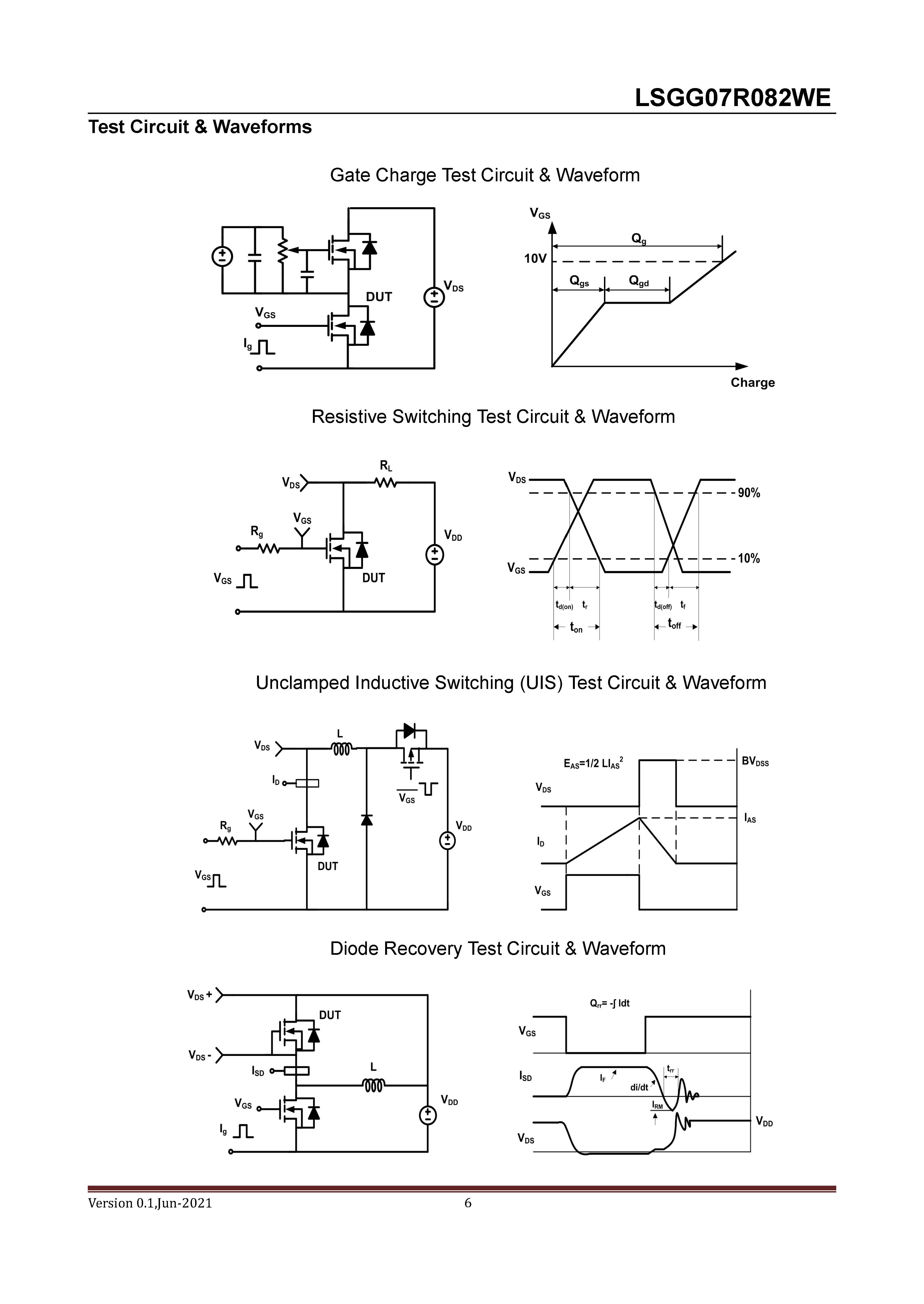

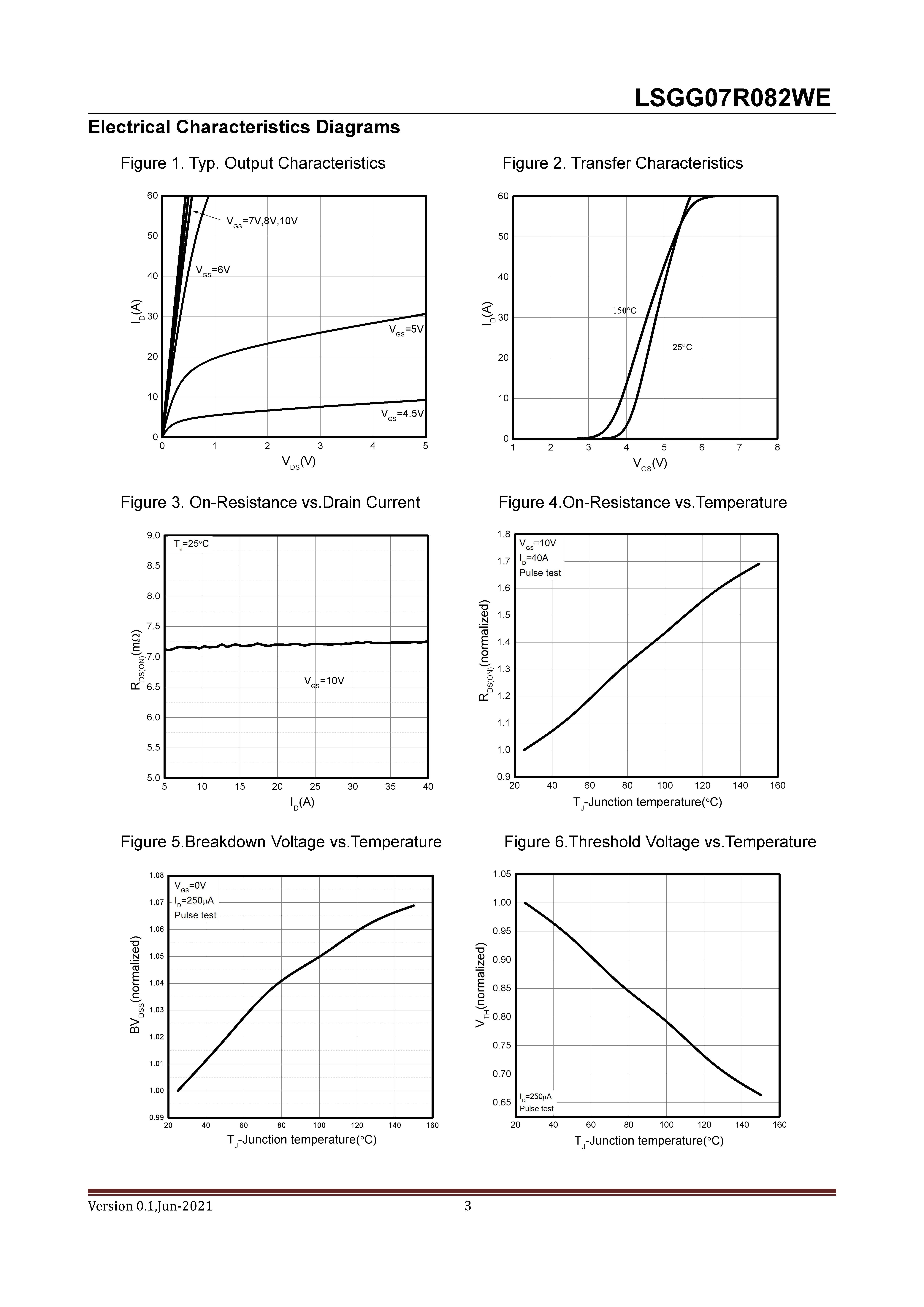

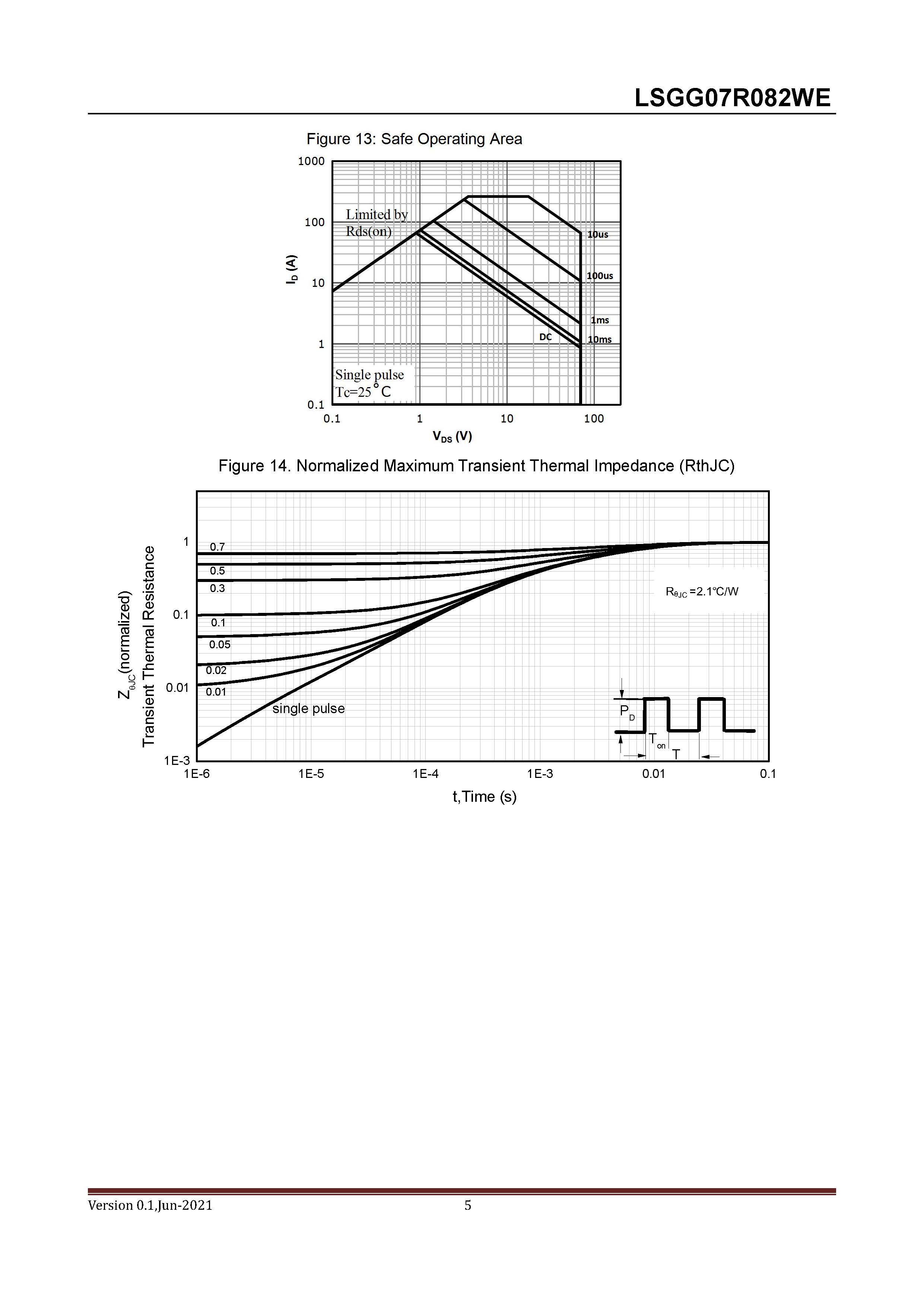

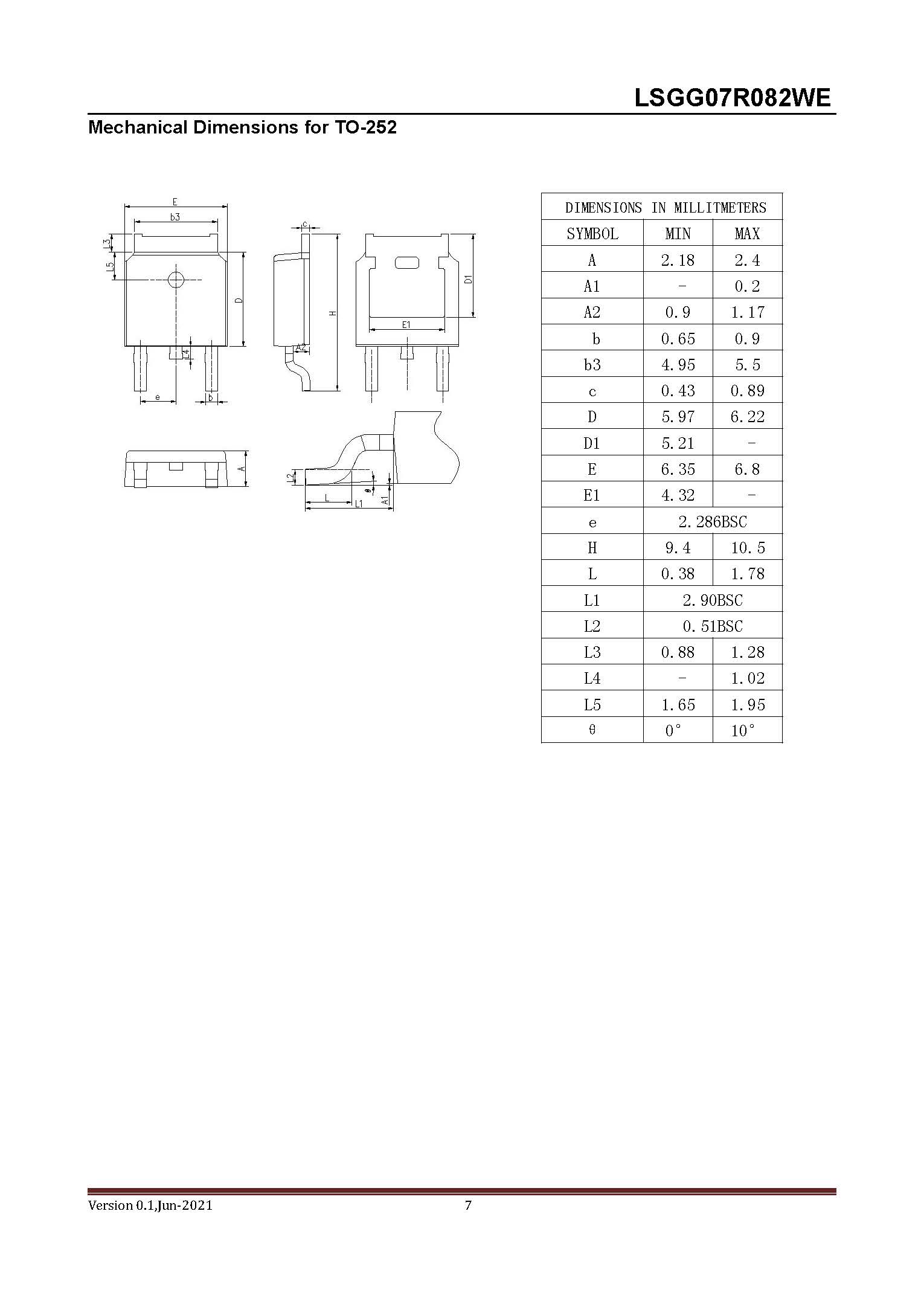

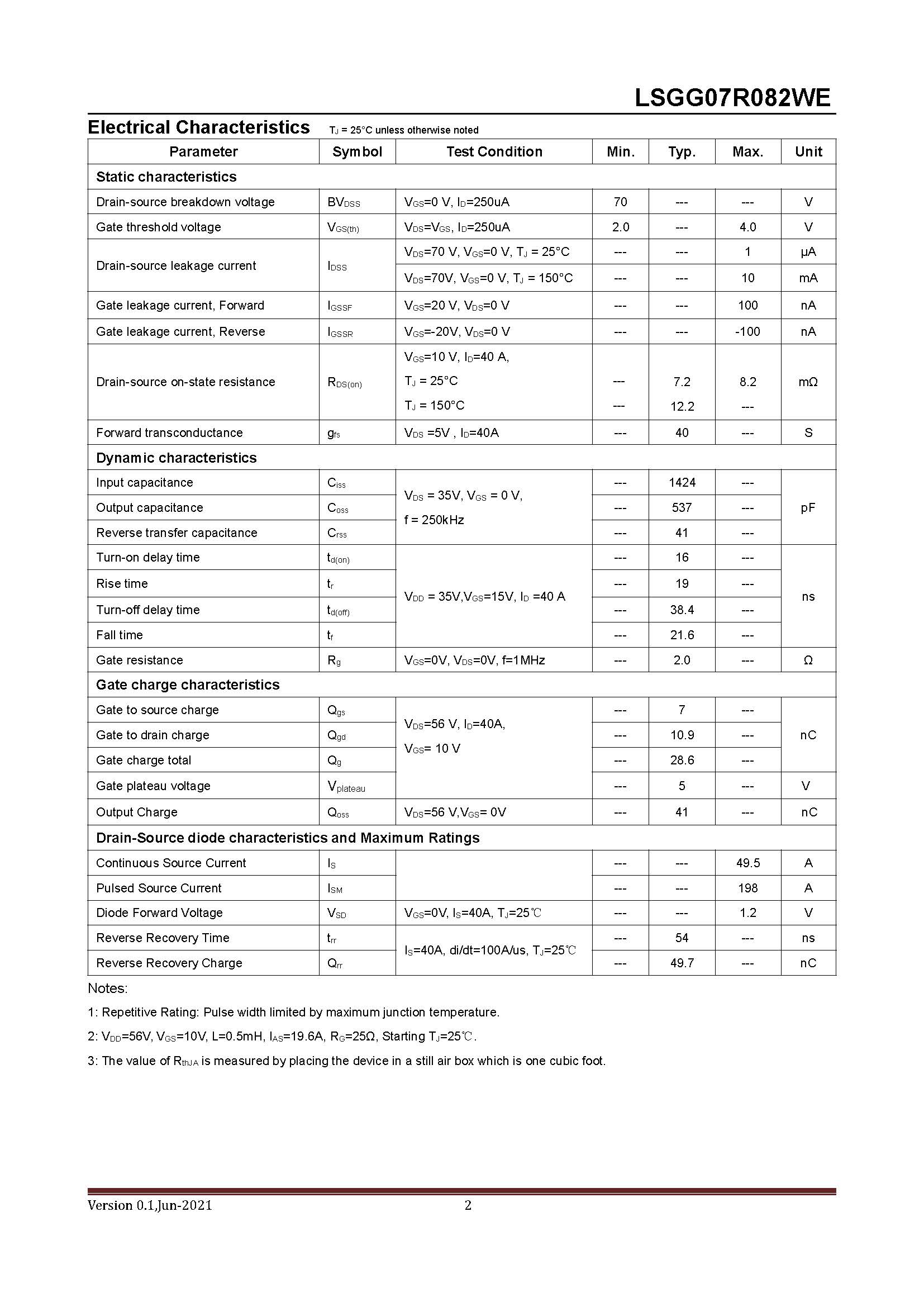

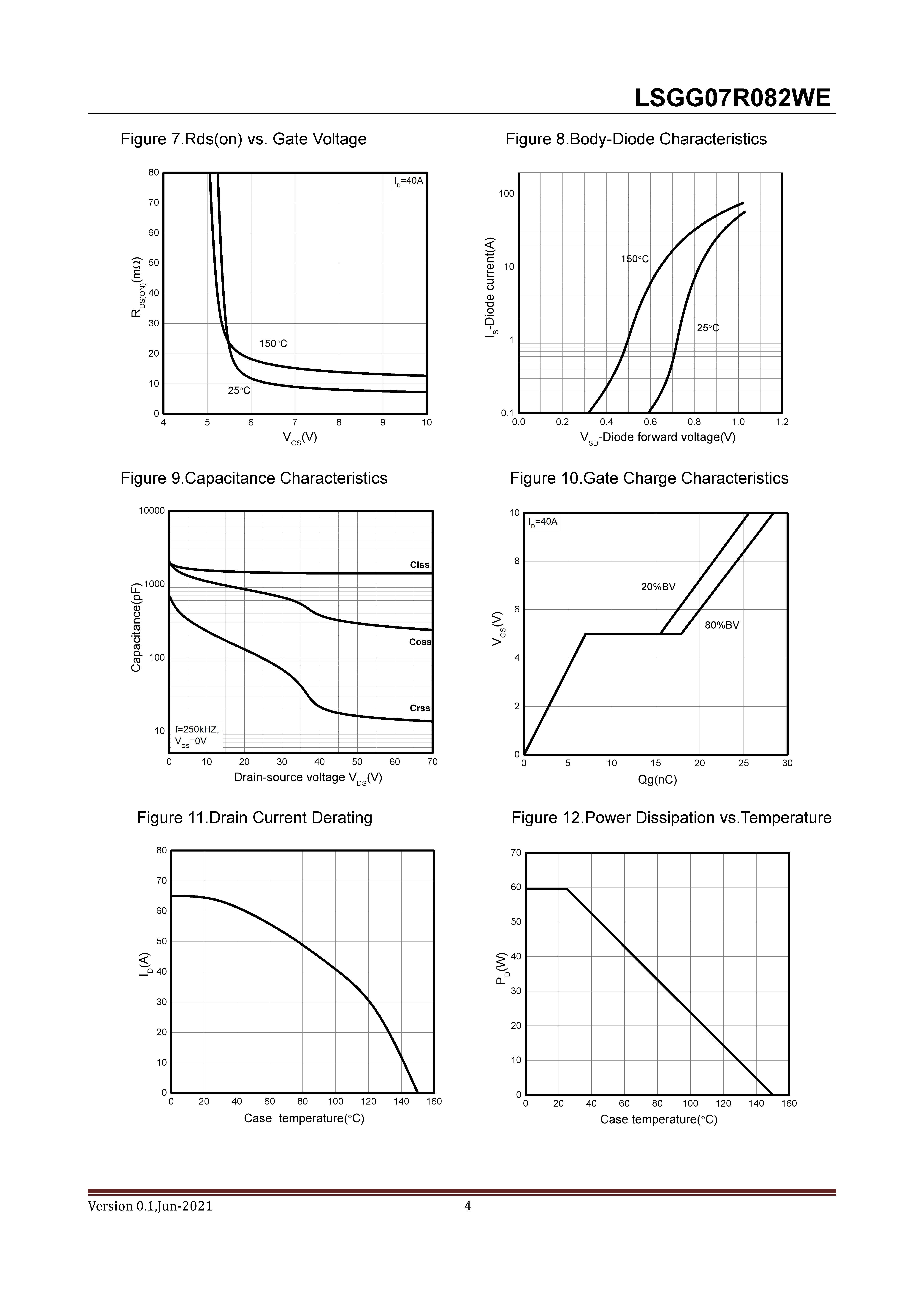

Lonten-LSGG07R082WE.pdf
