LND13N50
Product Name:

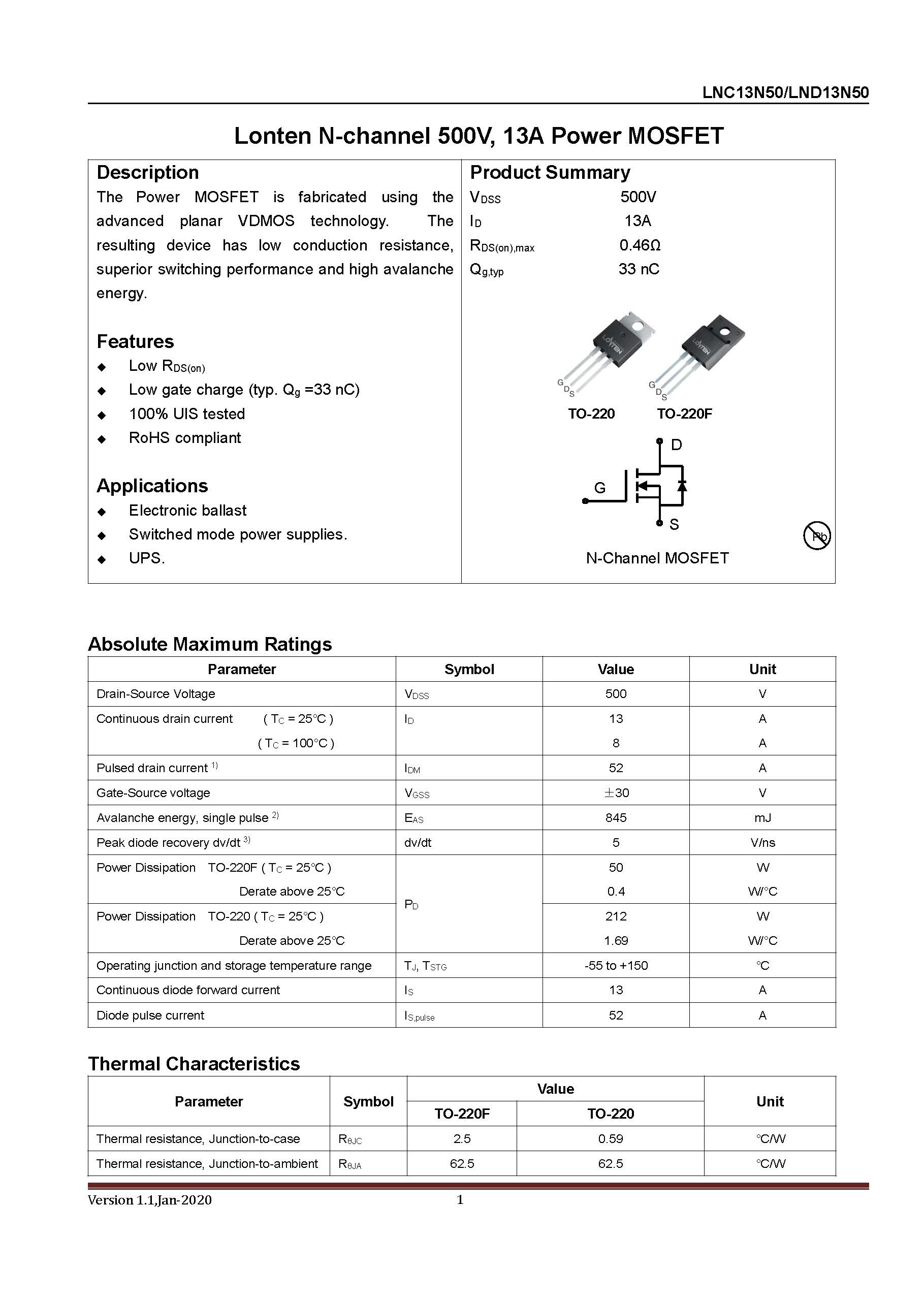

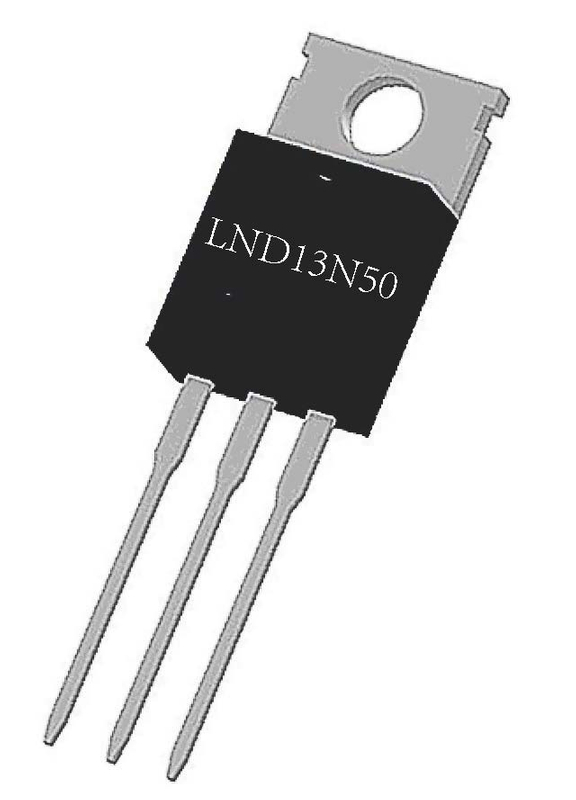

Lonten N-channel 500V, 13A Power MOSFET LNC13N50/LND13N50 TO-220 TO-220F
Product Description:
The Power MOSFET is fabricated using the
advanced planar VDMOS technology. The
resulting device has low conduction resistance,
superior switching performance and high avalanche
energy.
Features:
Low RDS(on)
Low gate charge (typ. Qg =33 nC)
100% UIS tested
RoHS compliant
Applications:
Electronic ballast
Switched mode power supplies.
UPS.
Product Summary:
VDSS = 500V
ID = 13A
RDS(on),max = 0.46Ω
Qg,typ = 33 nC
Introducing the Lonten N-channel 500V, 13A Power MOSFET LNC13N50/LND13N50 TO-220 TO-220F - the ultimate solution for switching and amplifying electronic signals in electronic devices.
Designed with utmost precision and cutting-edge technology, this power MOSFET is engineered to deliver unparalleled performance and reliability. With a voltage rating of 500V and a current rating of 13A, it empowers your electronic devices to handle high-power applications with ease.
The TO-220 and TO-220F packaging options ensure convenient installation and compatibility with a wide range of electronic circuits. This versatile MOSFET is ideal for various applications, including power supplies, motor control, lighting systems, and audio amplifiers.
Equipped with advanced switching capabilities, this MOSFET enables efficient and rapid switching of electronic signals, enhancing the overall performance of your electronic devices. Additionally, its amplifying capabilities ensure accurate and high-fidelity signal amplification.
Rest assured, the Lonten N-channel 500V, 13A Power MOSFET LNC13N50/LND13N50 TO-220 TO-220F adheres to the highest industry standards and undergoes rigorous quality control measures. It is built to withstand demanding operating conditions, ensuring long-lasting durability and reliability.
Upgrade your electronic devices with the Lonten N-channel 500V, 13A Power MOSFET LNC13N50/LND13N50 TO-220 TO-220F and experience the pinnacle of performance and efficiency. Trust in our professional-grade solution to elevate your electronic designs to new heights.
Product Specifications:
