YJG74G10A
Merry

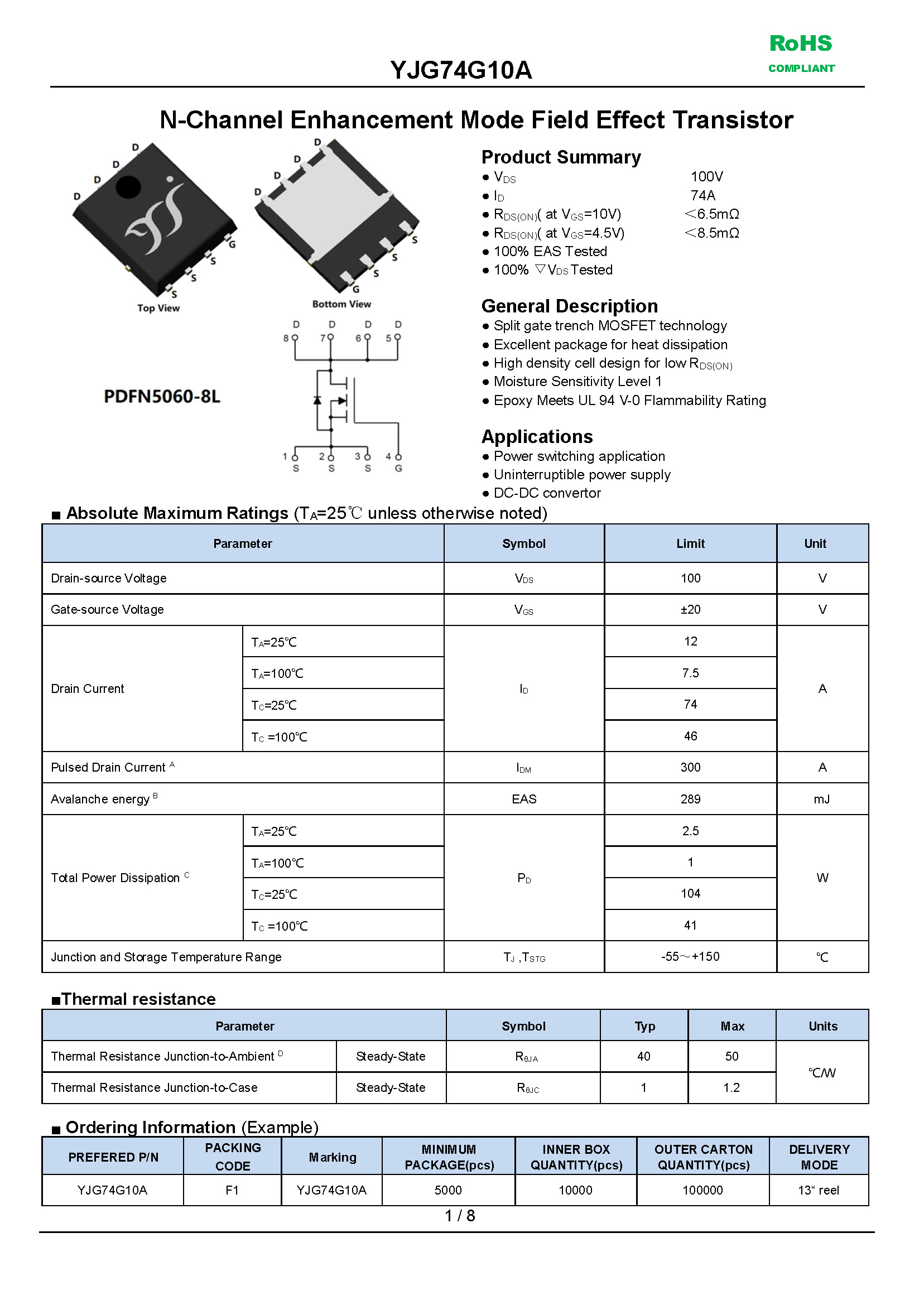

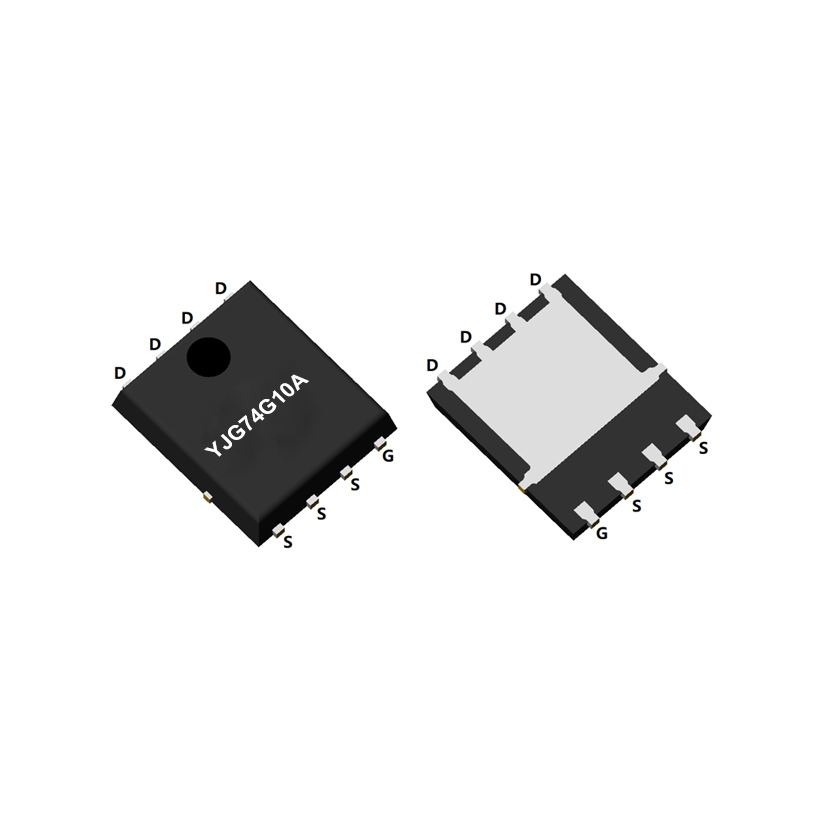

N-Channel Enhancement Mode Field Effect Transistor, VDSS: 100V, ID: 74A, PD: 104W, fetures, applications, PDFN5060-8L, YJG74G10A
Features :
- VDS : 100V
- ID : 74A
- RDS(ON)( at VGS=10V) : < 6.5mΩ
- RDS(ON)( at VGS=4.5V) : < 8.5mΩ
- 100% EAS Tested
- 100% ▽VDS Tested
General Description :
- Split gate trench MOSFET technology
- Excellent package for heat dissipation
- High density cell design for low RDS(ON)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
Applications :
- Power switching application
- Uninterruptible power supply
- DC-DC convertor
