N-Channel Enhancement Mode Field Effect Transistor, VDSS: 100V, ID: 75A, PD: 104W, fetures, applications, TO-252, YJD75G10A

Features :
- VDS : 100V
- ID : 75A
- RDS(ON)( at VGS=10V) : <7.5mΩ
- RDS(ON)( at VGS=4.5V) : <9.5mΩ
- 100% EAS Tested
- 100% ▽VDS Tested

General Description :
- Split gate trench MOSFET technology
- Excellent package for heat dissipation
- High density cell design for low RDS(ON)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free

Applications :
- Power switching application
- Uninterruptible power supply
- DC-DC convertor
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • YJD75G10A

  • Merry

N-Channel Enhancement Mode Field Effect Transistor, VDSS: 100V, ID: 75A, PD: 104W, fetures, applications, TO-252, YJD75G10A

Features :

- VDS : 100V
- ID : 75A
- RDS(ON)( at VGS=10V) : <7.5mΩ
- RDS(ON)( at VGS=4.5V) : <9.5mΩ
- 100% EAS Tested
- 100% ▽VDS Tested

General Description
 :
- Split gate trench MOSFET technology
- Excellent package for heat dissipation

- High density cell design for low RDS(ON)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free


Applications :
- Power switching application
- Uninterruptible power supply
- DC-DC convertor

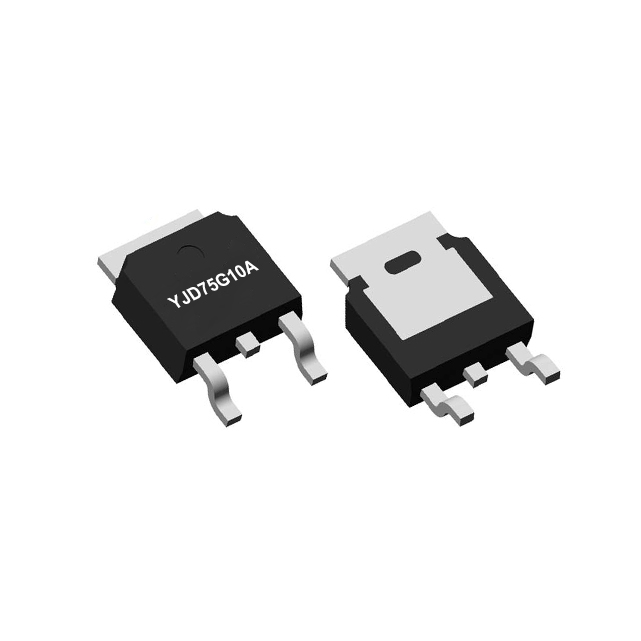

YJD75G10A

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

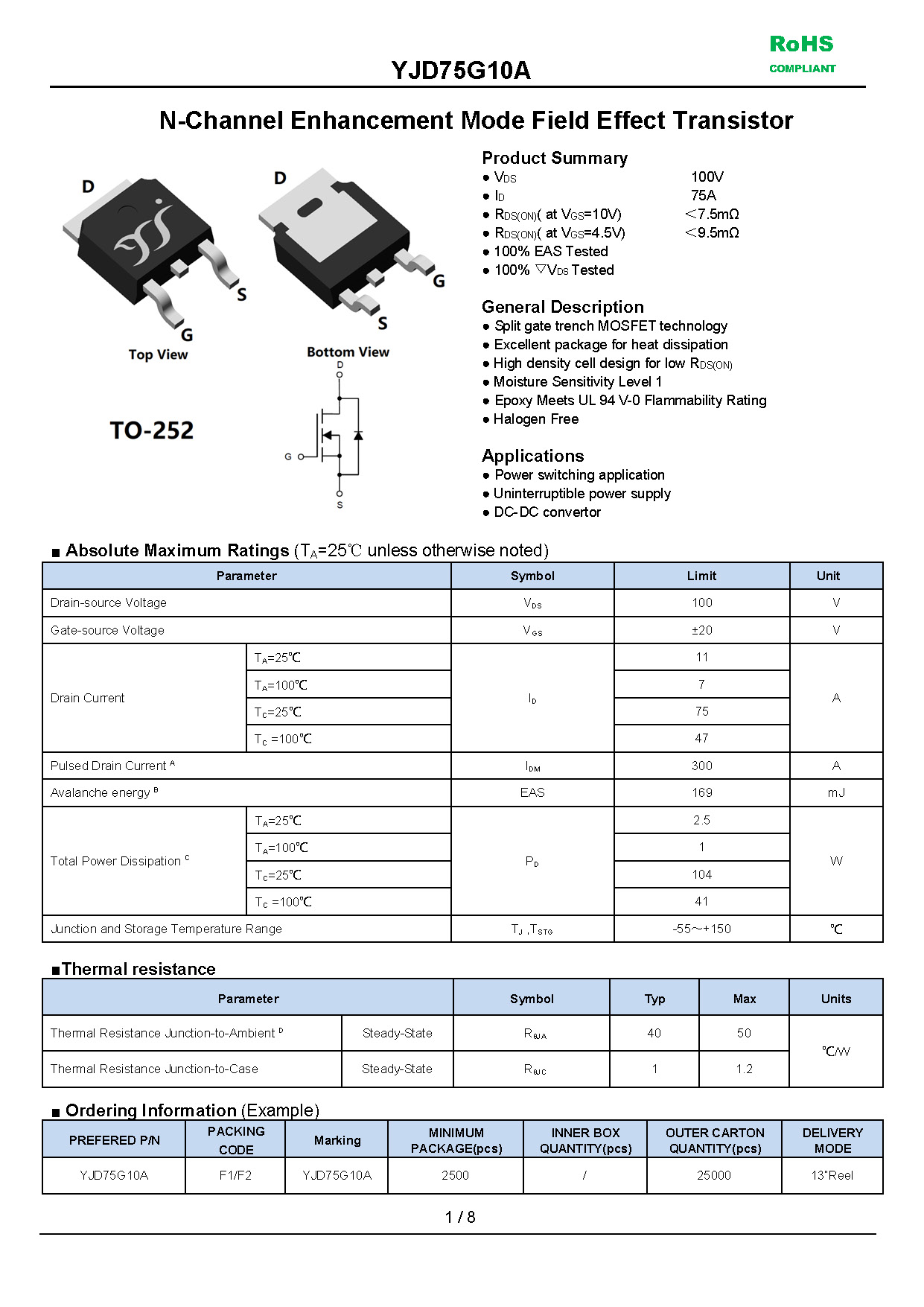

YJD75G10A-1_页面_1

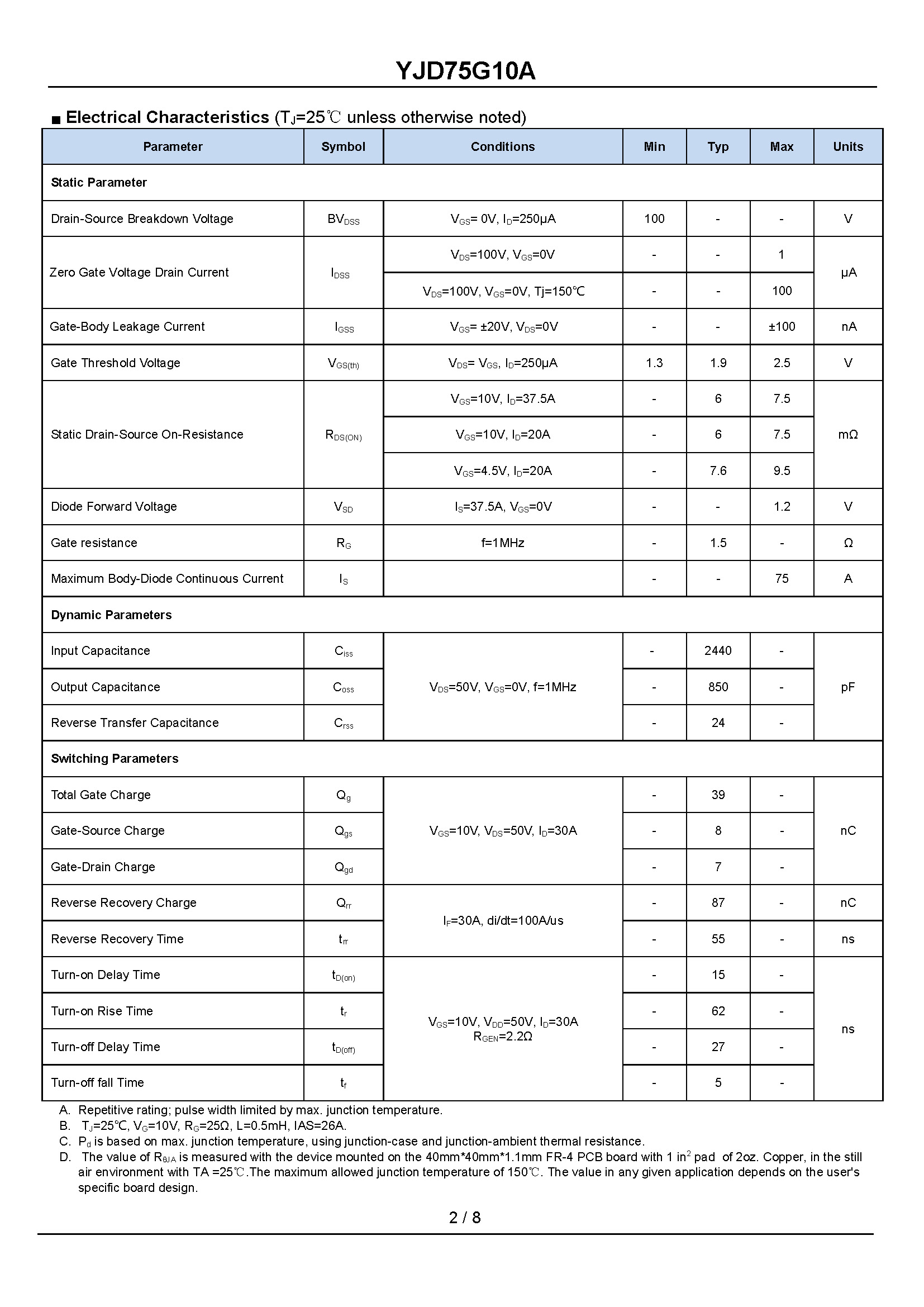

YJD75G10A-1_页面_2

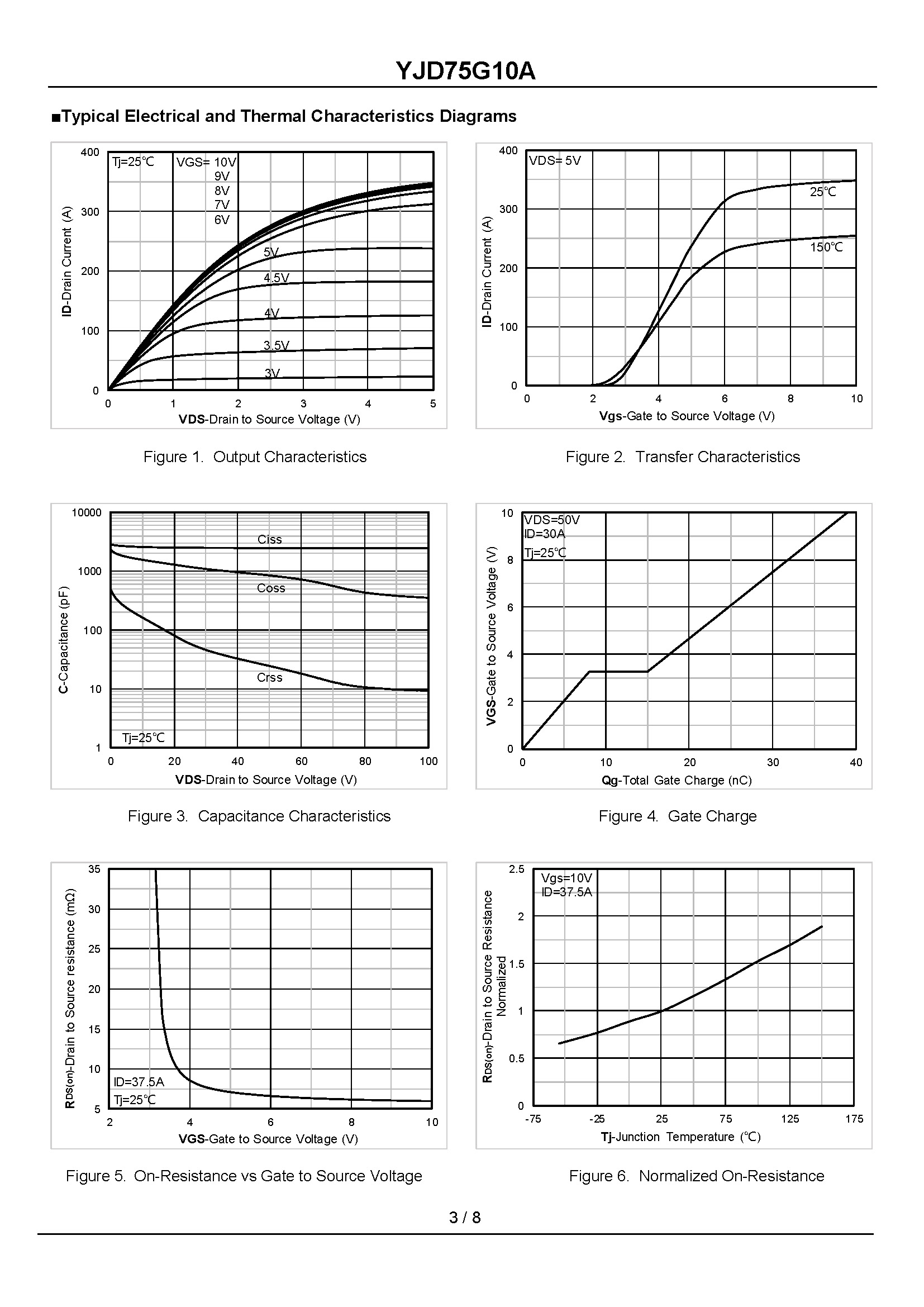

YJD75G10A-1_页面_3

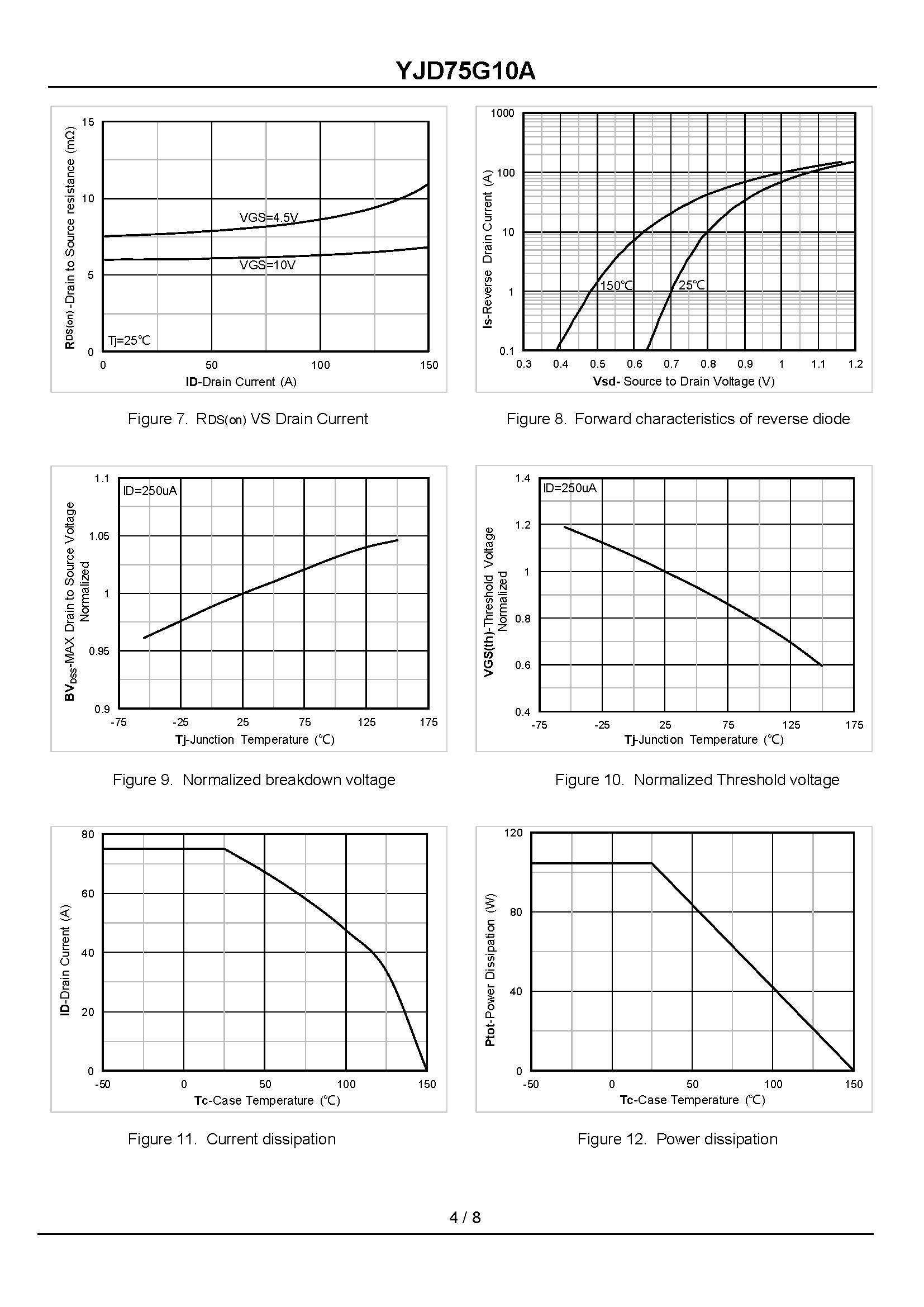

YJD75G10A-1_页面_4

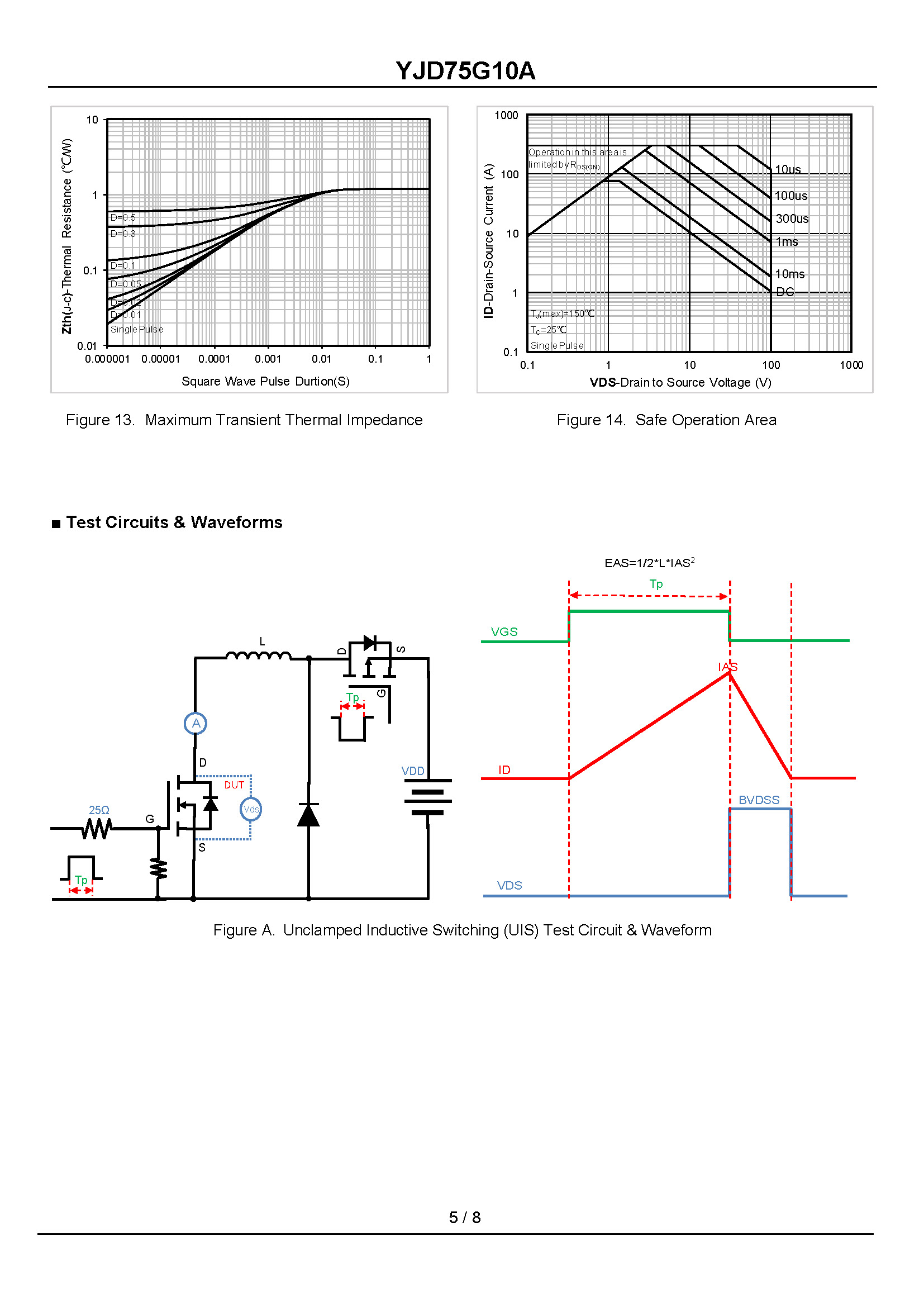

YJD75G10A-1_页面_5
