Home » Products » Transistor » Low voltage MOSFET » N-Channel Enhancement Mode Field Effect Transistor, VDSS: 150V, ID: 30A, PD: 50W, fetures, applications, ITO-220AB, YJF30G15H

N-Channel Enhancement Mode Field Effect Transistor, VDSS: 150V, ID: 30A, PD: 50W, fetures, applications, ITO-220AB, YJF30G15H

Features :
- VDS : 150V
- ID : 30A
- RDS(ON)( at VGS=10V) : <24mΩ
- RDS(ON)( at VGS=6V) : <26mΩ
- 100% EAS Tested
- 100% ▽VDS Tested

General Description :
- Split gate trench MOSFET technology
- Low RDS(on) & FOM
- Excellent stability and uniformity
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free

Applications :
- Power management
- Portable equipment
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • YJF30G15H

  • Merry

N-Channel Enhancement Mode Field Effect Transistor, VDSS: 150V, ID: 30A, PD: 50W, fetures, applications, ITO-220AB,   YJF30G15H

Features :

- VDS : 150V
- ID : 30A
- RDS(ON)( at VGS=10V) : <24mΩ
- RDS(ON)( at VGS=6V) : <26mΩ
- 100% EAS Tested
- 100% ▽VDS Tested


General Description
 :
- Split gate trench MOSFET technology
- Low RDS(on) & FOM
- Excellent stability and uniformity

- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free


Applications :
- Power management
- Portable equipment

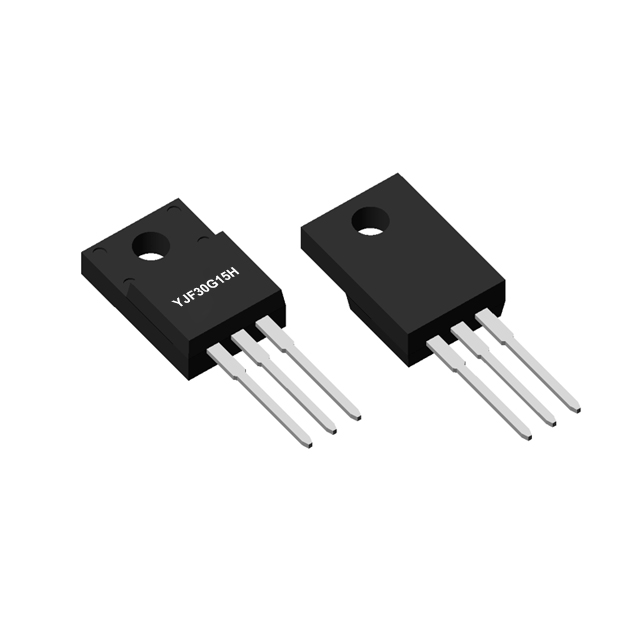

YJF30G15H

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

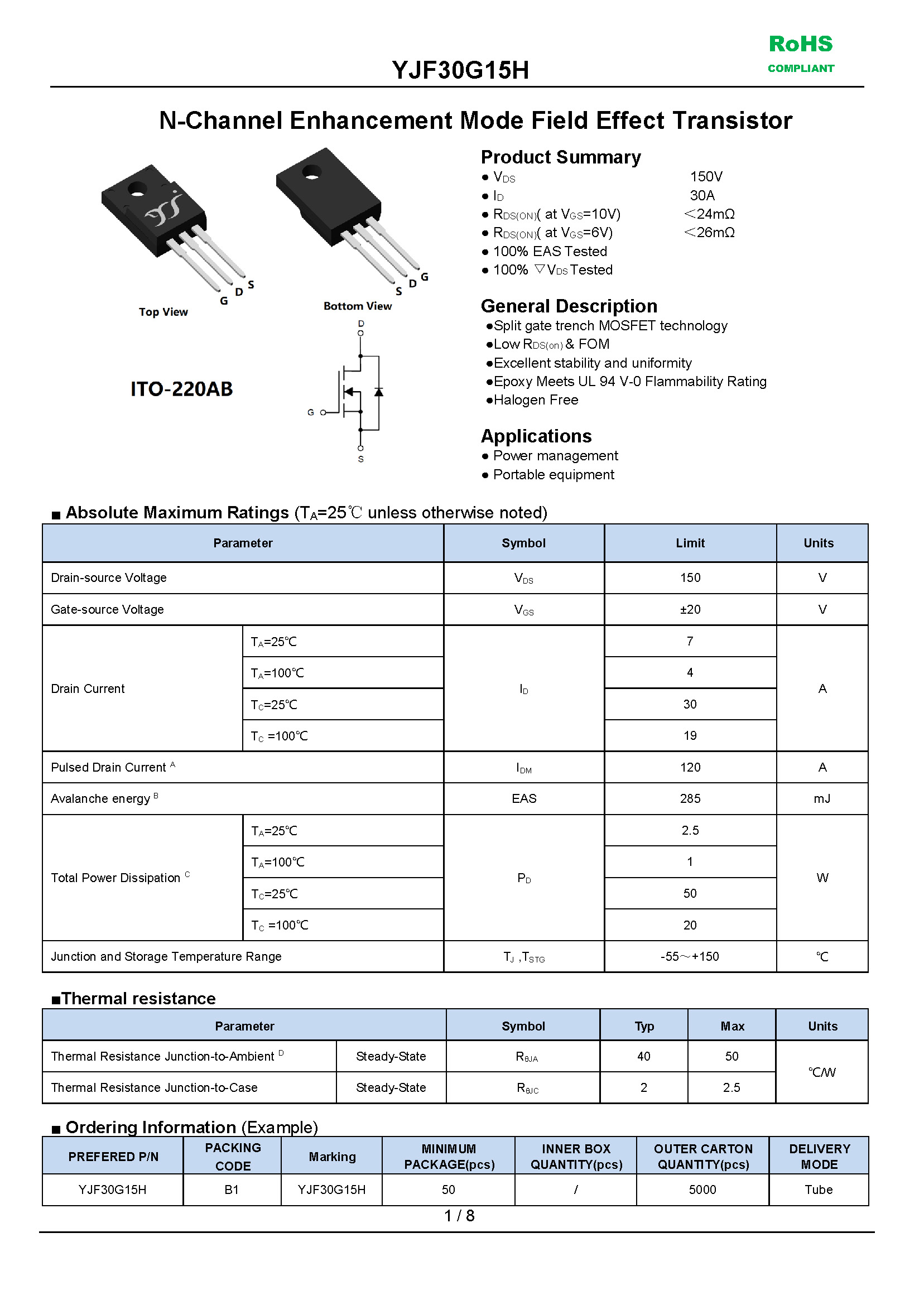

YJF30G15H-1_页面_1

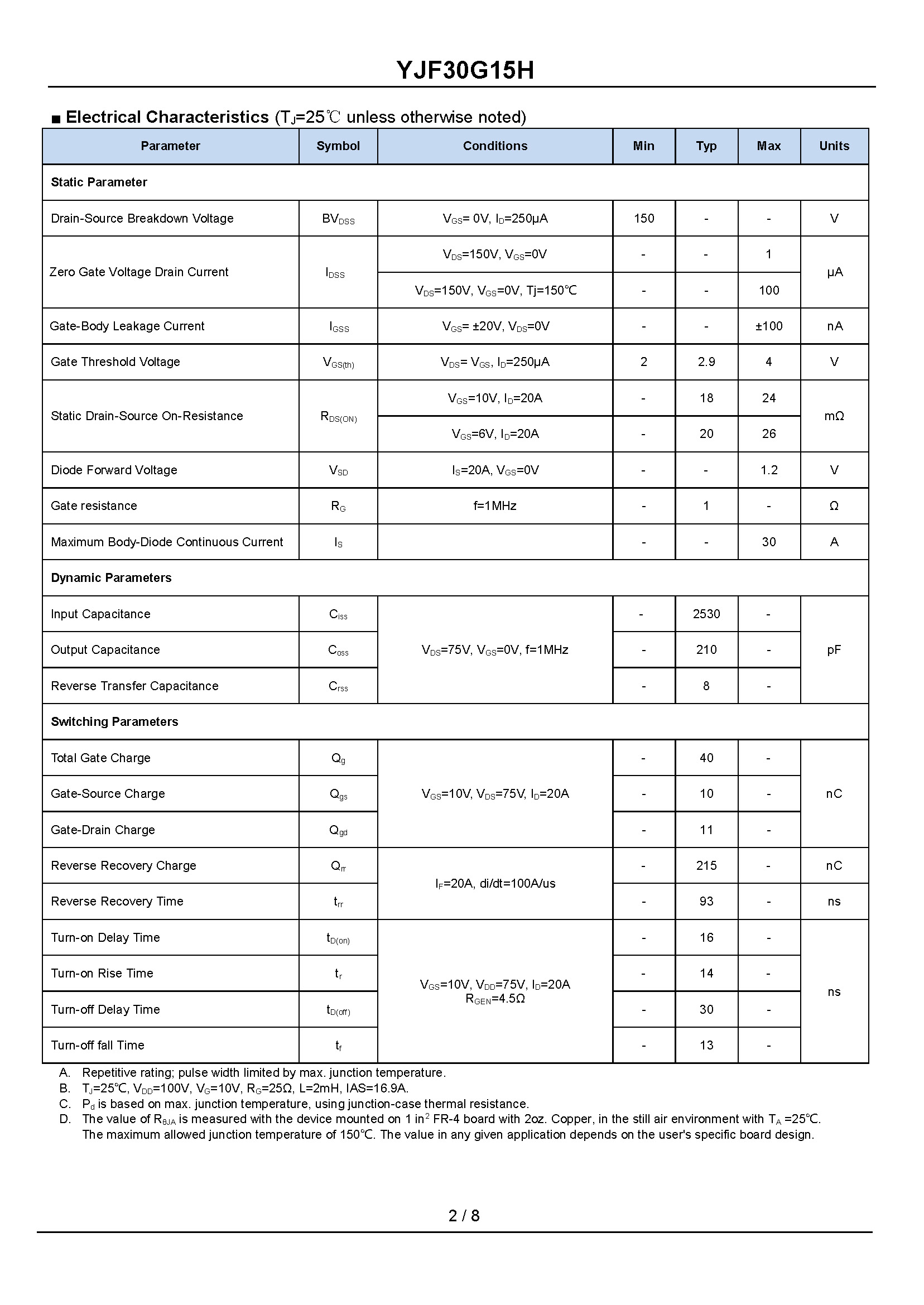

YJF30G15H-1_页面_2

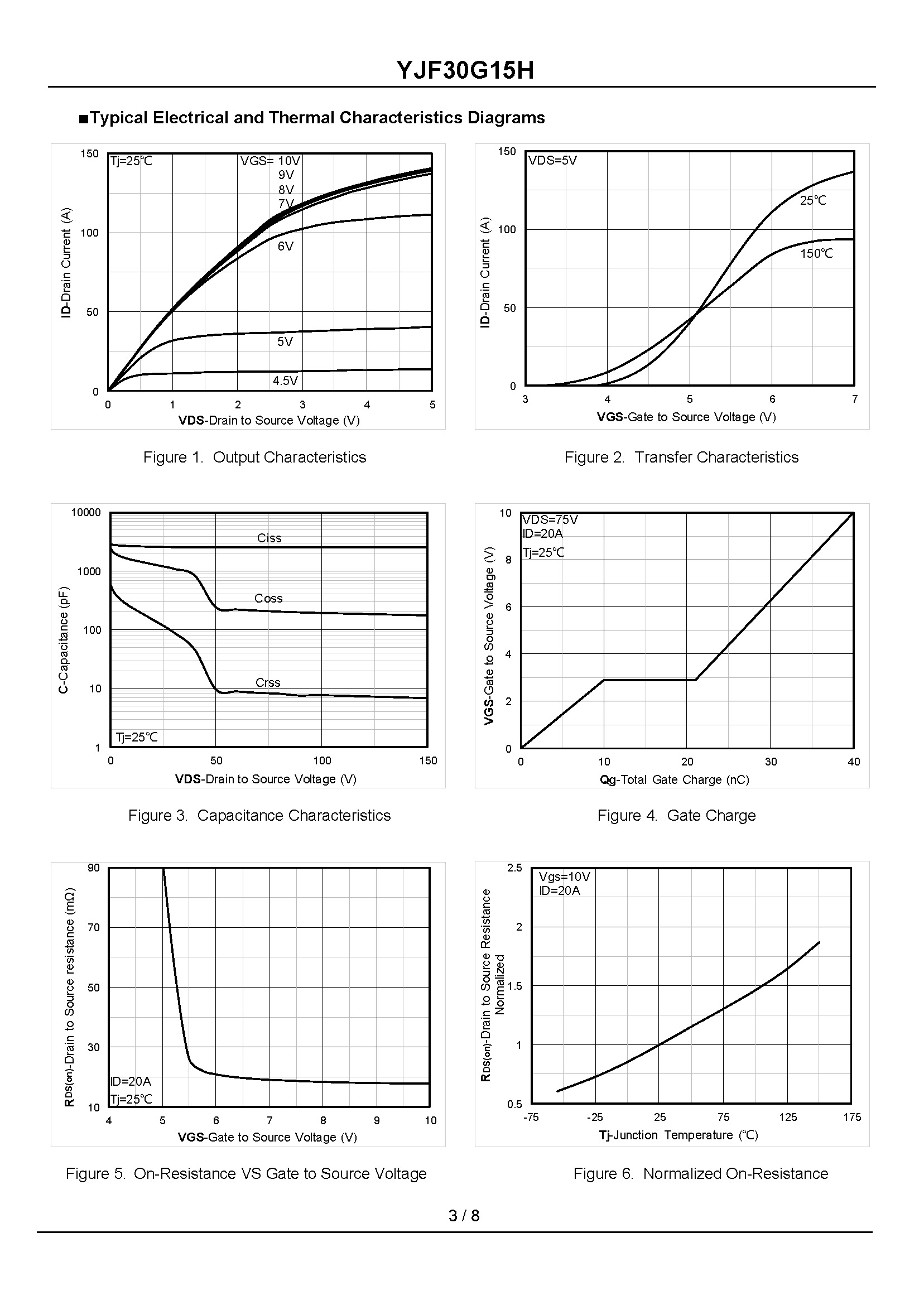

YJF30G15H-1_页面_3

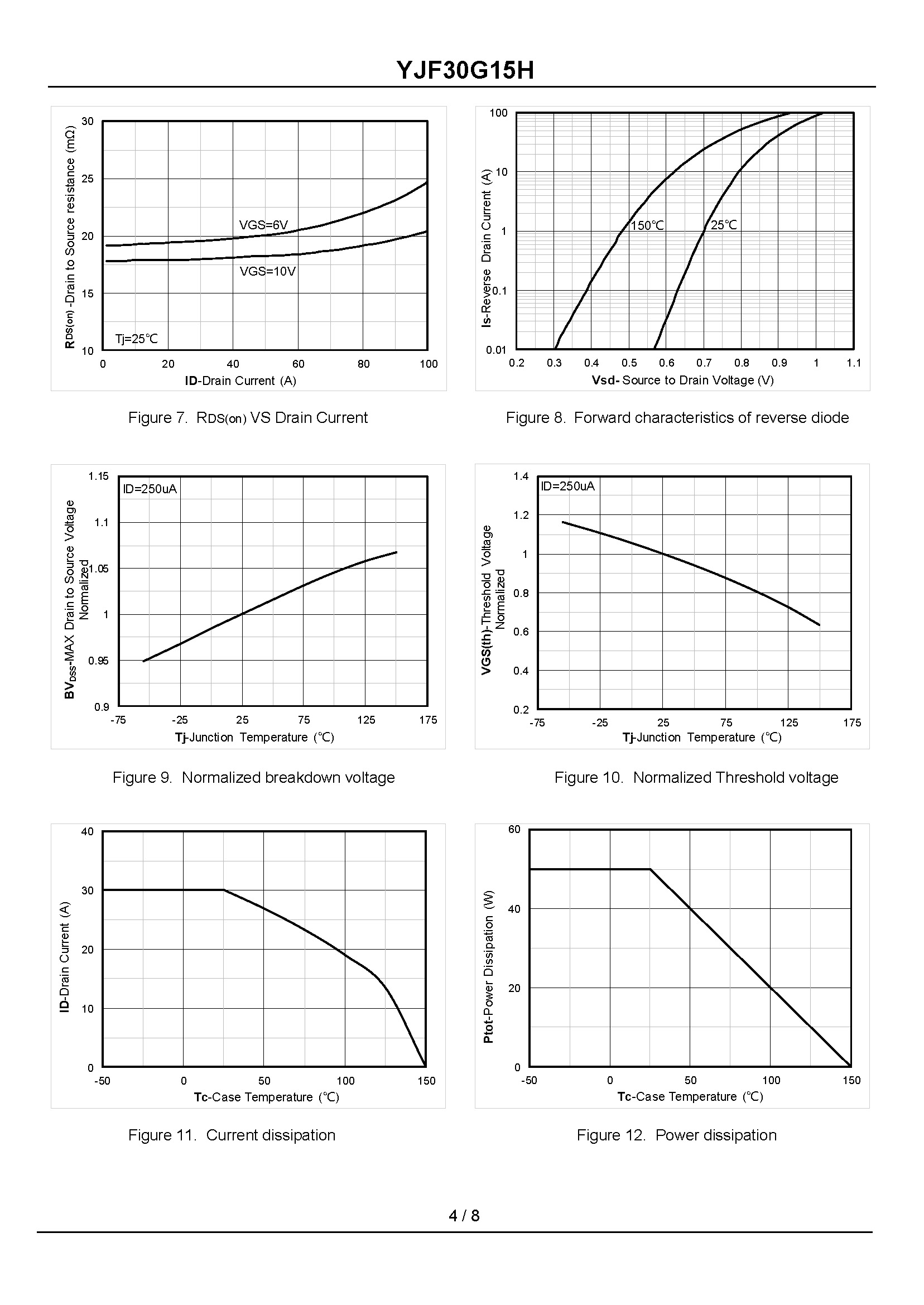

YJF30G15H-1_页面_4

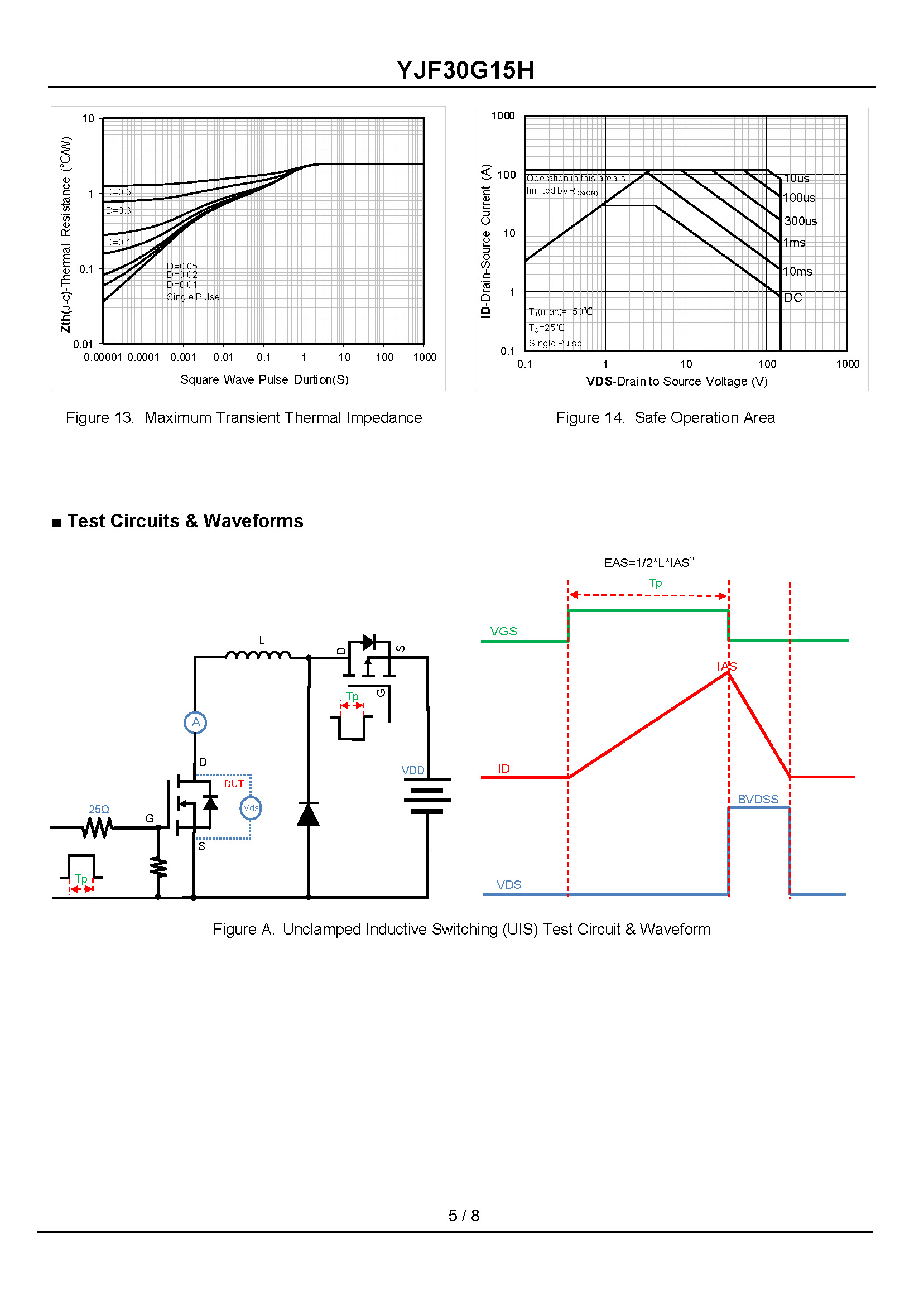

YJF30G15H-1_页面_5
