MUR2040
晶恒-Jingheng
Product Name:

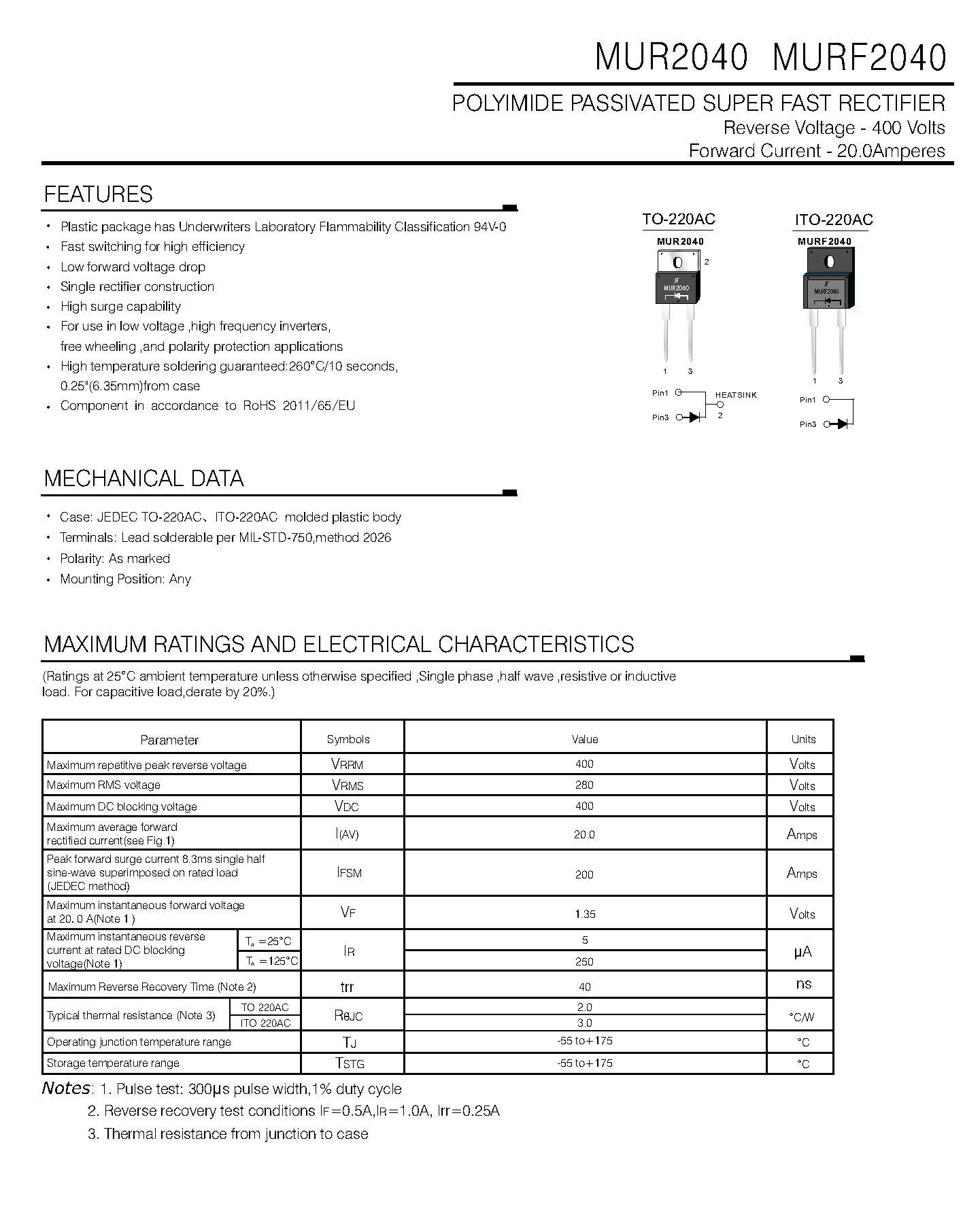

POLYIMIDE PASSIVATED SUPER FAST RECTIFIER Reverse Voltage - 400 Volts Forward Current - 20.0Amperes MUR2040
Product Description:
Features:
*Plastic package has Underwriters Laboratory Flammability Classification 94V-0
*Fast switching for high efficiency
*Low forward voltage drop
*Single rectifier construction
*High surge capability
*For use in low voltage ,high frequency inverters,
free wheeling ,and polarity protection applications
*High temperature soldering guaranteed:260°C/10 seconds,
0.25"(6.35mm)from case
*Component in accordance to RoHS 2011/65/EU
Mechanical Data:

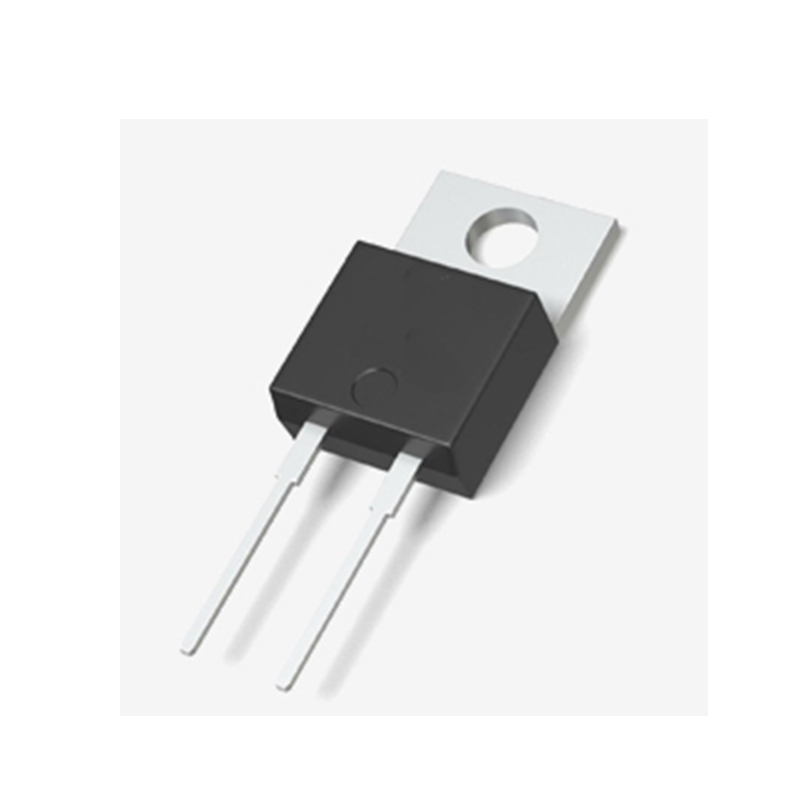

*Case: JEDEC TO-220AC molded plastic body
*Terminals: Lead solderable per MIL-STD-750,method 2026
*Polarity: As marked
*Mounting Position: Any
Introducing POLYIMIDE PASSIVATED SUPER FAST RECTIFIER. Designed to meet the demands of modern technology, this rectifier is engineered to provide exceptional performance and reliability.
With its advanced polyimide passivation technology, this rectifier offers superior protection against environmental factors, ensuring long-lasting functionality even in harsh conditions. The passivation layer acts as a barrier, safeguarding the rectifier from moisture, dust, and other contaminants.
Equipped with super-fast rectification capabilities, this product is specifically designed to efficiently convert alternating current (AC) to direct current (DC). Its high-speed rectification process ensures minimal power loss, resulting in enhanced energy efficiency and reduced heat generation.
Built with utmost precision and quality, this rectifier is manufactured to meet the highest industry standards. Each unit undergoes rigorous testing to guarantee optimal performance and durability, making it an ideal choice for various applications.
Whether you're working on electronic devices, power supplies, or industrial equipment, our POLYIMIDE PASSIVATED SUPER FAST RECTIFIER is the perfect solution. Experience the reliability and efficiency it offers, and take your projects to new heights.
Invest in the future of rectification technology with our professional-grade POLYIMIDE PASSIVATED SUPER FAST RECTIFIER. Trust in its exceptional features and unmatched performance to deliver optimal results for your applications.
