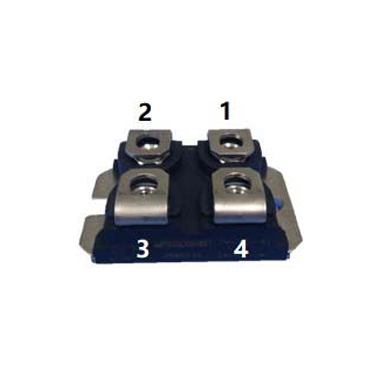

Silicon Carbide Schottky MOSFET Power Module, SOT-227, MC20UZ12ST

VDs          1200V
ID             91A
RDS(on)    22mΩ
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MC20UZ12ST

  • Merry

1200V SiC MOSFET Power Module, VDS: 1200V, ID: 91A, RDS(on) 22mΩ, fetures, applications, SOT-227, MC20UZ12ST

VDs         1200V
ID             91A

RDS(on)    22mΩ

Features

- Zero Turn-off Tail Current
- Normally-off N-channel MOSFET
- High Frequency Operation
- Low Switching Loss
- Low Inductance Screw Connectors
- Isolated Baseplate (SOT-227)

Application :

- Photovoltaic Inverter
- Battery Charger
- Server Power Supplies
- Energy Storage System


MB120DU12ST

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

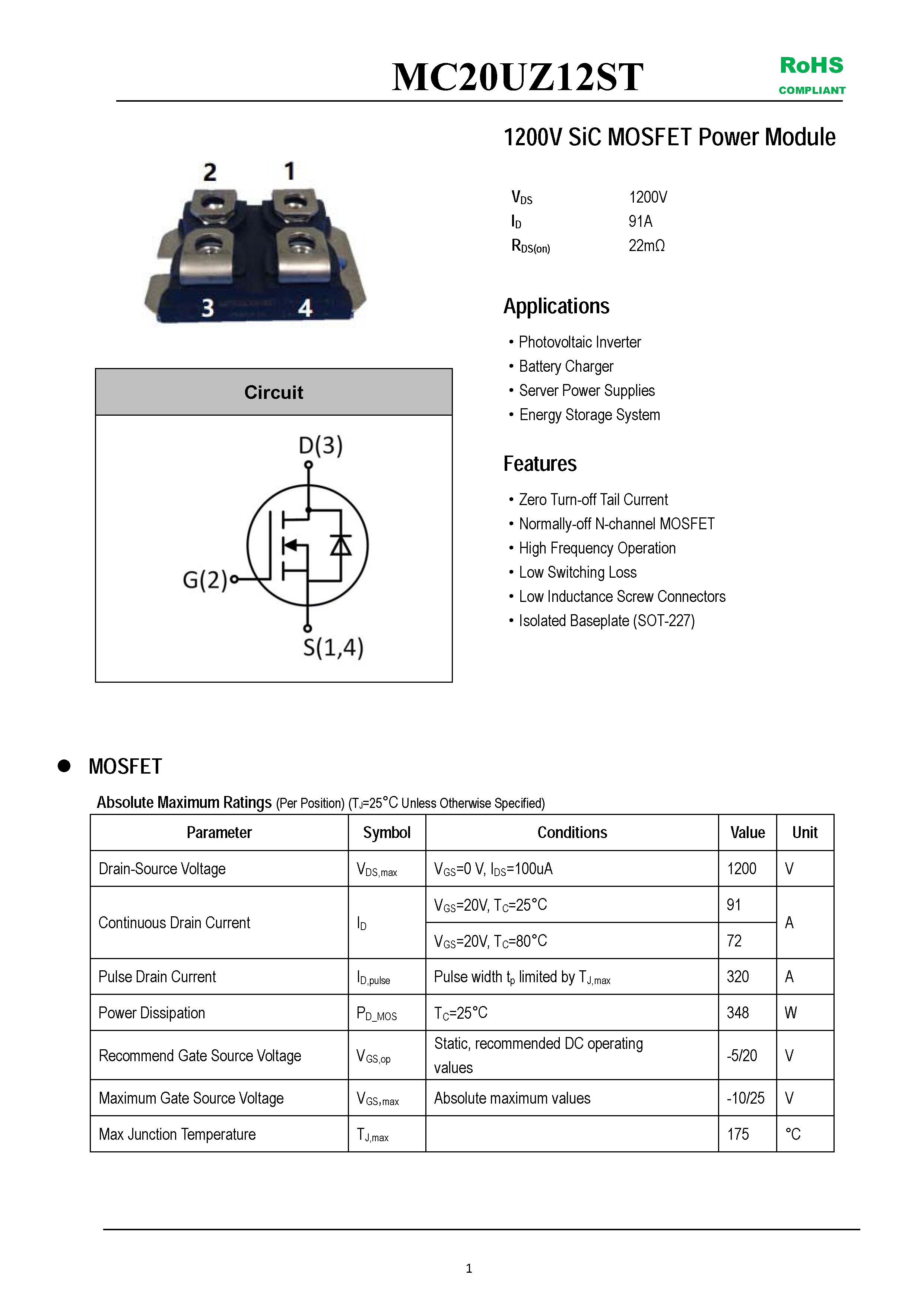

MC20UZ12ST-1_页面_1

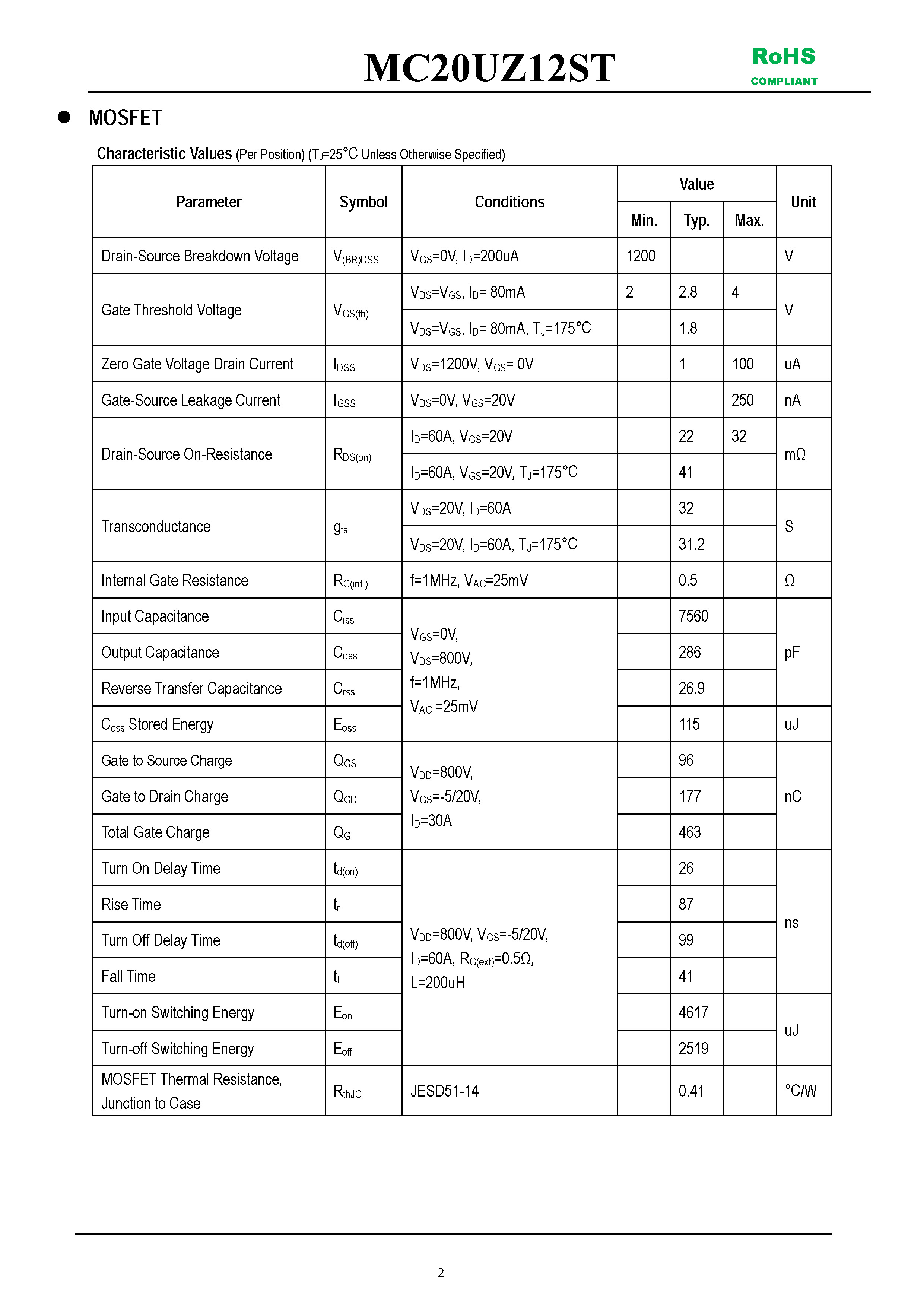

MC20UZ12ST-1_页面_2

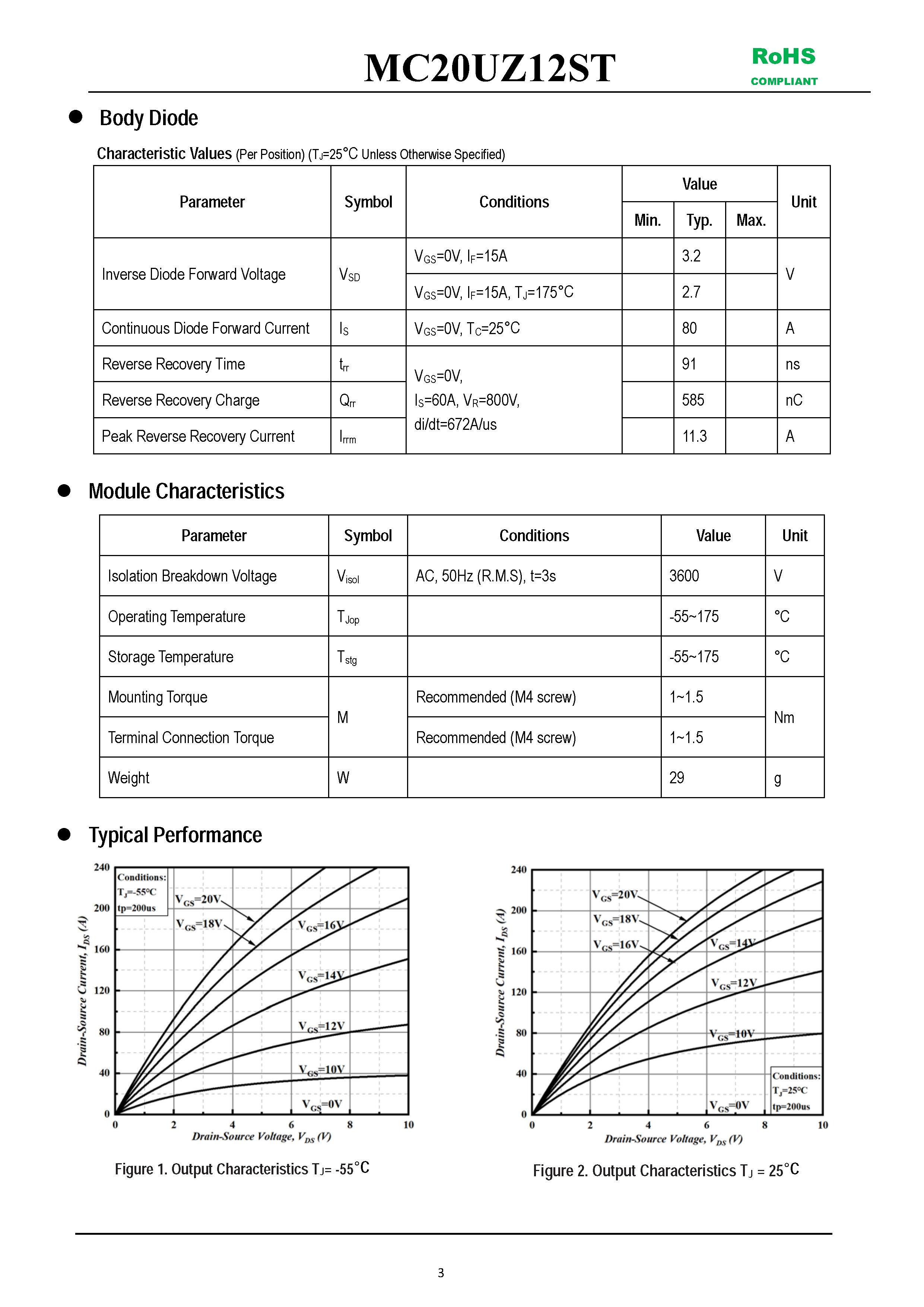

MC20UZ12ST-1_页面_3


COMPANY PROFILE-01


En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01



Previous:
Next:
VDS 1200V SOT-227 Silicon Carbide Schottky MOSFET RDS(on) 22mΩ 1200V Silicon Carbide Schottky MOSFET High Voltage Diode 500kv Mosfet Fast Recovery Diode power MODULE Diode Rectifier Bridge fetures
