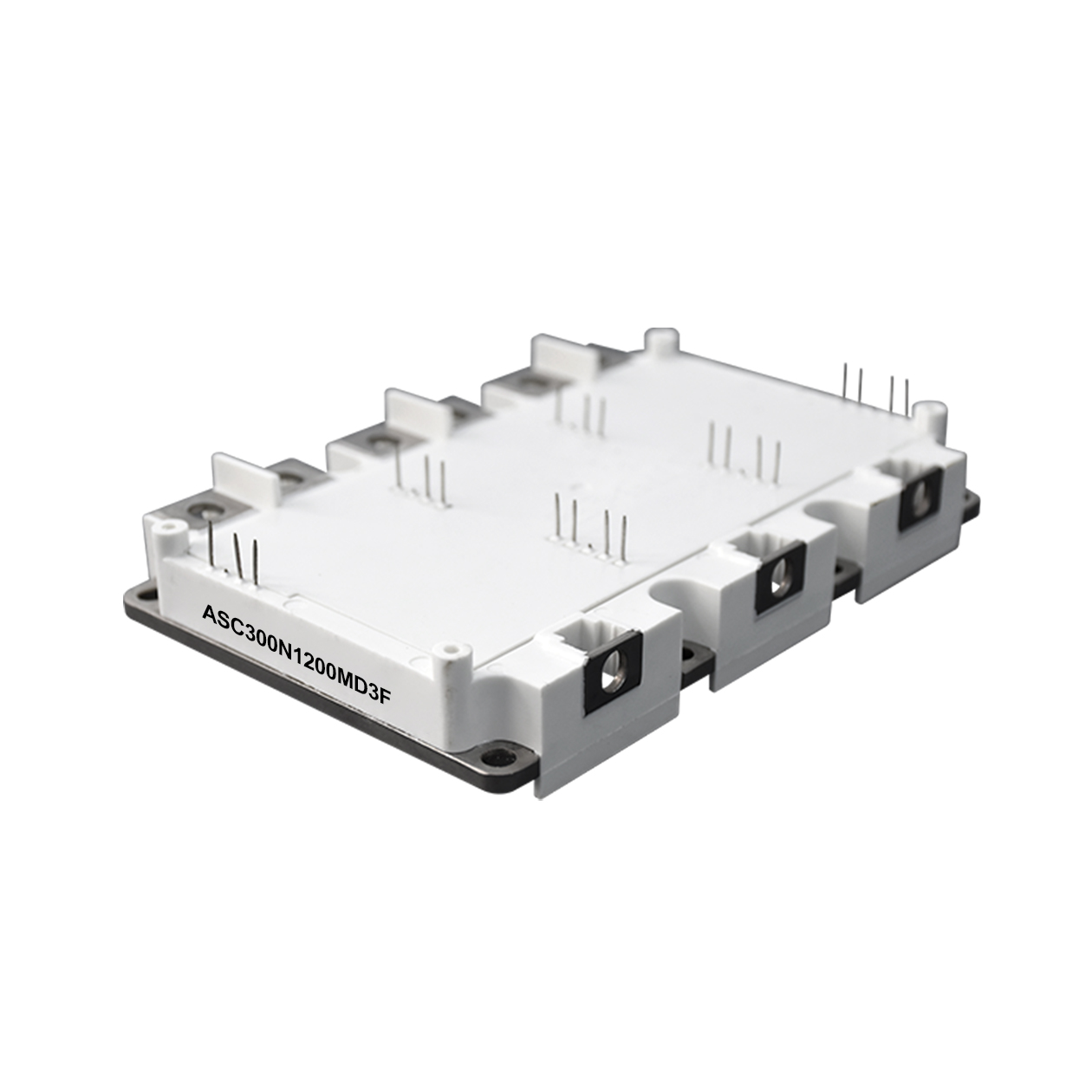

1200V/300A/5.7mΩ/18V SiC Mosfet Module, DWC3, ASC300N1200MD3F

1200V N-Channel MOSFET
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ASC300N1200MD3F

  • Merry

1200V/300A/5.7mΩ/18V SiC Mosfet Module, DWC3, ASC300N1200MD3F

Features :
- High Temperature, Humidity, and Bias Operation
- Ultra Low Loss
- High-Frequency Operation
- Zero Turn-off Tail Current from MOSFET
- Normally-off, Fail-safe Device Operation
- Ease of Paralleling
- AlSiC Baseplate and Aluminum Nitride Insulator, Applicable to air cooling system

Applications :
- Enables Compact, Lightweight, Efficient Systems
- Harsh Outdoor Environment Installation
- Mitigates Over-voltage Protection
- Reduced Thermal Requirements
- Reduced System Cost

ASC300N1200MD3FName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

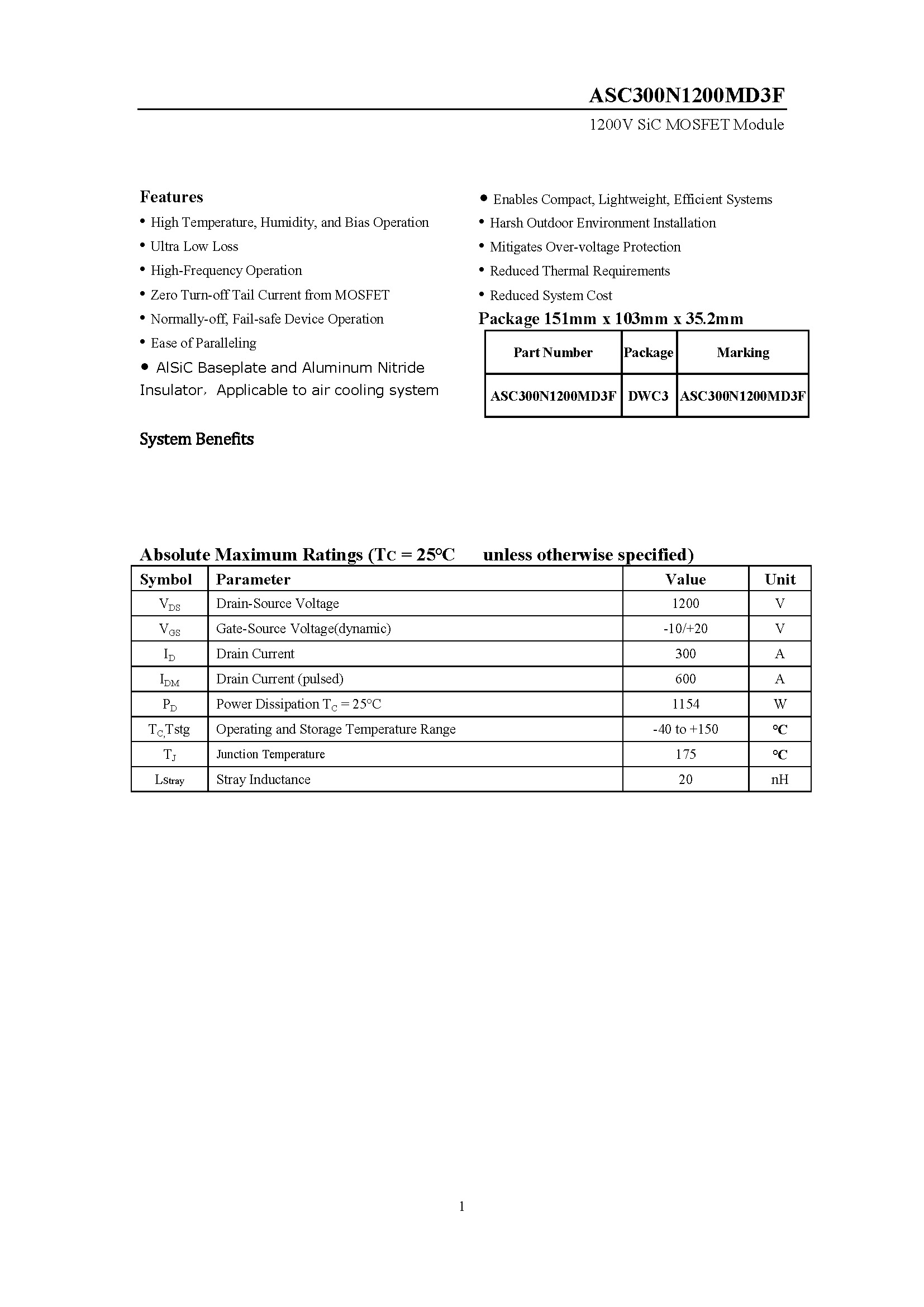

ASC300N1200MD3F-1_页面_1

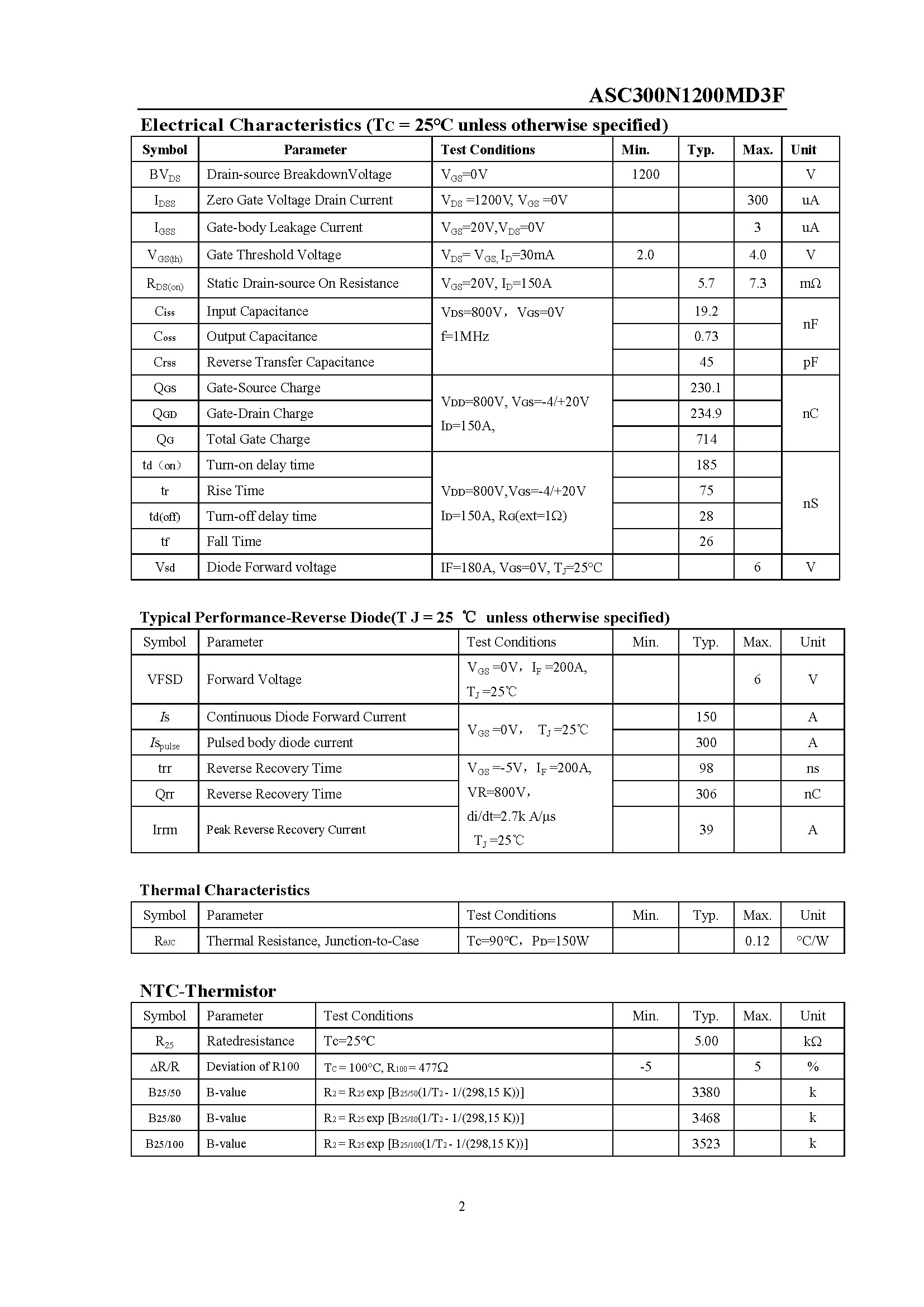

ASC300N1200MD3F-1_页面_2

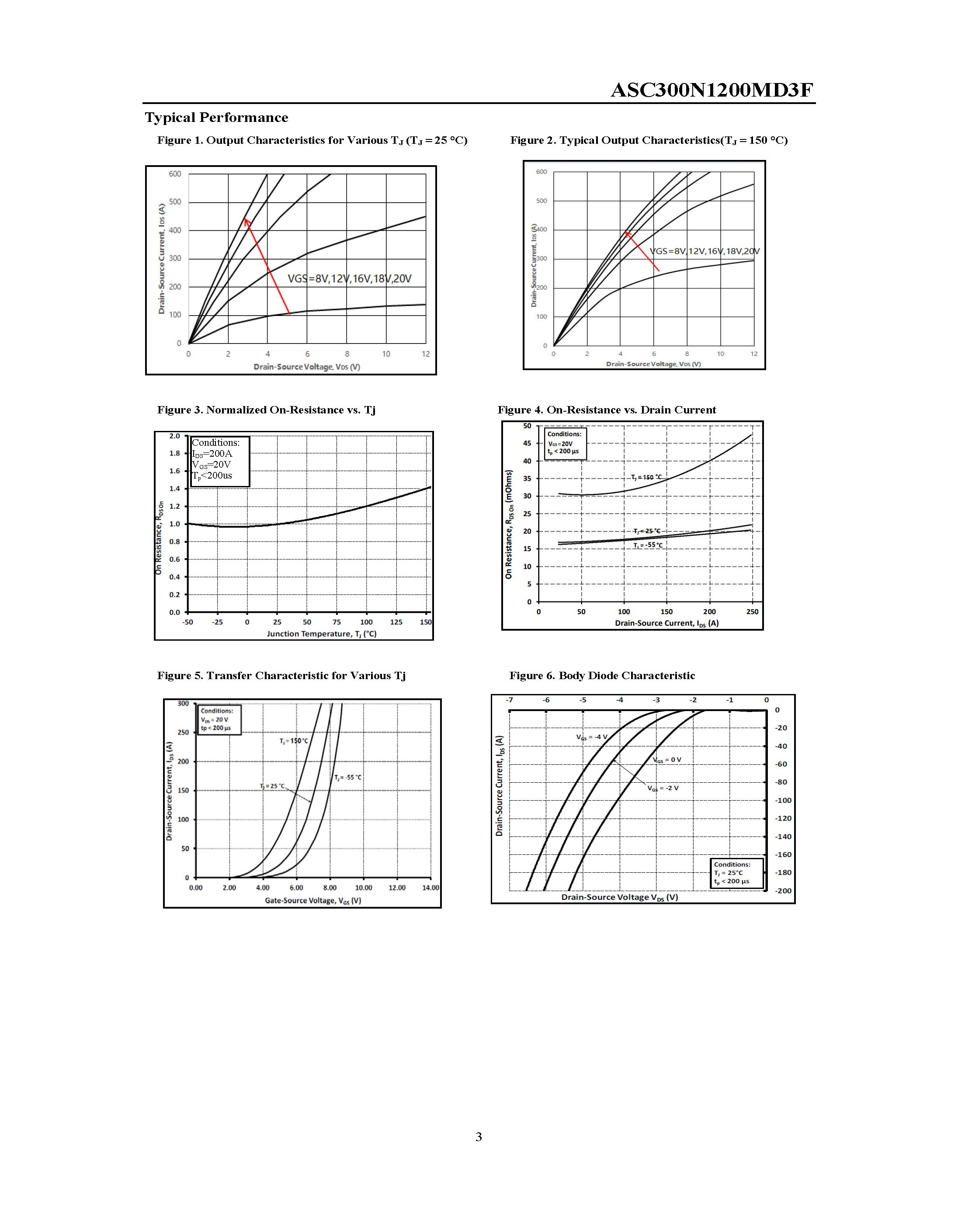

ASC300N1200MD3F-1_页面_3

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01


Previous:
Next:
1200V N-Channel MOSFET 300A/18V MOSFET DWC3 MOSFET ASC300N1200MD3F MOSFET Fast Recovery Diode Rectifier
