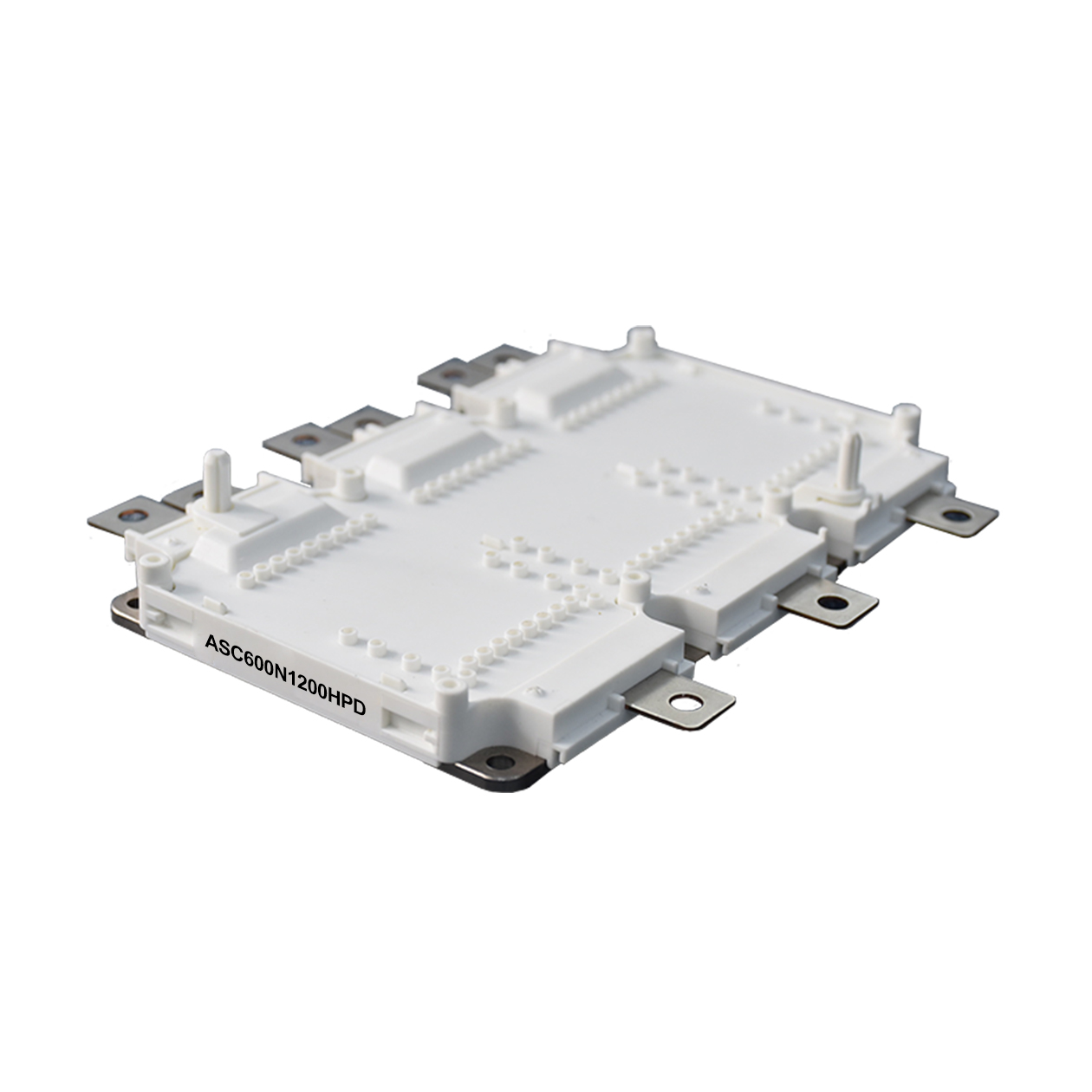

1200V/600A/2.8mΩ/18V SiC Mosfet Module, HPD, ASC600N1200HPD

1200V N-Channel MOSFET
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ASC600N1200HPD

  • Merry

1200V/600A/2.8mΩ/18V SiC Mosfet Module, HPD, ASC600N1200HPD

Features :
- High Temperature, Humidity, and Bias Operation
- Ultra Low Loss <10nH
- High-Frequency Operation
- Zero Turn-off Tail Current from MOSFET
- Normally-off, Fail-safe Device Operation
- Ease of Paralleling
- Cu Baseplate and Silicon Nitride Insulator
- Isolated voltage to DC 4200 V

Applications :
- Enables Compact, Lightweight, Efficient Systems
- Harsh Outdoor Environment Installation
- Mitigates Over-voltage Protection
- Reduced Thermal Requirements
- Reduced System Cost

ASC600N1200HPDName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

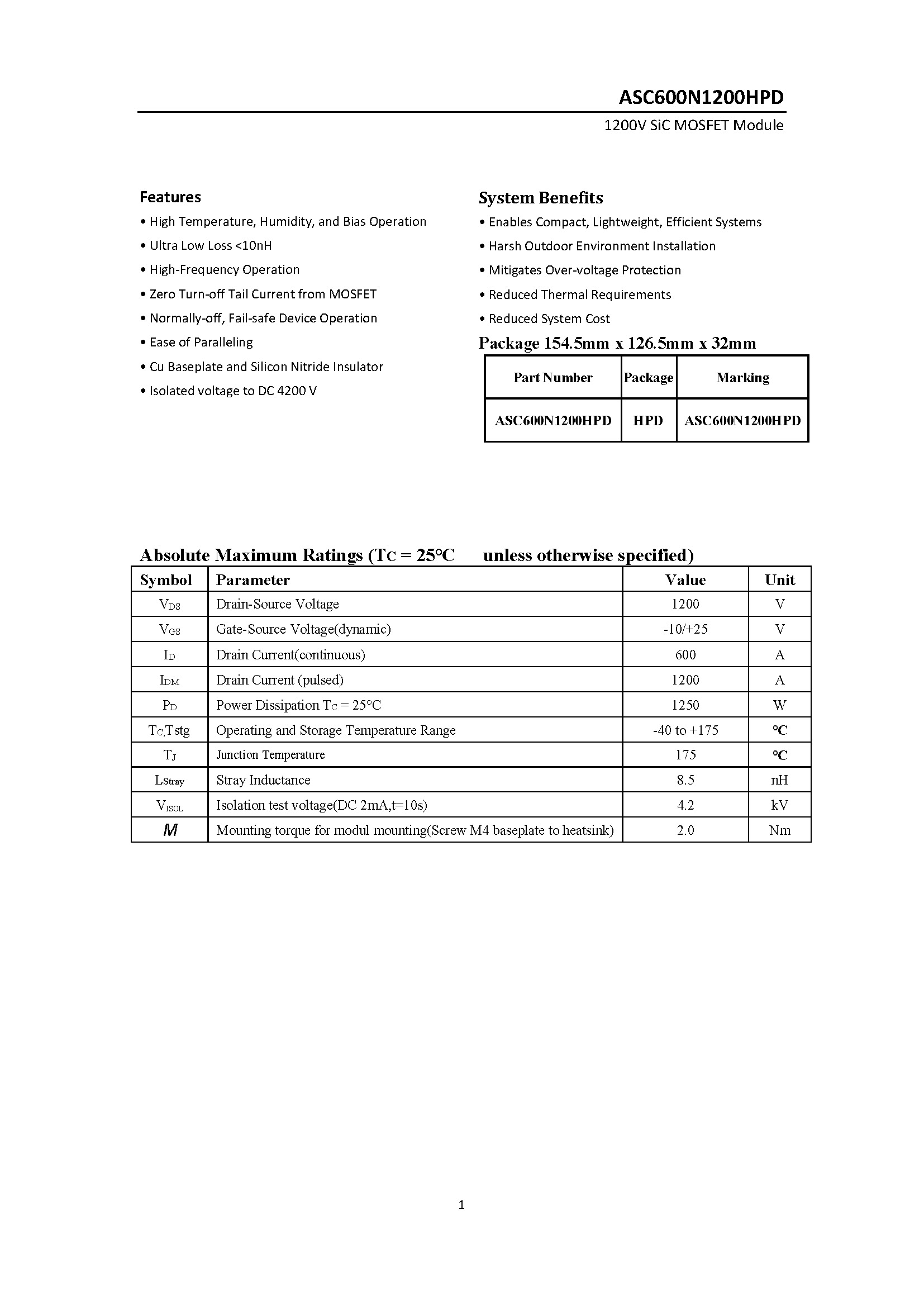

ASC600N1200HPD-1_页面_1

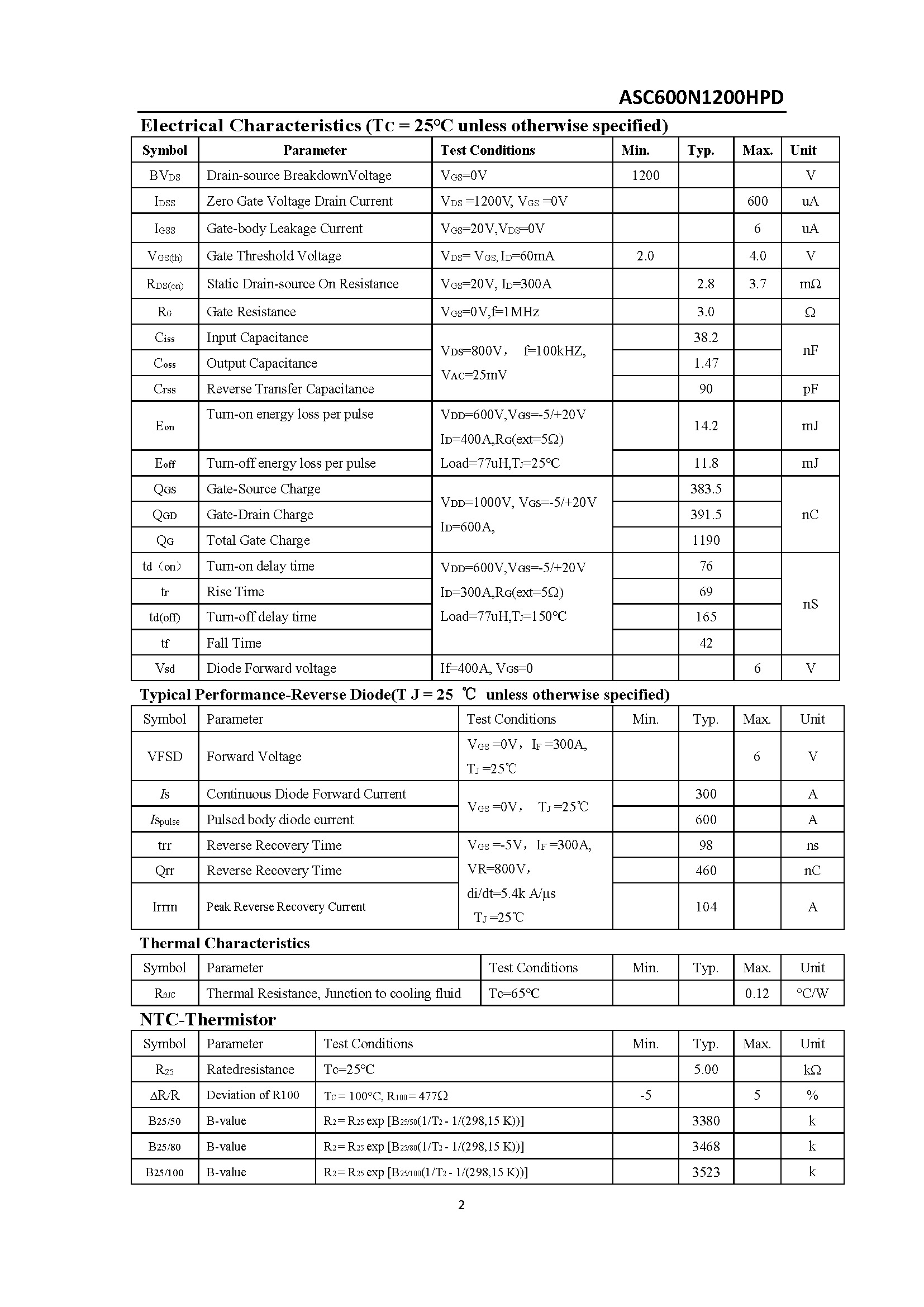

ASC600N1200HPD-1_页面_2

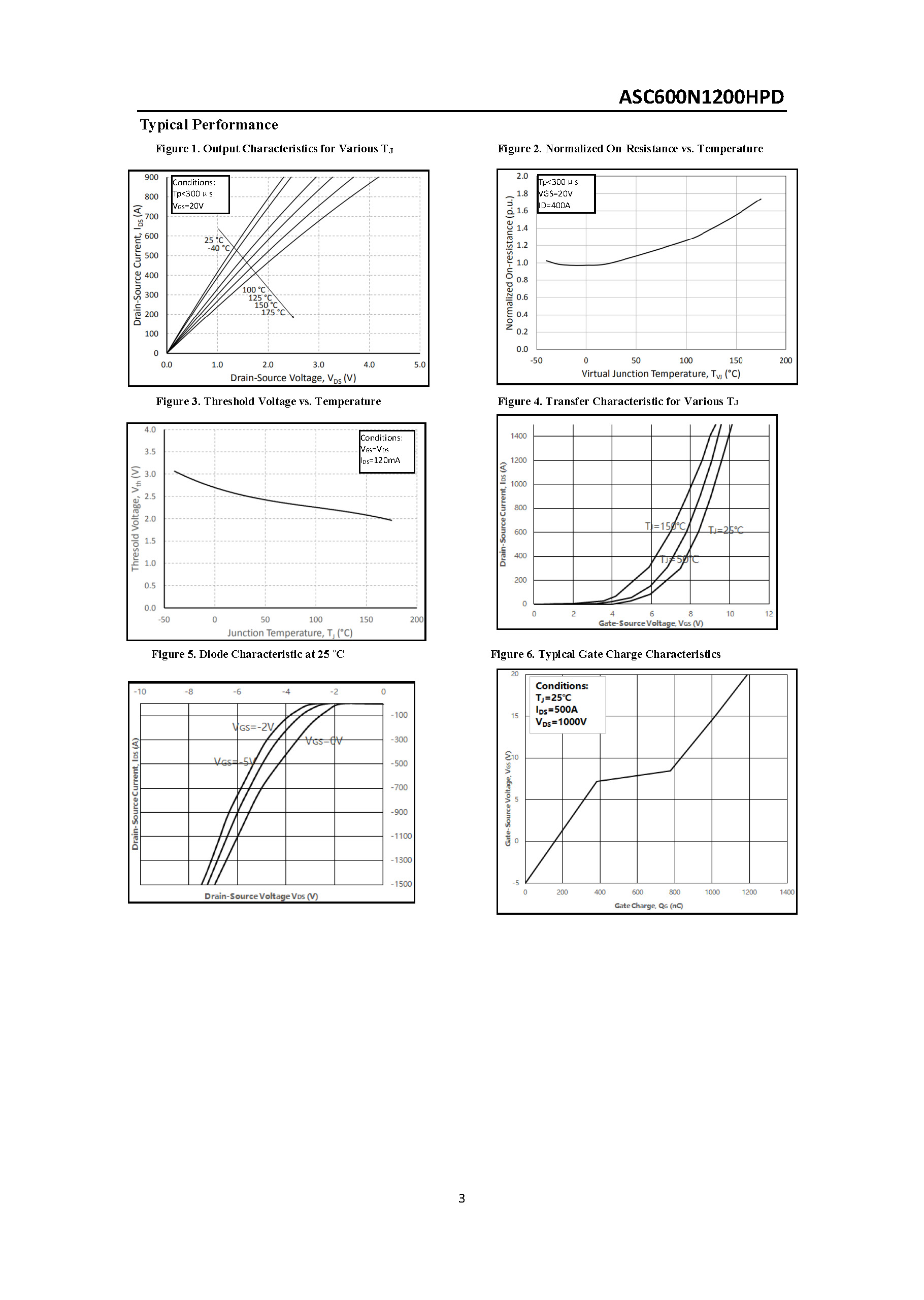

ASC600N1200HPD-1_页面_3
