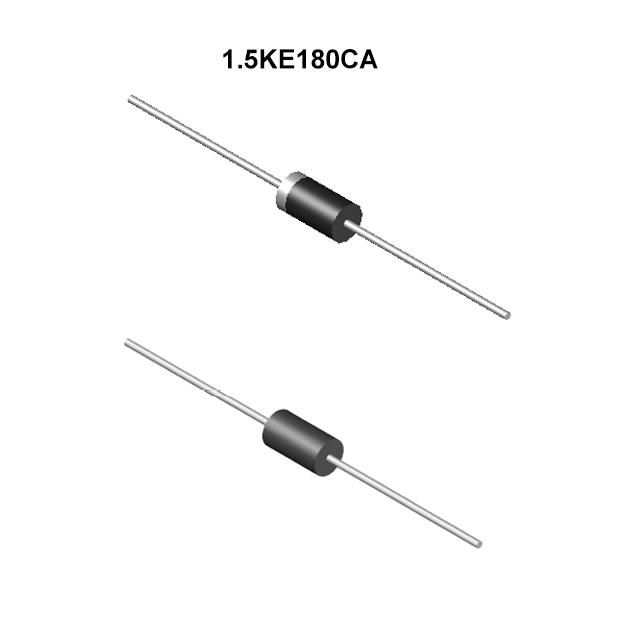

1.5KE180CA, 1500W Transient Voltage Suppressor Diodes, DO-201AE

1500W Transient Voltage Suppressor Diodes
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 1.5KE180CA

  • Merry

1500W Transient Voltage Suppressor Diodes, DO-201AE, 1.5KE180CA

Features :
- Excellent clamping capability
- Low dynamic impedance
- Solder dip 275 °C max. 7 s, per JESD 22-B106

Mechanical Date :
- Package: DO-201AE
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: For uni-directional types the band denotes cathode end, no marking on bi-directional types
