1-Line Bi-directional TVS Diode, VBR(min): 3.8V, IT: 1mA, VRWM: 3.3V, IPP: 25A, fetures, applications, SOD-323, ASD33CL

Features :
- 300W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra low leakage: nA level
- Operating voltage:3.3V,5V,8V,12V,24V,36V
- Ultra low clamping voltage
- Complies with following standards:
   - IEC 61000-4-2 (ESD) immunity test
   Air discharge: ±30Kv
   Contact discharge: ±30kV
- RoHS Compliant
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

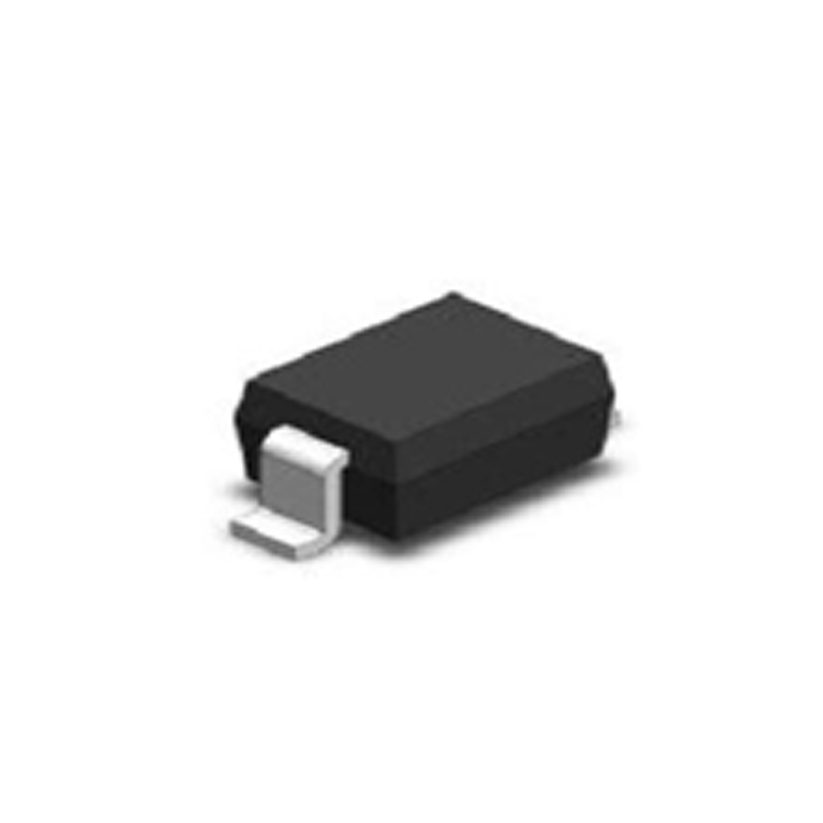

  • ASD33CL

  • Merry

1-Line Bi-directional TVS Diode, VBR(min): 3.8V, IT: 1mA, VRWM: 3.3V, IPP: 25A, fetures, applications, SOD-323, ASD33CL

Features :

- 300W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra low leakage: nA level
- Operating voltage:3.3V,5V,8V,12V,24V,36V
- Ultra low clamping voltage
- Complies with following standards:
  - IEC 61000-4-2 (ESD) immunity test
  Air discharge: ±30Kv
  Contact discharge: ±30kV
- RoHS Compliant

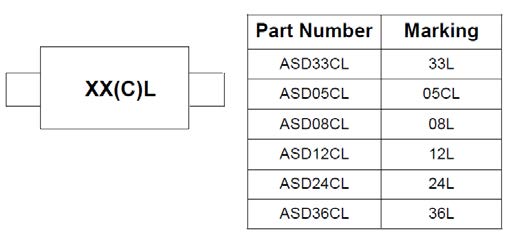

Marking Information :

ASD


ASD33CL

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

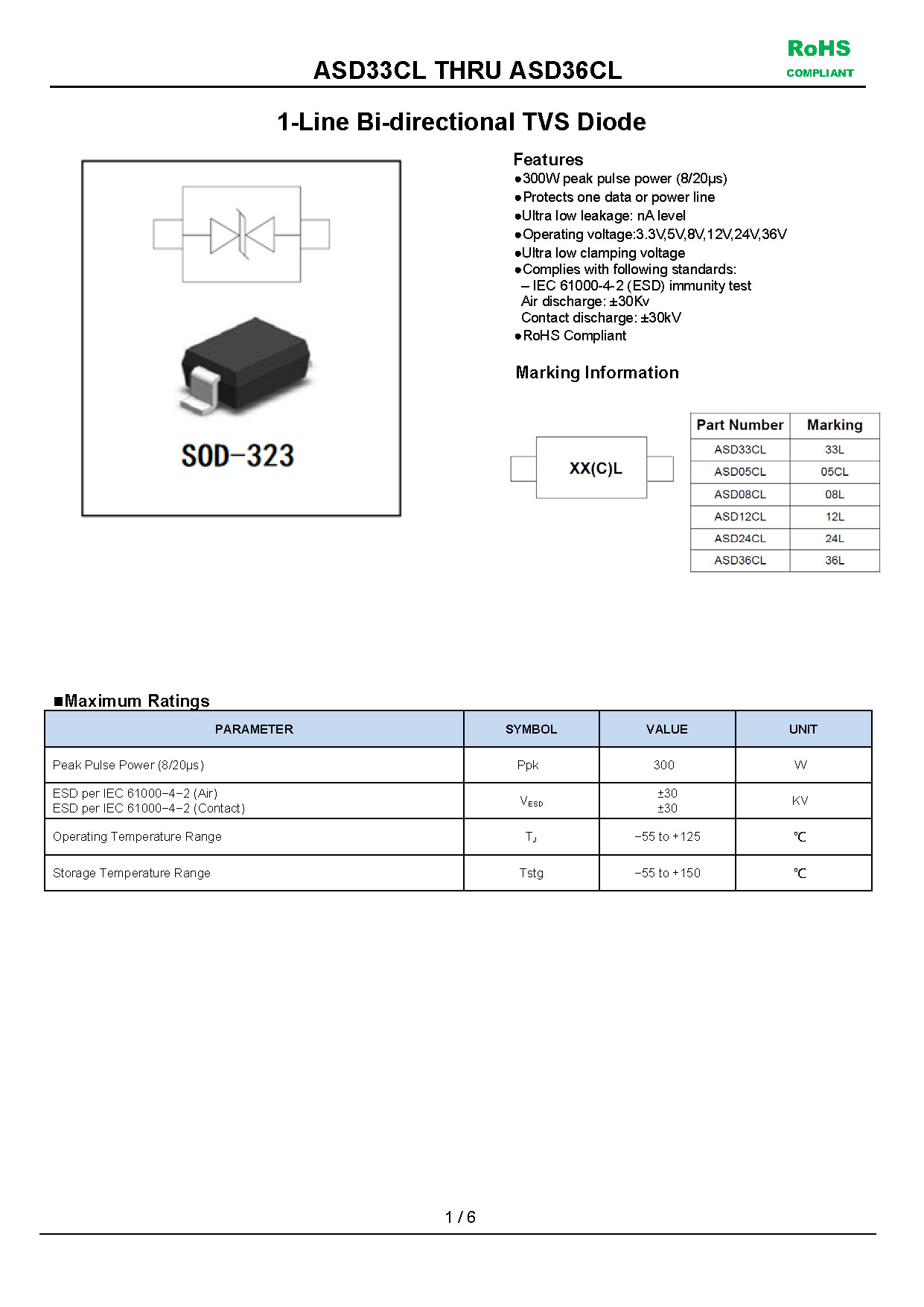

ASD33CL THRU ASD36CL_页面_1

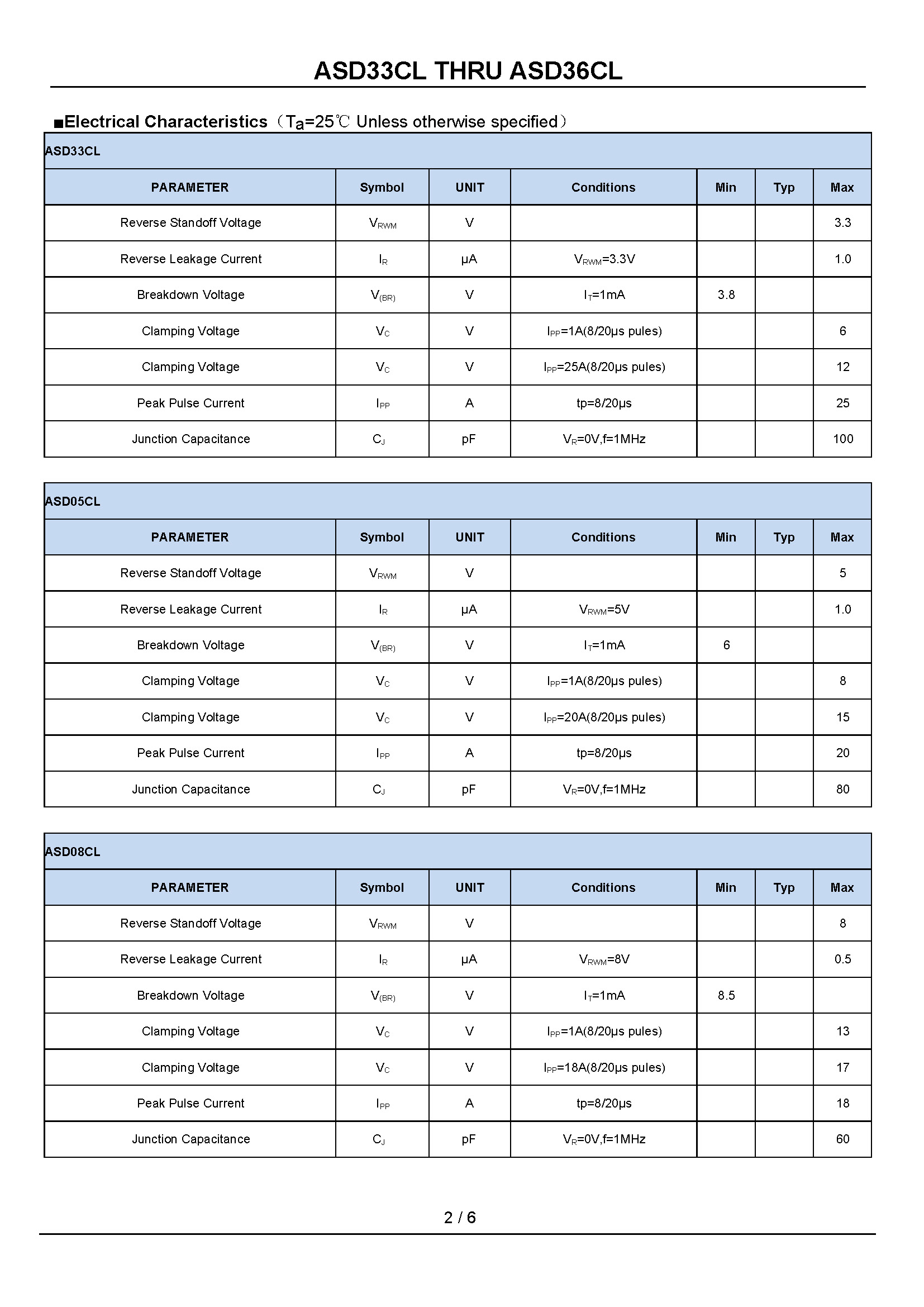

ASD33CL THRU ASD36CL_页面_2

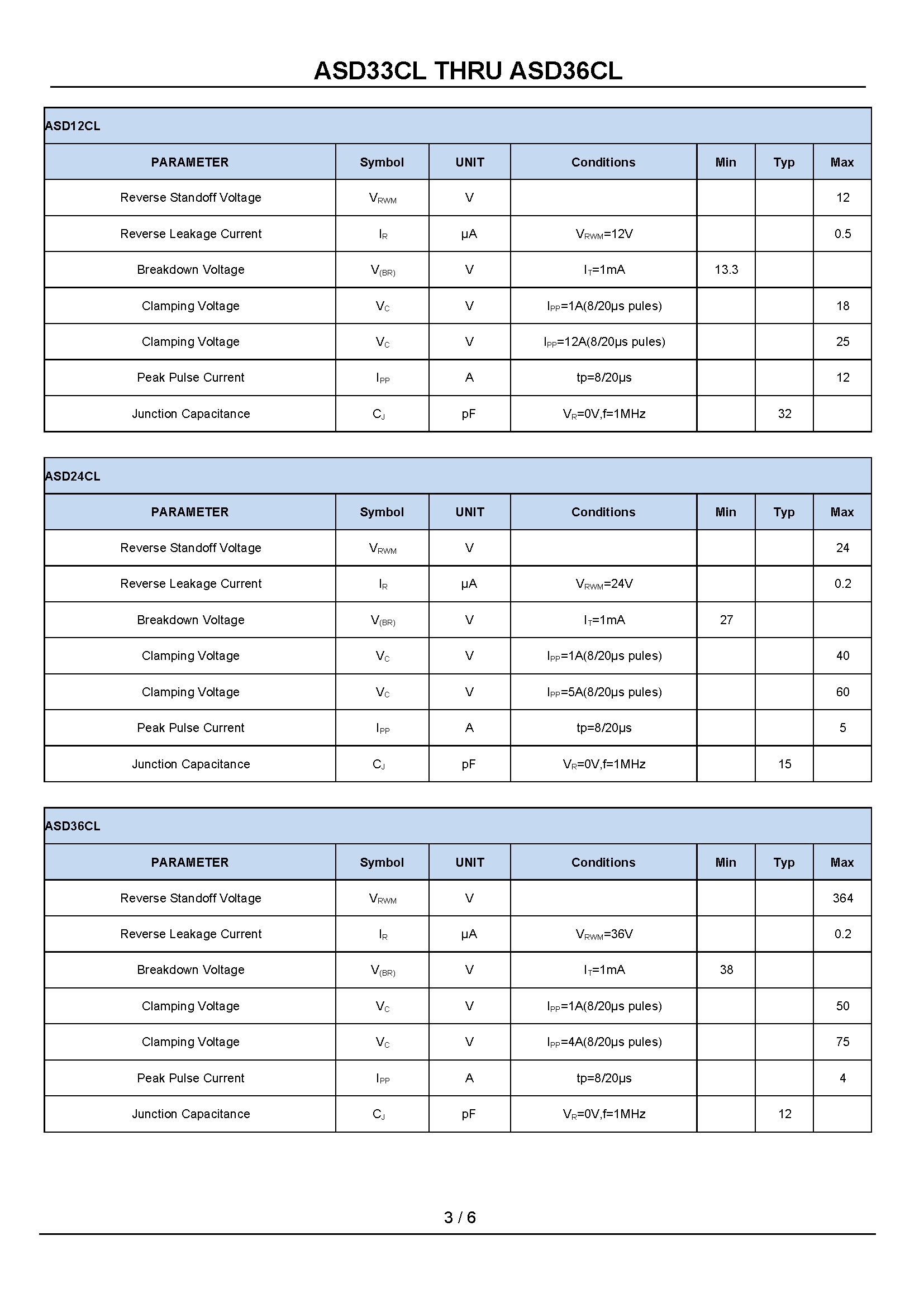

ASD33CL THRU ASD36CL_页面_3

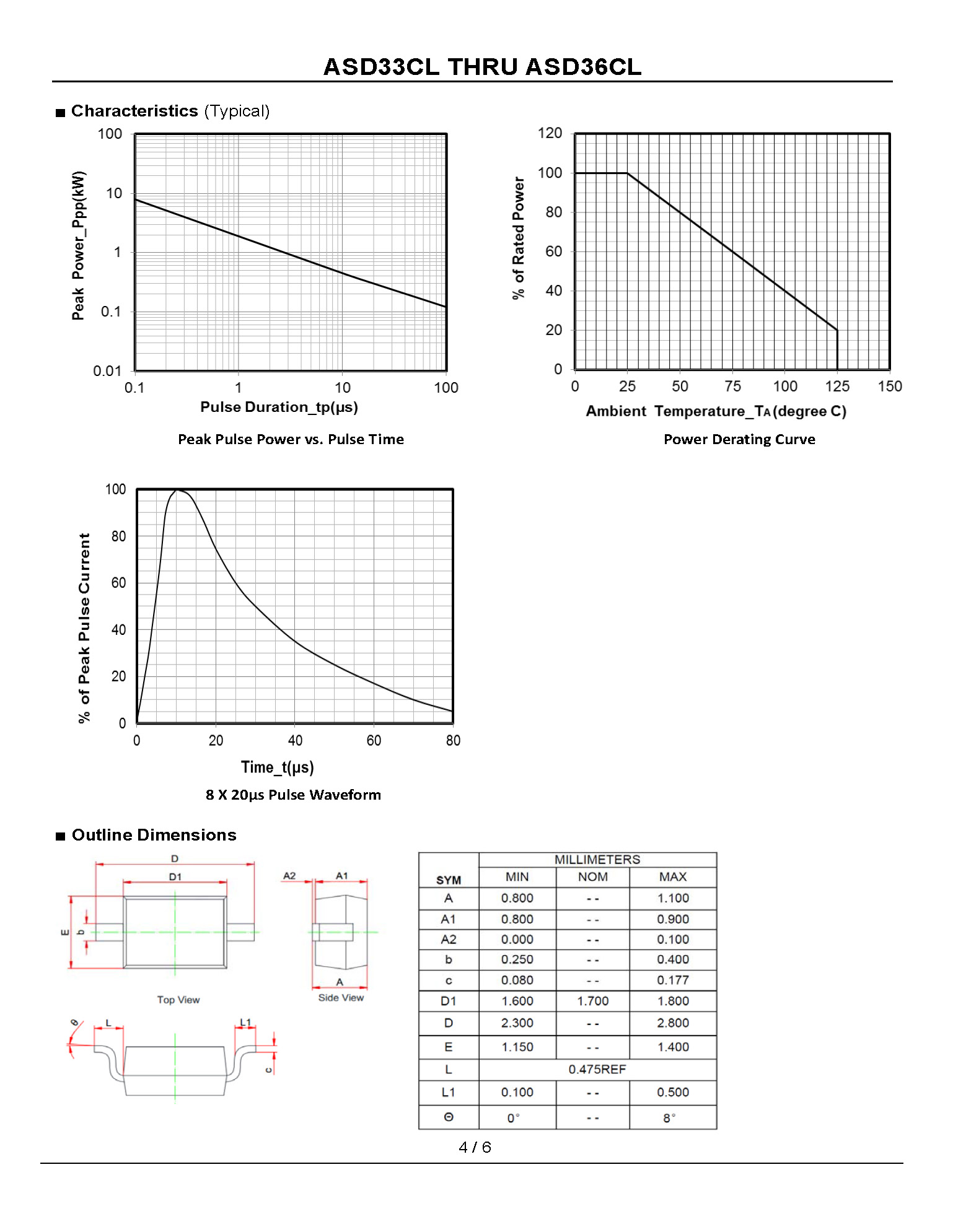

ASD33CL THRU ASD36CL_页面_4
