1-Line, Bi-directional, Ultra-low Capacitance Transient Voltage Suppressor, VBR: 6V, IT: 1mA, VRWM: 5V, fetures, applications, DFN0603-2L, SESDULC5V0LZB

Features :
- Stand-off voltage: ±5V Max
- Transient protection for each line according to
   IEC61000-4-2(ESD): ±16kV (contact)
   IEC61000-4-5(surge): 5.5A (8/20μs)
- Low leakage current
- Ultra-low capacitance: CJ = 0.3pF typ.
- Low clamping voltage:
   VCL =7.5V typ. @ IPP = 16A (TLP)
- RoHS Compliant
- Solid-state silicon technology

Applications
- Cellular handsets
- Tablets
- Laptops
- Other portable devices
- Network communication devices

Mechanical Data
- Package: DFN0603-2L
- Case Material: "Green" Molding Compound
- Moisture Sensitivity: Level 3 per J-STD-020
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SESDULC5V0LZB

  • Merry

1-Line, Bi-directional, Ultra-low Capacitance Transient Voltage Suppressor, VBR: 6V, IT: 1mA, VRWM: 5V, fetures, applications, DFN0603-2L, SESDULC5V0LZB

Features :
- Stand-off voltage: ±5V Max
- Transient protection for each line according to
  IEC61000-4-2(ESD): ±16kV (contact)
  IEC61000-4-5(surge): 5.5A (8/20μs)
- Low leakage current
- Ultra-low capacitance: CJ = 0.3pF typ.
- Low clamping voltage:
  VCL =7.5V typ. @ IPP = 16A (TLP)
- RoHS Compliant
- Solid-state silicon technology

Applications
- Cellular handsets
- Tablets
- Laptops
- Other portable devices
- Network communication devices

Mechanical Data
- Package: DFN0603-2L
- Case Material: "Green" Molding Compound
- Moisture Sensitivity: Level 3 per J-STD-020

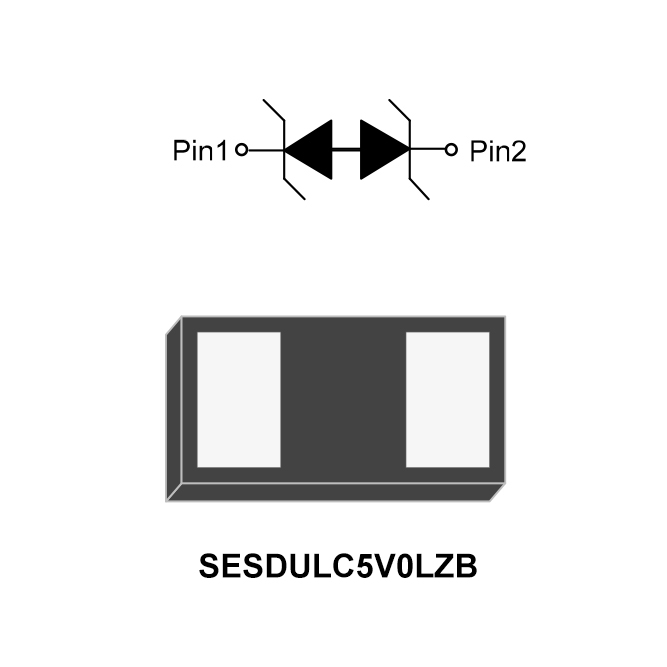

SESDULC5V0LZB

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

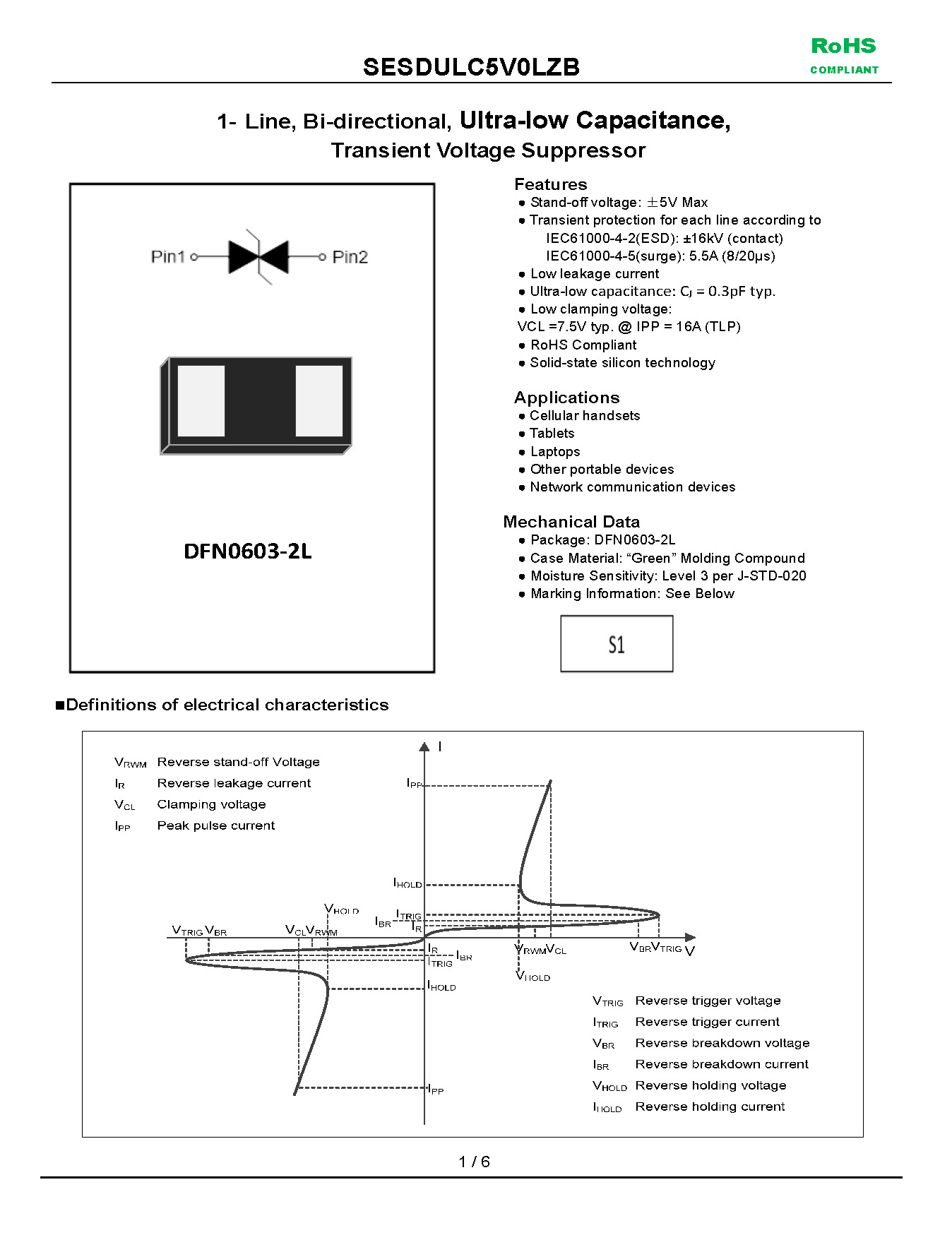

SESDULC5V0LZB-1_页面_1

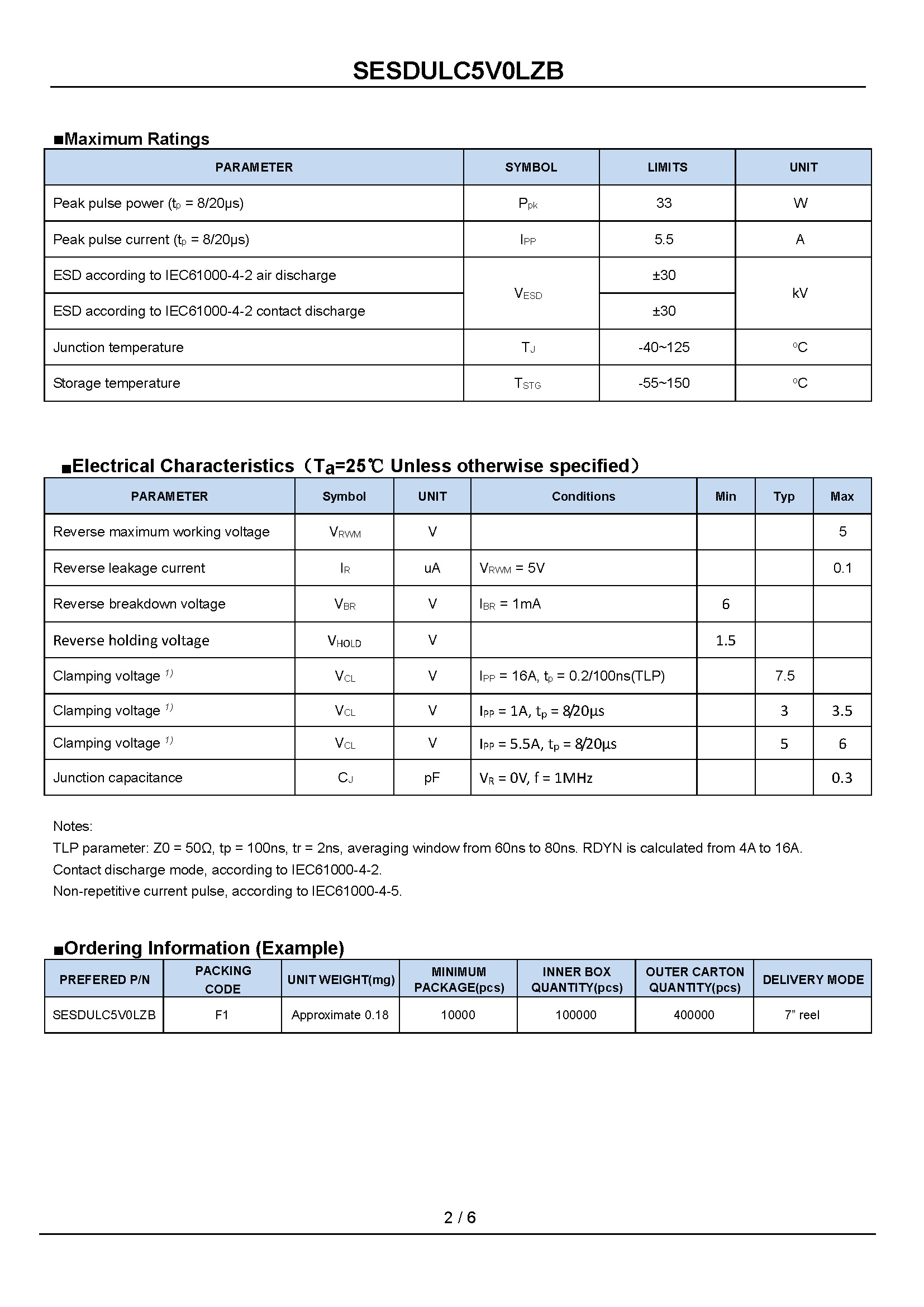

SESDULC5V0LZB-1_页面_2

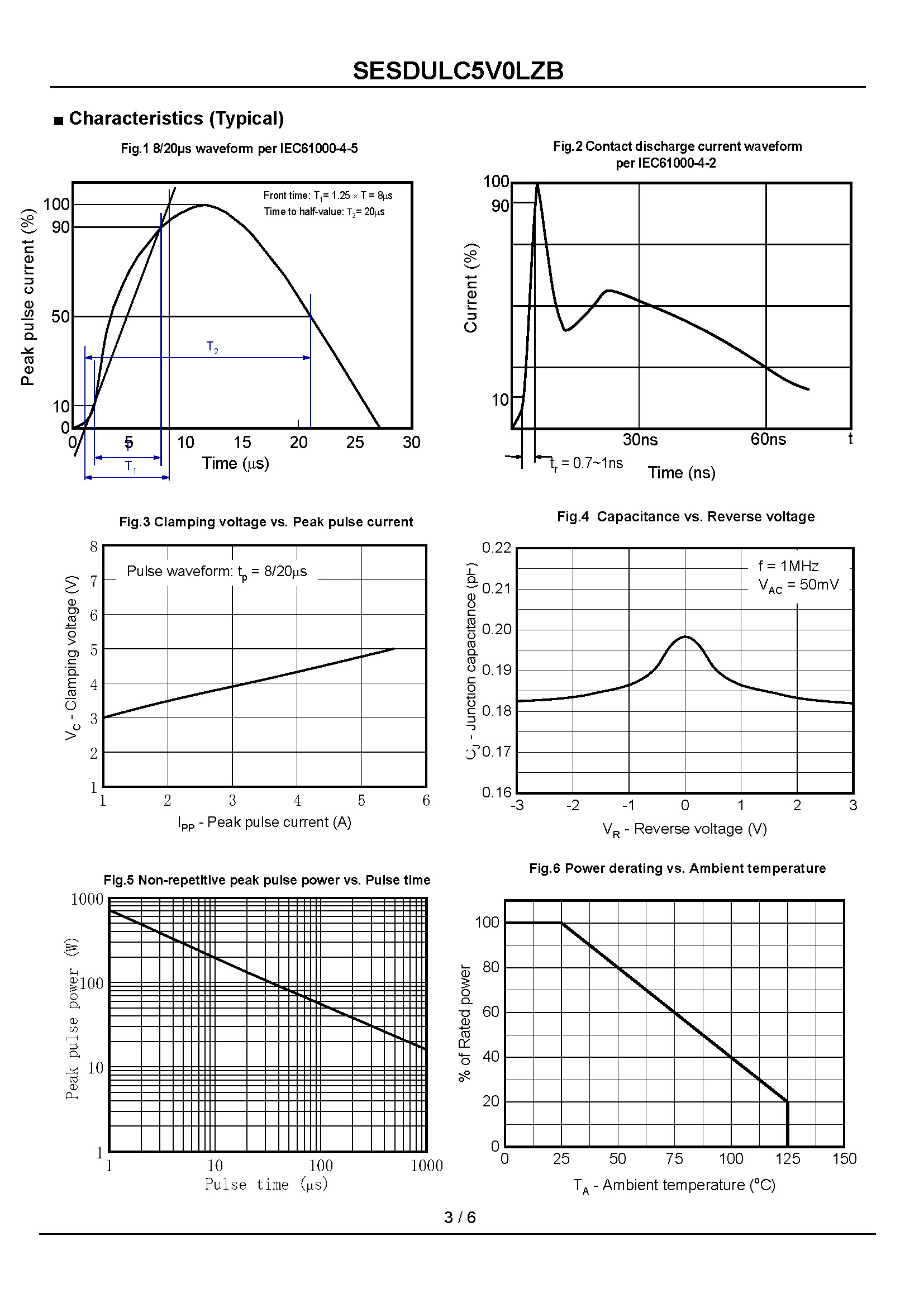

SESDULC5V0LZB-1_页面_3

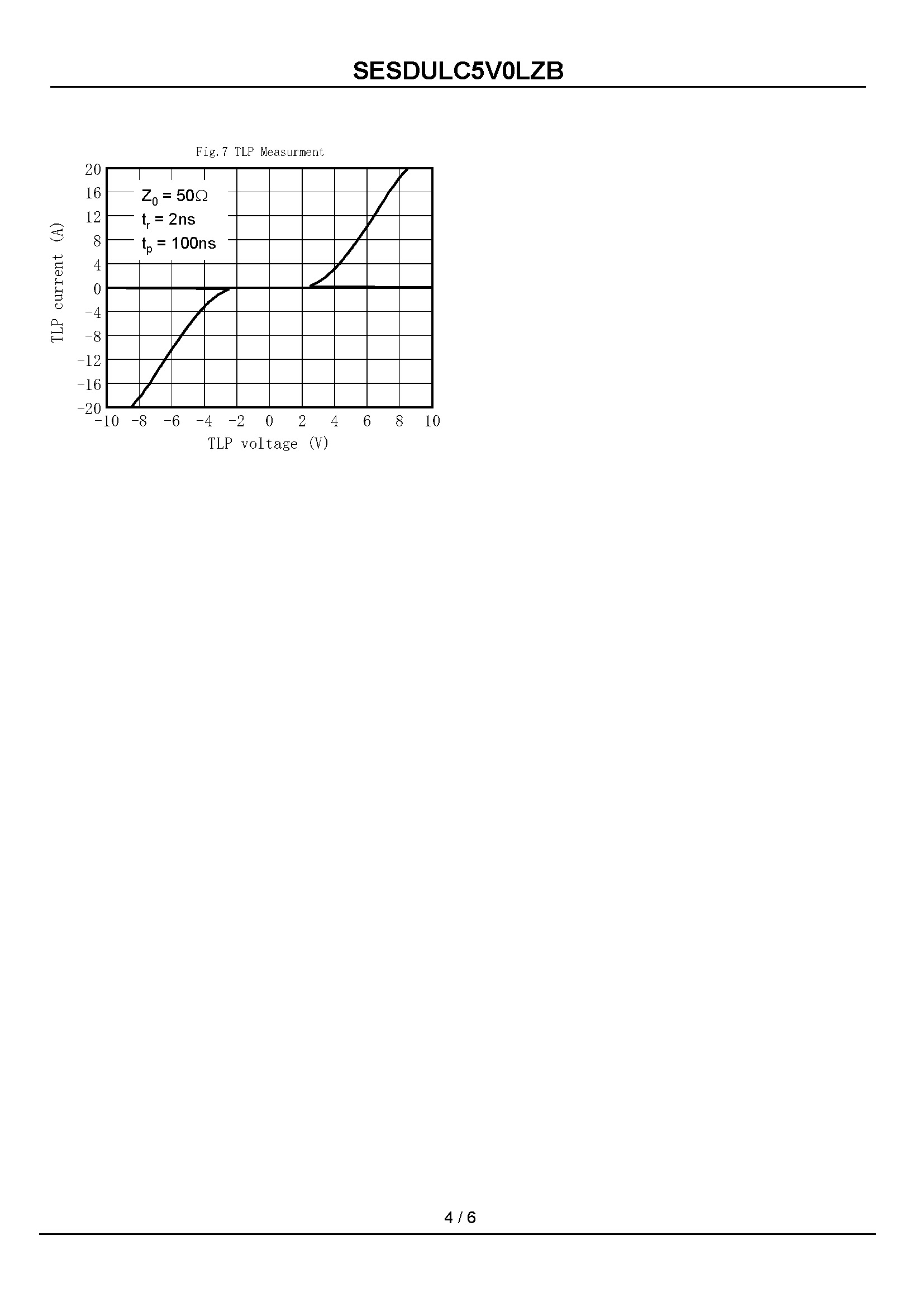

SESDULC5V0LZB-1_页面_4

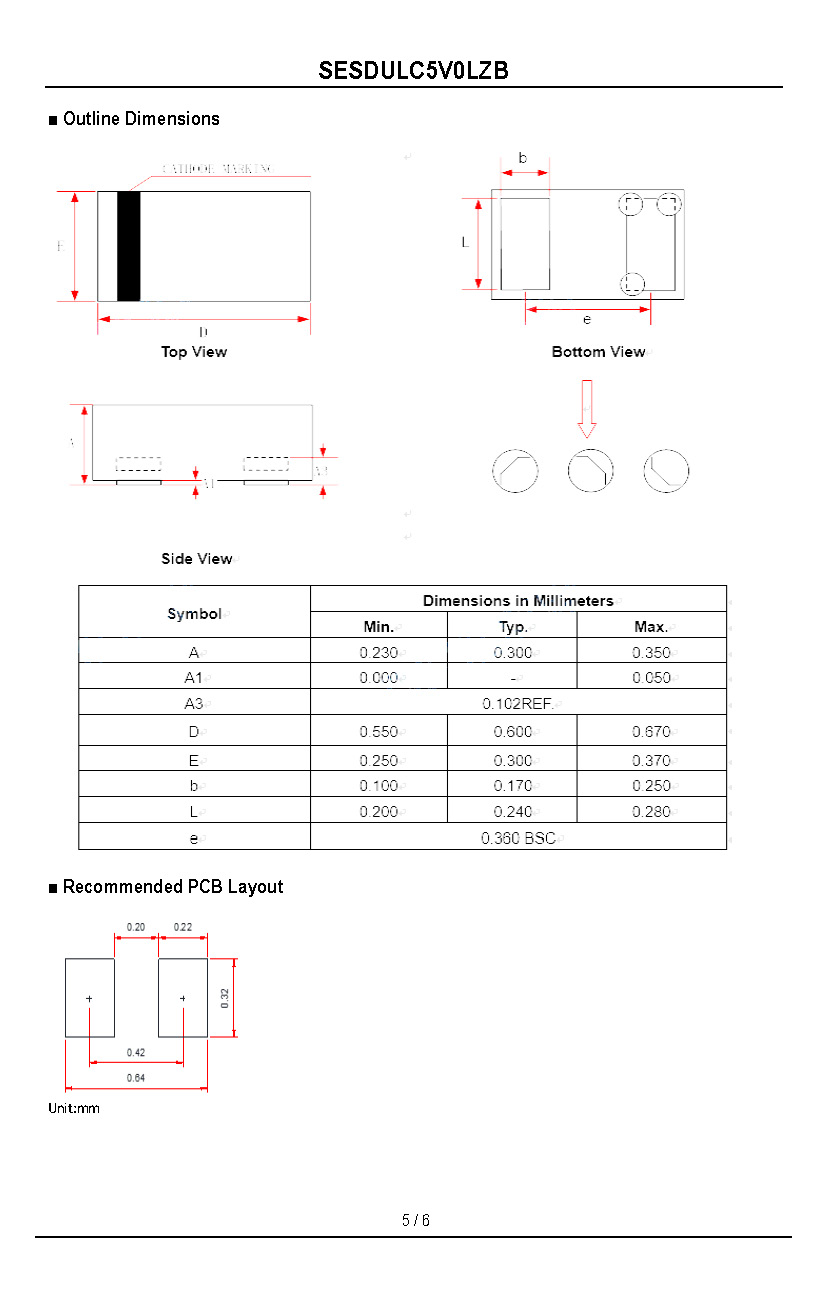

SESDULC5V0LZB-1_页面_5
