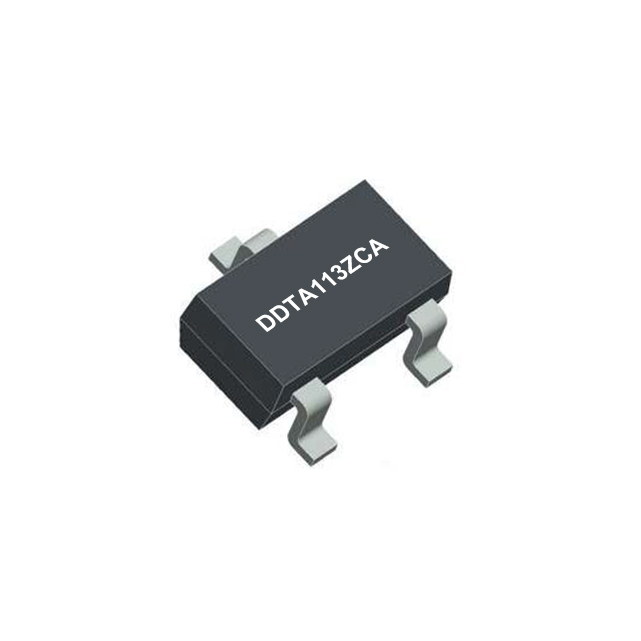

200mW Digital Transistors (Built-in Resistors), PNP, SOT-23, DDTA113ZCA

200mW Digital Transistors (Built-in Resistors)
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • DDTA113ZCA

  • Merry

Digital Transistors (Built-in Resistors), PNP, PD: 200mW, IC: -500mA, fetures, applications, SOT-23, DDTA113ZCA

Features

- Epoxy meets UL-94 V-0 flammability rating
- Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors
- Surface mount package ideally Suited for Automatic Insertion
- PNP

Features

- Package: SOT-23
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Marking: E11A

DDTA113ZCA
