45V Schottky Diodes, Io: 20A, IFSM: 375A, R-6, 20SQ045

45V Schottky Diodes
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 20SQ045

  • Merry

Schottky Diodes, VRM: 45V, Io: 20A, IFSM: 375A,R-6, 20SQ045

Features :

- High frequency operation
- Low forward voltage drop
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for enhanced ruggedness and long term reliability
- Solder dip 275 °C max. 7s, per JESD 22-B106

Mechanical Data :

- Package: R-6
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD 22-B102
- Polarity: Color band denotes cathode end

Applications :

- Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.

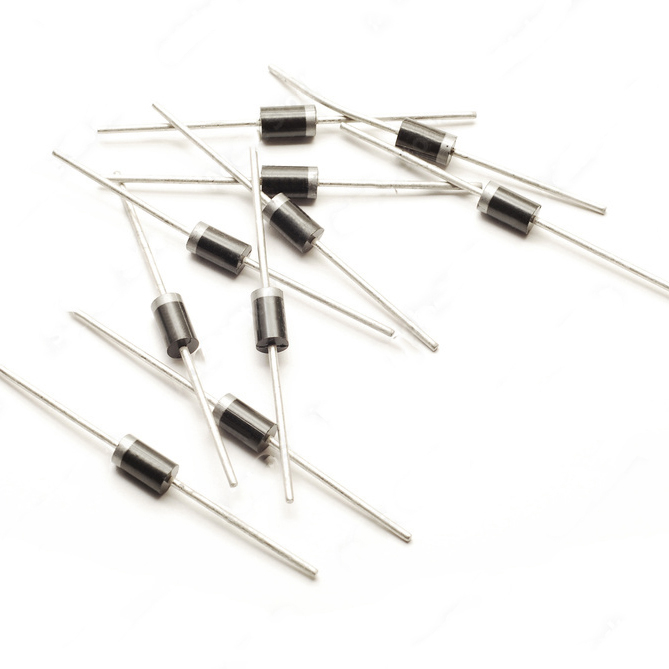

1000_F_23219310

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

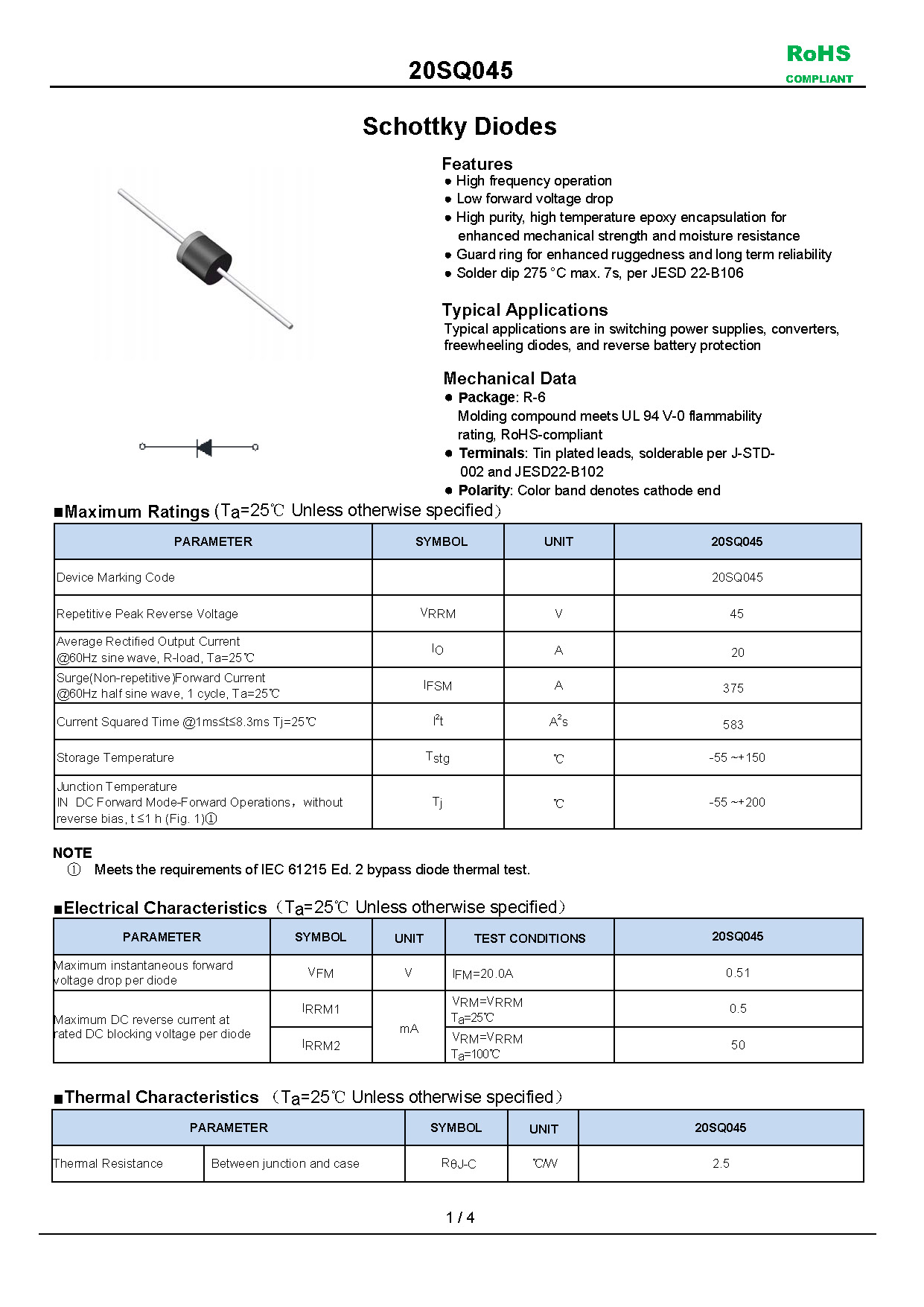

20SQ045-1_页面_1

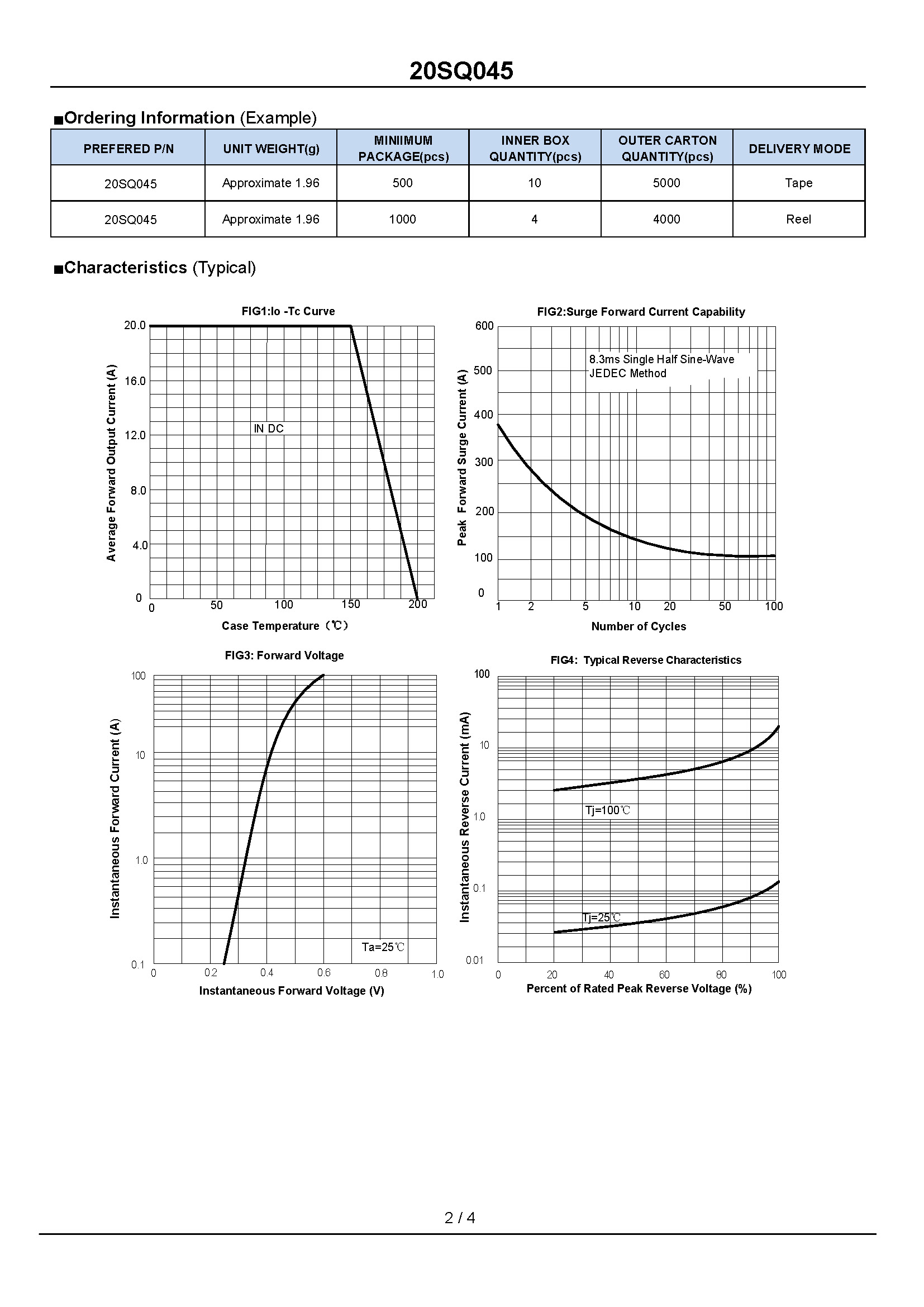

20SQ045-1_页面_2

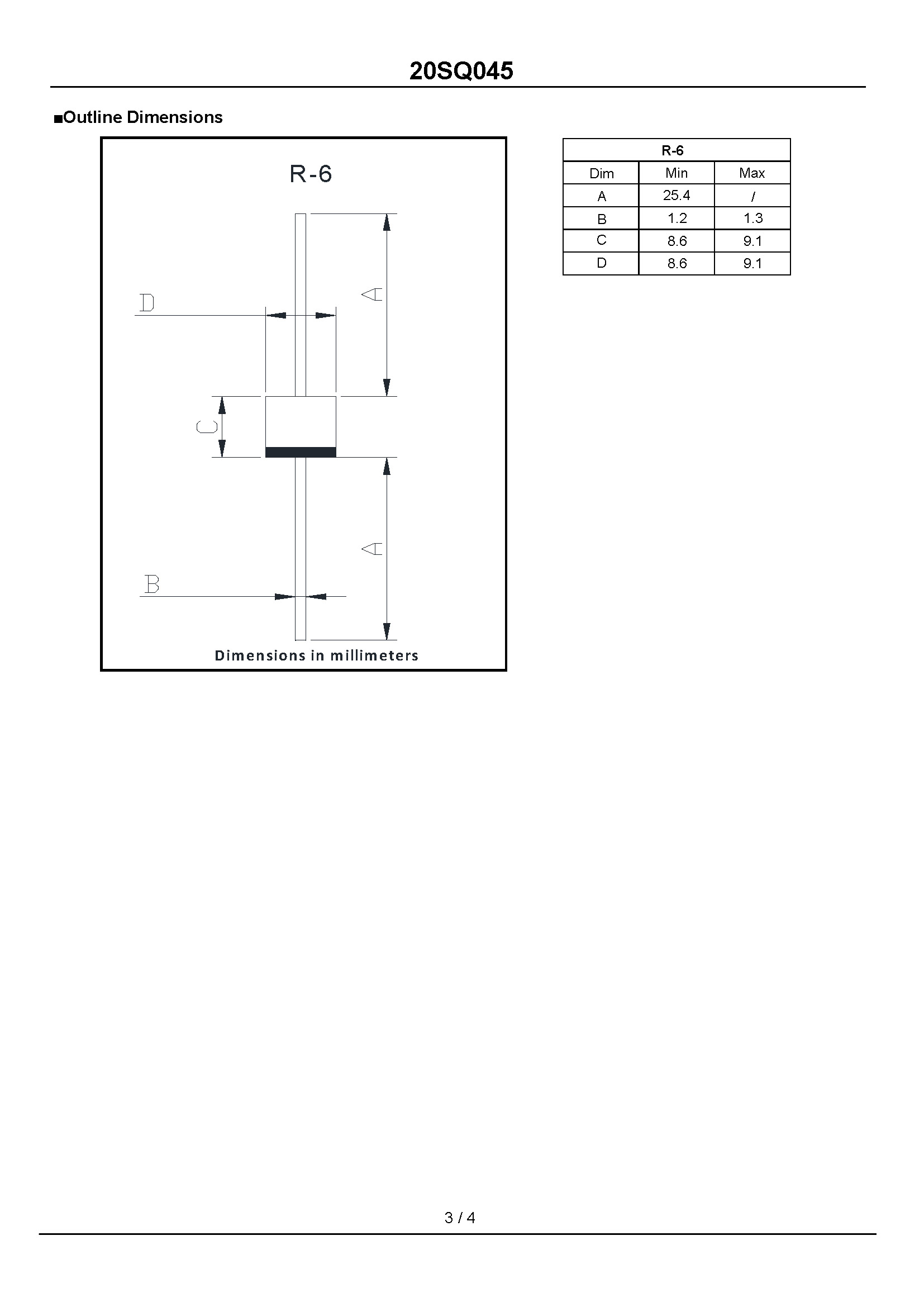

20SQ045-1_页面_3
