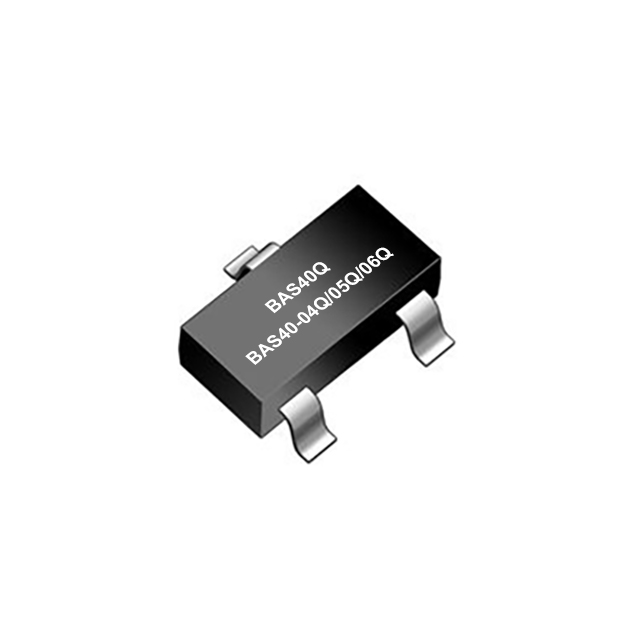

BAS40Q&BAS40-04Q&BAS40-05Q&BAS40-06Q
Merry

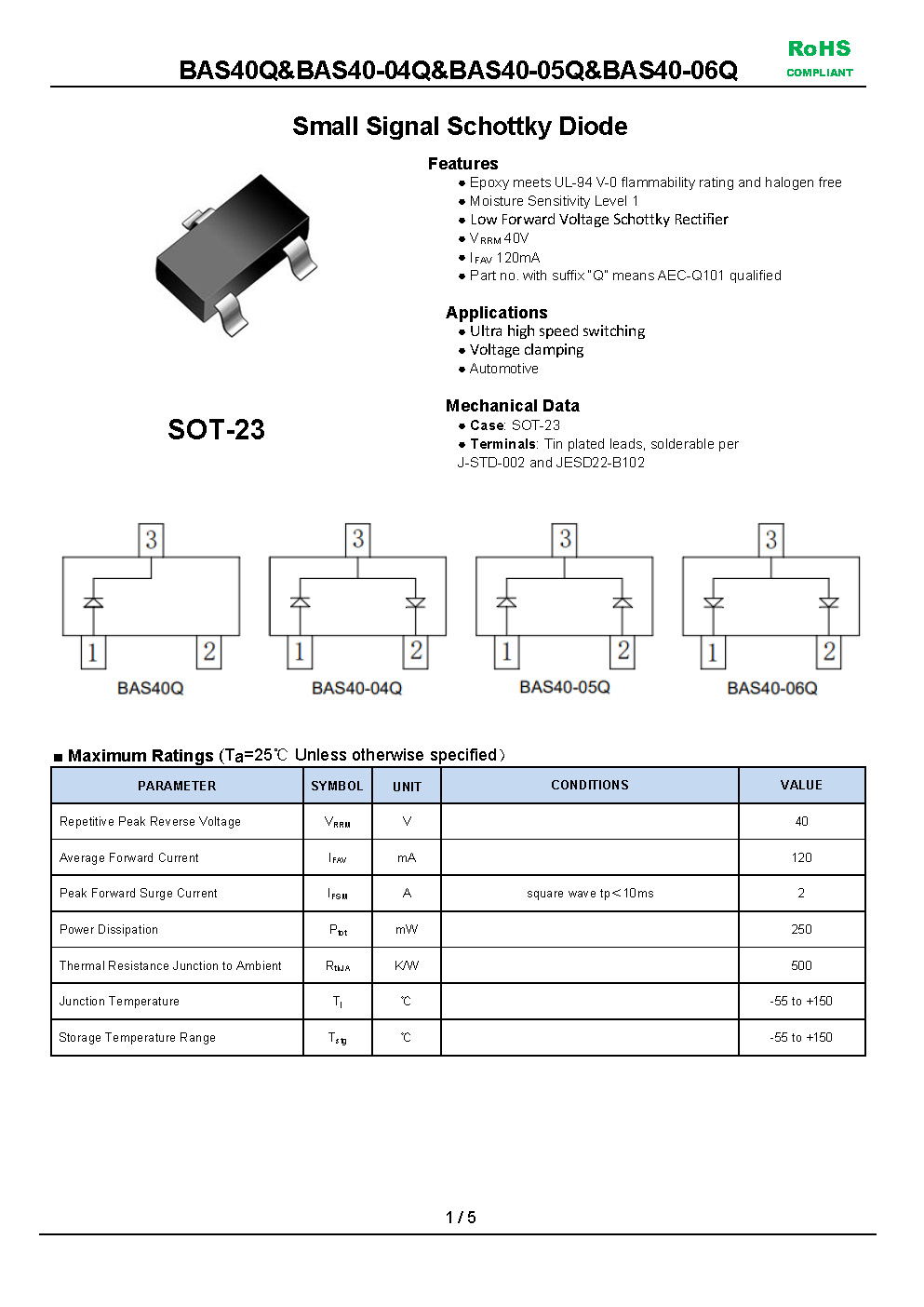

Features :
- Epoxy meets UL-94 V-0 flammability rating and halogen free
- Moisture Sensitivity Level 1
- Low Forward Voltage Schottky Rectifier
- VRRM 40V
- IFAV 120mA
- Part no. with suffix "Q" means AEC-Q101 qualified
Mechanical Data :
- Package: SOT-23
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Marking: E11A
Applications :
- Ultra high speed switching
- Voltage clamping
- Automotive
