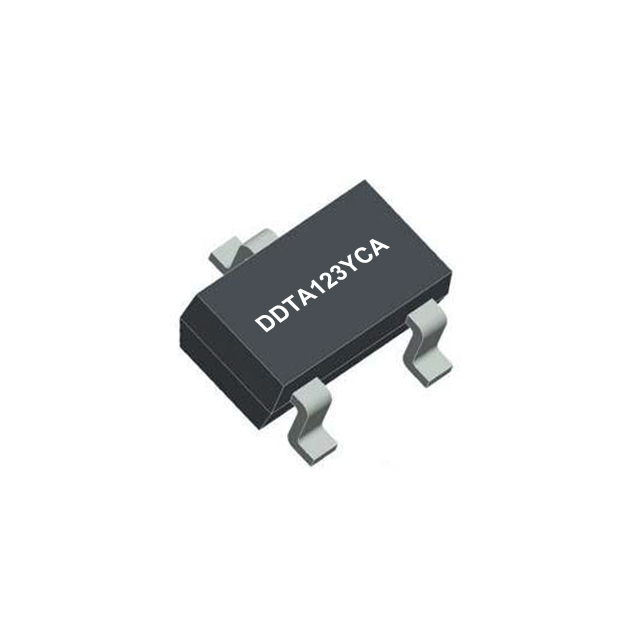

PNP Digital Transistors (Built-in Resistors), PD:200mW, IC: -500mA, SOT-23, DDTA123YCA

200mW PNP Digital Transistors (Built-in Resistors)
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • DDTA123YCA

  • Merry

Digital Transistors (Built-in Resistors), PNP, PD:200mW, IC: -500mA,SOT-23, DDTA123YCA

Features

- Epoxy meets UL-94 V-0 flammability rating
- Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors
- Surface mount package ideally Suited for Automatic Insertion
- PNP

Mechanical Data

- Package: SOT-23
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Marking: 234

DDTA123YCA

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

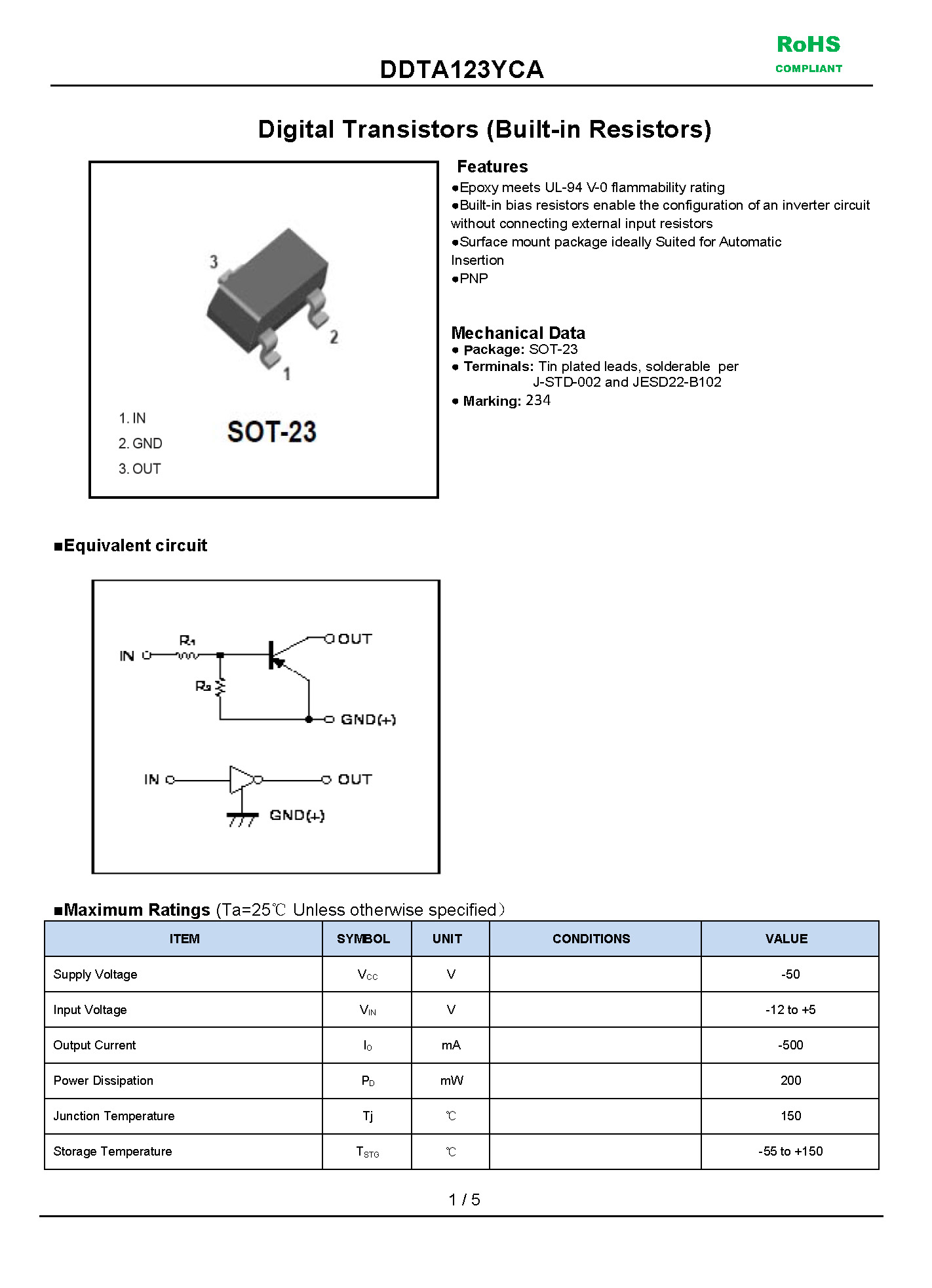

DDTA123YCA-1_页面_1

DDTA123YCA-1_页面_2

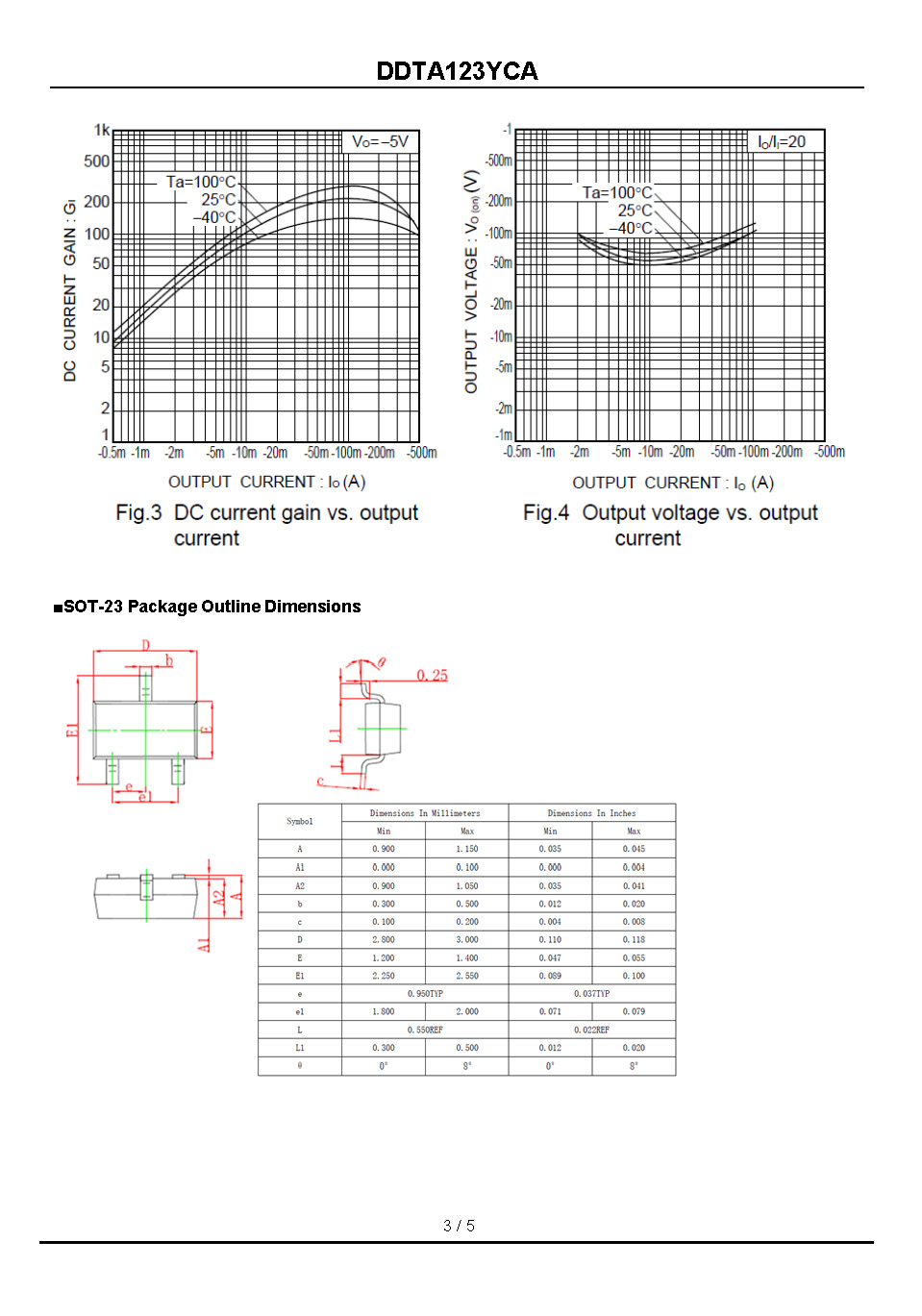

DDTA123YCA-1_页面_3
