General Purpose Rectifier Diodes, VRRM: 1600V, VRMS: 1120V, VDC: 1600V, Io: 90A, IFSM: 1300A,TO-247AC, 90EPS16A

Features :

- High surge forward current capability
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for enhanced ruggedness and long term reliability
- Solder dip 275 °C max. 7 s, per JESD 22-B106

Mechanical Date :

- Package: TO-247AC
  Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: As marked

Typical Application :

- Input rectification
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 90EPS16A

  • Merry

General Purpose Rectifier Diodes, VRRM: 1600V, VRMS: 1120V, VDC: 1600V, Io: 90A, IFSM: 1300A,TO-247AC, 90EPS16A


Features :

- High surge forward current capability
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for enhanced ruggedness and long term reliability
- Solder dip 275 °C max. 7 s, per JESD 22-B106


Mechanical Date :

- Package: TO-247AC
 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: As marked


Typical Application :

- Input rectification

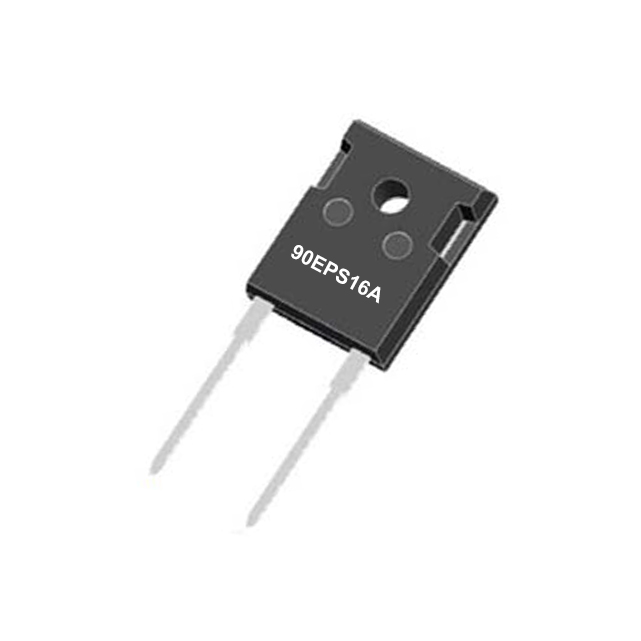

90EPS16A

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

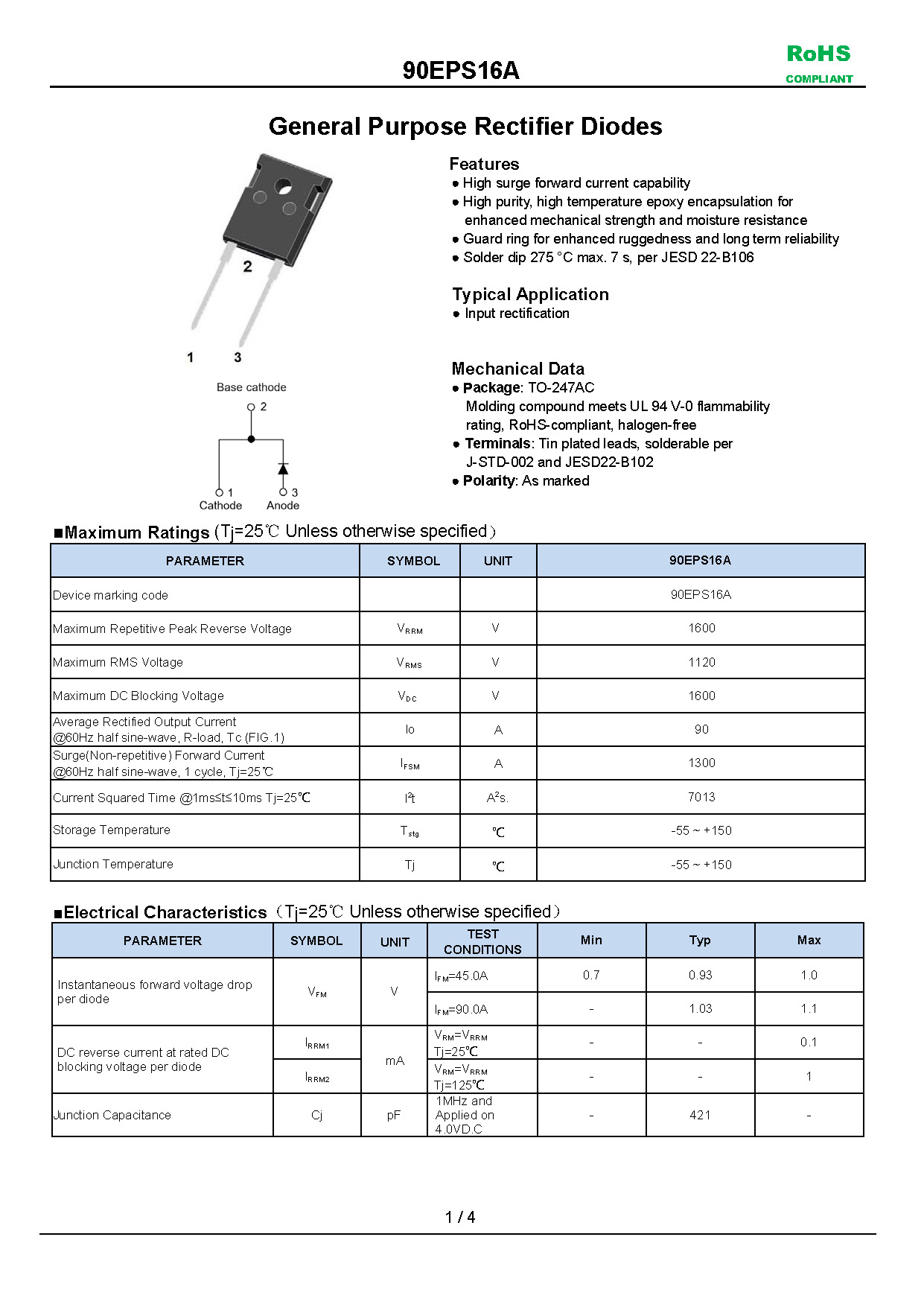

90EPS16A-1_页面_1

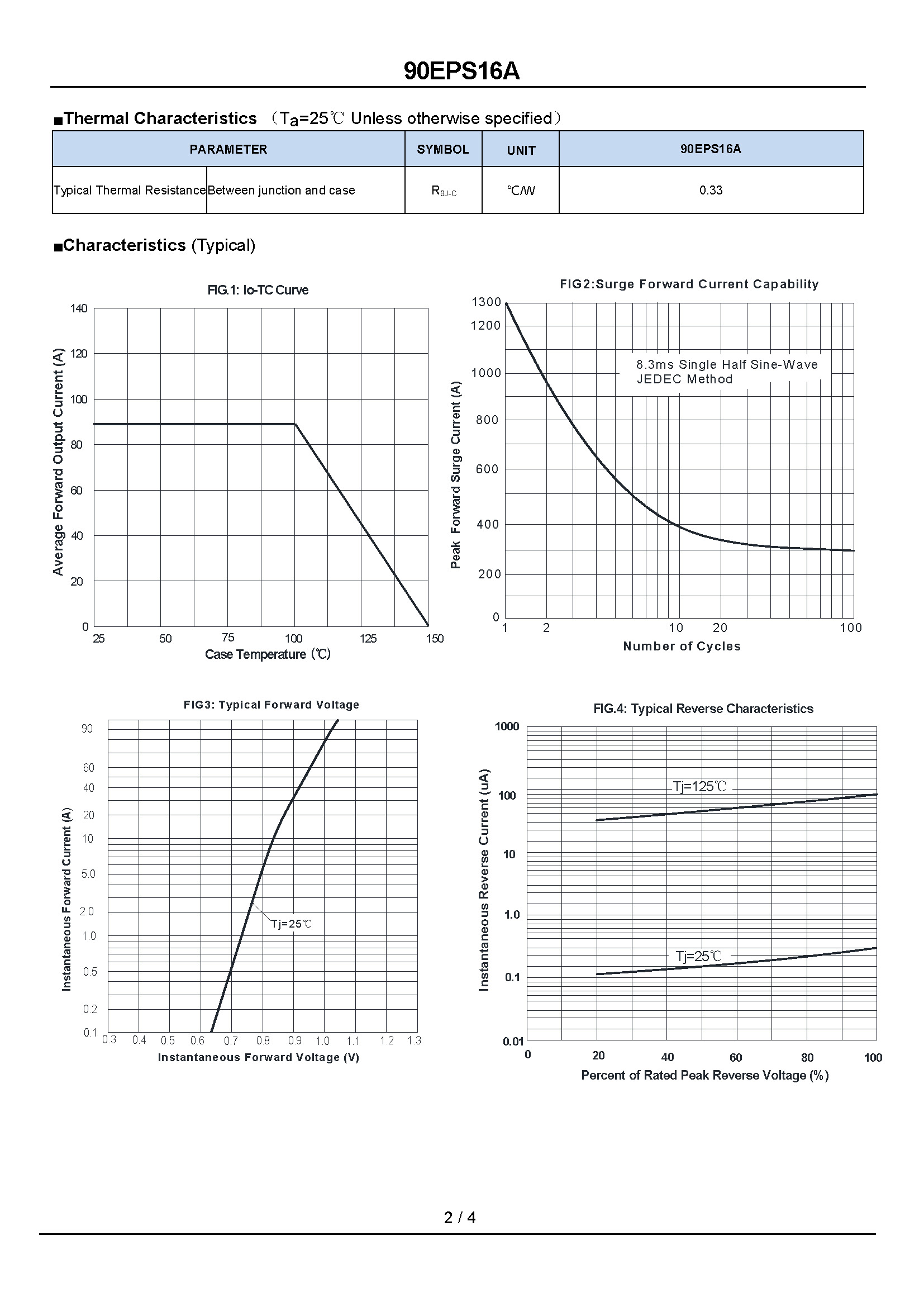

90EPS16A-1_页面_2

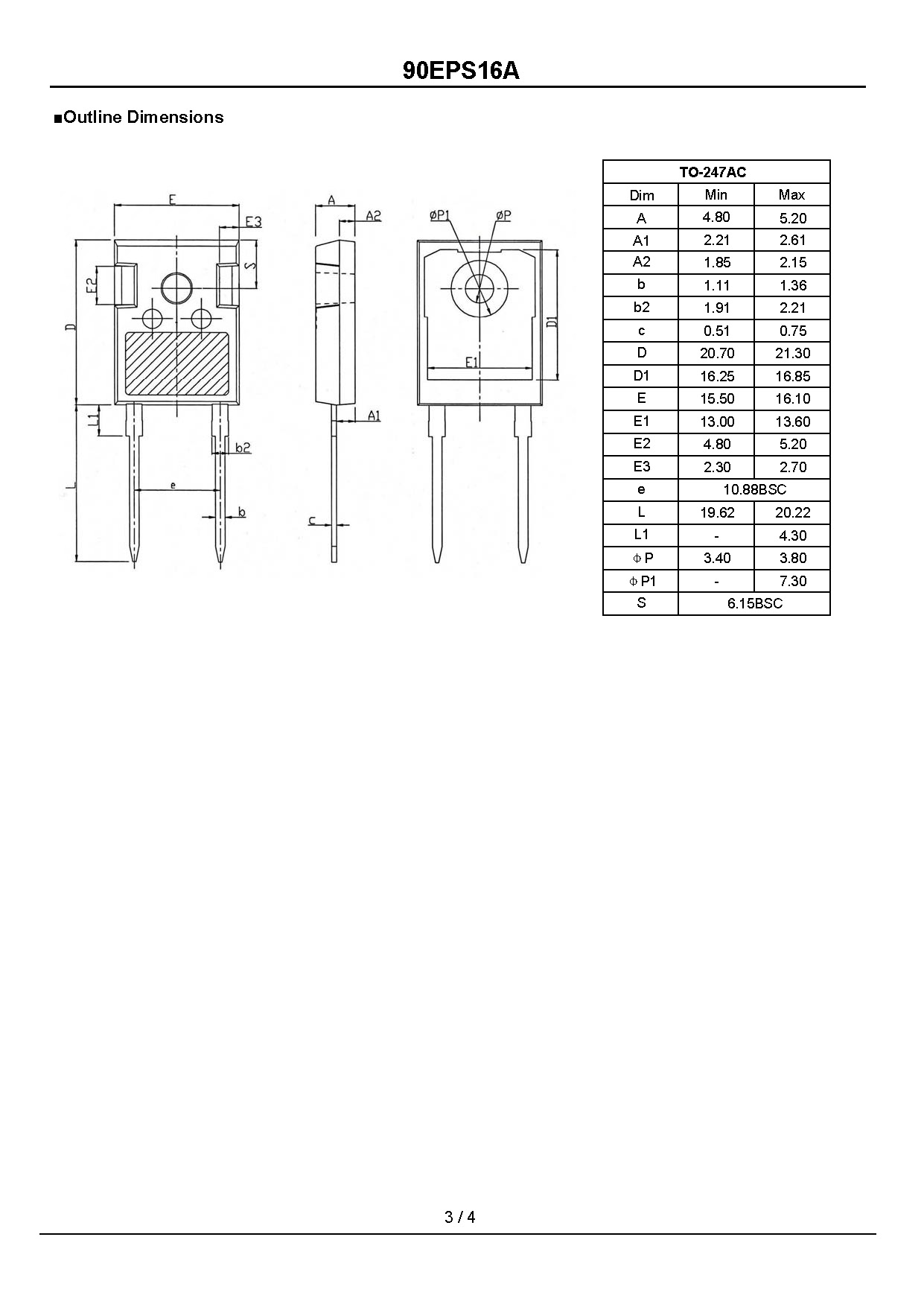

90EPS16A-1_页面_3
