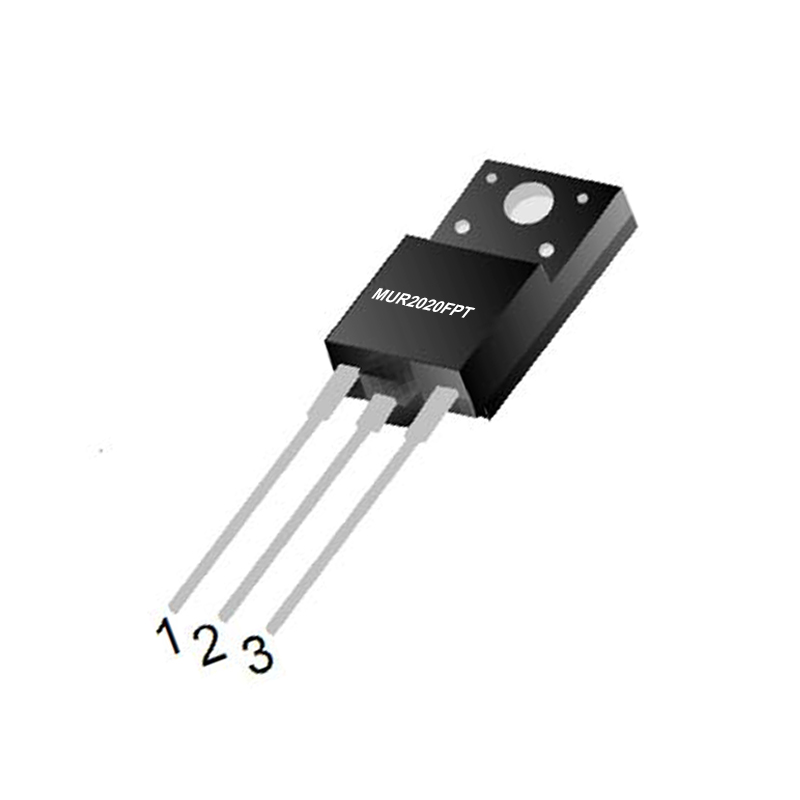

200V/20A, Ultra-Fast Recovery Diodes 10A*2 FRED, TO-3PF, MUR2020FPT

200V/20A, Ultra-Fast Recovery Diodes 30A FRED
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MUR2020FPT

  • Merry

200V/20A, Ultra-Fast Recovery Diodes 10A*2 FRED, TO-3PF, MUR2020FPT

Features :
- Adopt FRED chip
- Low forward Voltage drop
- Fast reverse recovery time
- High frequency operation
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for enhanced ruggedness and long term reliability

Applications :
- Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.

Mechanical Data :
- Package: TO-3PF
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
- Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22-B102
- Polarity: As marked

MUR2020FPTName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

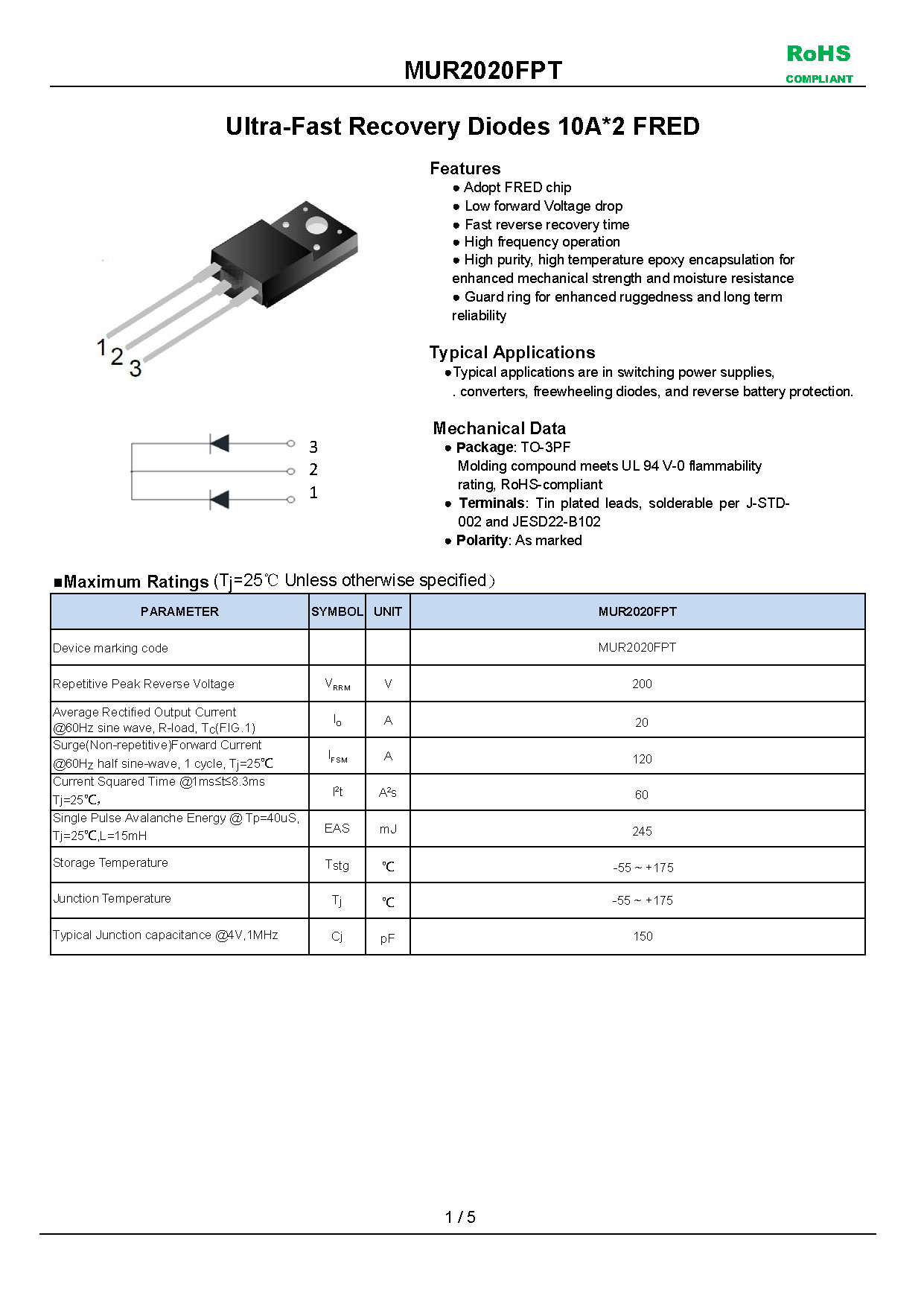

MUR2020FPT-1_页面_1

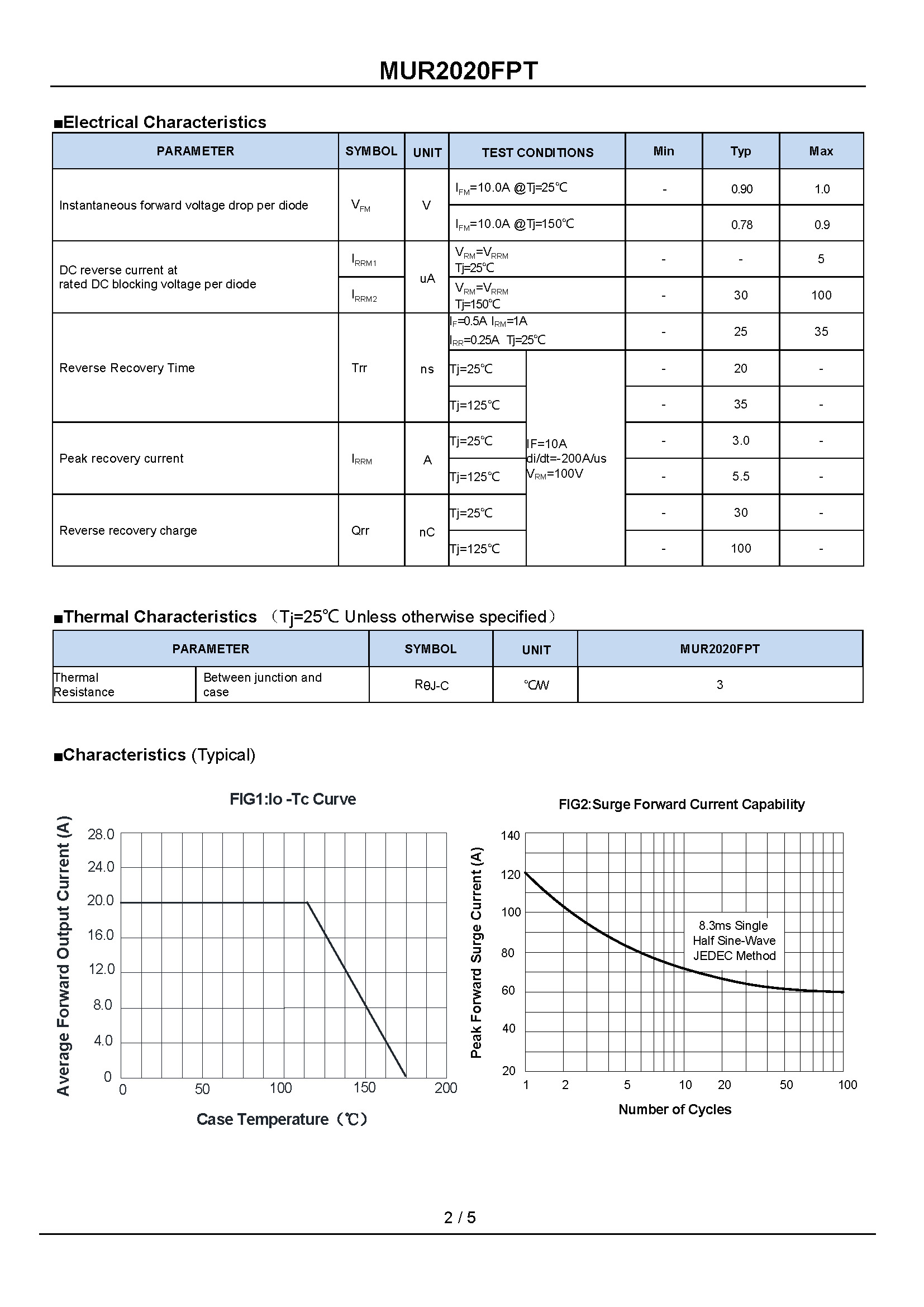

MUR2020FPT-1_页面_2

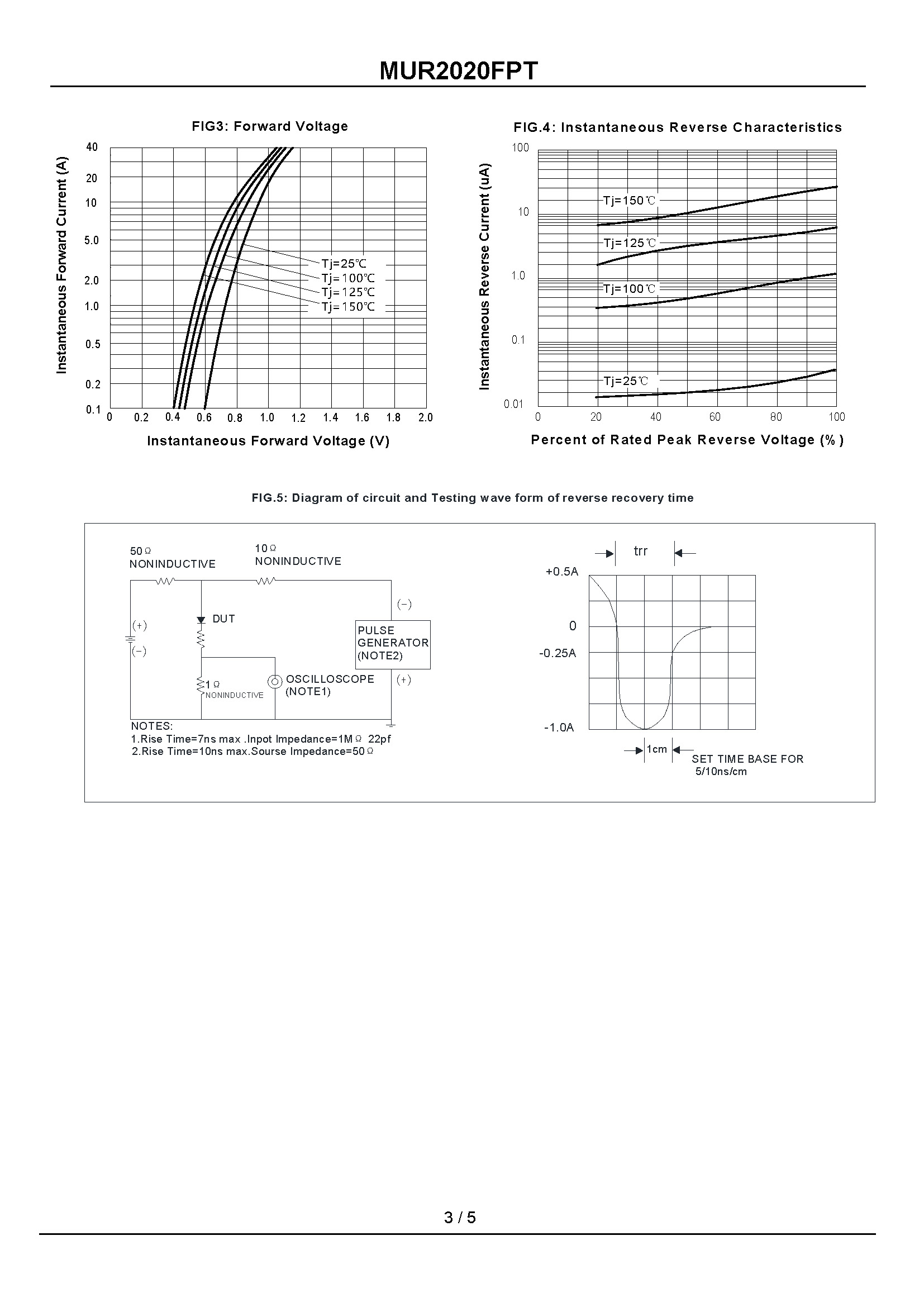

MUR2020FPT-1_页面_3

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01


Previous:
Next:
200V Ultra-Fast Recovery Diodes 20A Ultra-Fast Recovery Diodes TO-3PF Ultra-Fast Recovery Diodes MUR2020FPT Ultra-Fast Recovery Diodes Fast Recovery Diode Rectifier
