High surge Bridge Rectifiers, VRM: 600V, Io: 0.8A, IFSM: 25A, fetures, applications, MBLS, HDL1S THRU HDL10S

Features :
- UL recognition, file #E313149
- Ideal for automated placement
- Glass passivated chip junction
- High surge current capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Typical Applications  :
- General purpose use in high frequency AC/DC bridge full wave rectification for SMPS, lighting ballast, adapter, battery charger,
home appliances, office equipment, and telecommunication applications.

Mechanical Data  :
- Package: MBLS
  Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: As marked on body
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

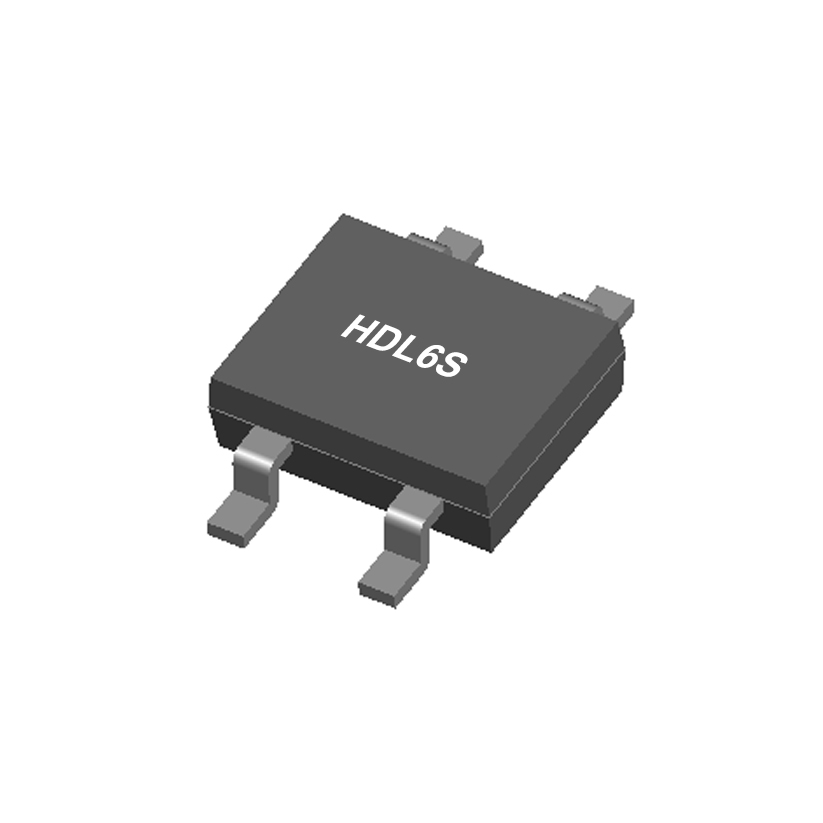

  • HDL6S

  • Merry

High surge Bridge Rectifiers, VRM: 600V, Io: 0.8A, IFSM: 25A, fetures, applications, MBLS, HDL1S THRU HDL10S

Features :
- UL recognition, file #E313149
- Ideal for automated placement
- Glass passivated chip junction

- High surge current capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C


Typical Applications
 :
- General purpose use in high frequency AC/DC bridge full wave rectification for SMPS, lighting ballast, adapter, battery charger,
home appliances, office equipment, and telecommunication applications.


Mechanical Data  :
- Package: MBLS
  Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: As marked on body



HDL6SName1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2



1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

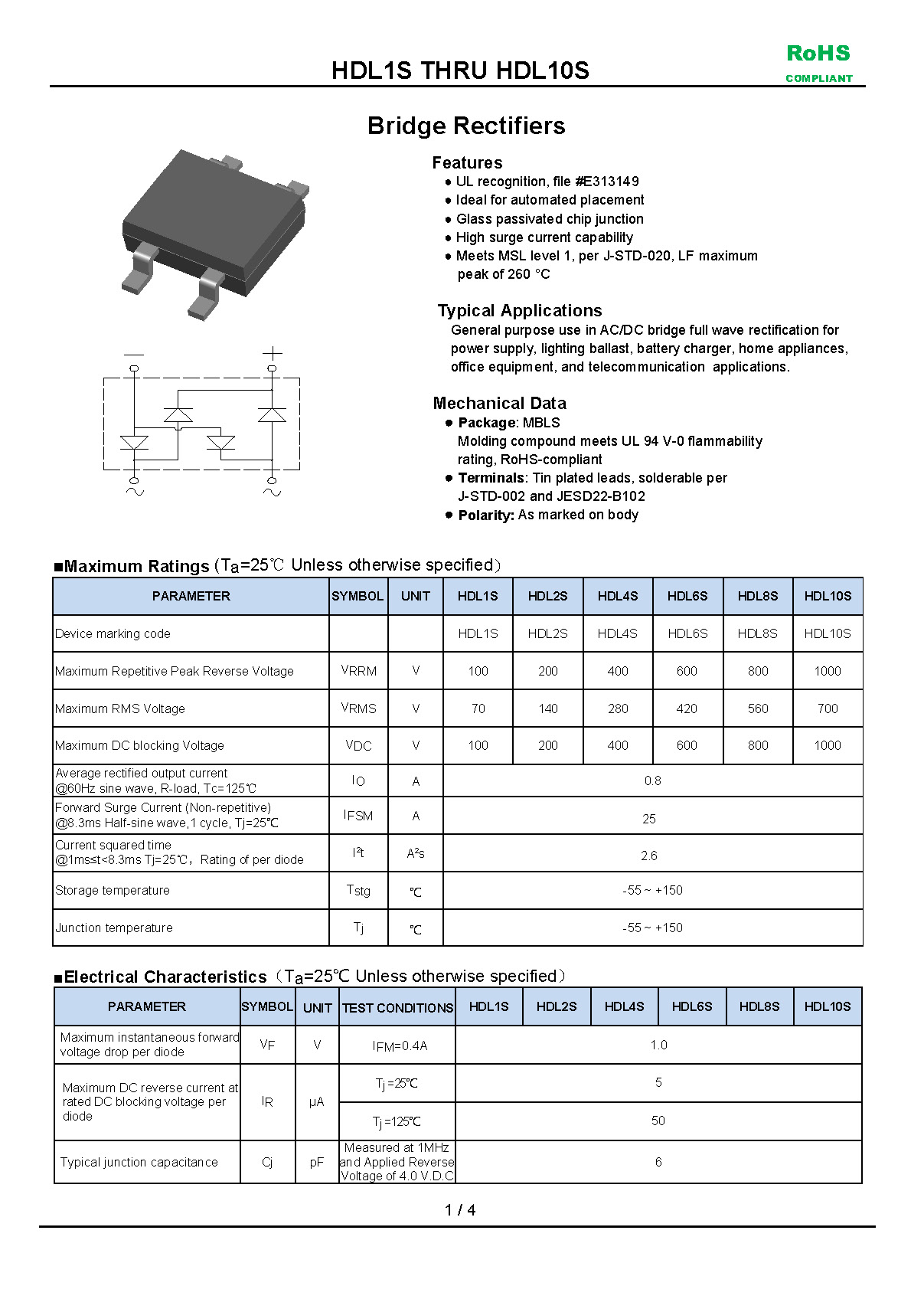

HDL6S-1_页面_1

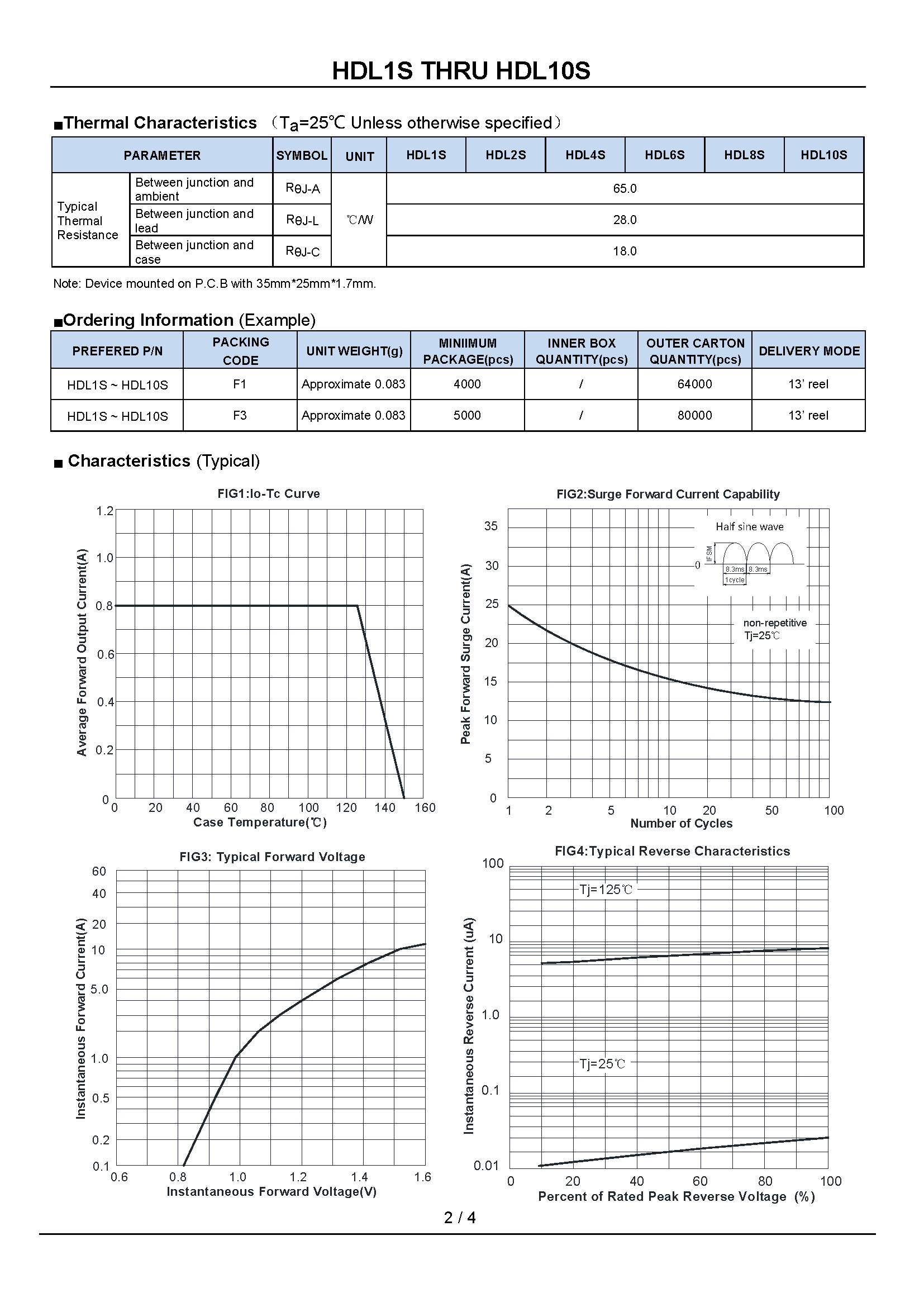

HDL6S-1_页面_2

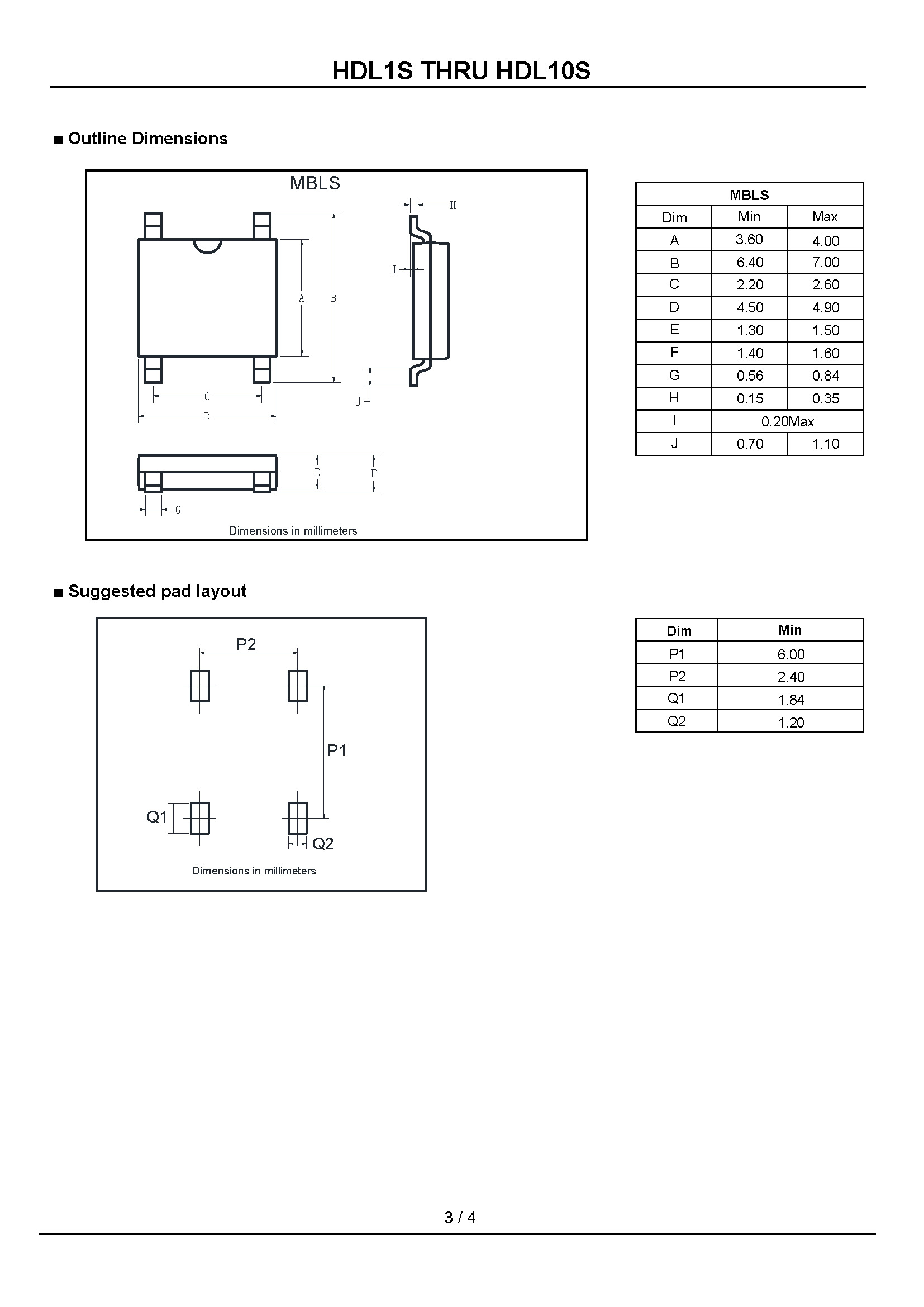

HDL6S-1_页面_3
