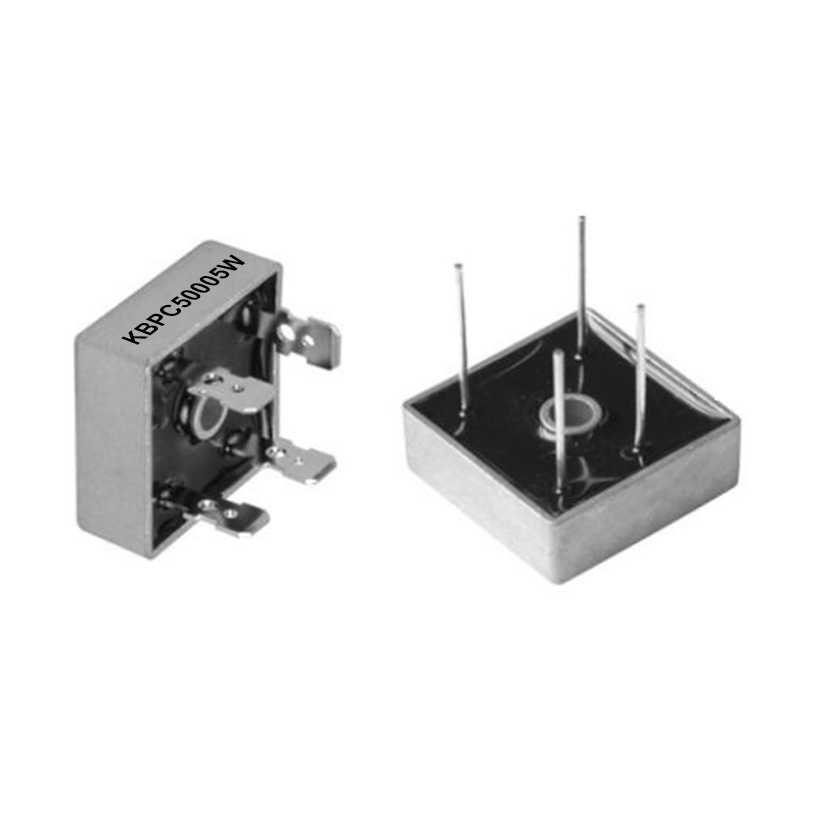

KBPC50005W
Merry

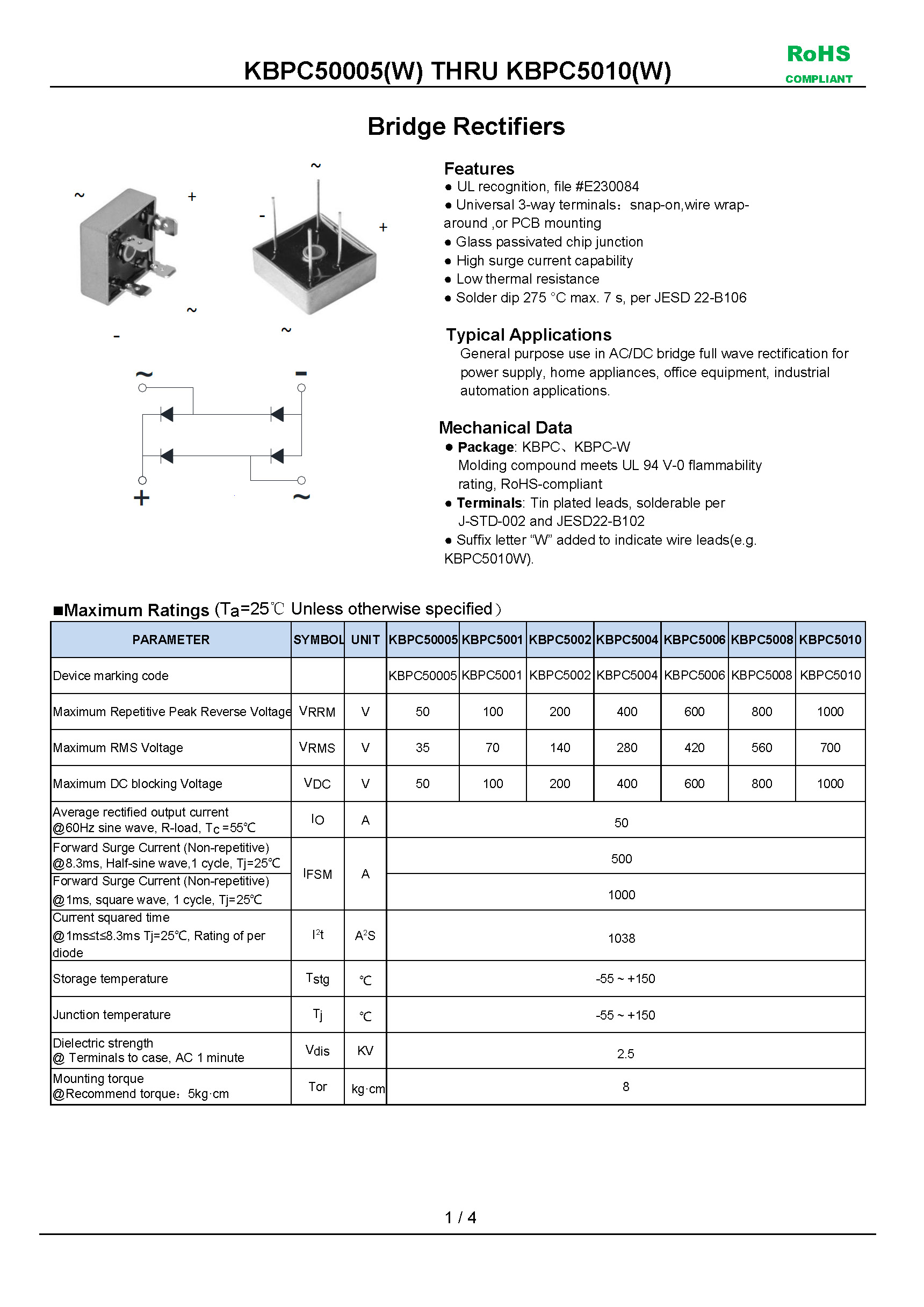

High surge current capability Bridge Rectifiers, VRM: 50V, Io:50A, IFSM: 500A, fetures, applications, KBPC; KBPC-W, KBPC50005(W) THRU KBPC5010(W)
Features :
- UL recognition, file #E230084
- Universal 3-way terminals:wire wrap-around ,or PCB mounting
- Glass passivated chip junction
- High surge current capability
- Low thermal resistance
- Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications :
- General purpose use in AC/DC bridge full wave rectification for power supply, home appliances, office equipment, industrial automation applications.
Mechanical Data :
- Package: KBPC,KBPC-W
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Suffix letter "W" added to indicate wire leads(e.g.KBPC5010W)
