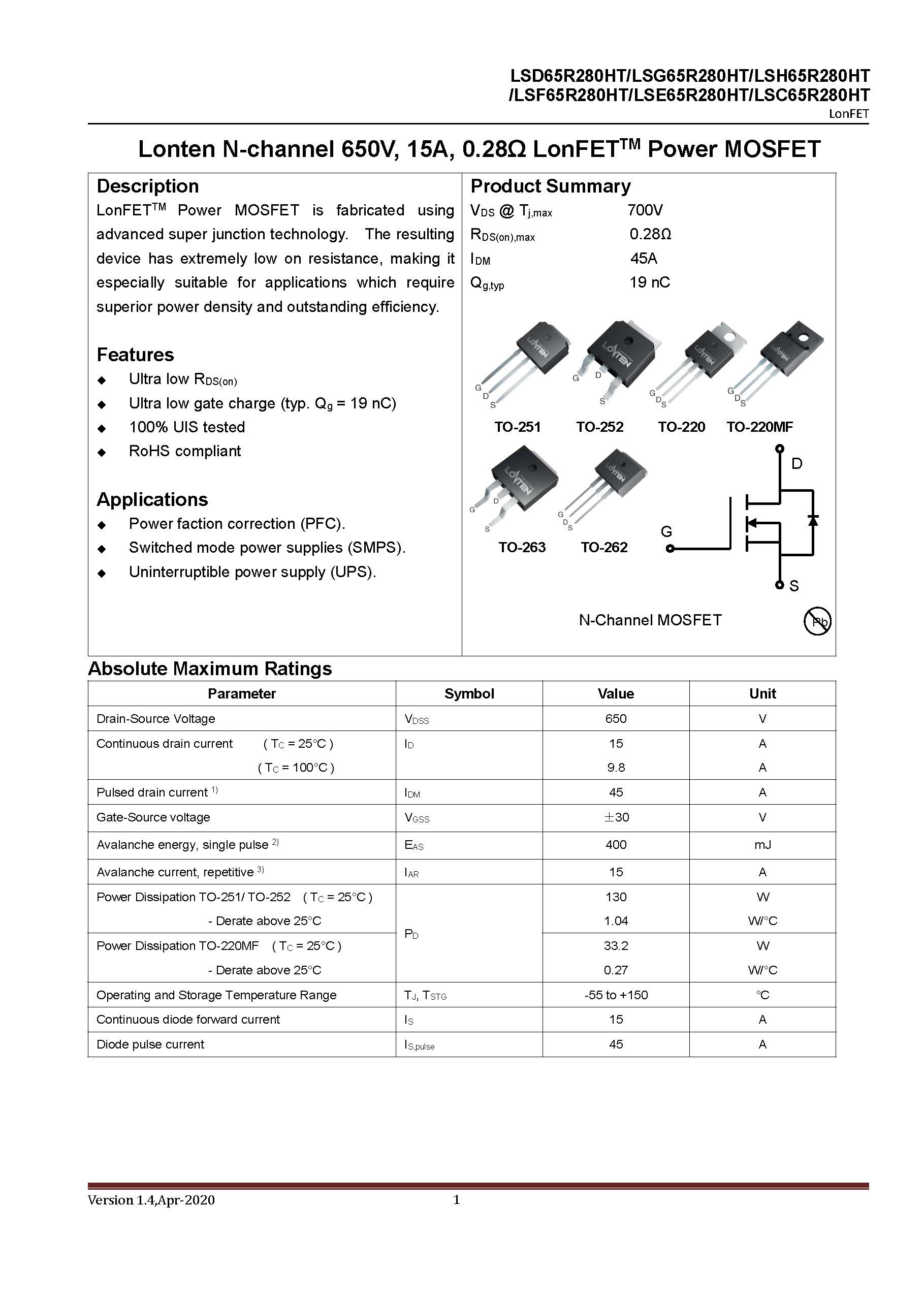

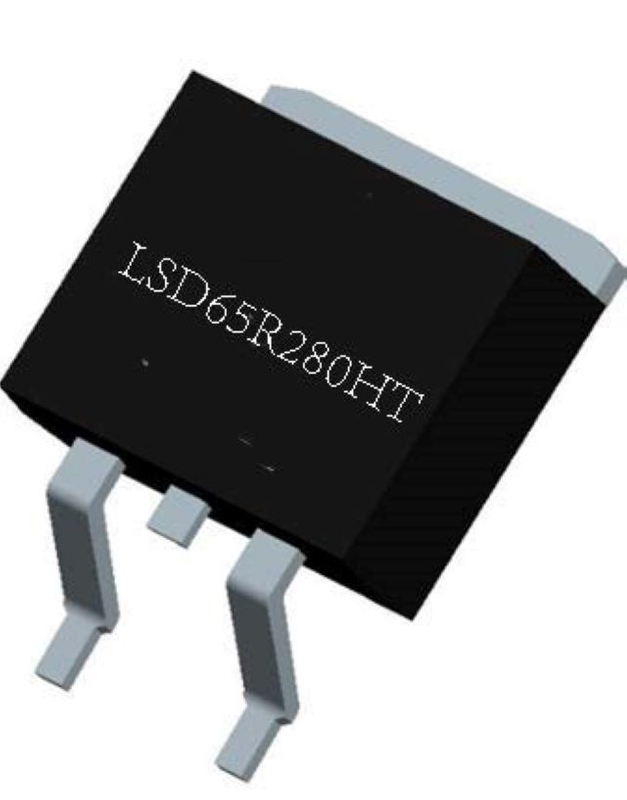

Lonten N-channel 650V, 15A, 0.28Ω Power MOSFET LSD65R280HT

Product Name:

Lonten N-channel 650V, 15A, 0.28Ω Power MOSFET LSD65R280HT

Product Description:

Description:

LonFETTM Power MOSFET is fabricated using

advanced super junction technology. The resulting

device has extremely low on resistance, making it

especially suitable for applications which require

superior power density and outstanding efficiency.

Features:

 Ultra low RDS(on)

 Ultra low gate charge (typ. Qg = 19 nC)

 100% UIS tested

 RoHS compliant

Applications:

 Power faction correction (PFC).

 Switched mode power supplies (SMPS).

 Uninterruptible power supply (UPS).

Product Summary:

VDS  Tj,max: 700V

RDS(on),max: 0.28Ω

IDM: 45A

Qg,typ: 19 nC

Introducing the Lonten N-channel 650V, 15A, 0.28Ω Power MOSFET 65R280HT. This high-quality MOSFET is designed for switching and amplifying electronic signals in a variety of electronic devices. With a voltage rating of 650V and a current rating of 15A, this MOSFET offers reliable performance for your electronic applications. Upgrade your electronics with the Lonten 65R280HT Power MOSFET.

Product Specifications:

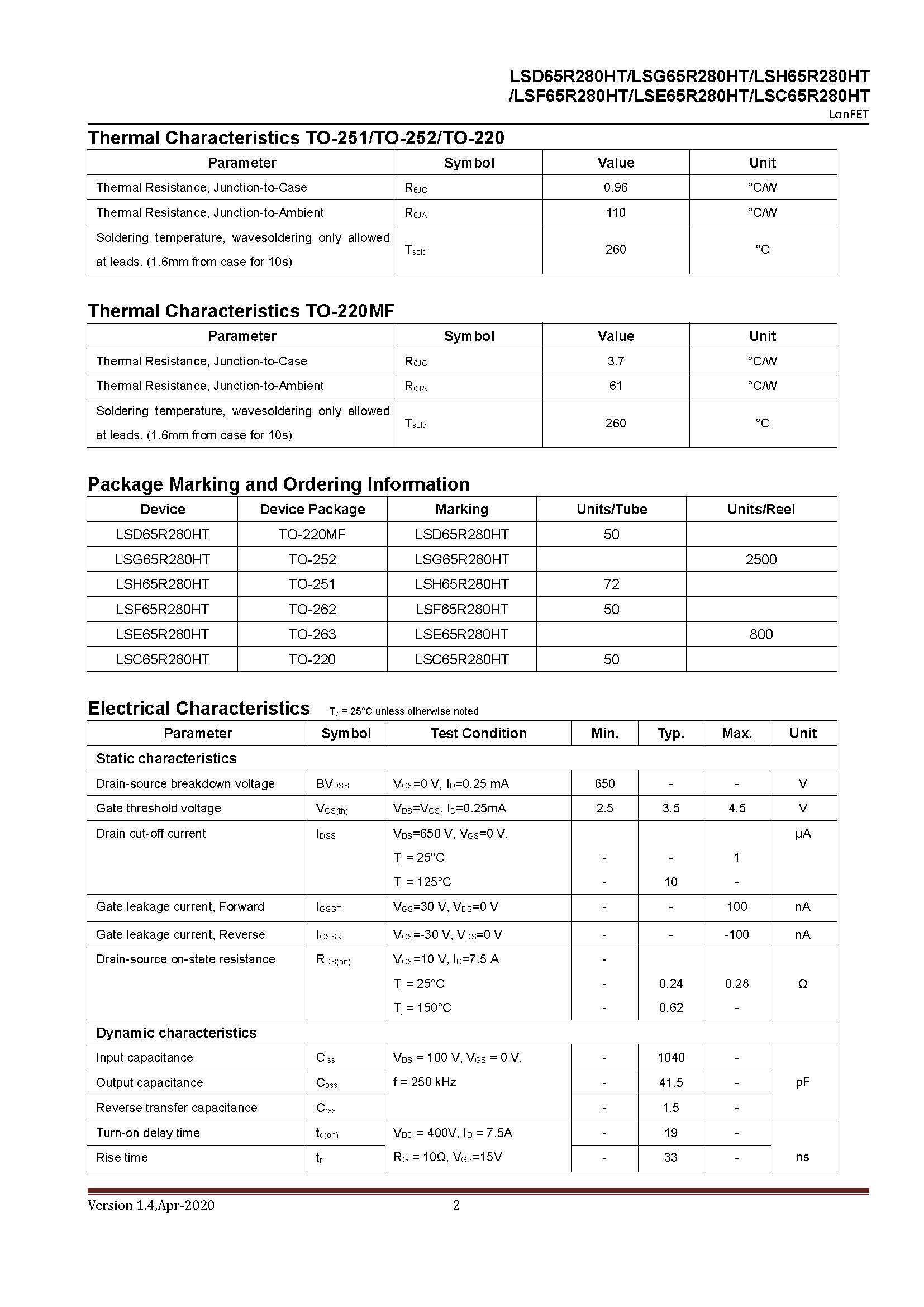

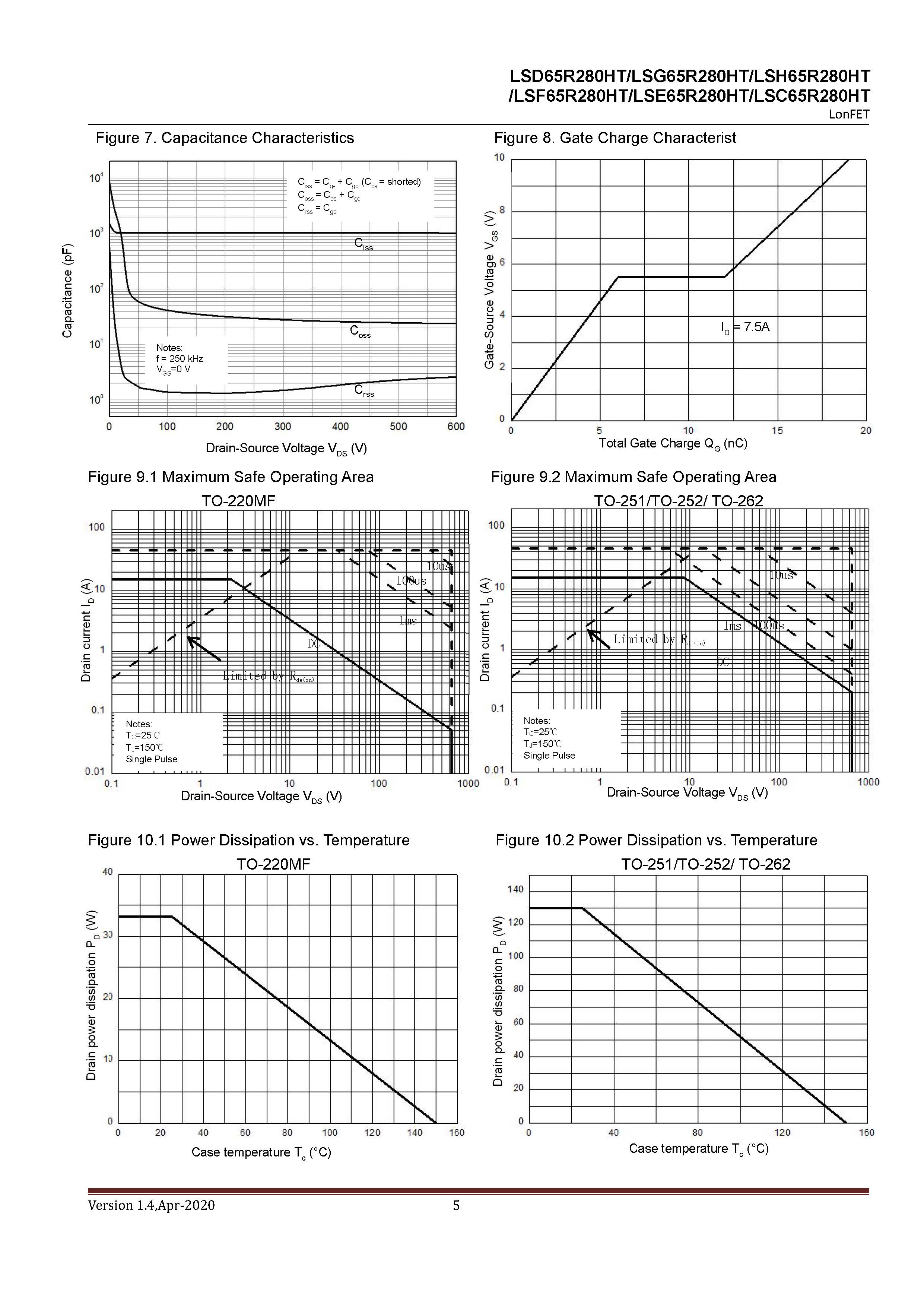

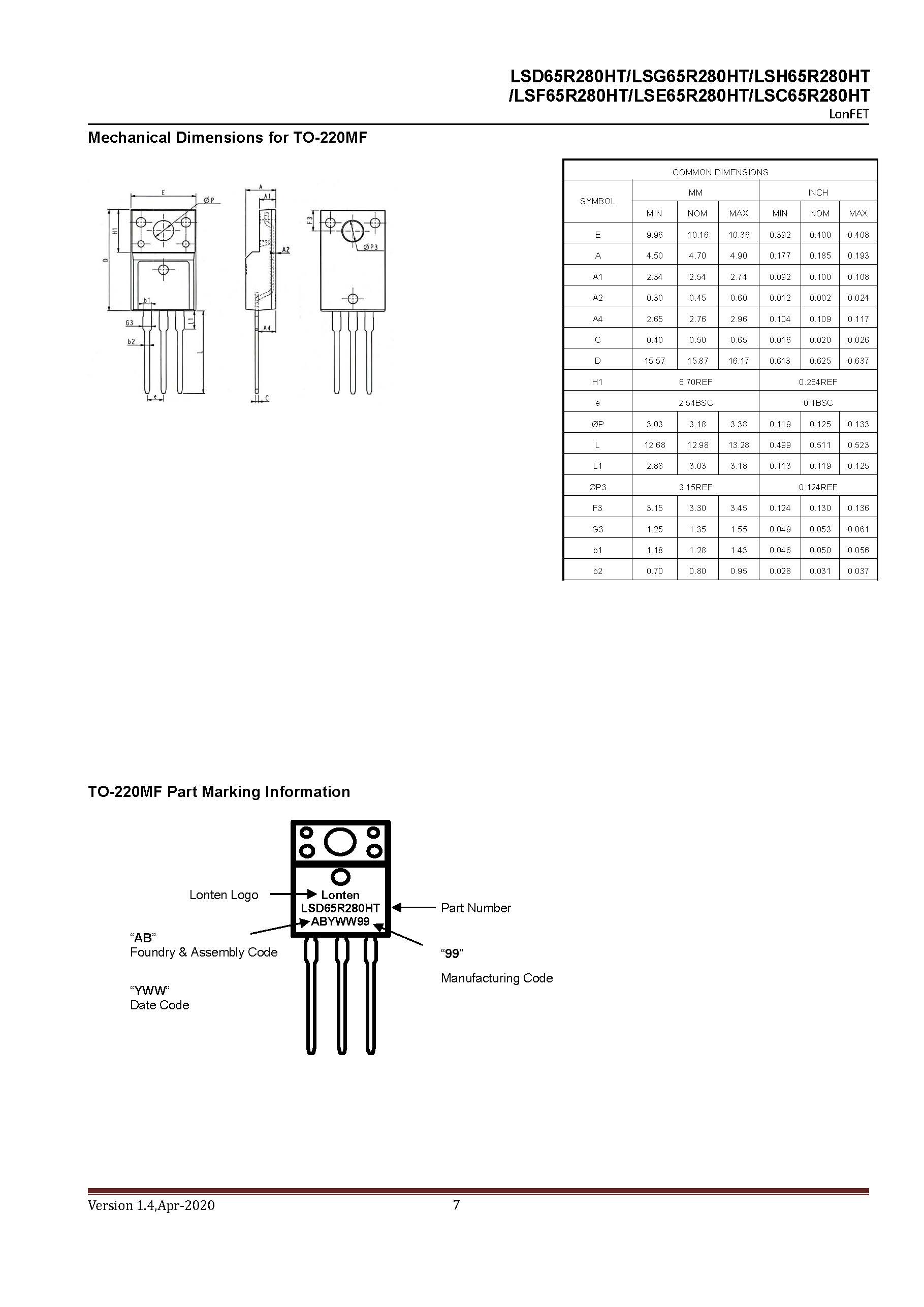

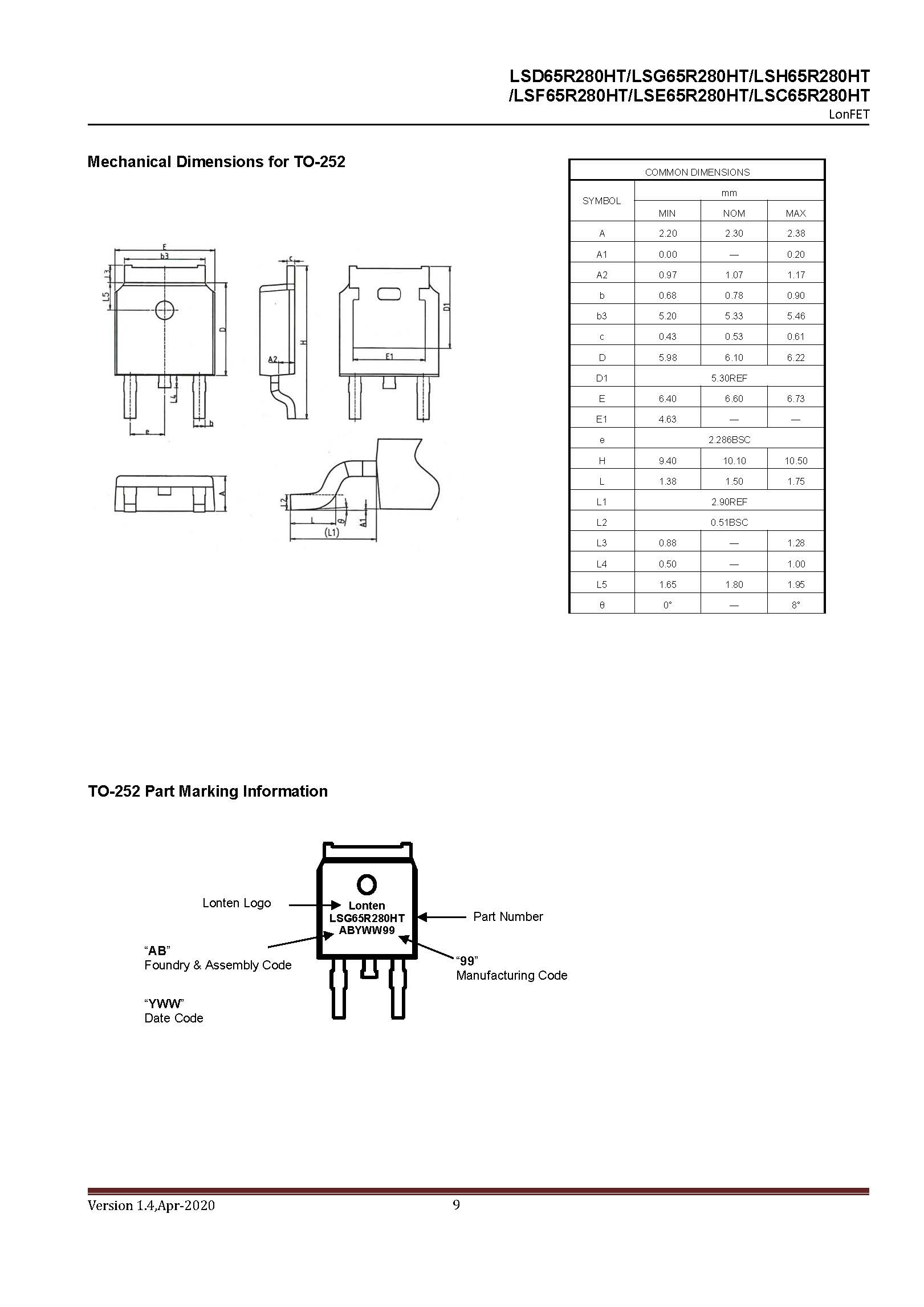

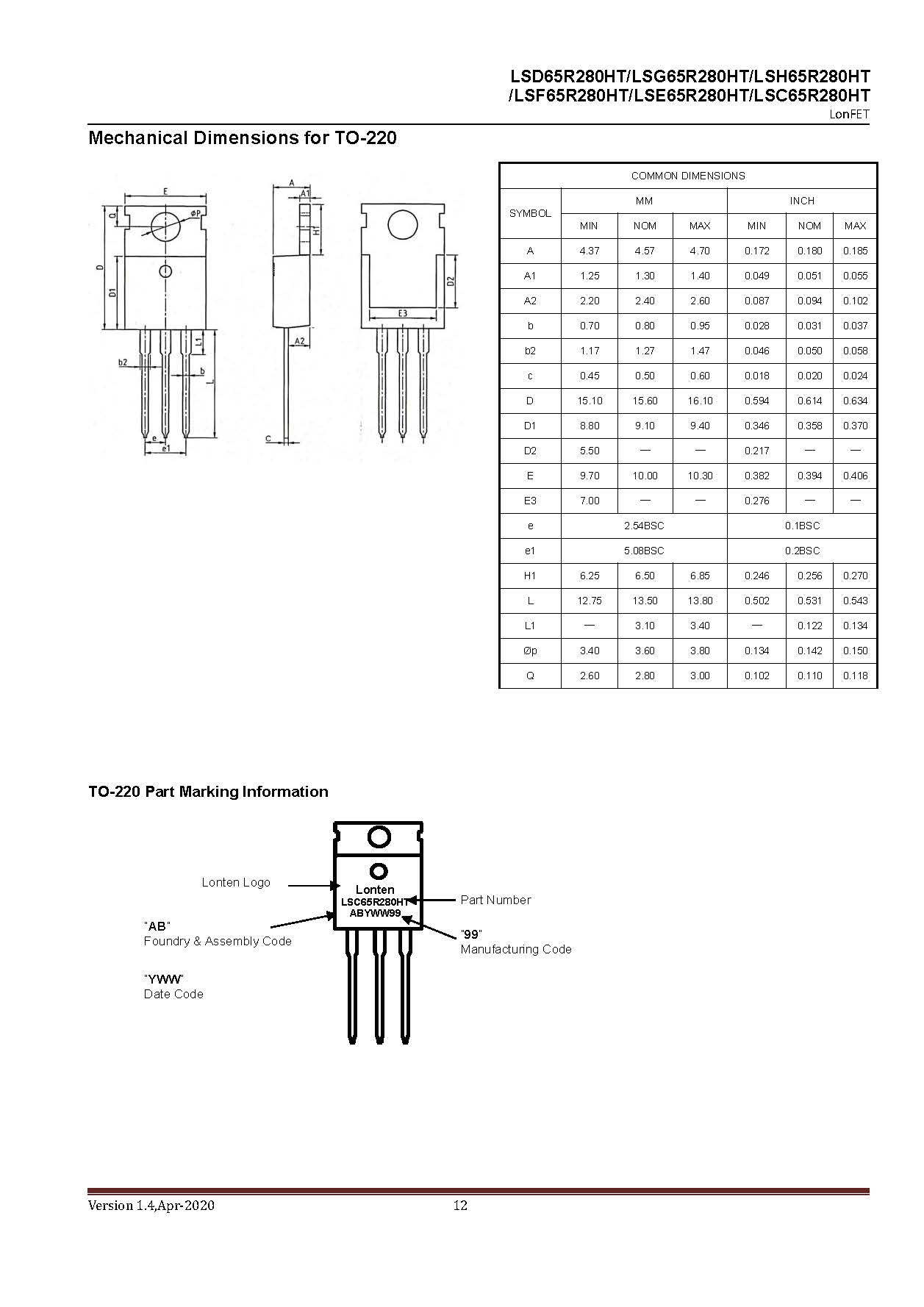

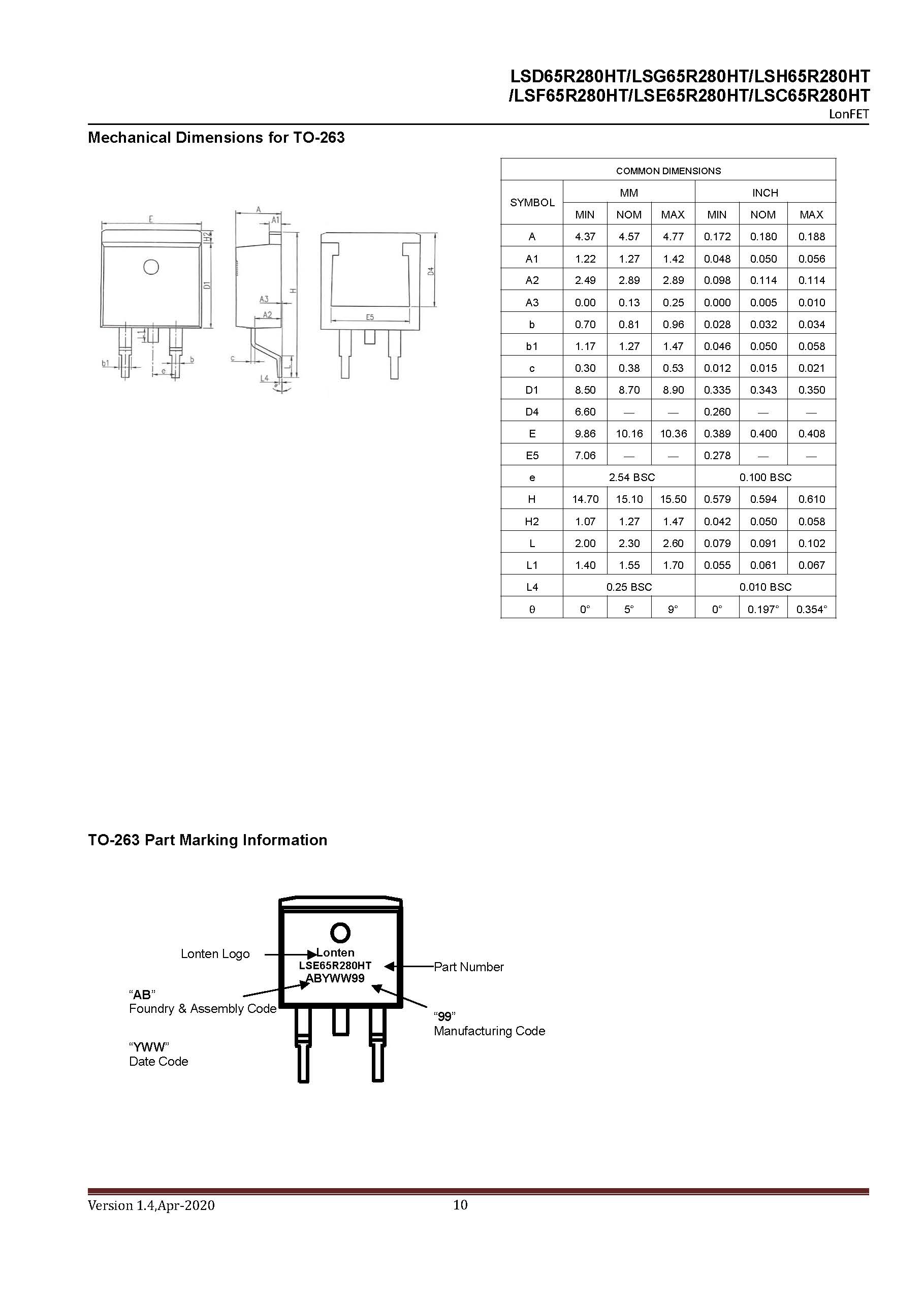

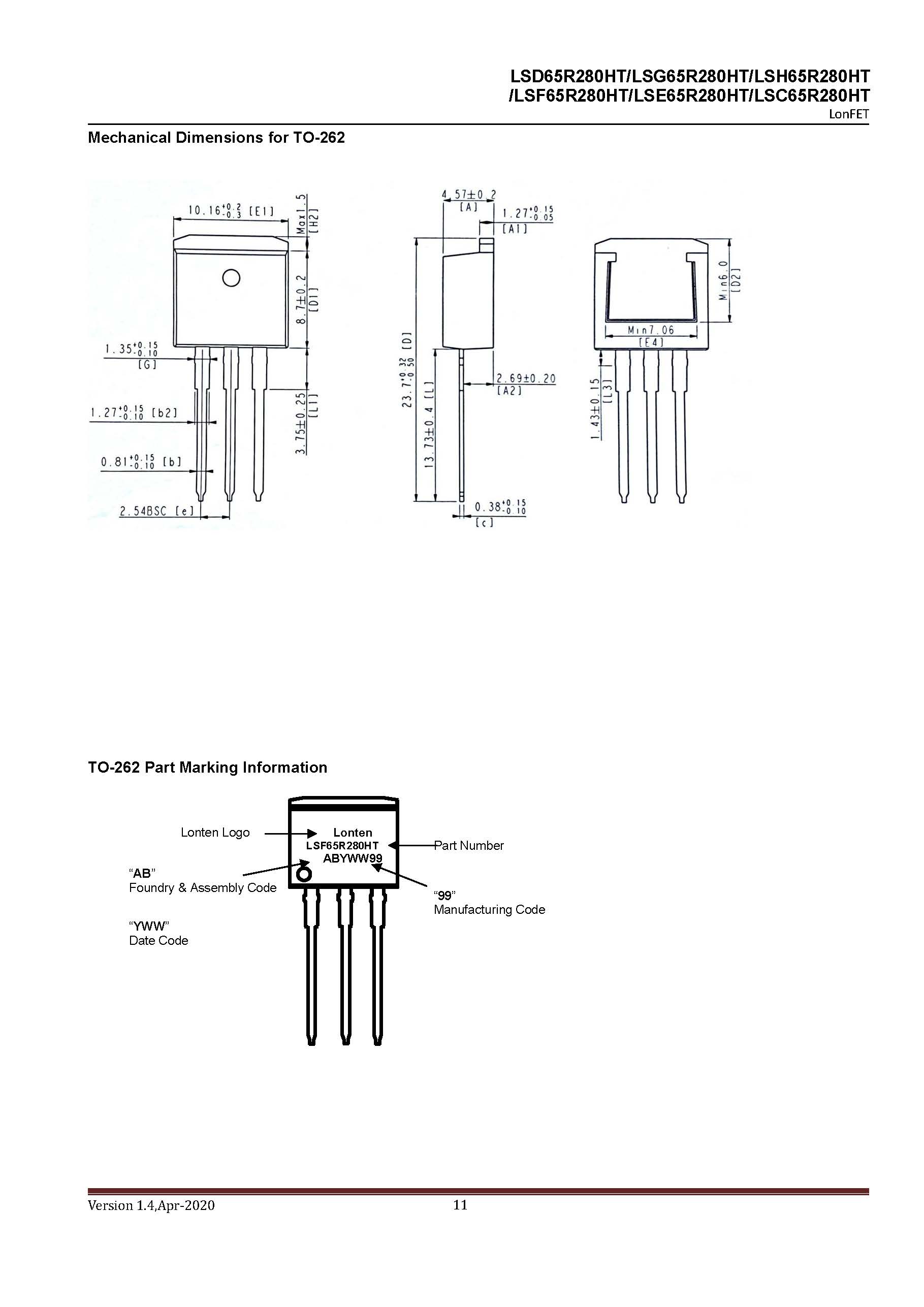

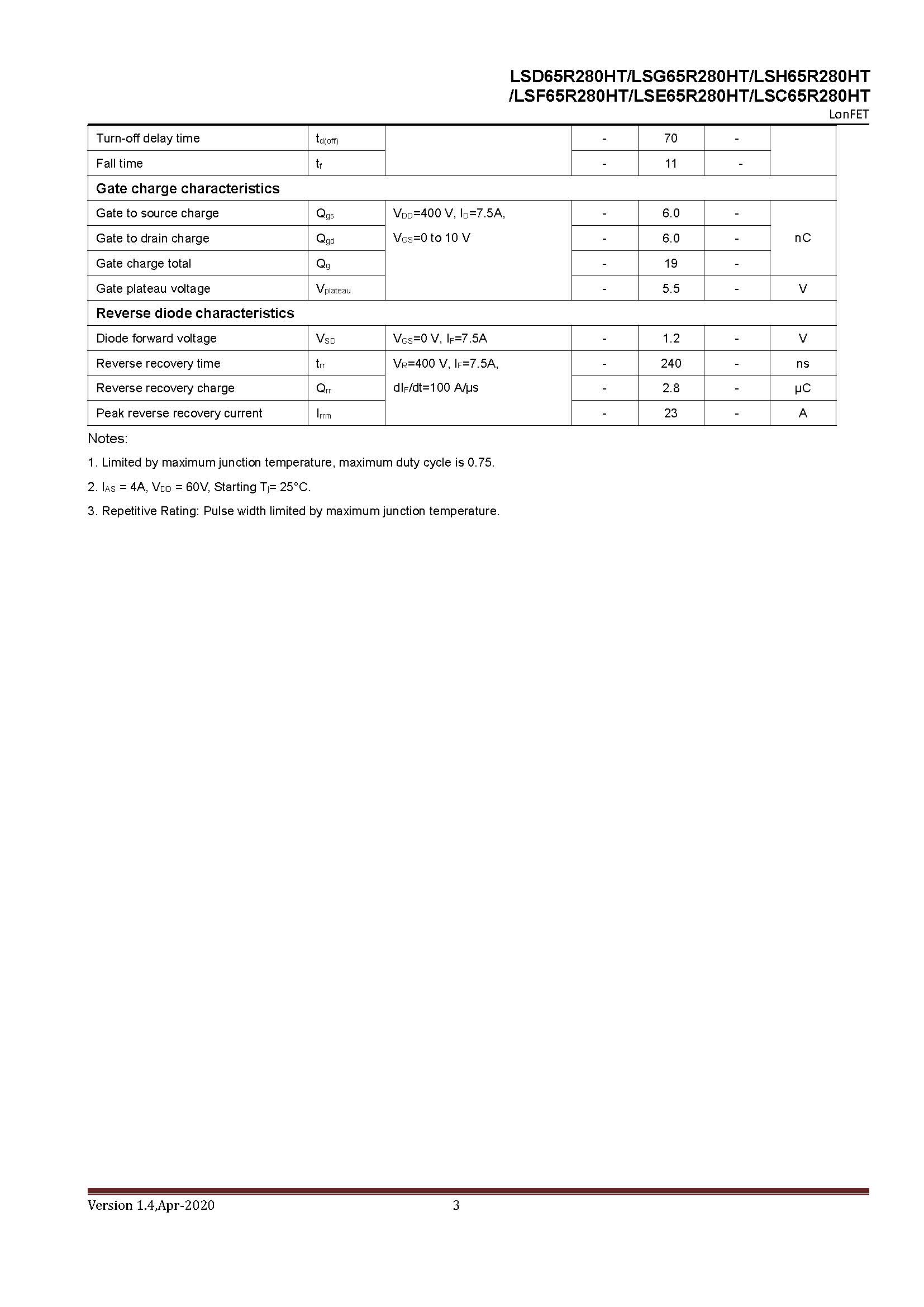

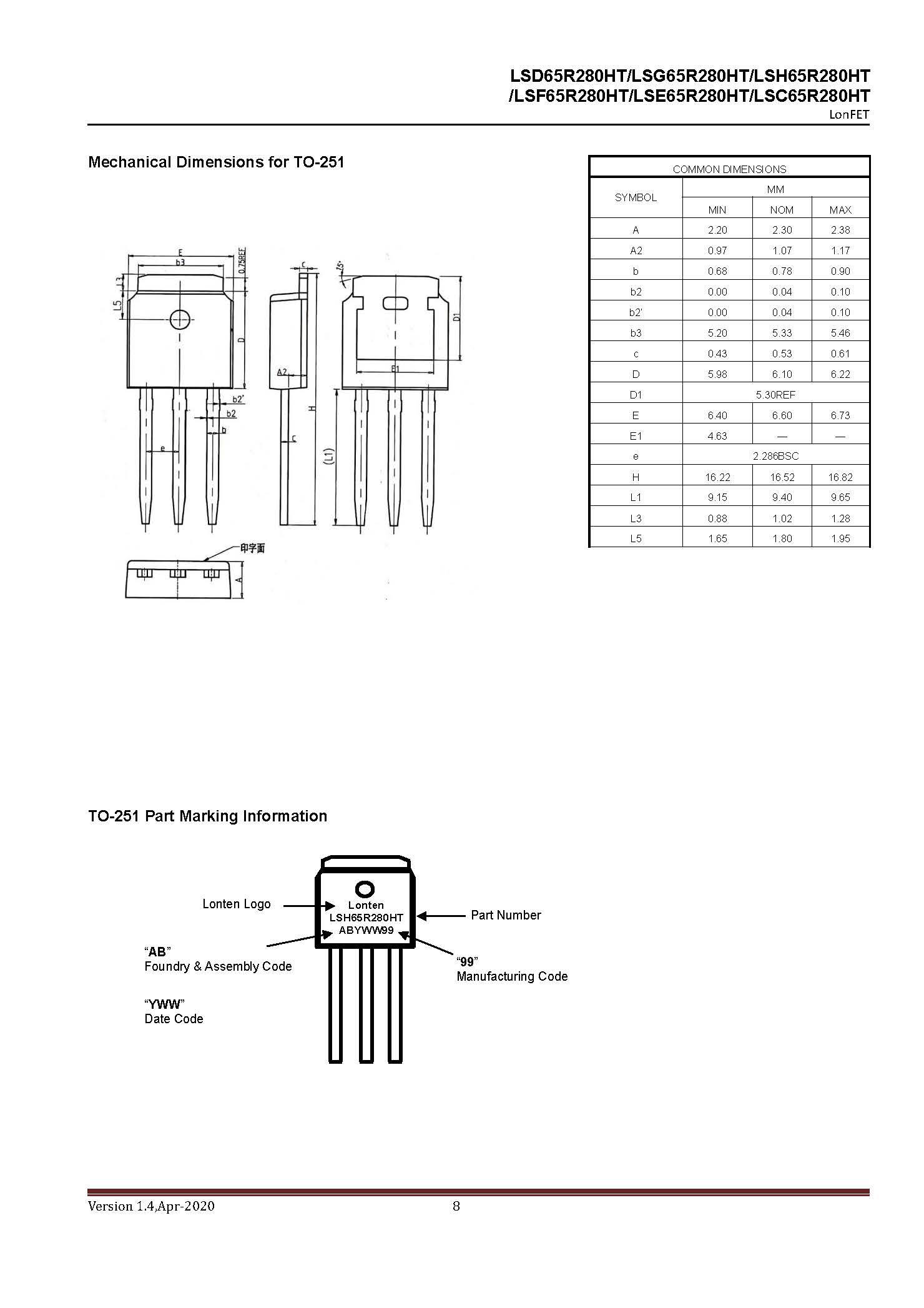

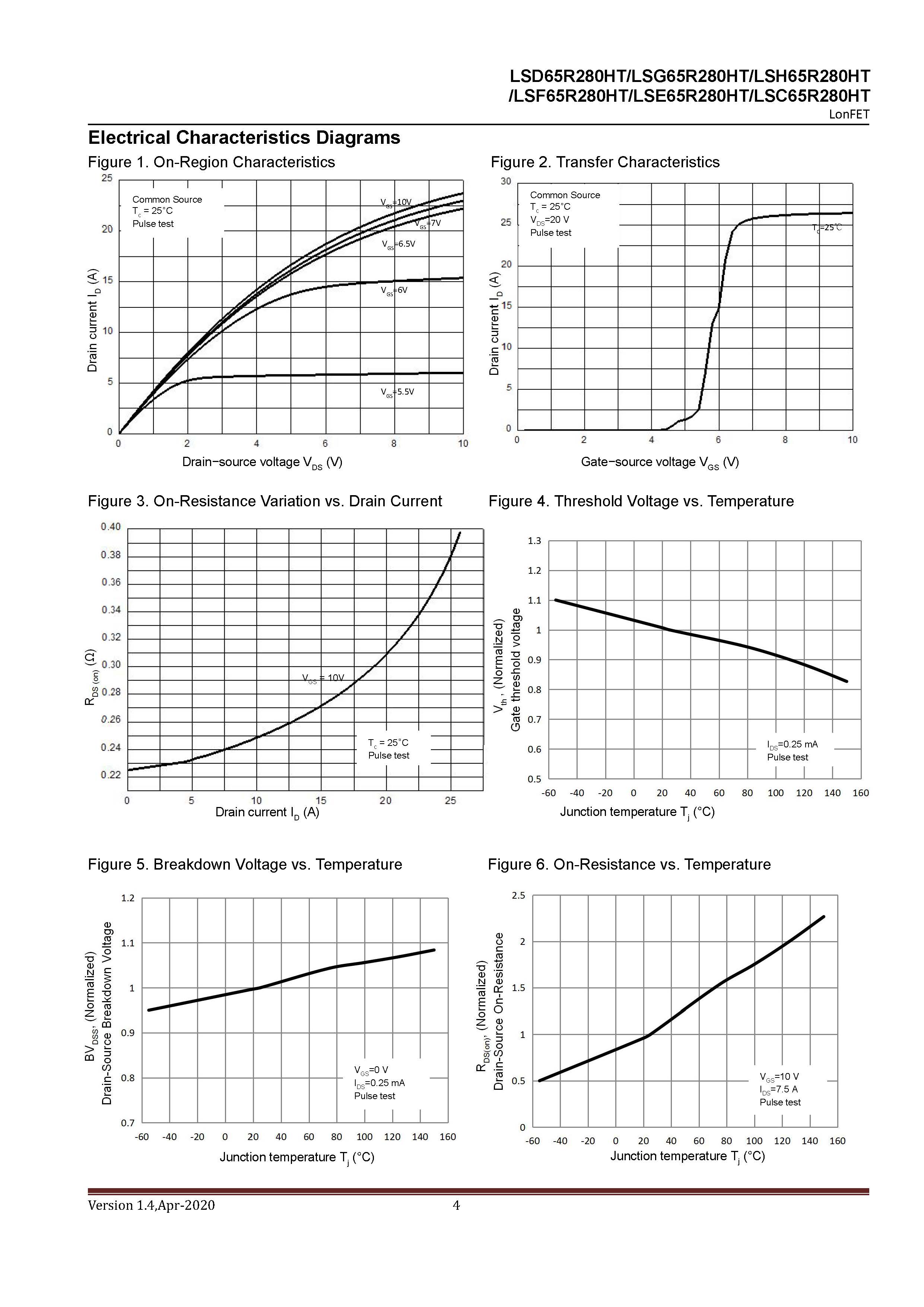

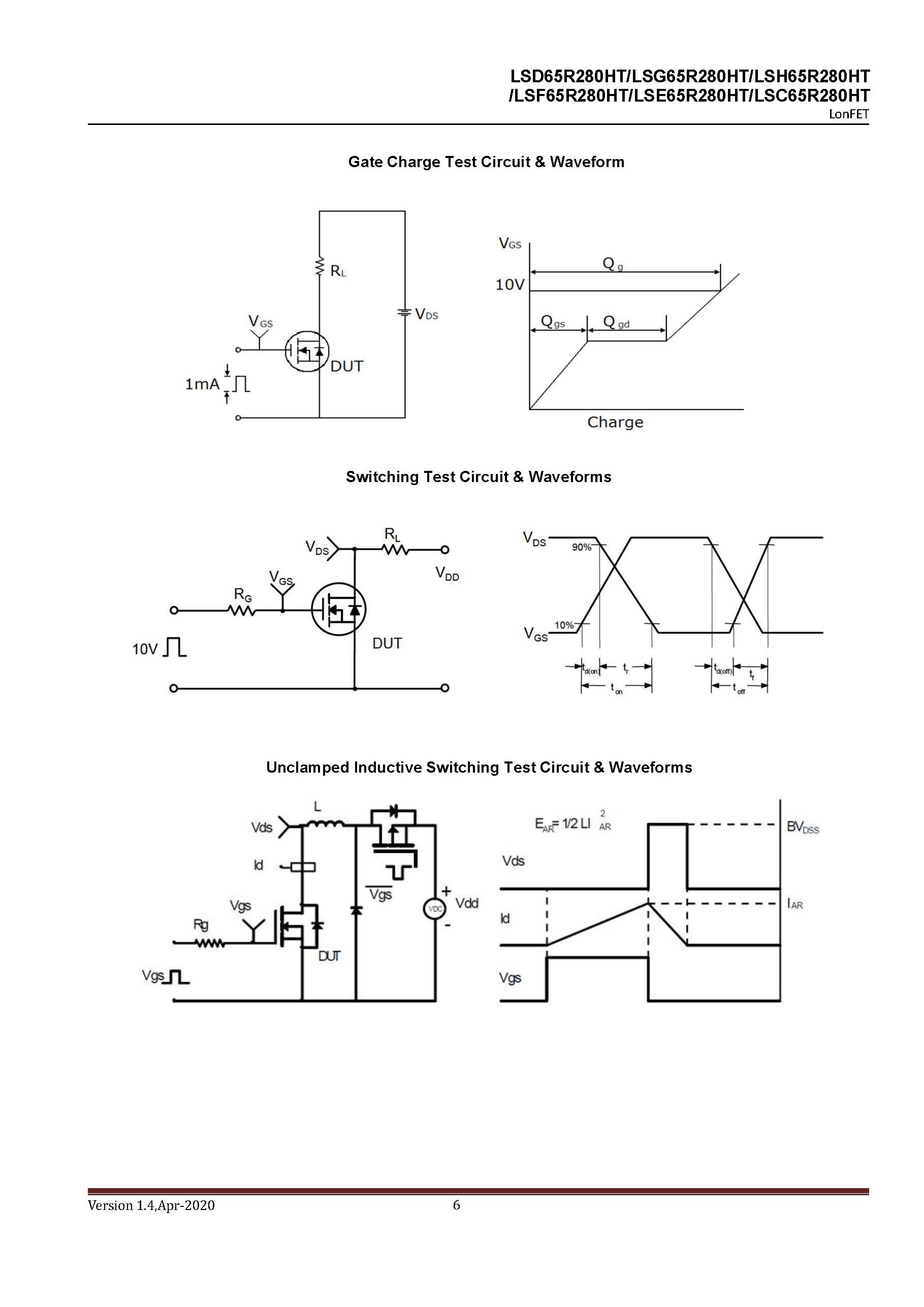

LONTEN-LSD65R280HT.pdf
