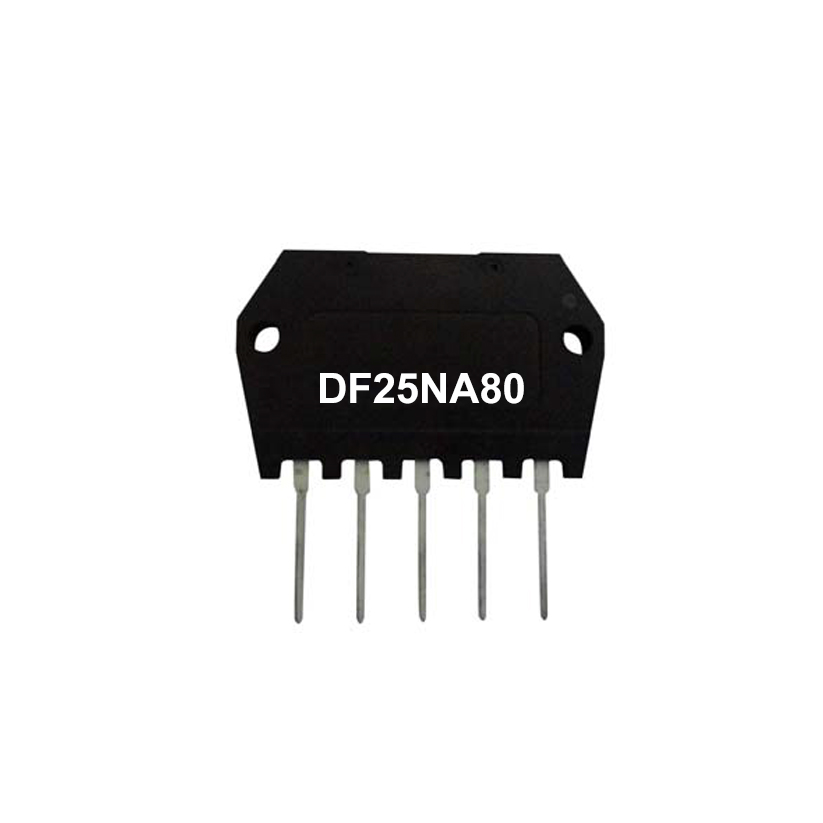

DF25NA80
Merry

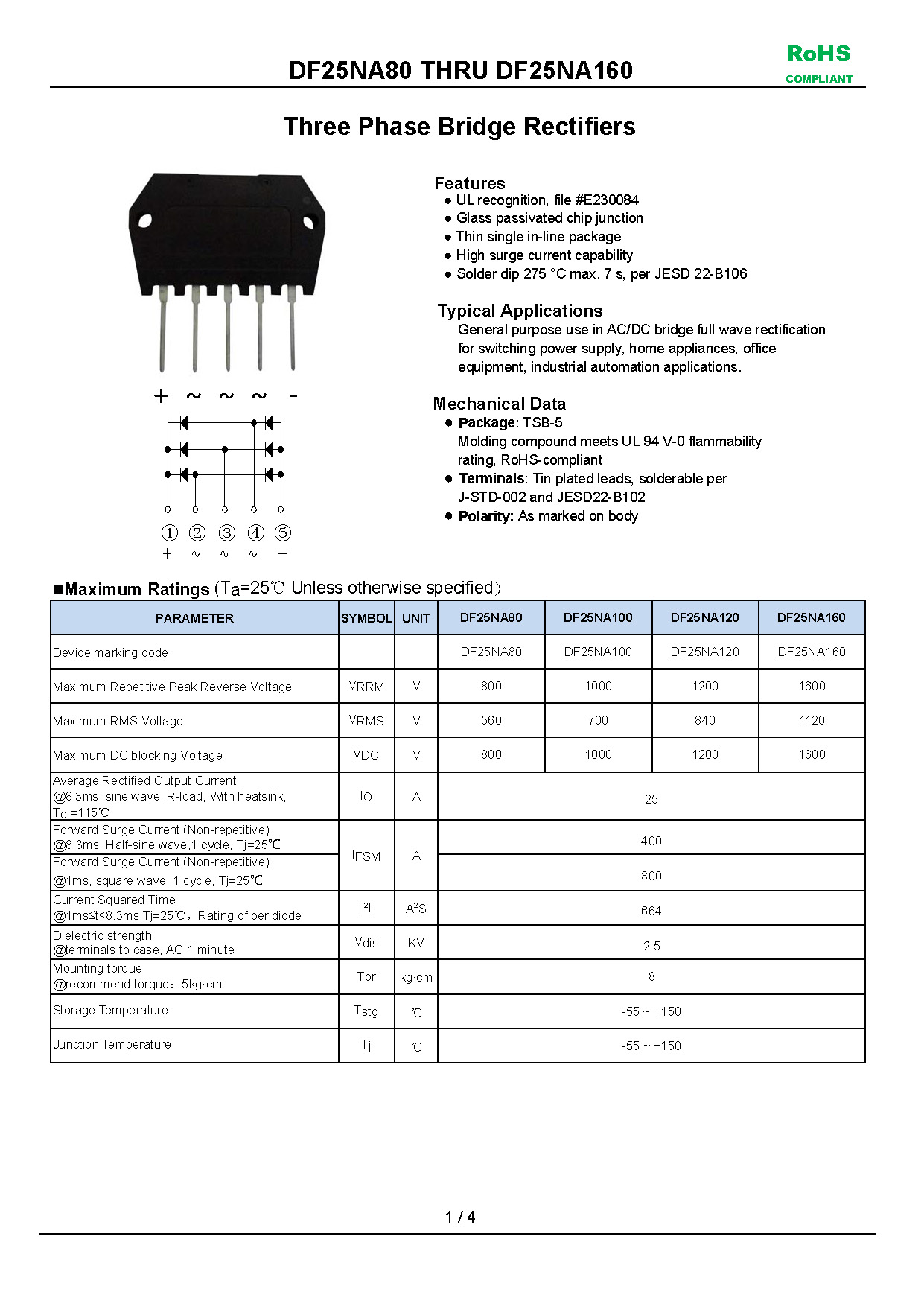

Three Phase Bridge Rectifiers, VRM: 800V, Io: 25A, IFSM: 400A, fetures, applications, TSB-5, DF25NA80 THRU DF25NA160
Features :
- UL recognition, file #E230084
- Thin single in-line package
- Glass passivated chip junction
- High surge current capability
- Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications :
- General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications
Mechanical Data :

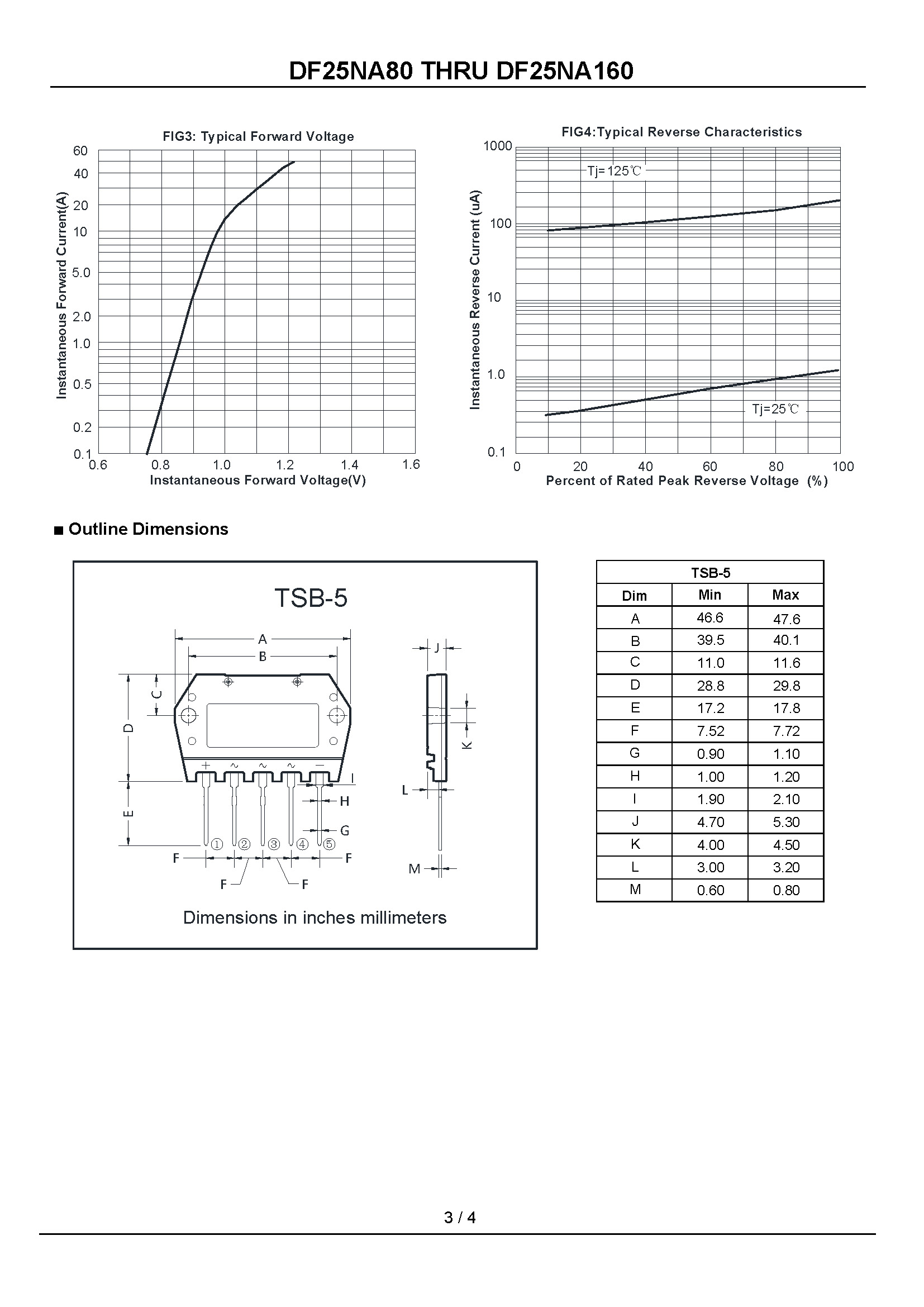

- Package: TSB-5
Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, Halogen free
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: As marked on body
