G5S12020BM
Product Name:

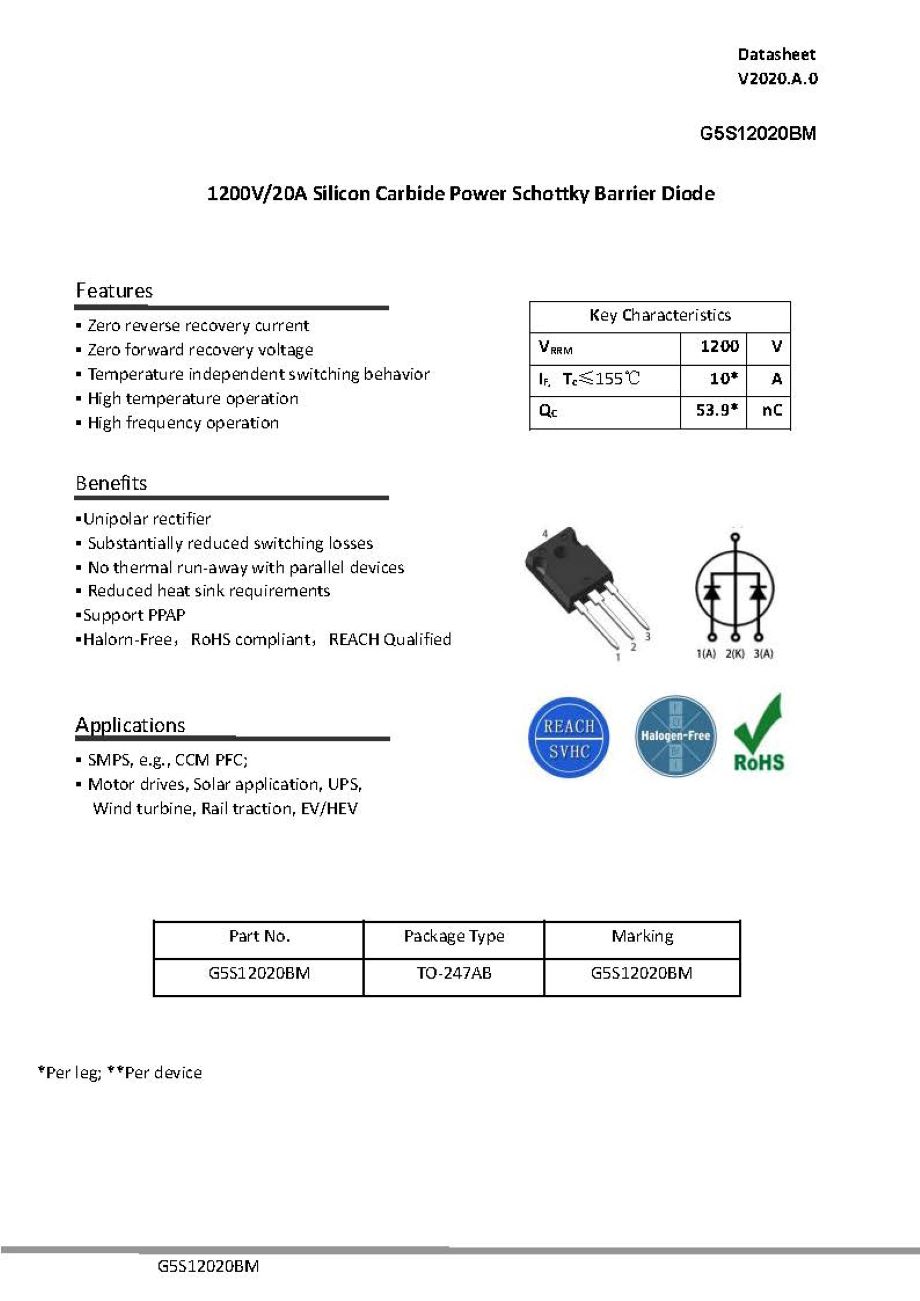

1200V/20A Silicon Carbide Power Schottky Barrier Diode G5S12020BM TO-247AB
Product Description:
Features:
• Zero reverse recovery current
• Zero forward recovery voltage
• Temperature independent switching behavior
• High temperature operation
• High frequency operation
Benefits:
• Unipolar rectifier
• Substantially reduced switching losses
• No thermal run-away with parallel devices
• Reduced heat sink requirements
•Support PPAP
•Halorn-Free，RoHS compliant，REACH Qualified
Applications:
• SMPS, e.g., CCM PFC;
• Motor drives, Solar application, UPS,
Wind turbine, Rail traction, EV/HEV
Introducing the 1200V/20A Silicon Carbide Power Schottky Barrier Diode G5S12020BM TO-247AB. This professional-grade product is designed to provide reliable and efficient control over the on/off state of your circuit.
With a voltage rating of 1200V and a current rating of 20A, this diode is capable of handling high-power applications with ease. Its advanced Silicon Carbide technology ensures enhanced performance and durability, making it ideal for demanding industrial and commercial environments.

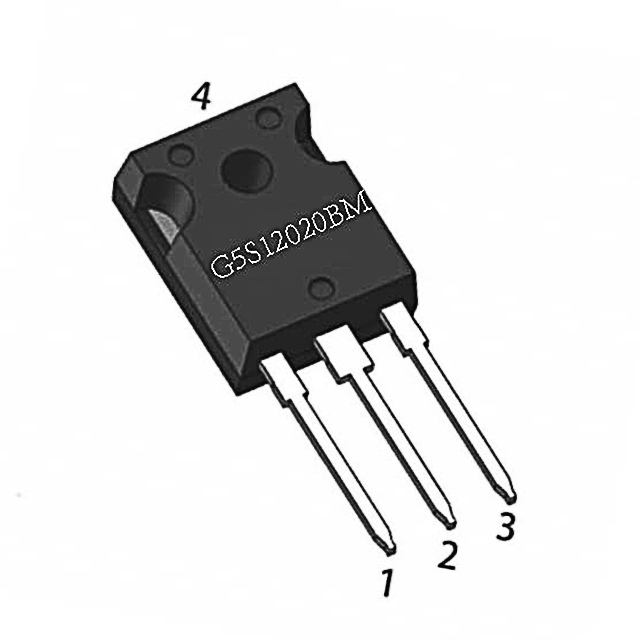

The TO-247AB package offers excellent thermal conductivity, allowing for efficient heat dissipation and ensuring optimal performance even under heavy loads. This diode is built to withstand harsh operating conditions, providing long-lasting performance and reliability.
Whether you need to control the state of your circuit in power electronics, motor drives, or other applications, the 1200V/20A Silicon Carbide Power Schottky Barrier Diode G5S12020BM TO-247AB is the perfect choice. Its professional tone and exceptional features make it an excellent addition to any control circuit.
Product Specifications:
Product Name:
1200V/20A Silicon Carbide Power Schottky Barrier Diode G5S12020BM TO-247AB
Product Description:
Features:
• Zero reverse recovery current
• Zero forward recovery voltage
• Temperature independent switching behavior
• High temperature operation
• High frequency operation
Benefits:
• Unipolar rectifier
• Substantially reduced switching losses
• No thermal run-away with parallel devices
• Reduced heat sink requirements
•Support PPAP
•Halorn-Free，RoHS compliant，REACH Qualified
Applications:
• SMPS, e.g., CCM PFC;
• Motor drives, Solar application, UPS,
Wind turbine, Rail traction, EV/HEV
Introducing the 1200V/20A Silicon Carbide Power Schottky Barrier Diode G5S12020BM TO-247AB. This professional-grade product is designed to provide reliable and efficient control over the on/off state of your circuit.
With a voltage rating of 1200V and a current rating of 20A, this diode is capable of handling high-power applications with ease. Its advanced Silicon Carbide technology ensures enhanced performance and durability, making it ideal for demanding industrial and commercial environments.
The TO-247AB package offers excellent thermal conductivity, allowing for efficient heat dissipation and ensuring optimal performance even under heavy loads. This diode is built to withstand harsh operating conditions, providing long-lasting performance and reliability.
Whether you need to control the state of your circuit in power electronics, motor drives, or other applications, the 1200V/20A Silicon Carbide Power Schottky Barrier Diode G5S12020BM TO-247AB is the perfect choice. Its professional tone and exceptional features make it an excellent addition to any control circuit.
Product Specifications:
