G5S12015PM
Product Name:

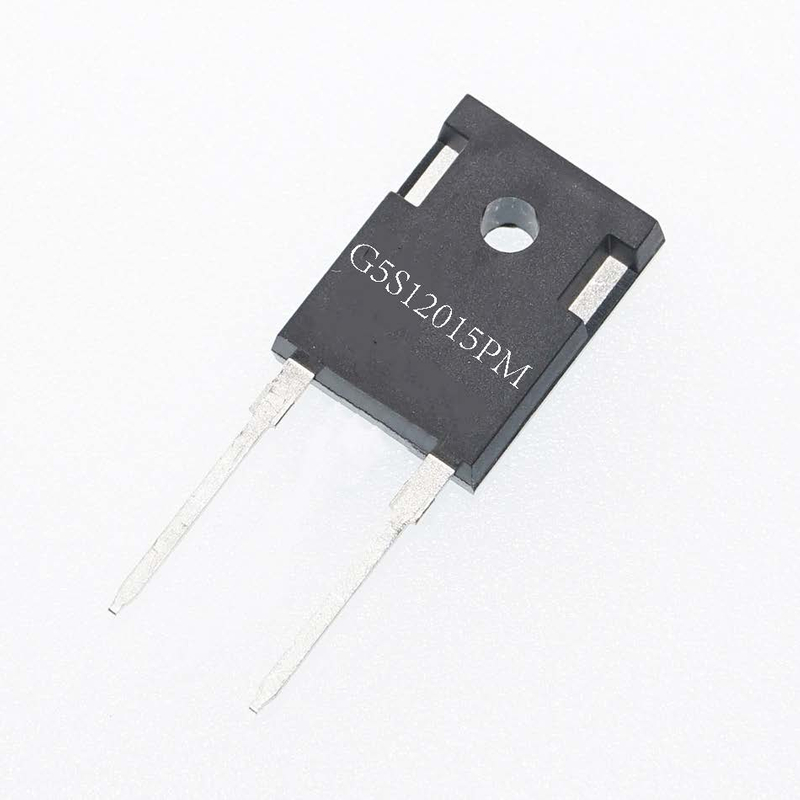

Silicon Carbide Schottky Diode G5S12015PM TO-247AC
Product Description:

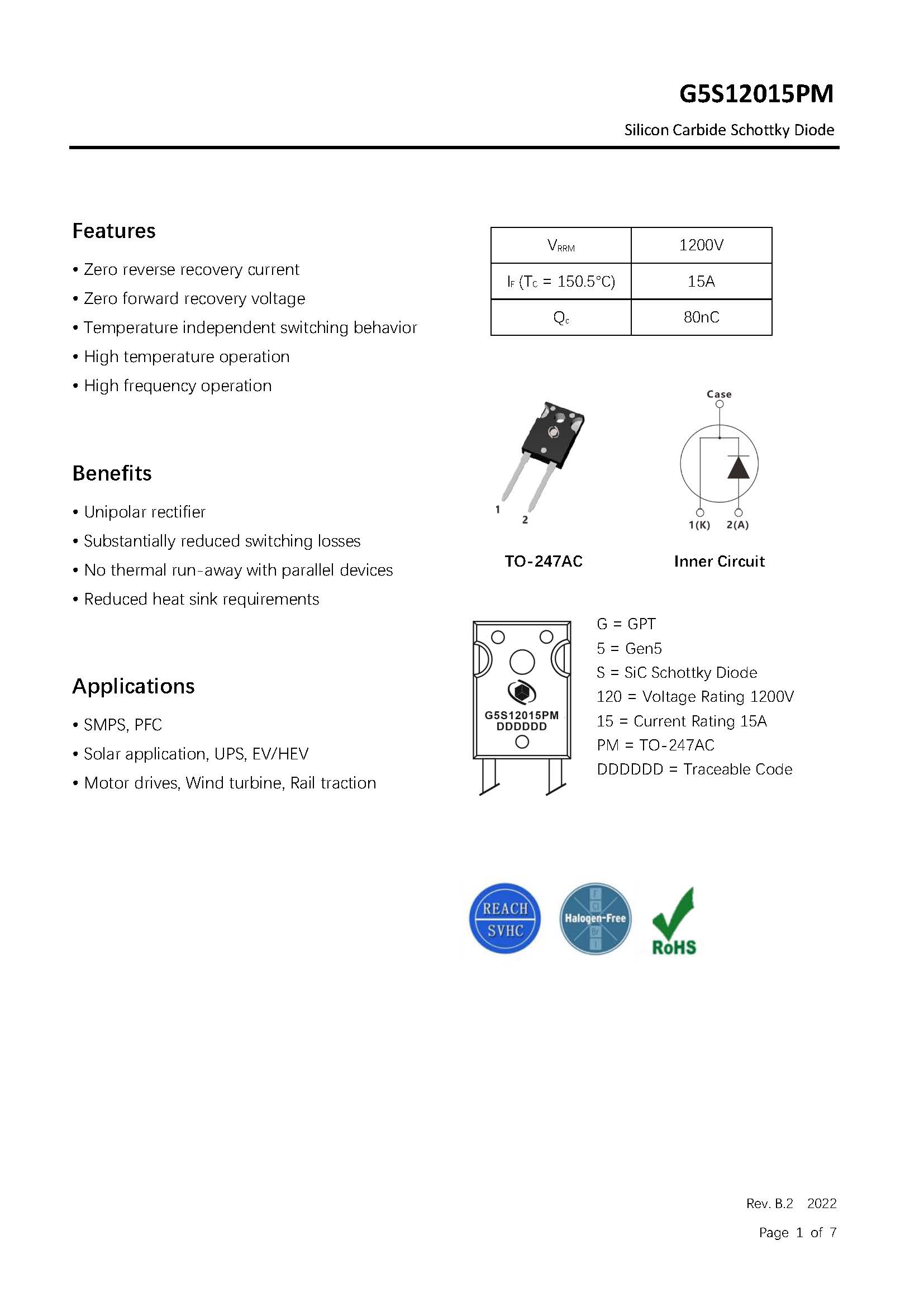

Features
• Zero reverse recovery current
• Zero forward recovery voltage
• Temperature independent switching behavior
• High temperature operation
• High frequency operation
Benefits
• Unipolar rectifier
• Substantially reduced switching losses
• No thermal run-away with parallel devices
• Reduced heat sink requirements
Applications
• SMPS, PFC
• Solar application, UPS, EV/HEV
• Motor drives, Wind turbine, Rail traction
Introducing the Silicon Carbide Schottky Diode G5S12015PM TO-247AC, a cutting-edge solution for controlling circuit switching with utmost precision. Designed with utmost professionalism, this product offers unparalleled performance and reliability.
With its advanced technology, this Schottky diode ensures efficient control over the on and off states of your circuit. Its exceptional quality and durability make it a perfect choice for demanding applications that require precise circuit control.
The G5S12015PM TO-247AC diode is built using silicon carbide, a material known for its excellent electrical properties. This enables the diode to handle high voltages and currents with minimal losses, resulting in improved overall circuit efficiency.
Its TO-247AC package ensures easy and secure installation, providing a reliable connection to your circuit. This diode is meticulously designed to meet the highest standards, ensuring optimal performance and longevity.
Whether you're working on power electronics, motor control, or any application that requires efficient circuit control, the Silicon Carbide Schottky Diode G5S12015PM TO-247AC is the ideal choice. Trust its professional-grade features to deliver exceptional results and elevate your circuit control to new heights.
Product Specifications:
Product Name:
Silicon Carbide Schottky Diode G5S12015PM TO-247AC
Product Description:
Features
• Zero reverse recovery current
• Zero forward recovery voltage
• Temperature independent switching behavior
• High temperature operation
• High frequency operation
Benefits
• Unipolar rectifier
• Substantially reduced switching losses
• No thermal run-away with parallel devices
• Reduced heat sink requirements
Applications
• SMPS, PFC
• Solar application, UPS, EV/HEV
• Motor drives, Wind turbine, Rail traction
Introducing the Silicon Carbide Schottky Diode G5S12015PM TO-247AC, a cutting-edge solution for controlling circuit switching with utmost precision. Designed with utmost professionalism, this product offers unparalleled performance and reliability.
With its advanced technology, this Schottky diode ensures efficient control over the on and off states of your circuit. Its exceptional quality and durability make it a perfect choice for demanding applications that require precise circuit control.
The G5S12015PM TO-247AC diode is built using silicon carbide, a material known for its excellent electrical properties. This enables the diode to handle high voltages and currents with minimal losses, resulting in improved overall circuit efficiency.
Its TO-247AC package ensures easy and secure installation, providing a reliable connection to your circuit. This diode is meticulously designed to meet the highest standards, ensuring optimal performance and longevity.
Whether you're working on power electronics, motor control, or any application that requires efficient circuit control, the Silicon Carbide Schottky Diode G5S12015PM TO-247AC is the ideal choice. Trust its professional-grade features to deliver exceptional results and elevate your circuit control to new heights.
Product Specifications:
