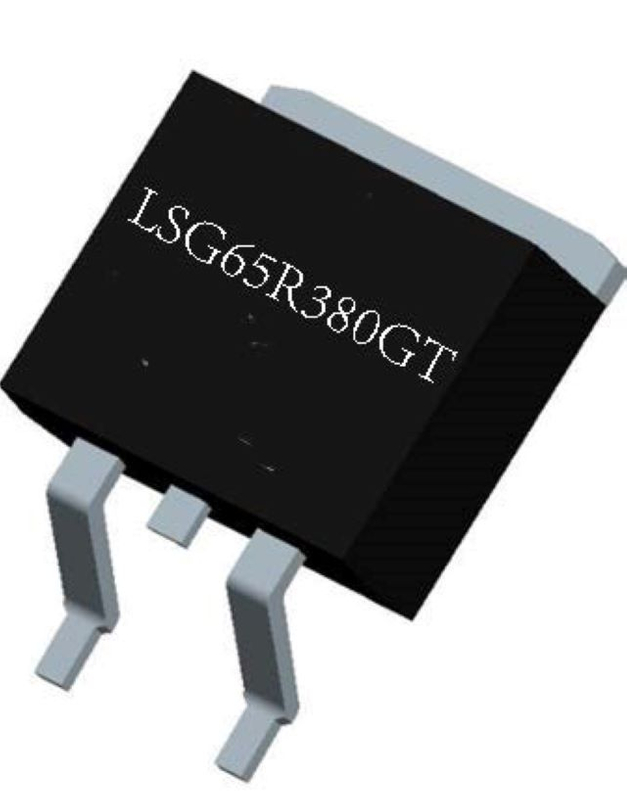

Lonten High Voltage N-channel 650V, 11A, 0.38Ω Power MOSFET LSG65R380GT

Product Name:

Lonten High Voltage N-channel 650V, 11A, 0.38Ω Power MOSFET LSG65R380GT

Product Description:

Description:

LonFETTM Power MOSFET is fabricated using

advanced super junction technology. The

resulting device has extremely low on

resistance, making it especially suitable for

applications which require superior power

density and outstanding efficiency

Features:

 Ultra low RDS(on)

 Ultra low gate charge (typ. Qg = 23nC)

 100% UIS tested

 RoHS compliant

Applications:

 Power faction correction (PFC).

 Switched mode power supplies (SMPS).

 Uninterruptible power supply (UPS).

Product Summary:

VDS  Tj,max: 700V

RDS(on),max: 0.38Ω

IDM: 30A

Qg,typ: 23nC

The Lonten High Voltage N-channel 650V, 11A, 0.38Ω Power MOSFET LSG65R380GT is a reliable and efficient component designed for switching and amplifying electronic signals in electronic devices. With its high voltage rating of 650V and current rating of 11A, this MOSFET offers exceptional performance and reliability. The low on-resistance of 0.38Ω ensures minimal power loss and efficient operation. Trust the Lonten Power MOSFET LSG65R380GT for all your electronic signal switching needs.

Product Specifications:

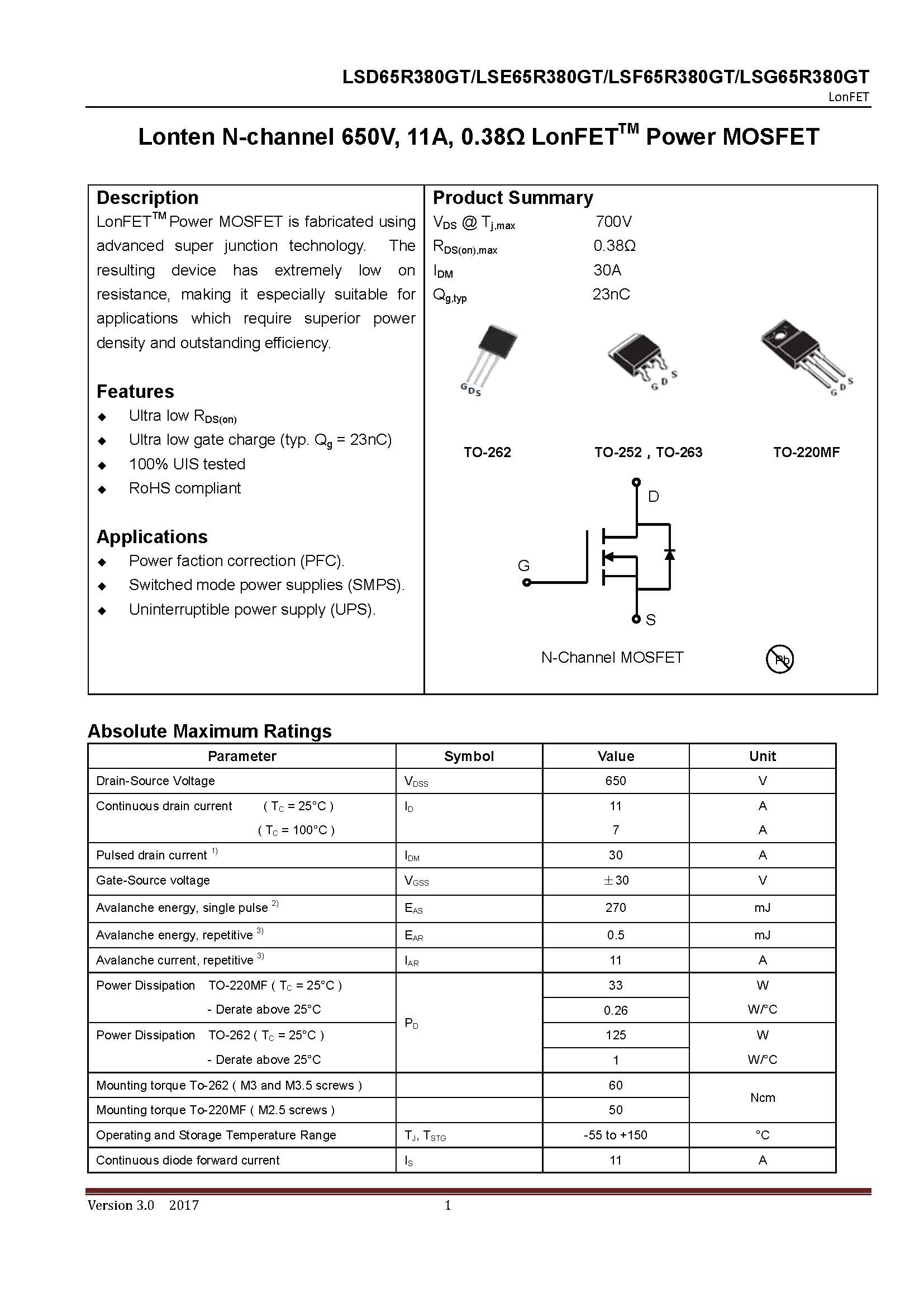

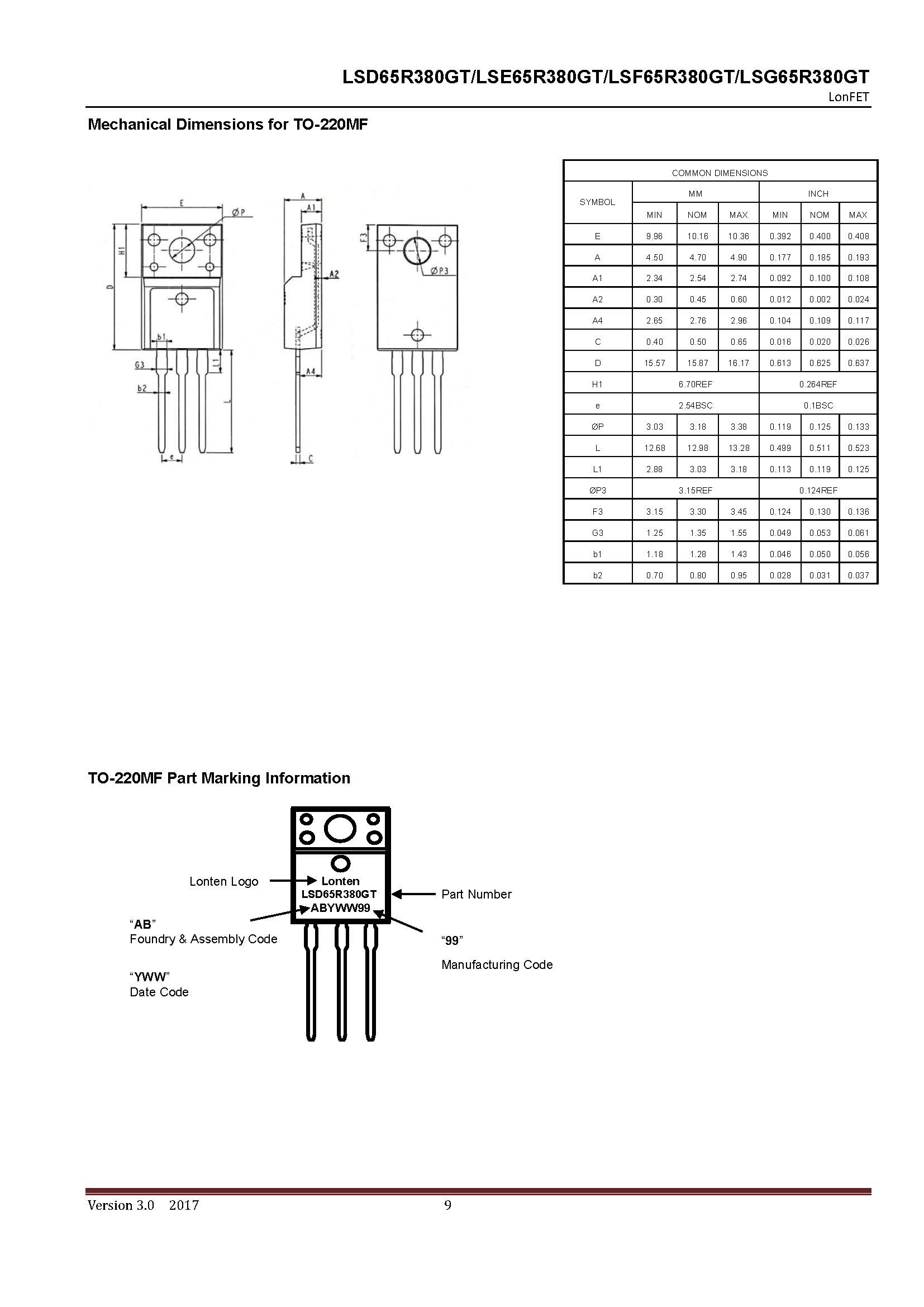

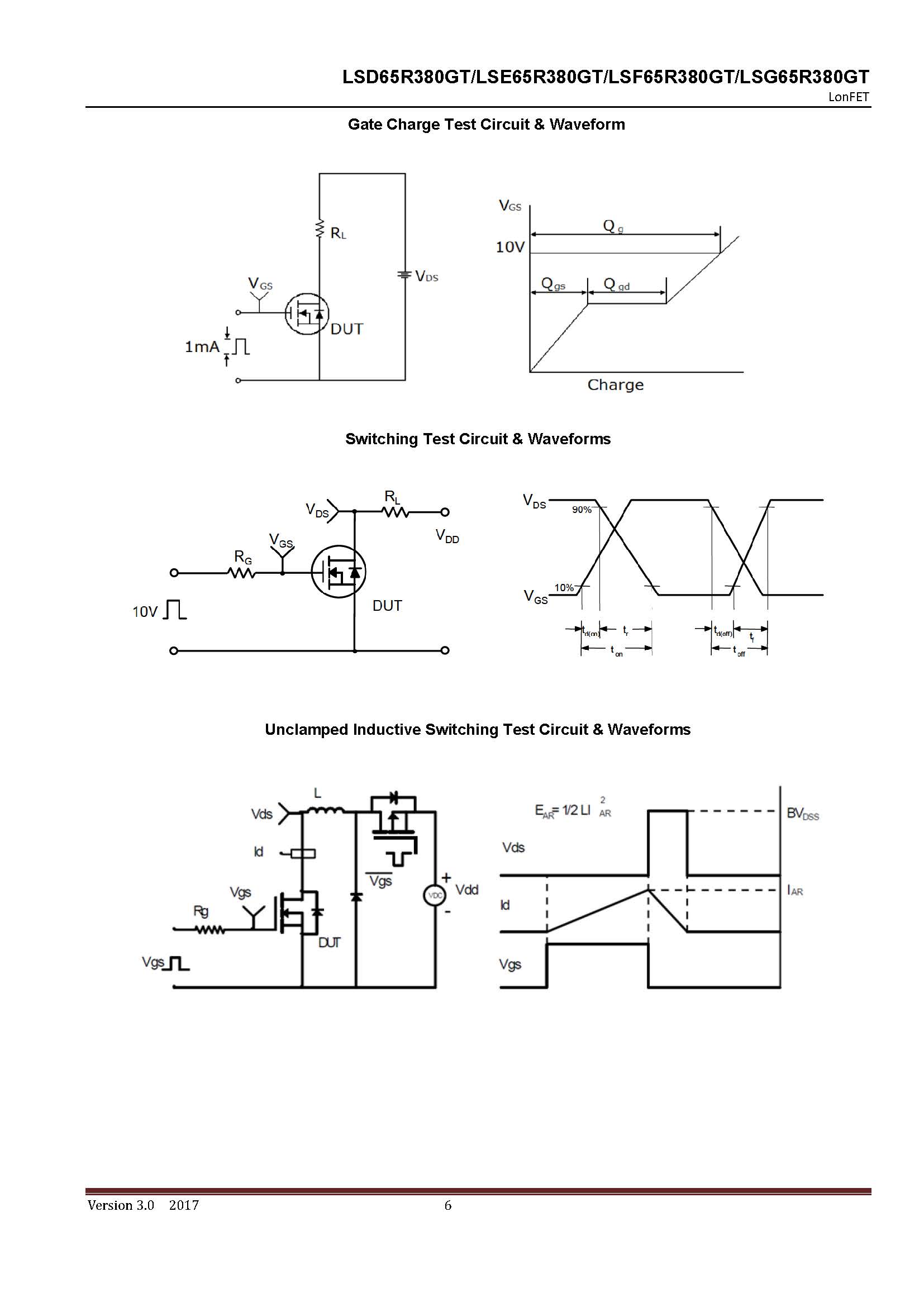

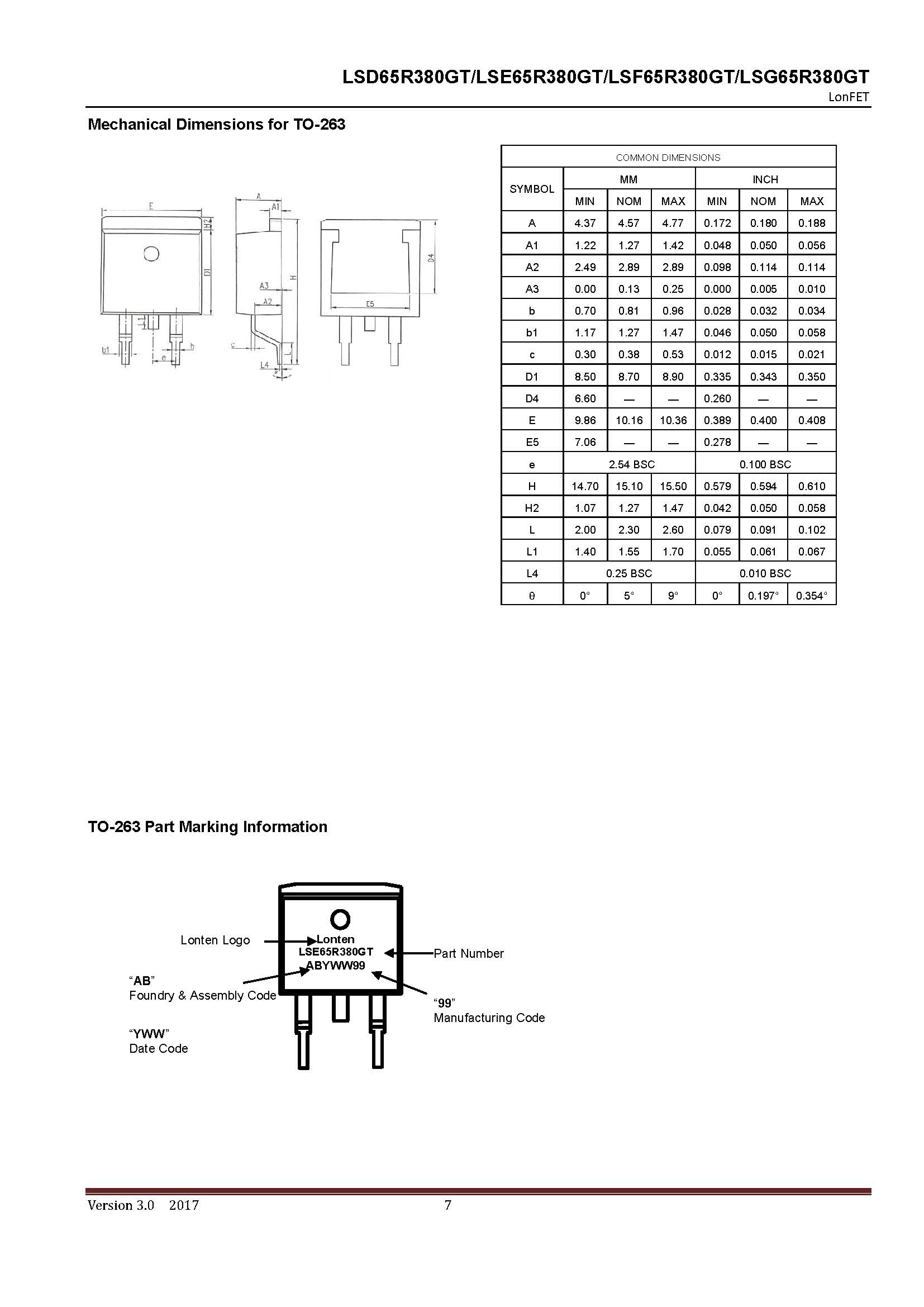

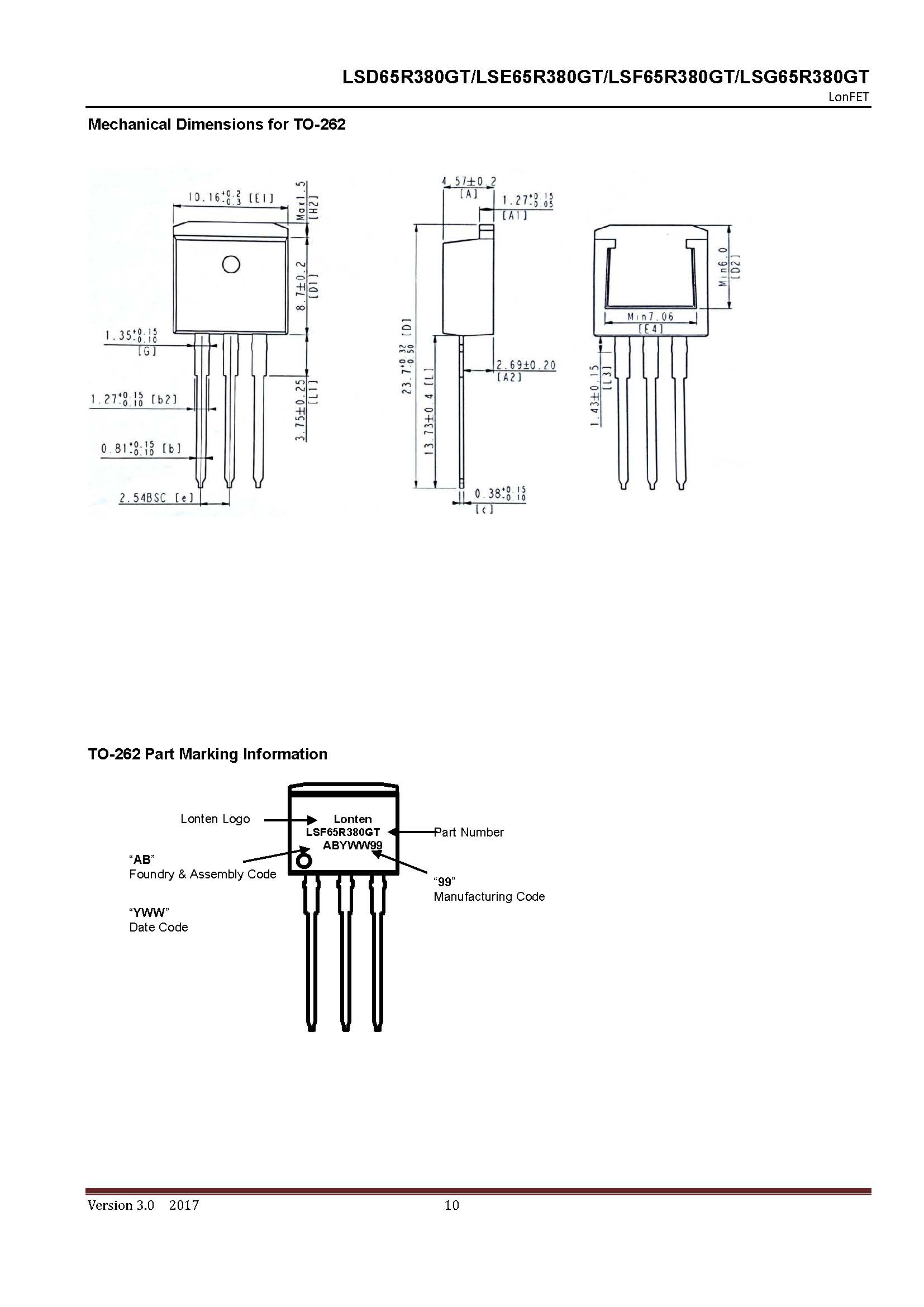

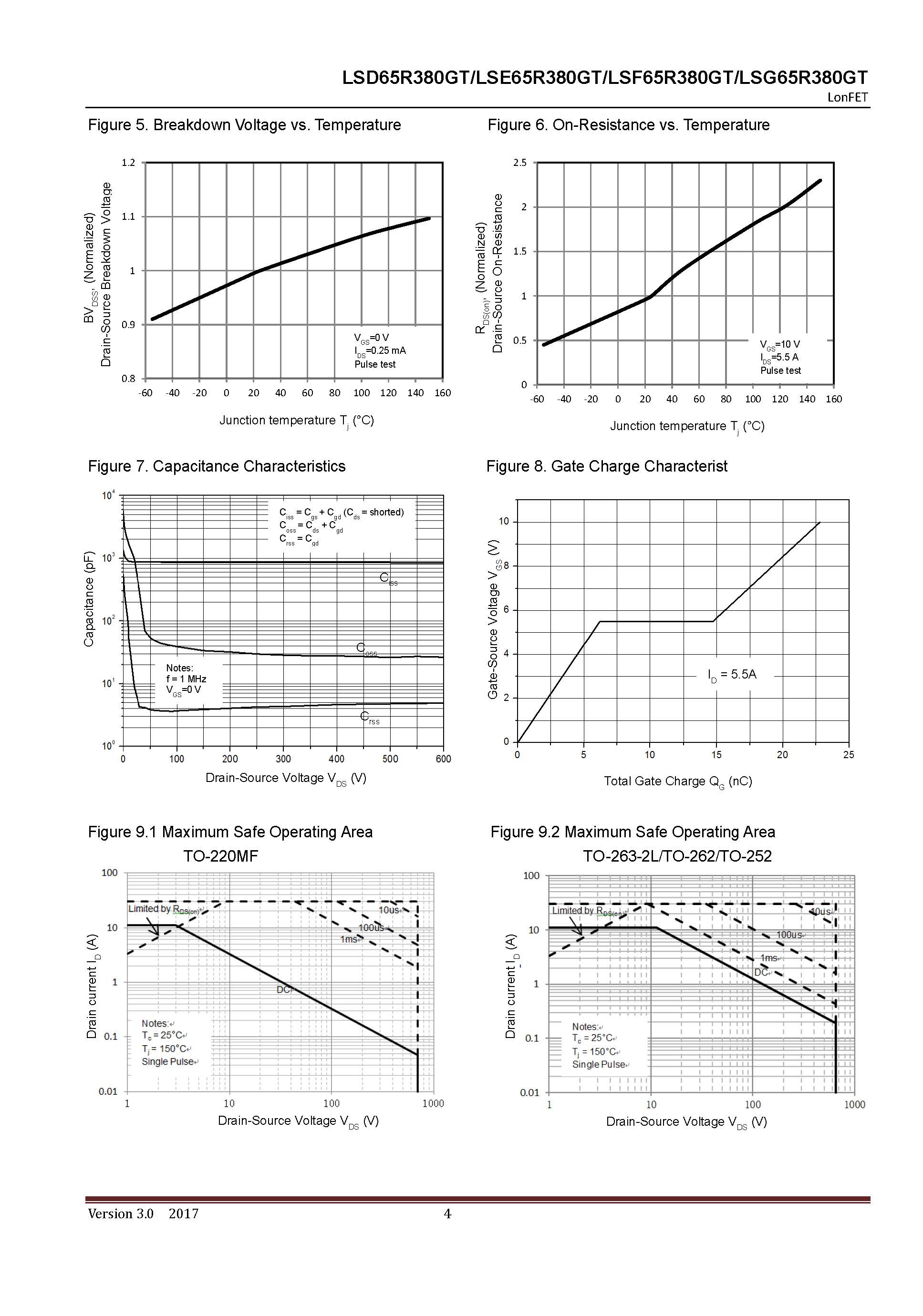

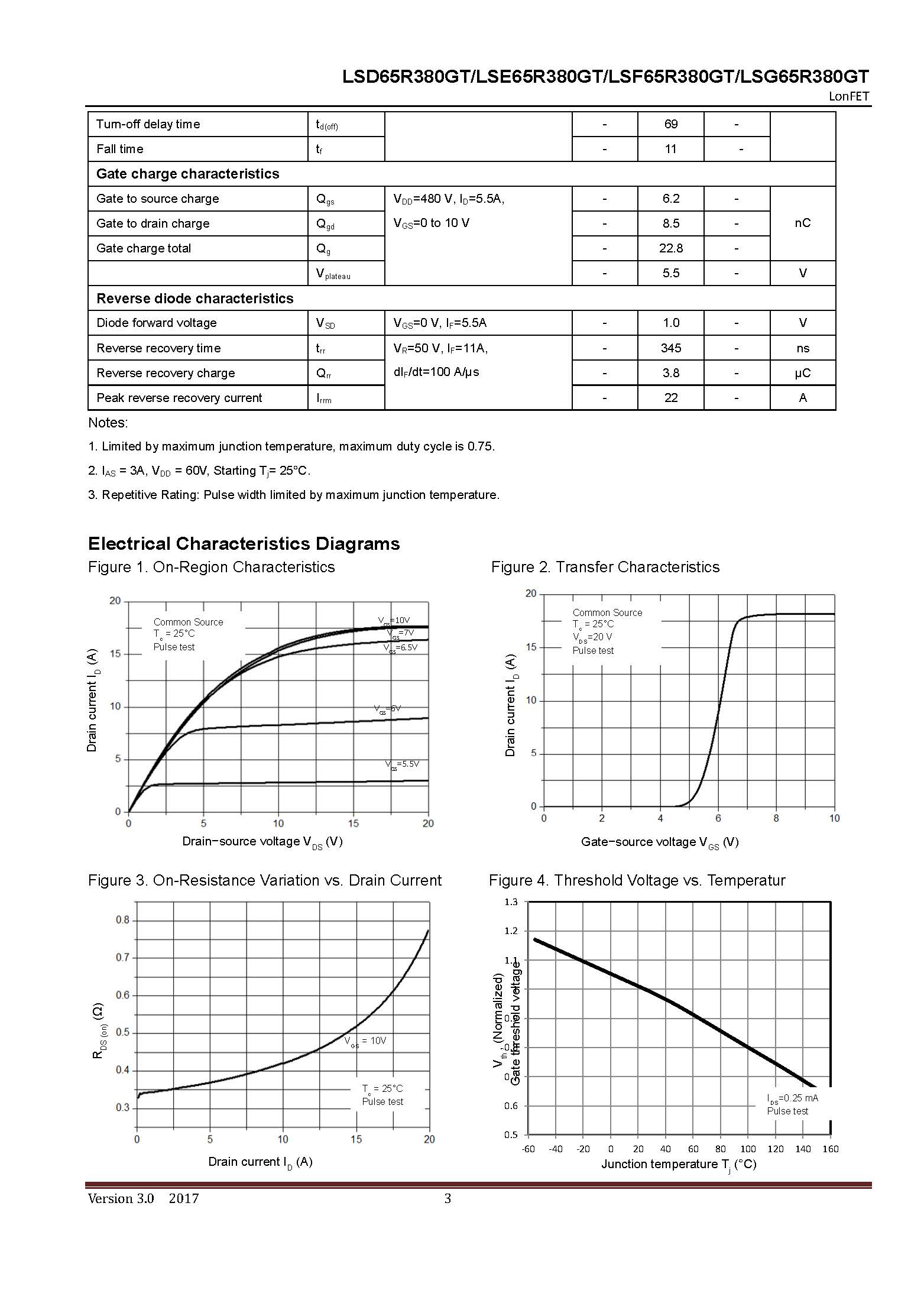

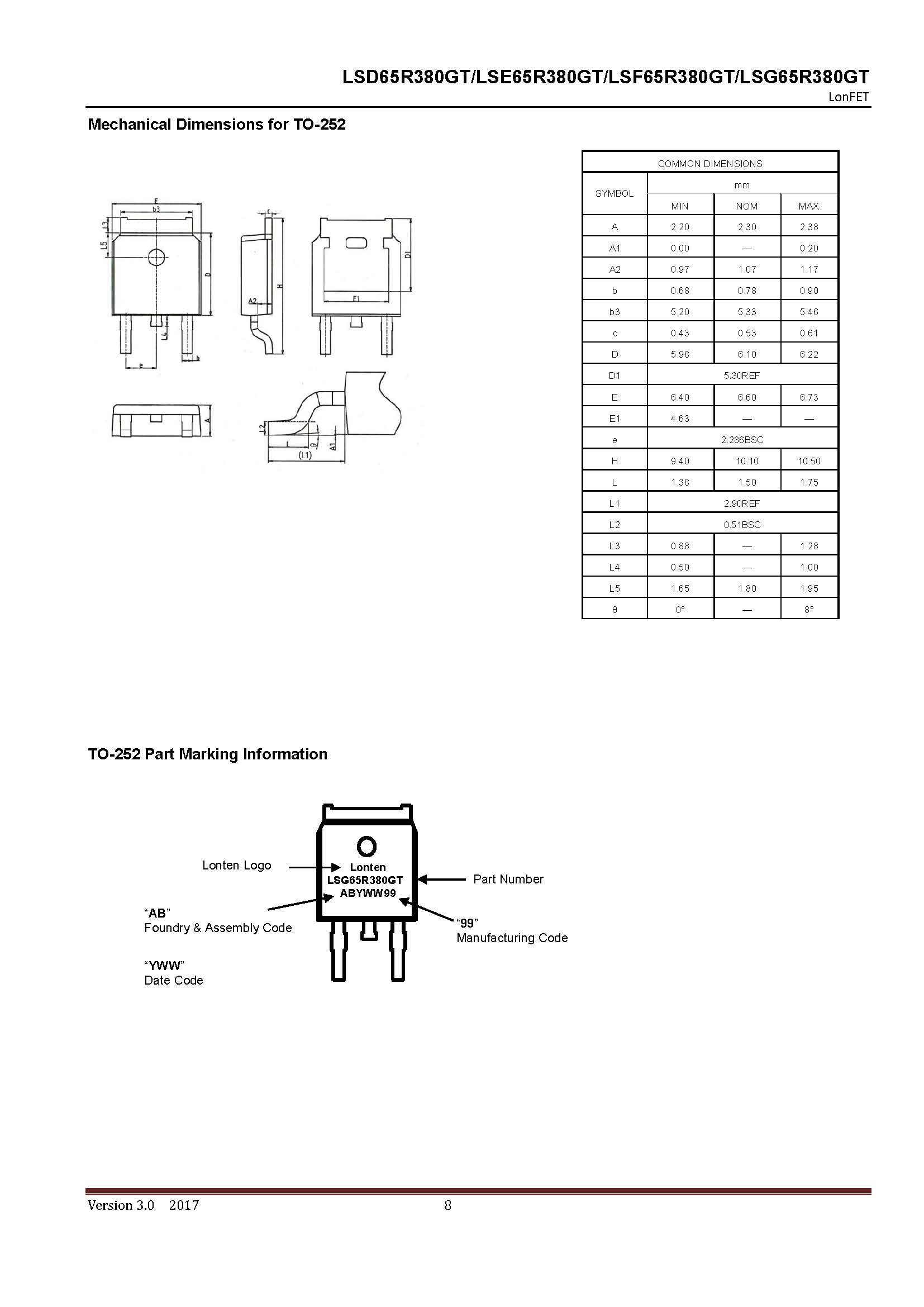

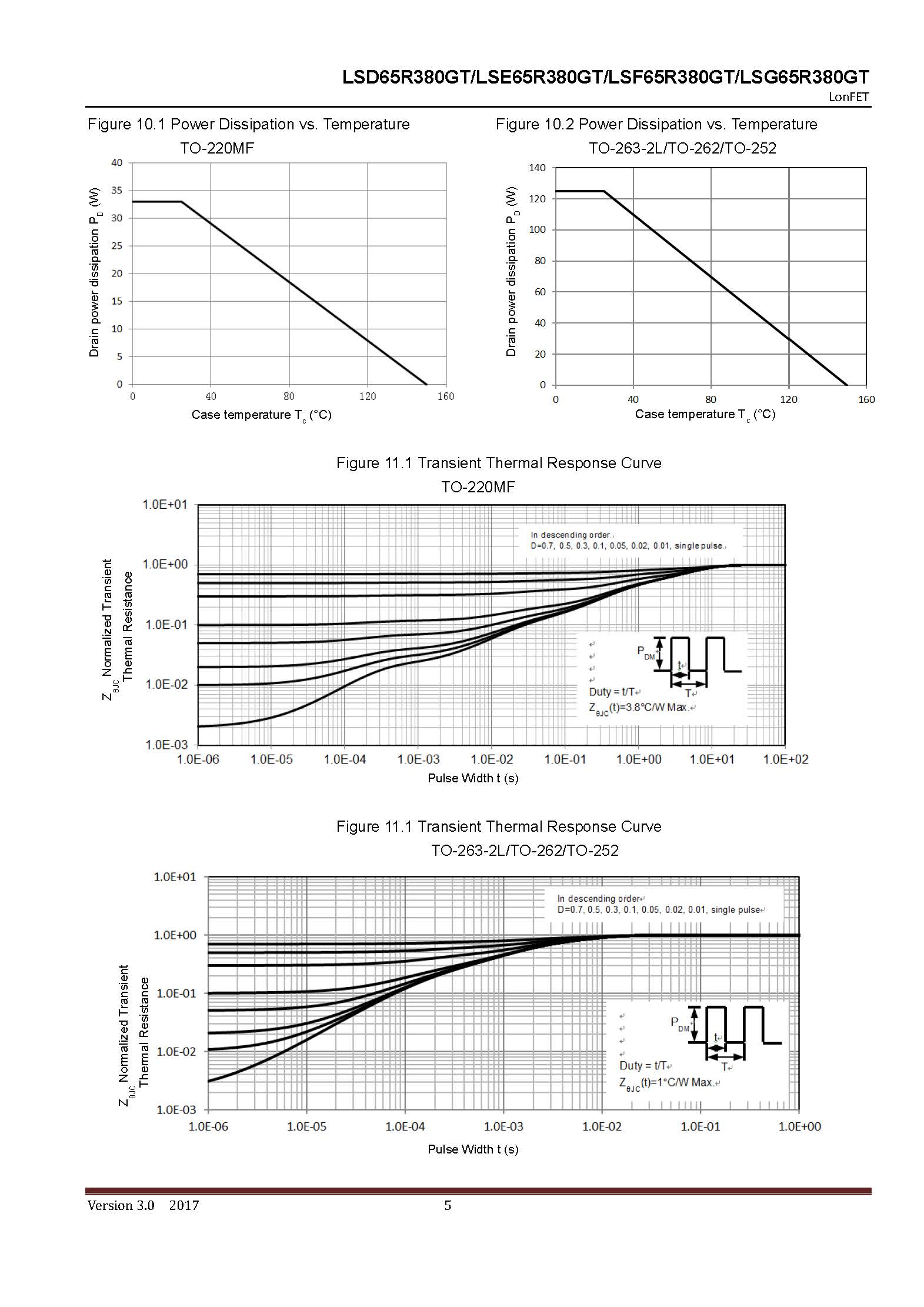

LONTEN-LSG65R380GT.pdf
