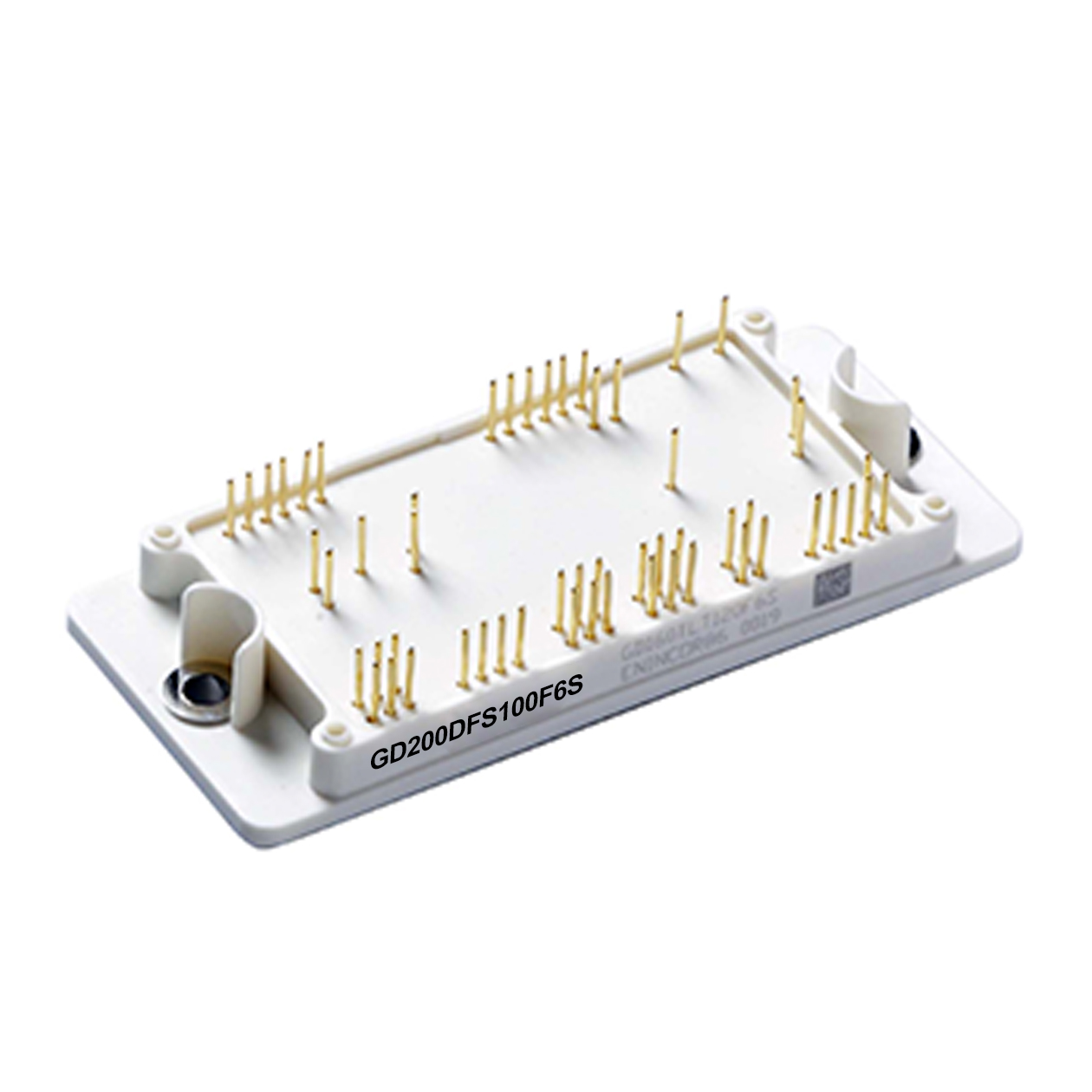

1000V/200A IGBT Trench-FS Gen1, F6, GD200DFS100F6S

1000V/200A IGBT Trench-FS Gen1
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD200DFS100F6S

  • Merry

1000V/200A IGBT Trench-FS Gen1, F6, GD200DFS100F6S
Package: F6
Rated Current: 200A
Chip Type: Trench-FS Gen1
Rated Voltage: 1000V
Circuit Structure: BOOST
Hallmark: Flat Substrates


Features :
- Low VCE(sat) Trench IGBT technology
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology

Typical Applications :
- Solar power

GD200DFS100F6SName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

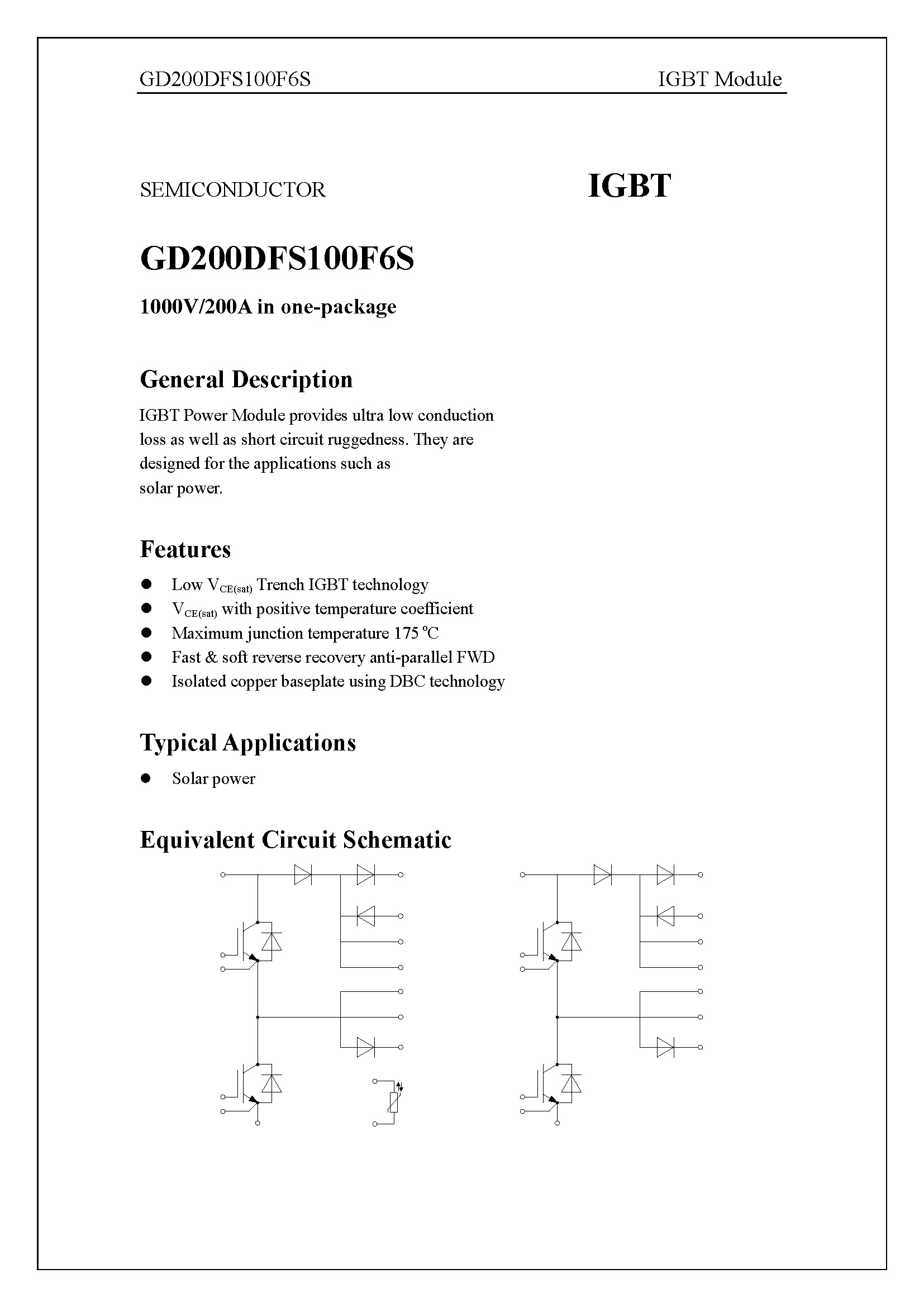

GD200DFS100F6S-1_页面_1

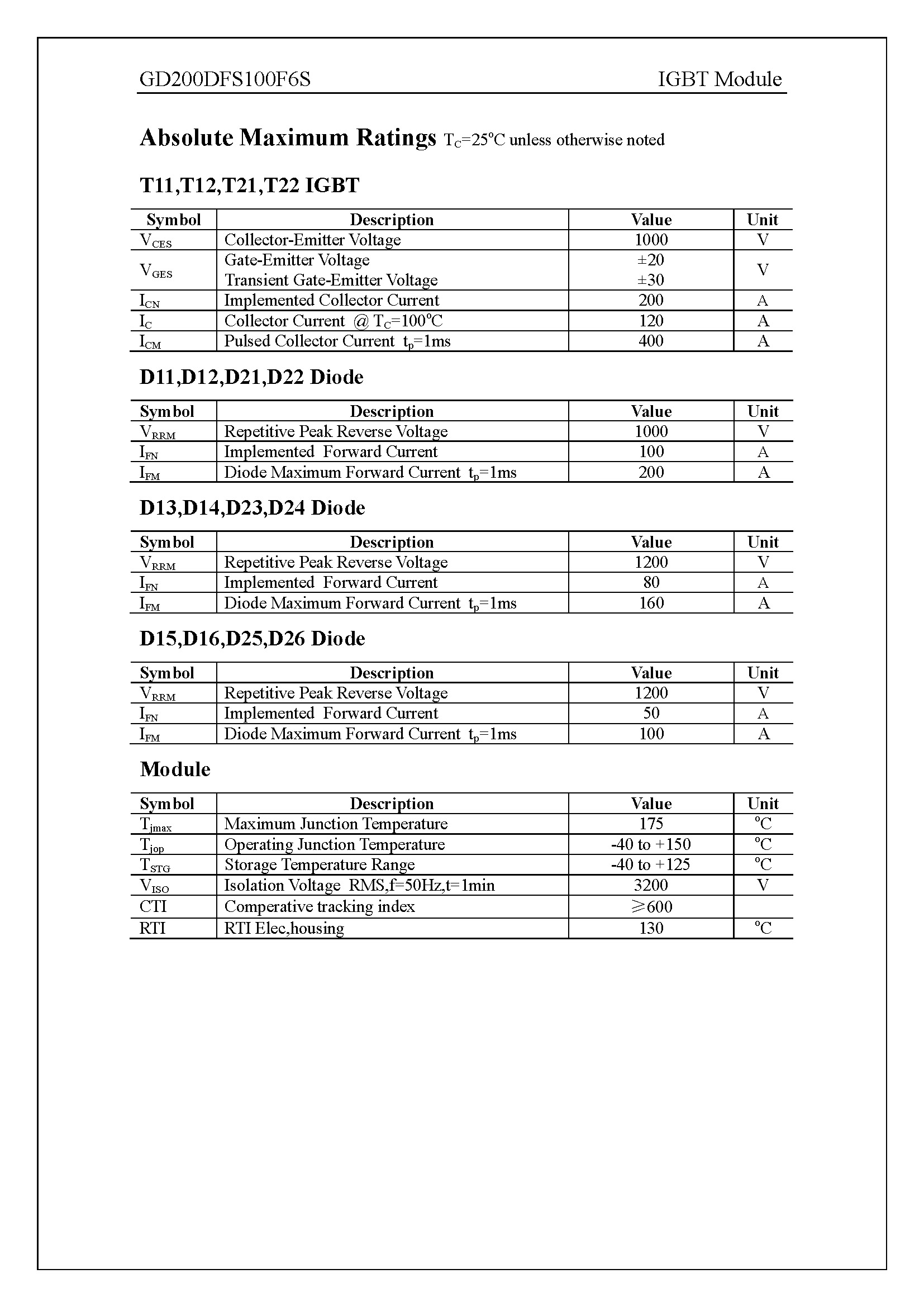

GD200DFS100F6S-1_页面_2

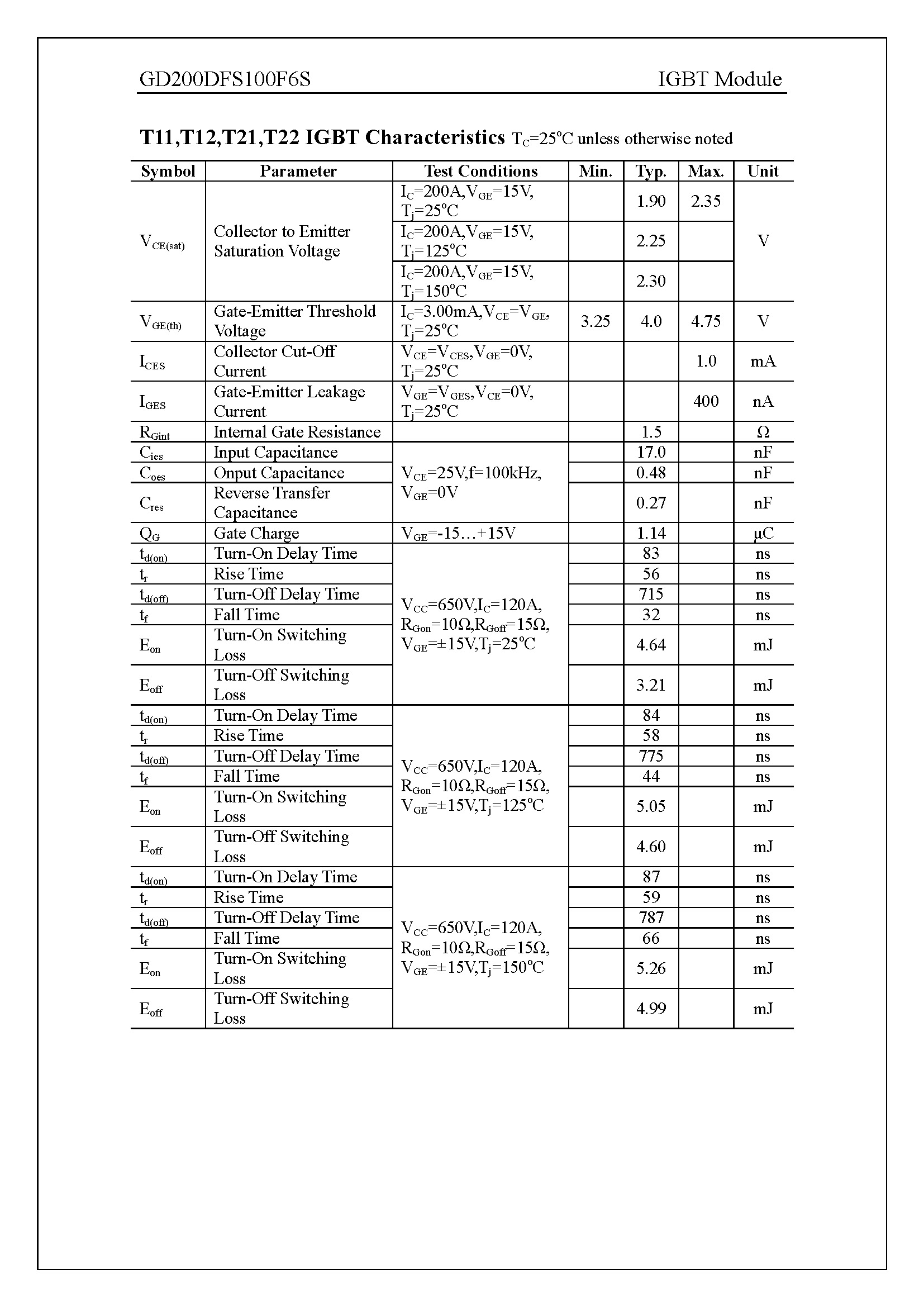

GD200DFS100F6S-1_页面_3
