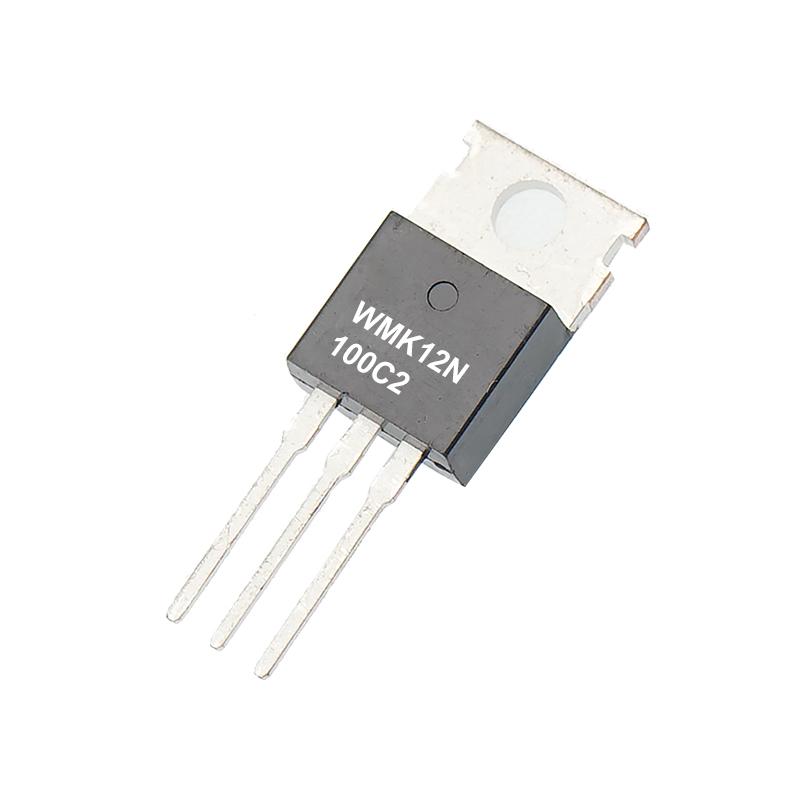

1000V/6.8A/0.68Ω, Super Junction Power MOSFET, TO-220, WMK12N100C2

1000V/6.8A/0.68Ω, Super Junction Power MOSFET
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • WMK12N100C2

  • Merry

1000V/6.8A/0.68Ω, Super Junction Power MOSFET, TO-220, WMK12N100C2

Features :
- VDS =1050@Tj,max
- Typ. RDS(on) =0.68Ω
- 100% UIS tested
- Pb-free plating, Haloge free

Applications :
- LED Lighting, Charger, Adapter, PC, LCD TV, Server

WMK12N100C2Name1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

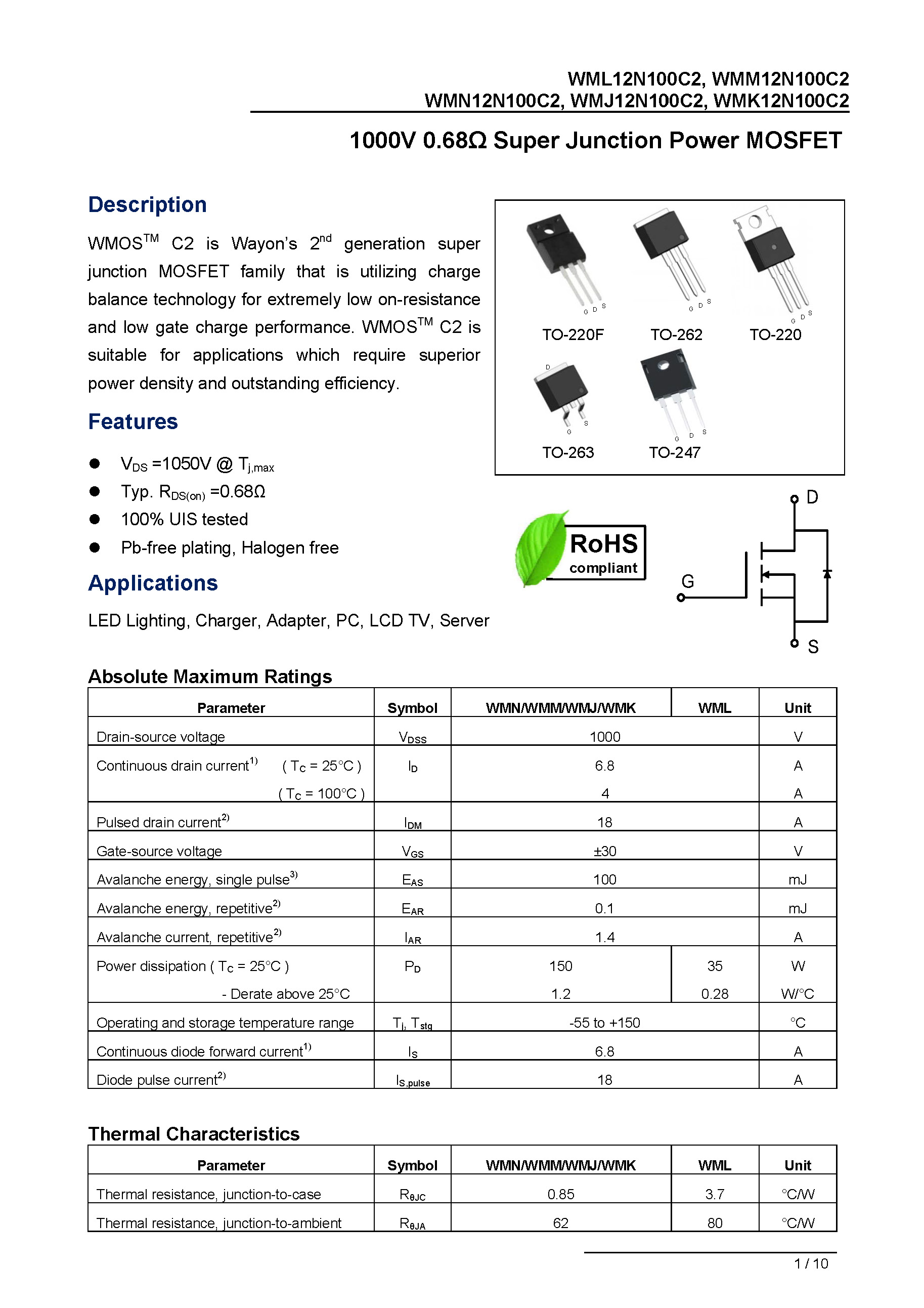

WMK12N100C2-1_页面_1

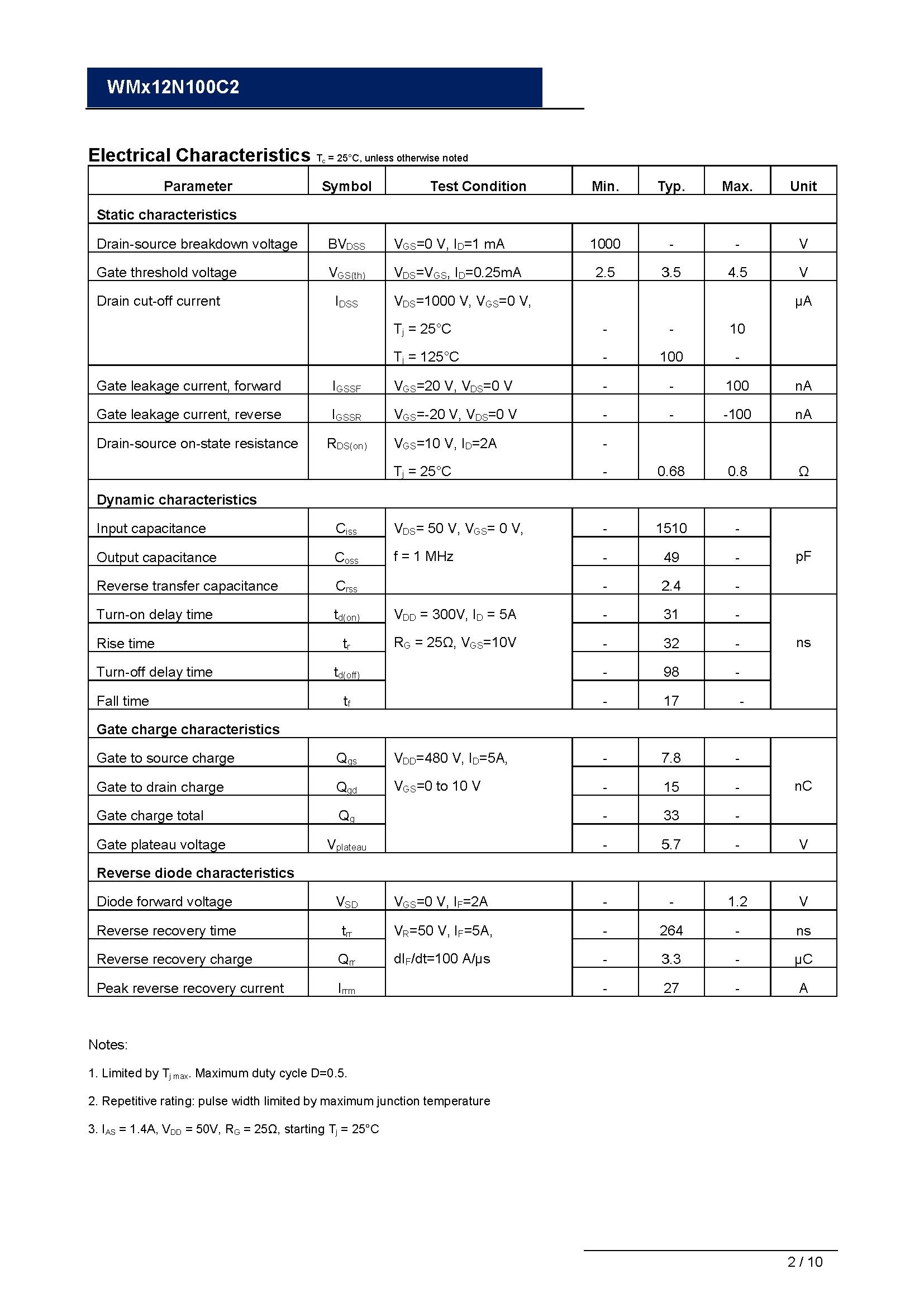

WMK12N100C2-1_页面_2
