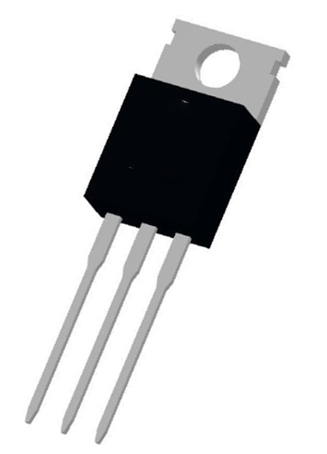

100V N-Channel Enhancement Mode Power MOSFET WMK080N10LG2 TO-220

100V N-Channel Enhancement Mode Power MOSFET WMK080N10LG2 TO-220
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WMK080N10LG2

  • Wayon

Product Name:

100V N-Channel Enhancement Mode Power MOSFET WMK080N10LG2 TO-220


Product Description:

Description:

WMK080N10LG2 uses Wayon's 2nd generation power trench MOSFET

technology that has been especially tailored to minimize the on-state

resistance and yet maintain superior switching performance. This

device is well suited for high efficiency fast switching applications.

Features:

 VDS = 100V, ID = 82A

  RDS(on) < 8mΩ  VGS = 10V

  RDS(on) < 11mΩ  VGS = 4.5V

 Low RDS(ON)

 100% EAS Guaranteed

 High Speed Power Switching, Logic Level

Applications:

 Power Management Switches

 DC/DC Conversion

 LED Backlighting


Introducing the 100V N-Channel Enhancement Mode Power MOSFET WMK080N10LG2 TO-220. This professional-grade power MOSFET is designed to efficiently switch or amplify electronic signals with utmost precision.

With a voltage rating of 100V, this N-Channel MOSFET is capable of handling high-power applications with ease. Its enhancement mode ensures seamless signal amplification, allowing for optimal performance in various electronic circuits.

The WMK080N10LG2 TO-220 package offers excellent thermal dissipation, ensuring reliable operation even in demanding conditions. This MOSFET is built to withstand high temperatures and maintain stable performance over extended periods.

Whether you need to switch or amplify electronic signals, this power MOSFET is a reliable choice. Its professional-grade construction and advanced features make it suitable for a wide range of applications, including power supplies, motor control, and audio amplification.

Invest in the 100V N-Channel Enhancement Mode Power MOSFET WMK080N10LG2 TO-220 and experience enhanced signal control and amplification like never before. Trust in its superior quality and performance to meet your electronic circuit needs with utmost precision and efficiency.


Product Specifications:

Way-on-WMK080N10LG2.pdf

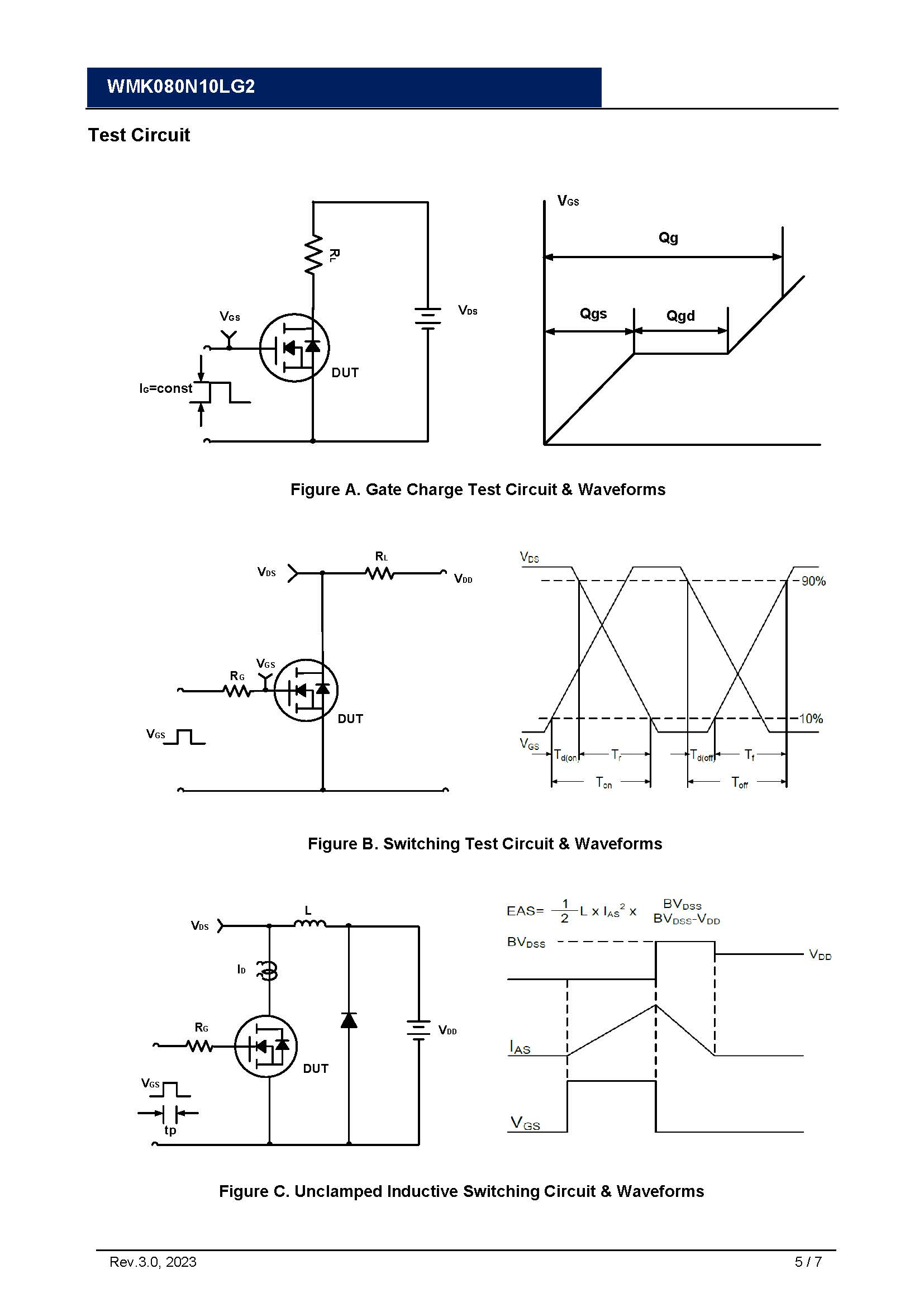

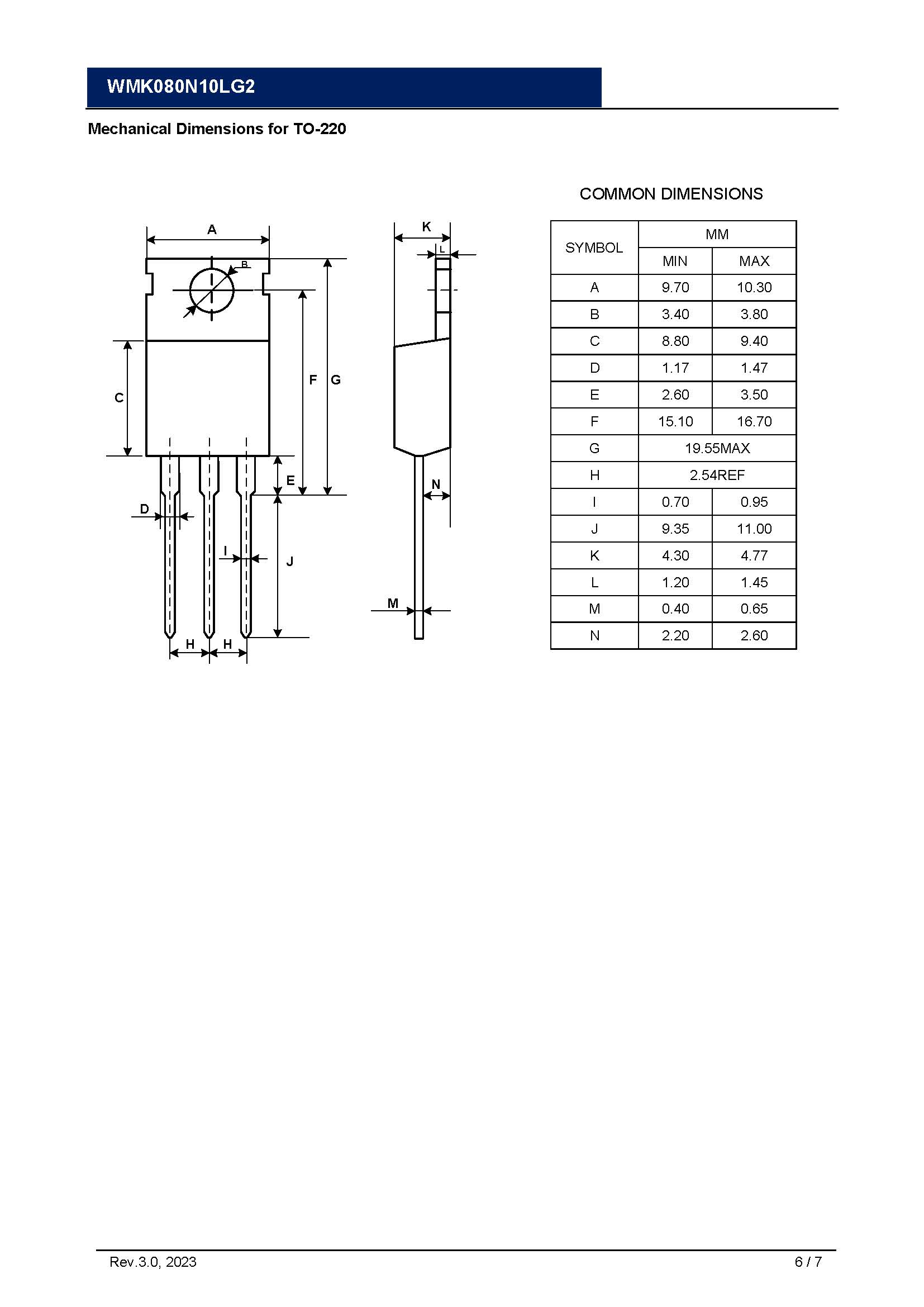

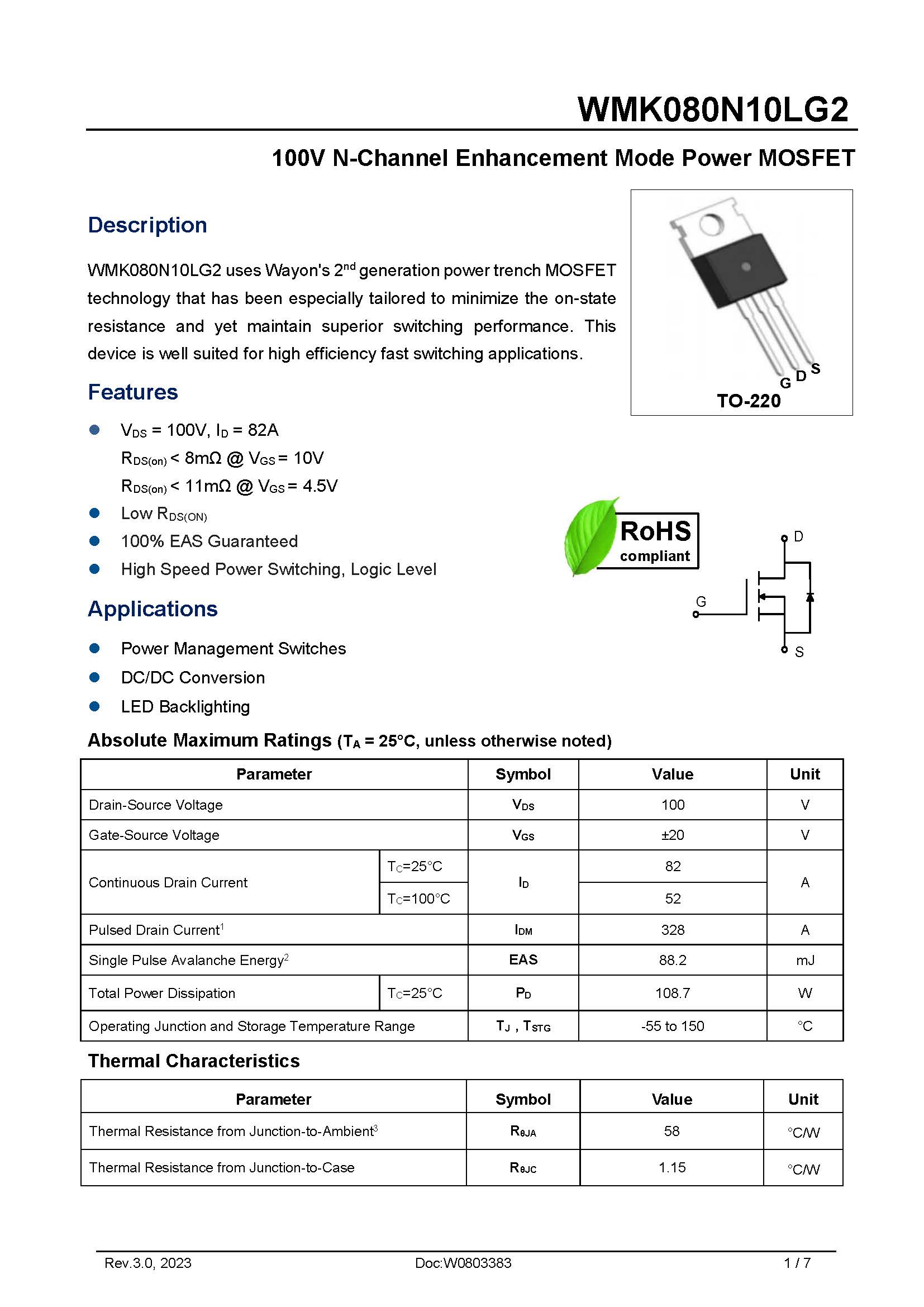

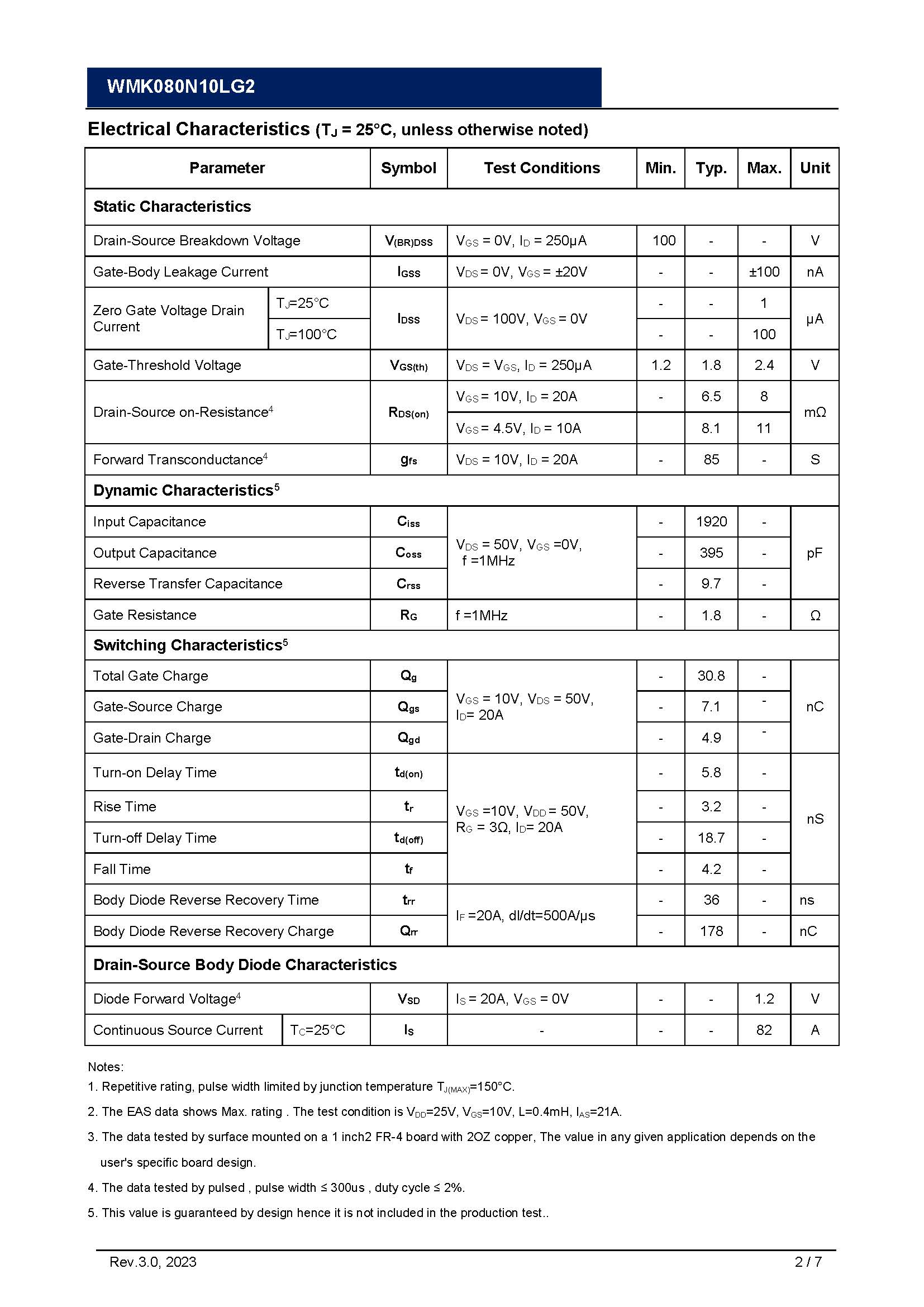

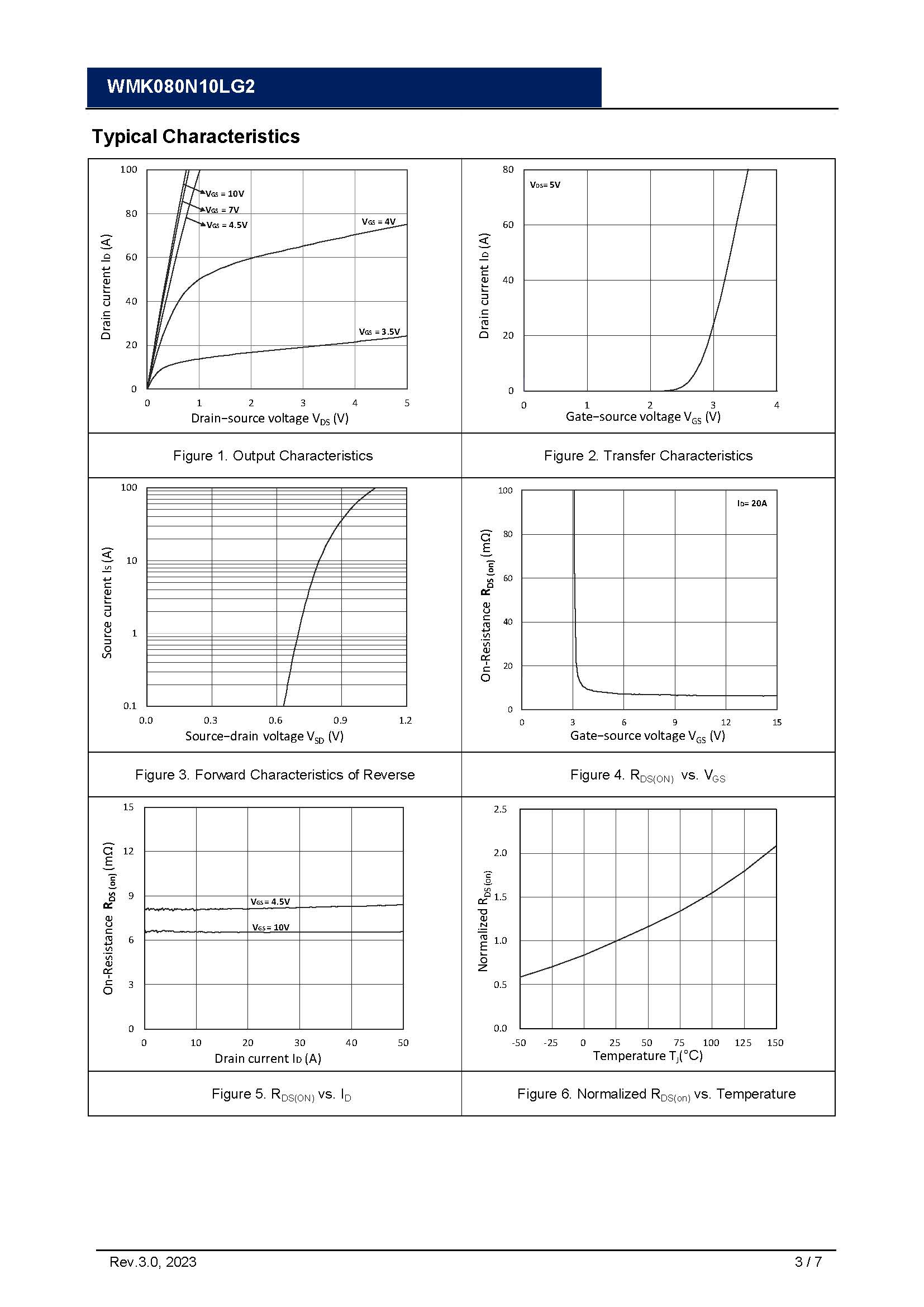

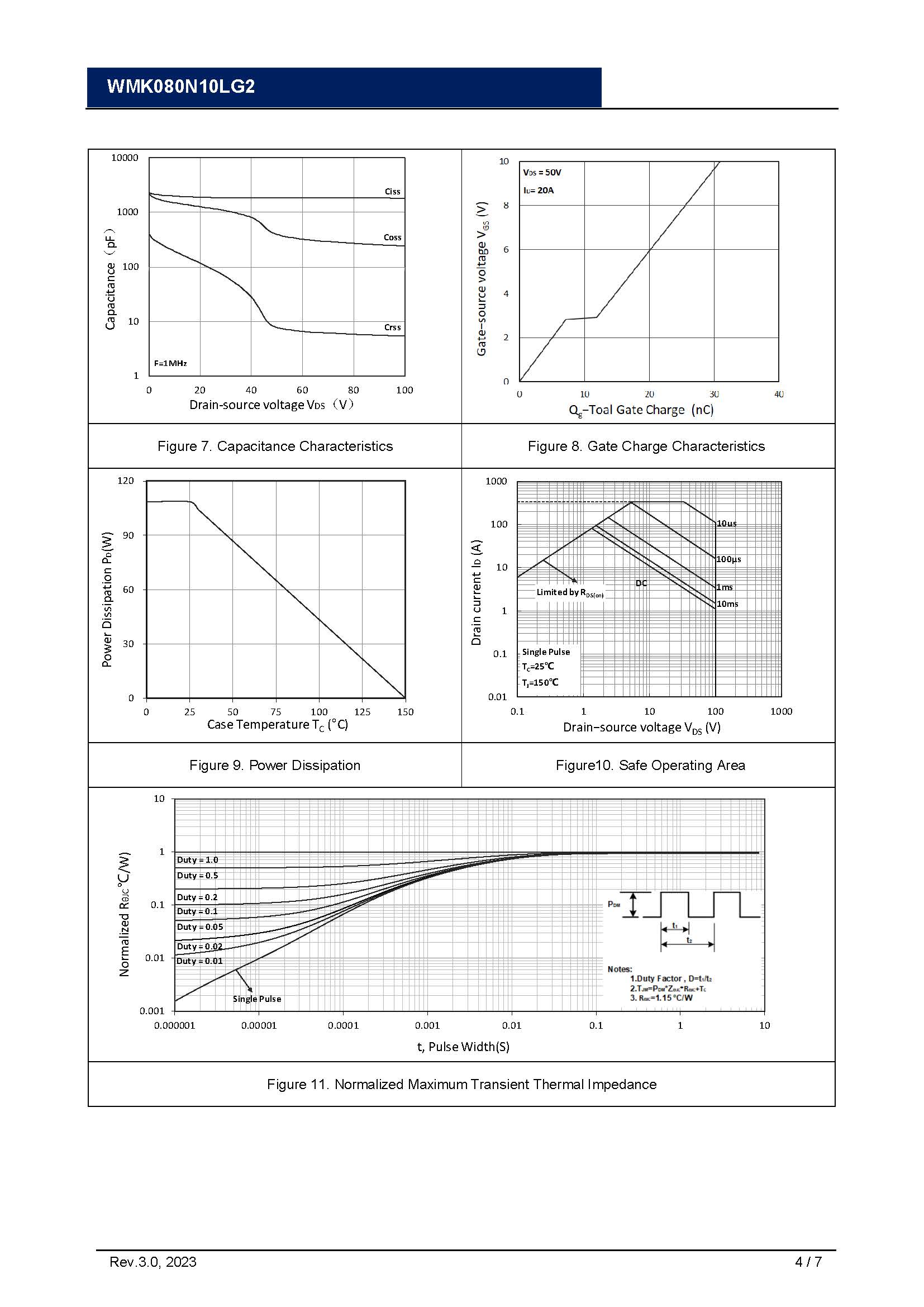

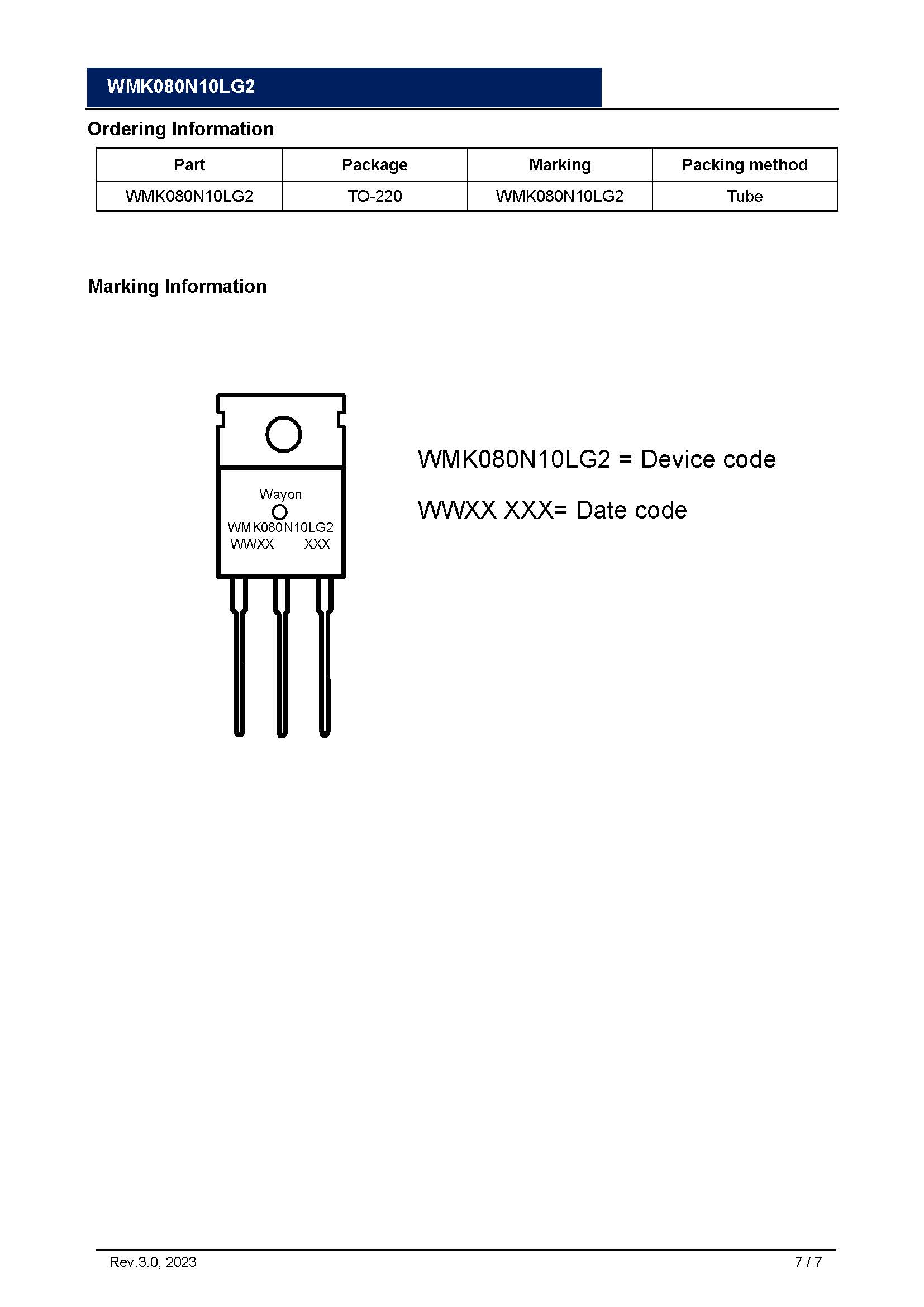

Way-on-WMK080N10LG2_页面_1Way-on-WMK080N10LG2_页面_2Way-on-WMK080N10LG2_页面_3Way-on-WMK080N10LG2_页面_4Way-on-WMK080N10LG2_页面_5Way-on-WMK080N10LG2_页面_6Way-on-WMK080N10LG2_页面_7
