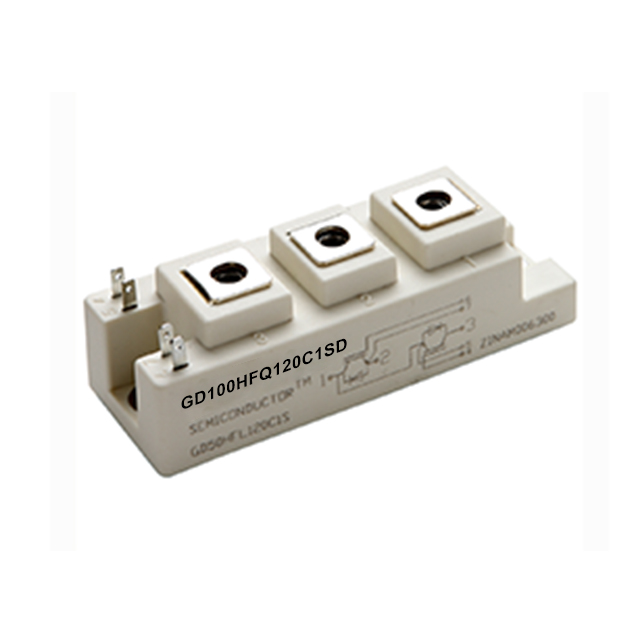

1200V/100A Trench-FS Gen1 IGBT, C1, GD100HFQ120C1SD

1200V/100A Trench-FS Gen1 IGBT
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD100HFQ120C1SD

  • Merry

1200V/100A Trench-FS Gen1 IGBT, C1, GD100HFQ120C1SD
Package:C1
Rated Current:100A
Chip Type:Trench-FS Gen1
Rated Voltage:1200V
Circuit Structure:Half Bridge
Hallmark:Flat Substrates

Features :
- Low VCE(sat) Trench IGBT technology
- 10μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology

Typical Applications :
- Switching mode power supply
- Inductive heating
- Electronic welder

GD100HFQ120C1SDName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

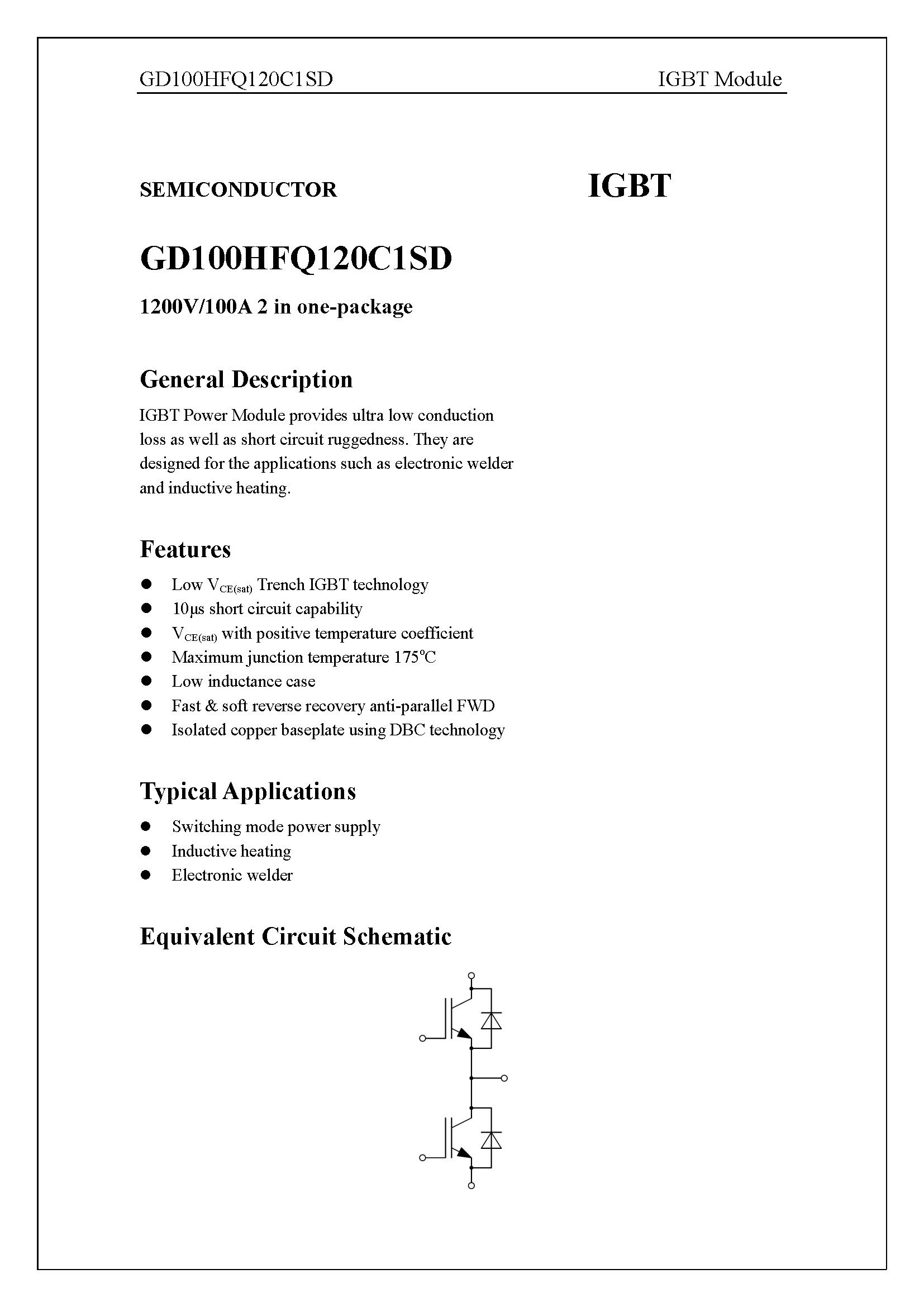

GD100HFQ120C1SD-1_页面_1

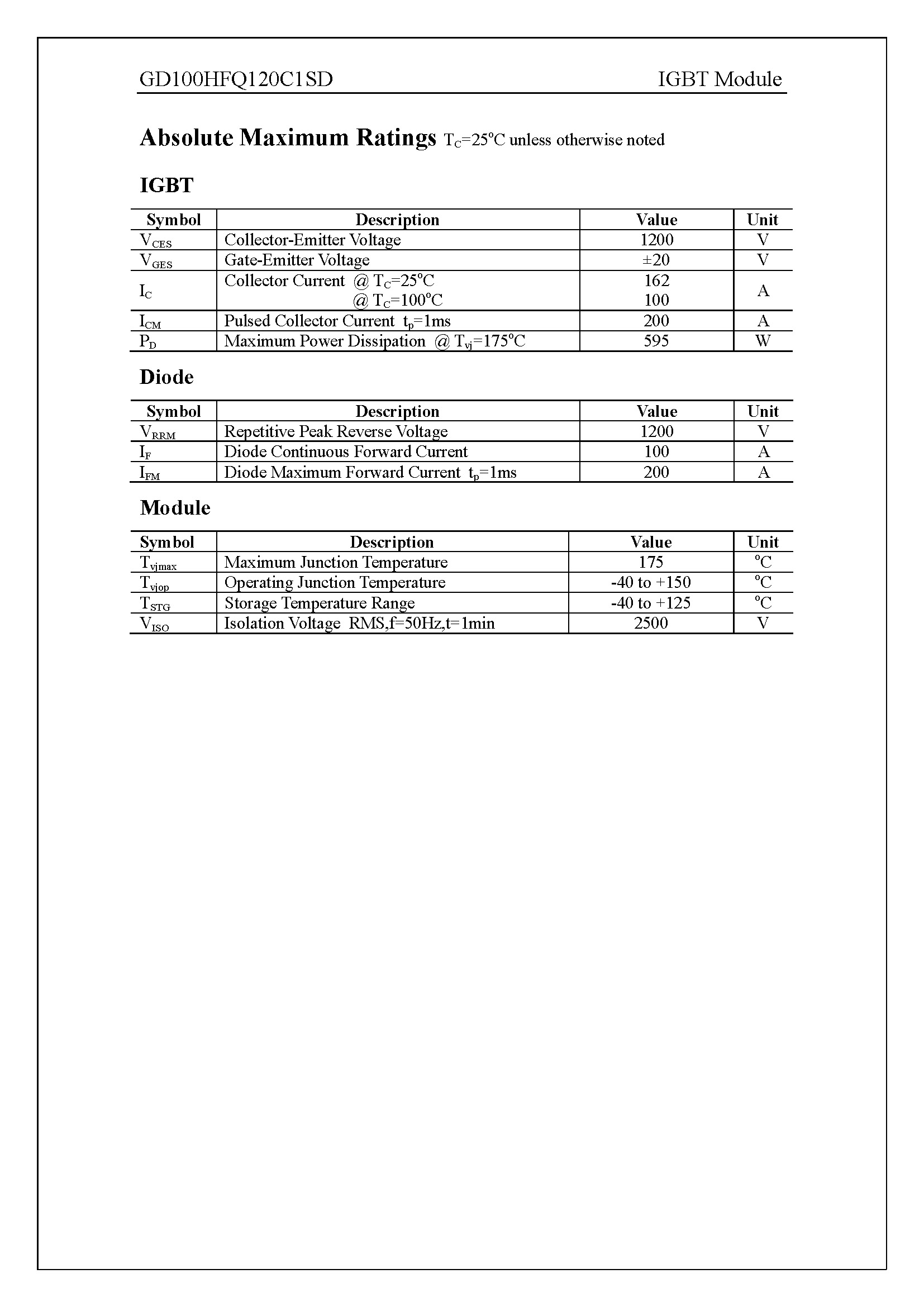

GD100HFQ120C1SD-1_页面_2

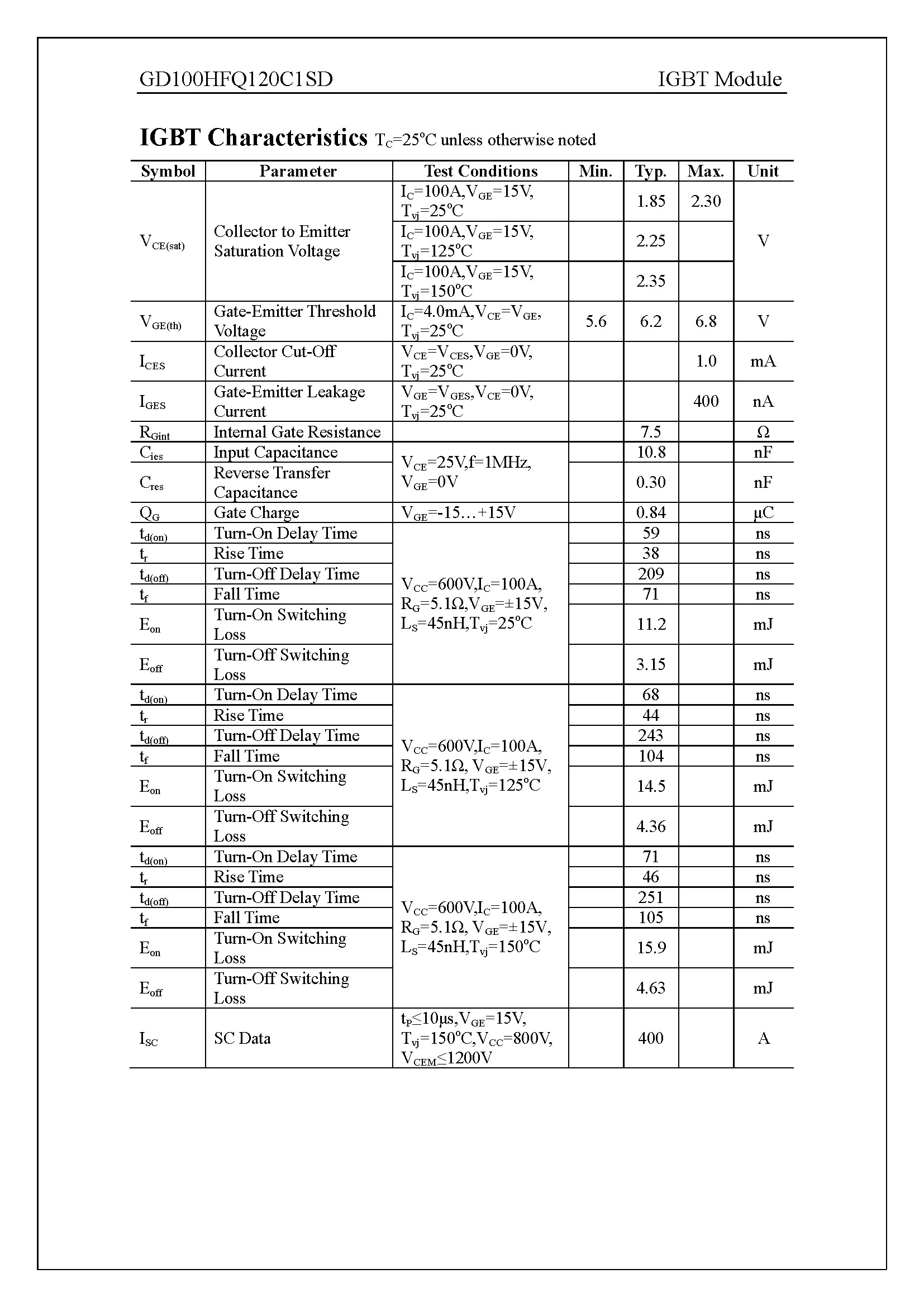

GD100HFQ120C1SD-1_页面_3
