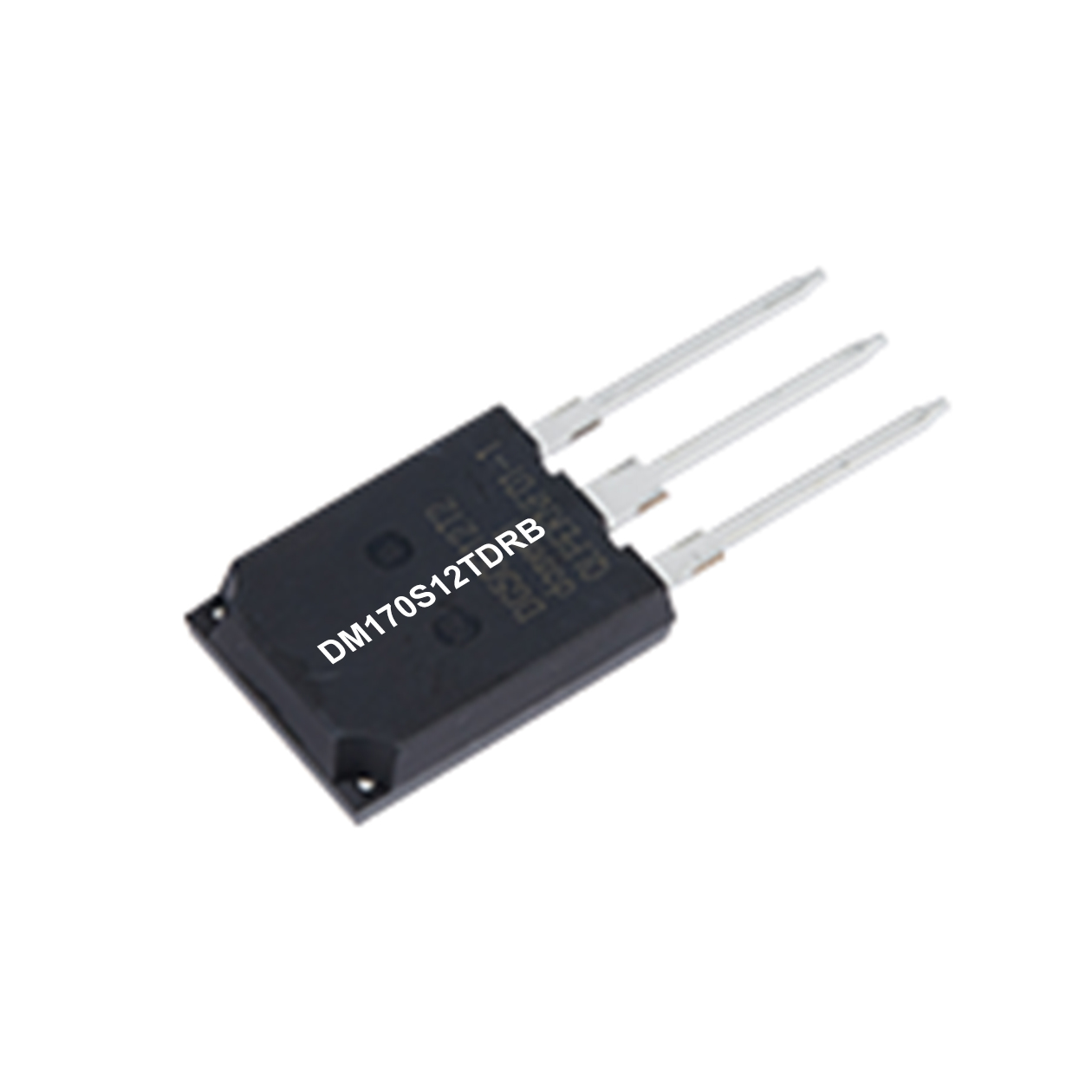

1200V/17mΩ SiC Mosfet Discrete, T2, DM170S12TDRB

1200V/17mΩ SiC Mosfet Discrete
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • DM170S12TDRB

  • Merry

1200V/17mΩ SiC Mosfet Discrete, T2, DM170S12TDRB
Package: T2
Rated Current: -
Chip Type: SiC
Rated Voltage: 1200V
Circuit Structure: Single Phase
Hallmark: TO-247PLUS-4L


Features :
- SiC power MOSFET
- Low RDS(on)
- Chip sintering technology
- Low inductance case avoid oscillations
- ROHS

Typical Applications :
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive

DM170S12TDRBName1
