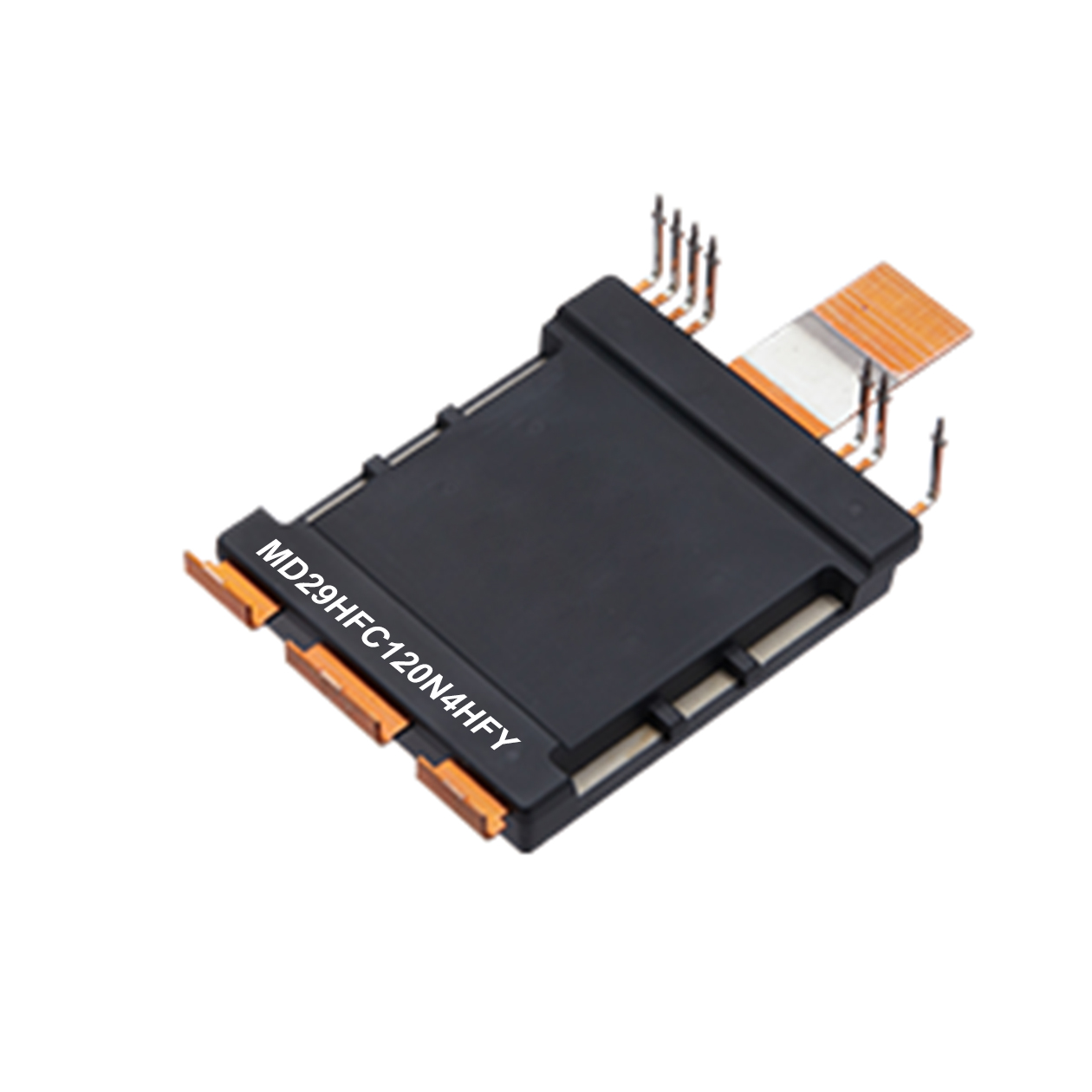

1200V/2.83mΩ SiC MOSFET, N4, MD29HFC120N4HFY

1200V/2.83mΩ SiC MOSFET
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MD29HFC120N4HFY

  • Merry

1200V/2.83mΩ SiC MOSFET, N4, MD29HFC120N4HFY
Package: N4
Rated Current: -
Chip Type: SiC
Rated Voltage: 1200V
Circuit Structure: Half Bridge
Hallmark: Injection Molding,PINFIN Substrates


Features :
- SiC power MOSFET
- High blocking voltage with low RDS(on)
- Easy to parallel and simple to drive
- Low inductance case avoid oscillations
- Isolated copper pinfin baseplate using Si3N4 AMB technology
- PressFIT contact technology

Typical Applications :
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive

MD29HFC120N4HFYName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

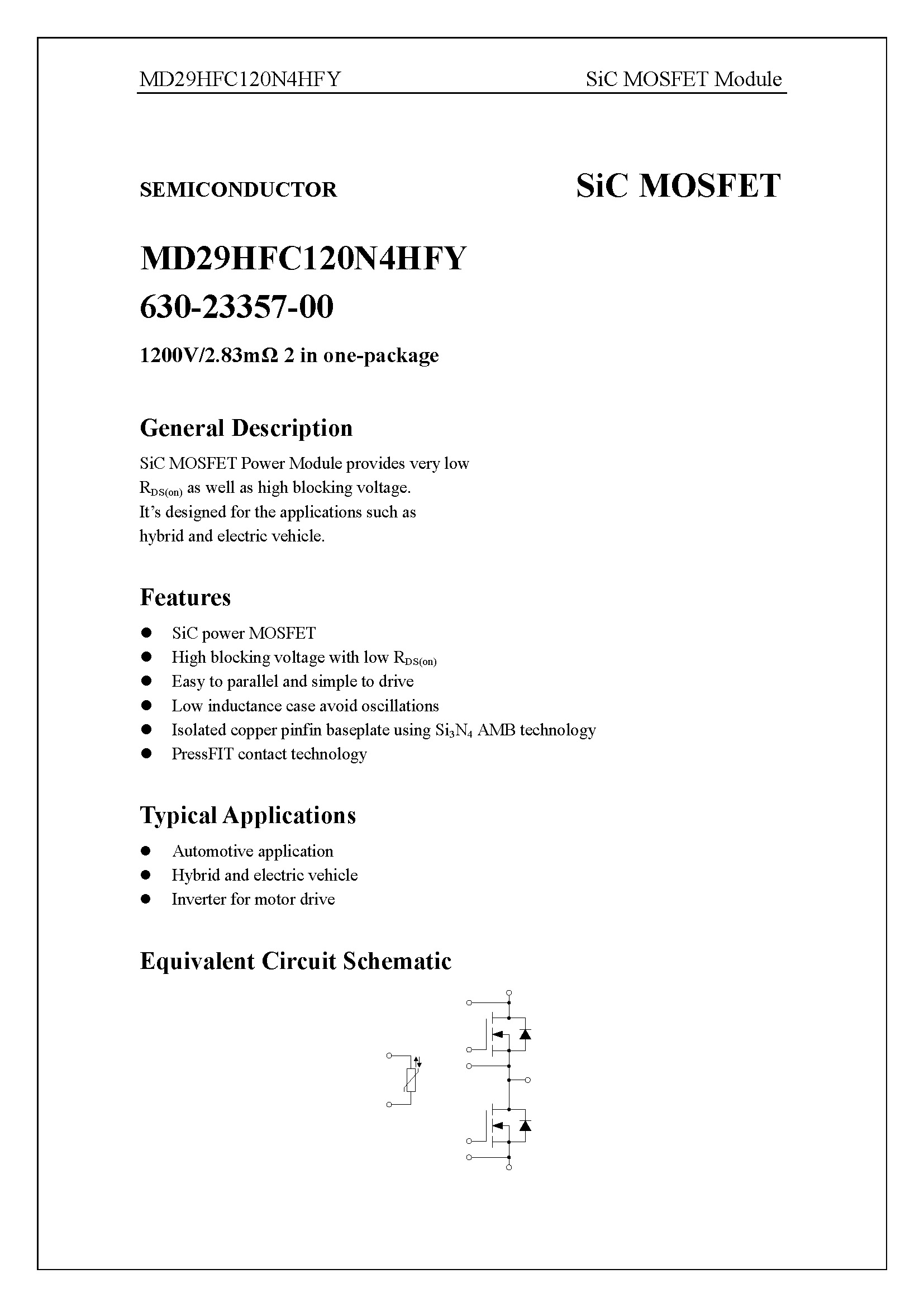

MD29HFC120N4HFY-1_页面_1

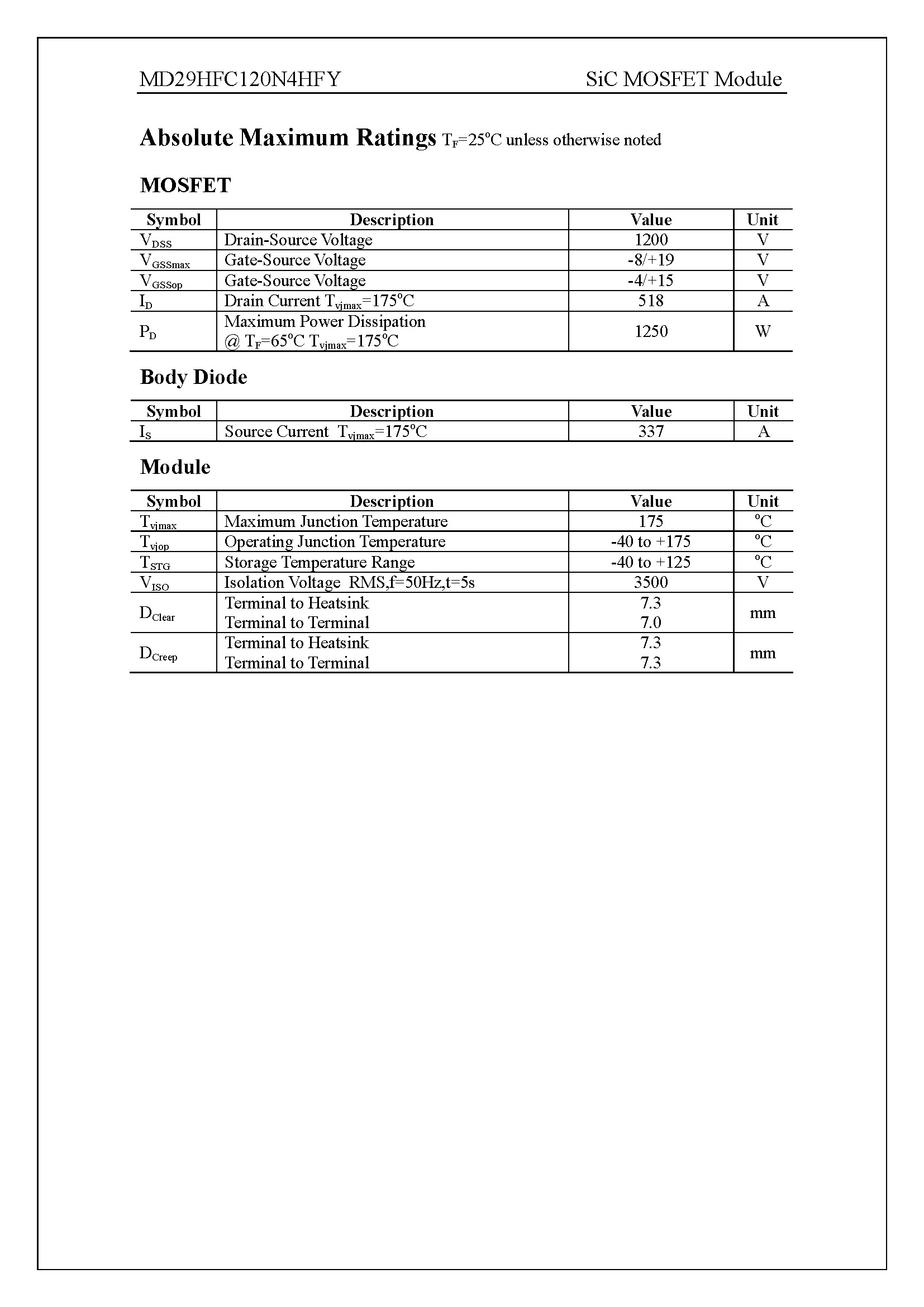

MD29HFC120N4HFY-1_页面_2

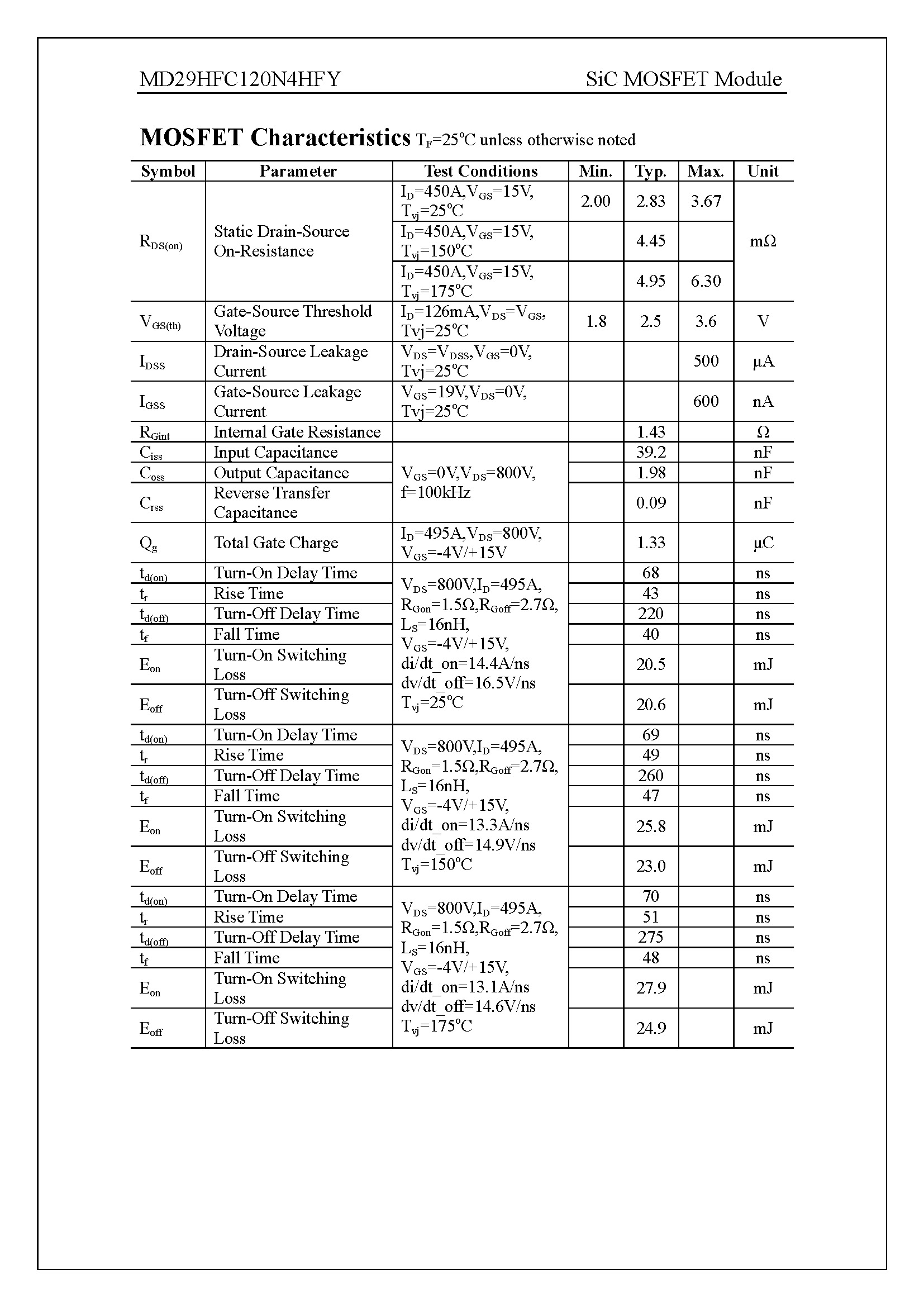

MD29HFC120N4HFY-1_页面_3
