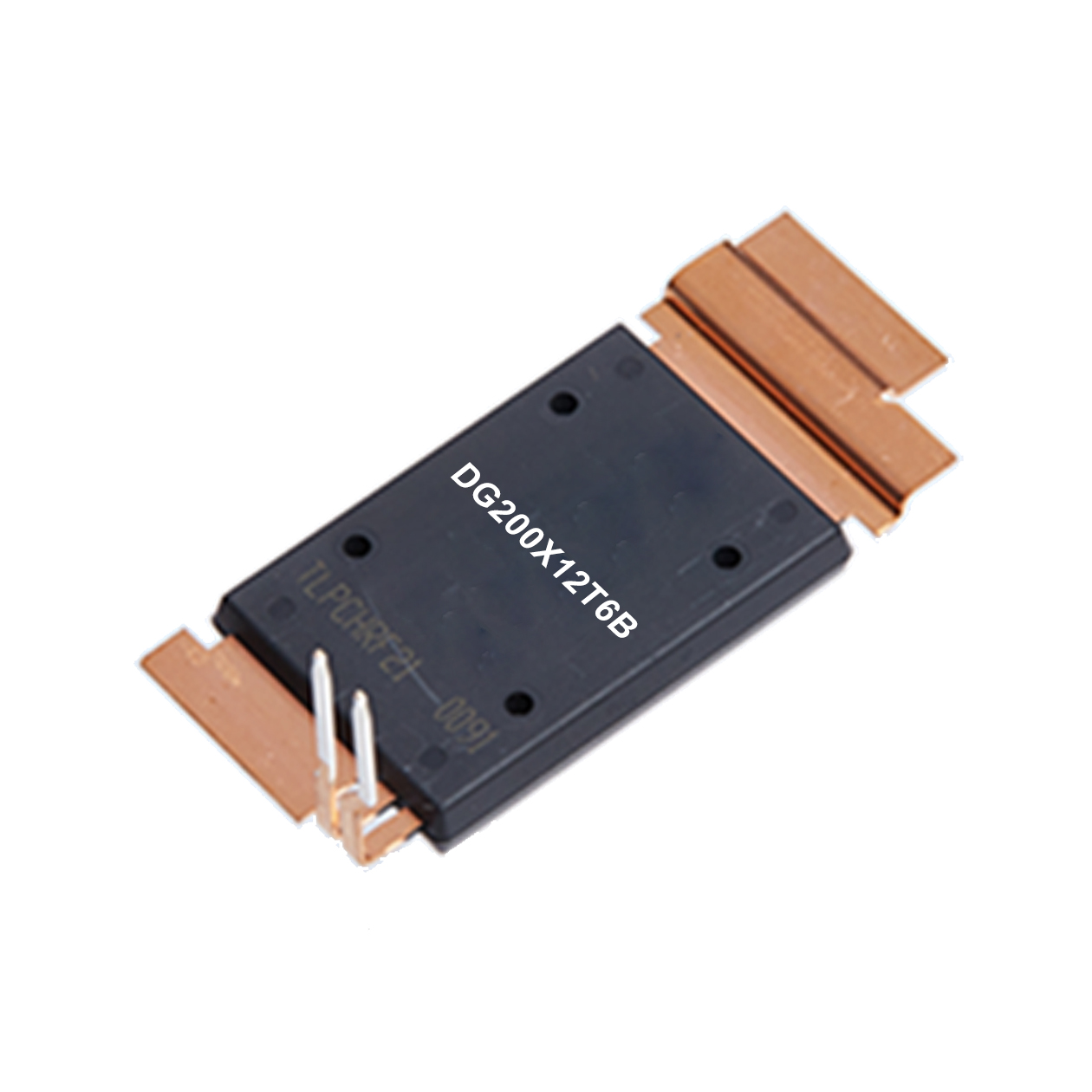

1200V/200A IGBT with Diode Single Phase Trench-FS Gen1, T6, DG200X12T6B

1200V/200A IGBT with Diode Single Phase Trench-FS Gen1
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • DG200X12T6B

  • Merry

1200V/200A IGBT with Diode Single Phase Trench-FS Gen1, T6, DG200X12T6B
Package:T6
Rated Current:200A
Chip Type:Trench-FS Gen1
Rated Voltage:1200V
Circuit Structure:T6
Hallmark:Injection Molding

Features :
- Low VCE(sat) Trench IGBT technology
- Low switching losses
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Fast & soft reverse recovery anti-parallel FWD
- Isolated heatsink using Si3N4 AMB technology
- Lead free package

Typical Applications :
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply


DG200X12T6BName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

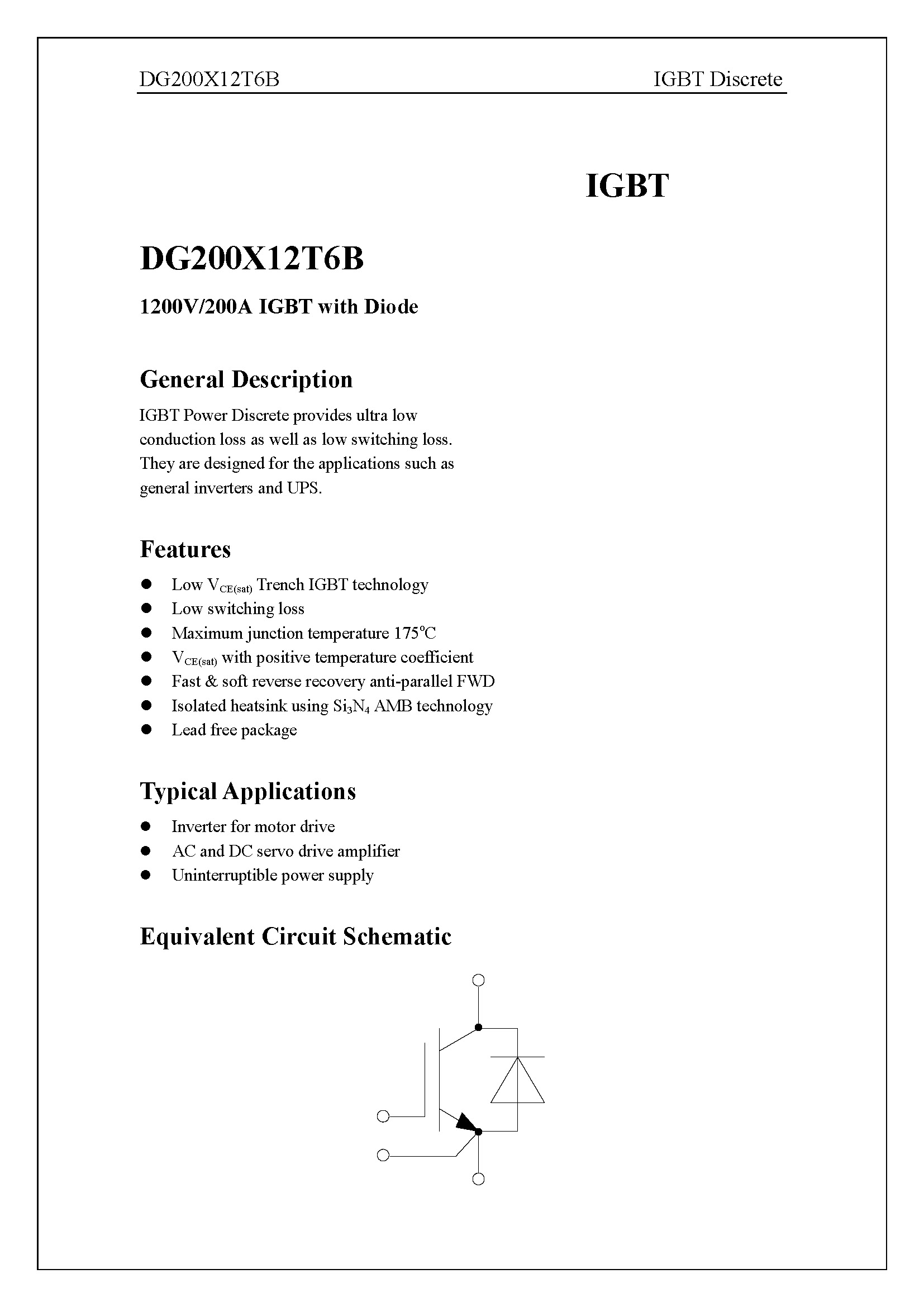

DG200X12T6B-1_页面_1

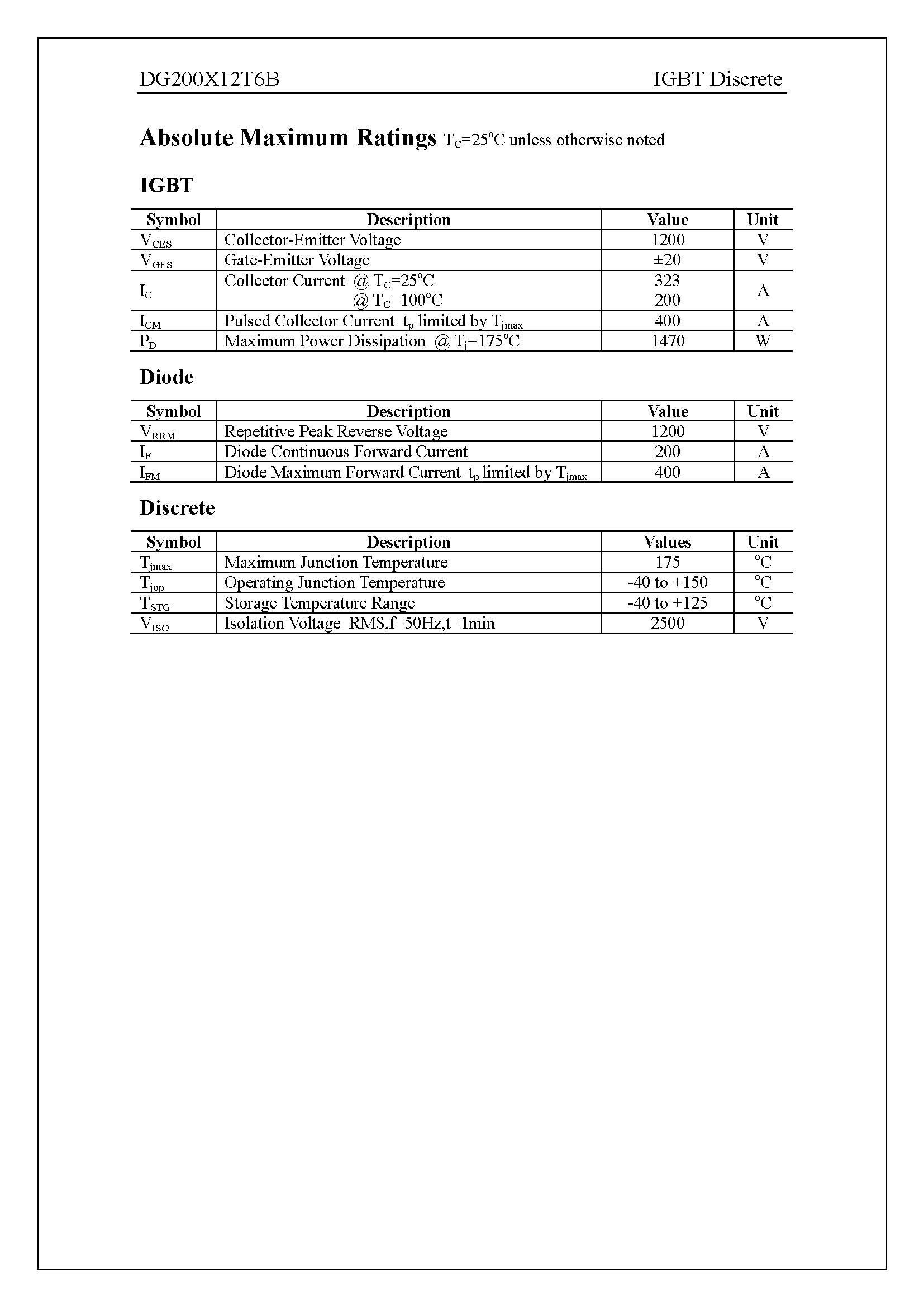

DG200X12T6B-1_页面_2

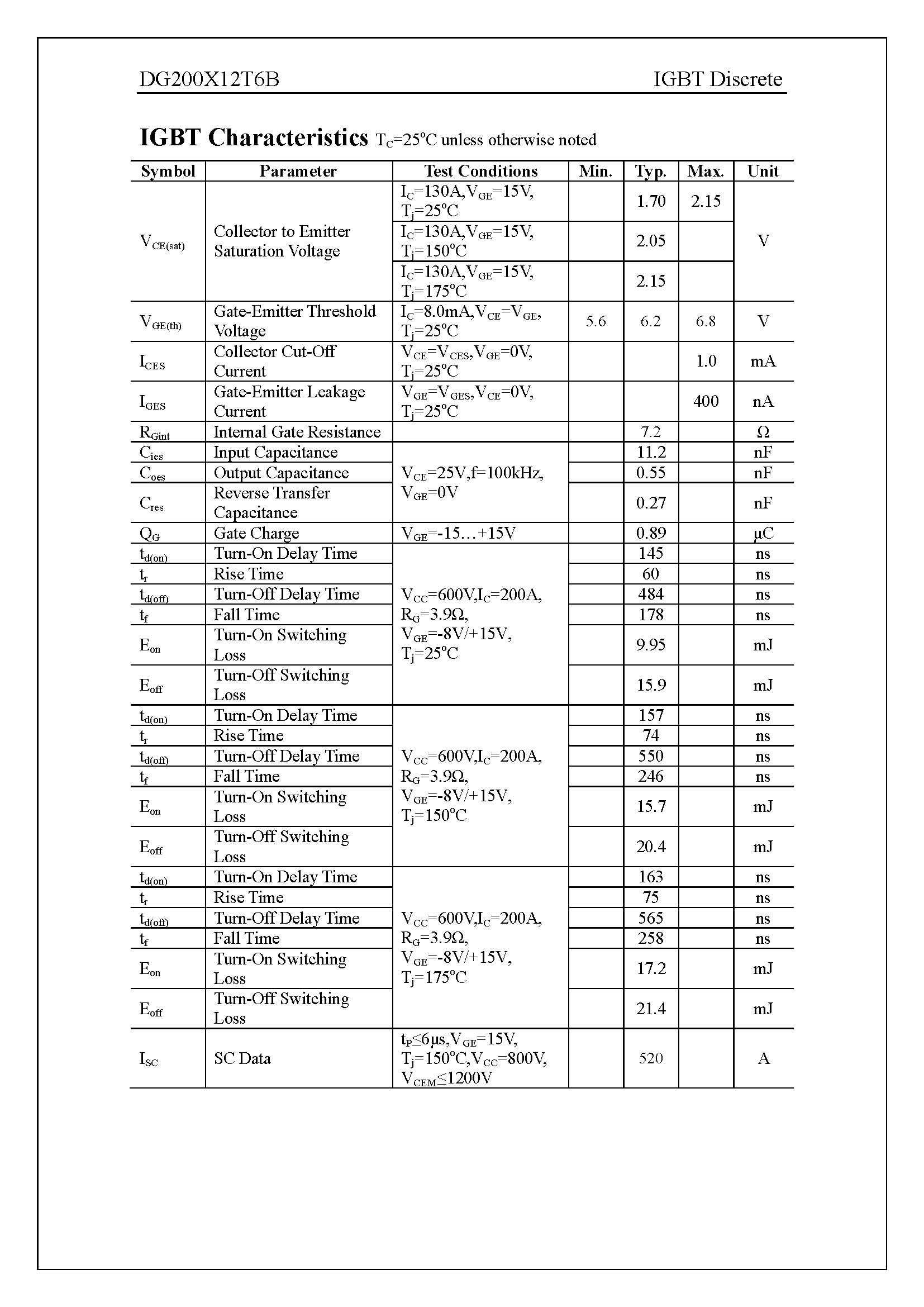

DG200X12T6B-1_页面_3

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01
