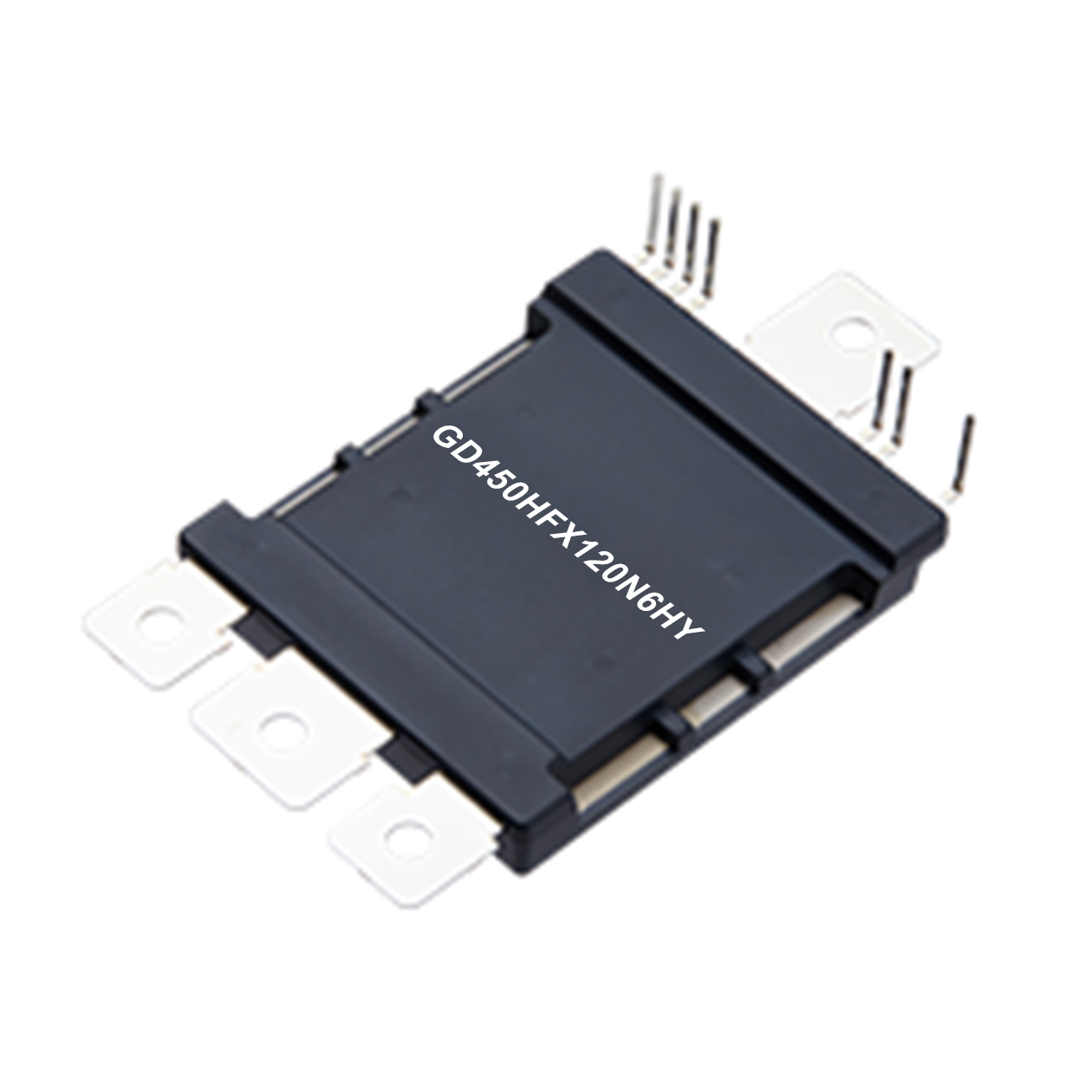

1200V/450A IGBT Trench-FS Gen2, N6, GD450HFX120N6HY

1200V/450A IGBT Trench-FS Gen2
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD450HFX120N6HY

  • Merry

1200V/450A IGBT Trench-FS Gen2, N6, GD450HFX120N6HY
Package: N6
Rated Current: 450A
Chip Type: Trench-FS Gen2
Rated Voltage: 1200V
Circuit Structure: Half Bridge
Hallmark: Injection Molding,PINFIN Substrates


Features :
- Low VCE(sat) Trench IGBT technology
- Low switching losses
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper pinfin baseplate using Si3N4 AMB technology

Typical Applications :
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive

GD450HFX120N6HYName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

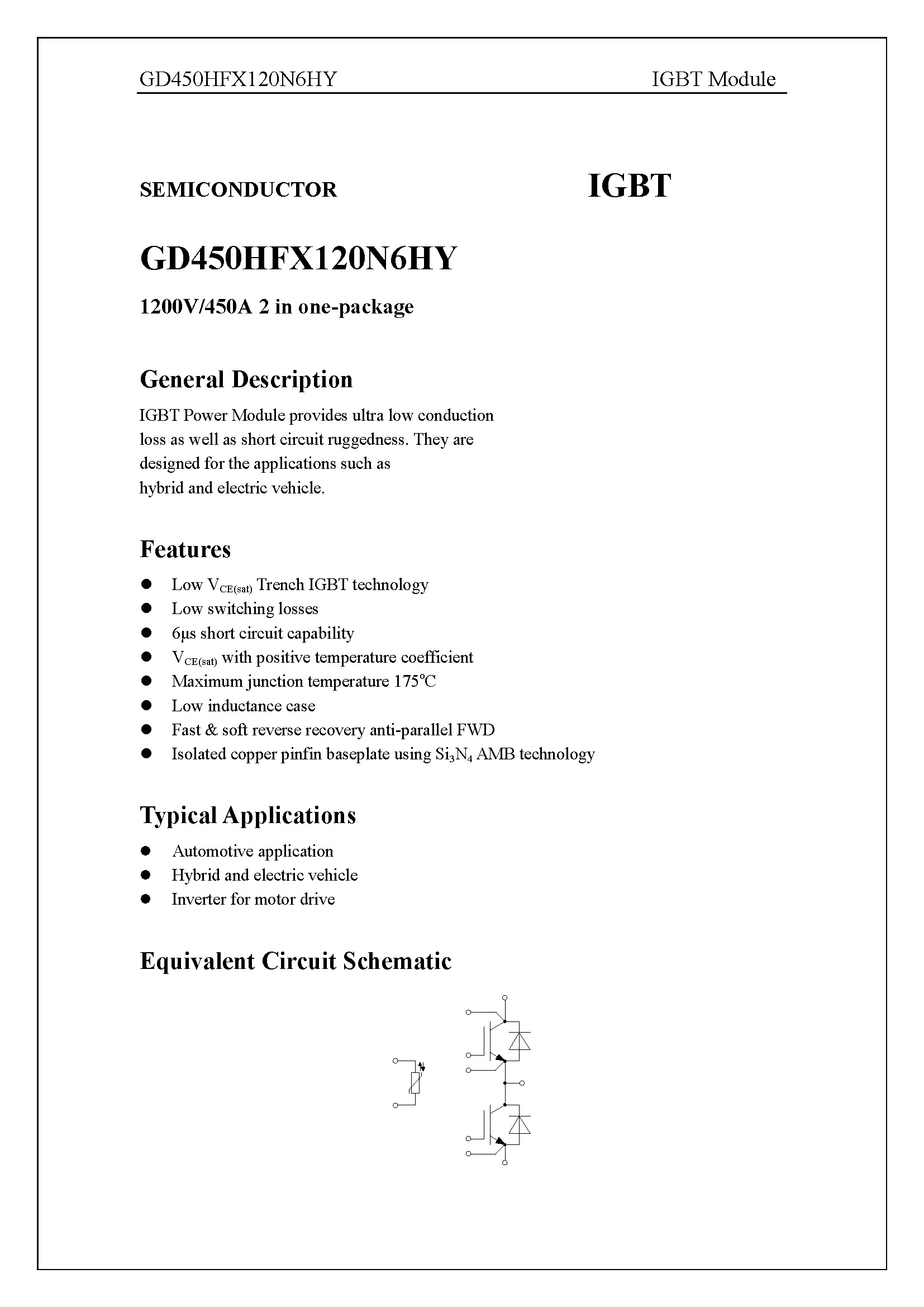

GD450HFX120N6HY-1_页面_1

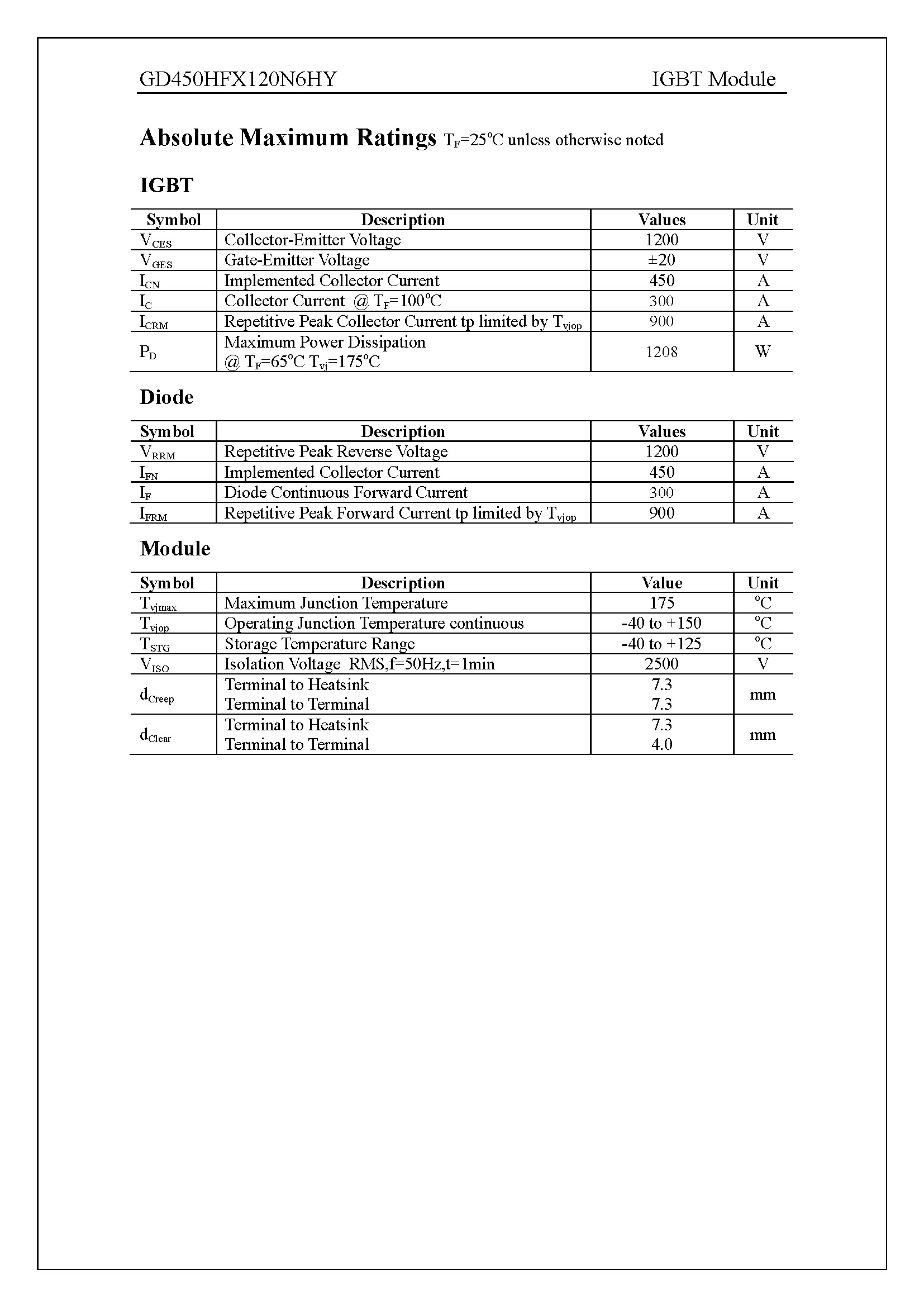

GD450HFX120N6HY-1_页面_2

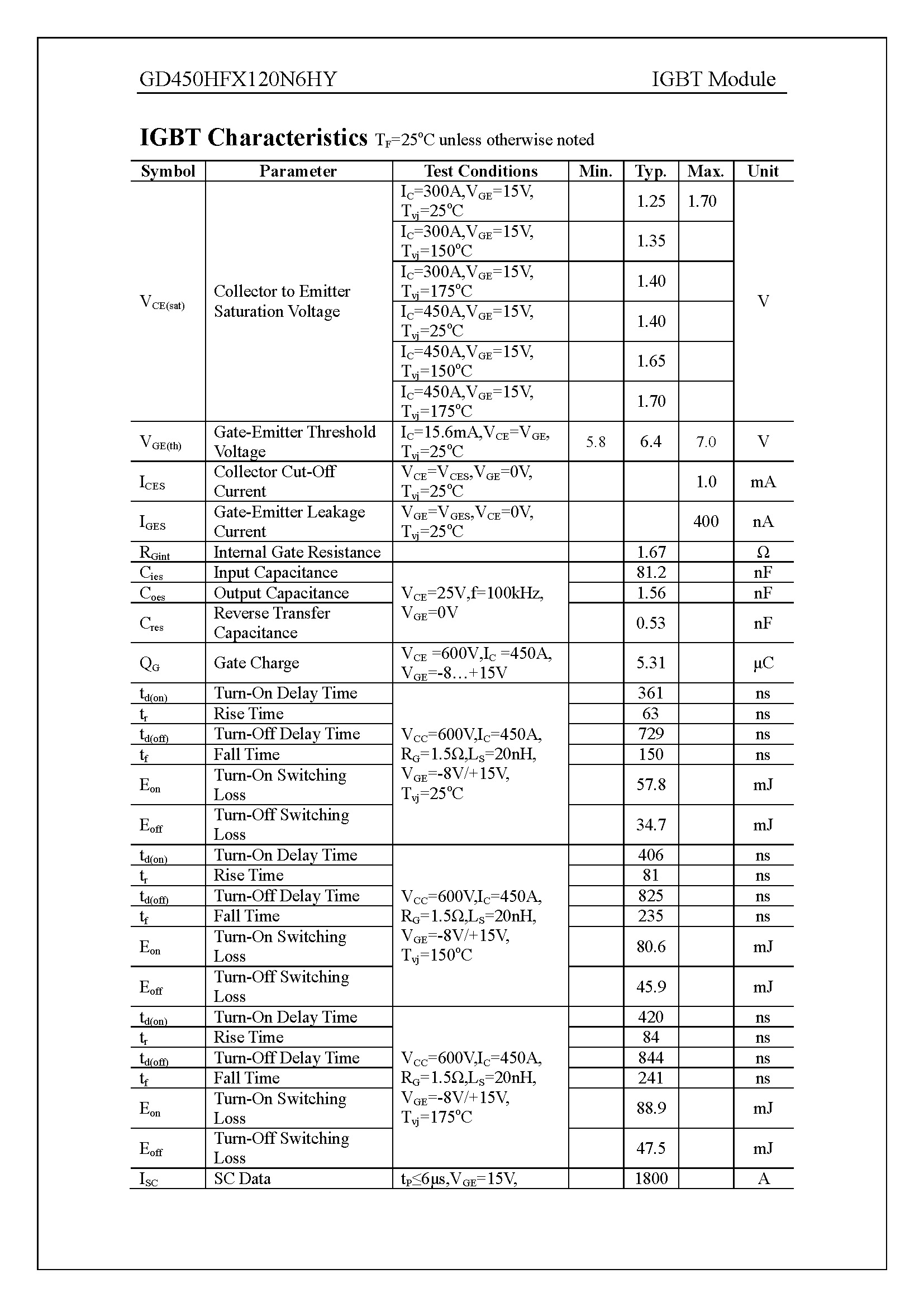

GD450HFX120N6HY-1_页面_3
