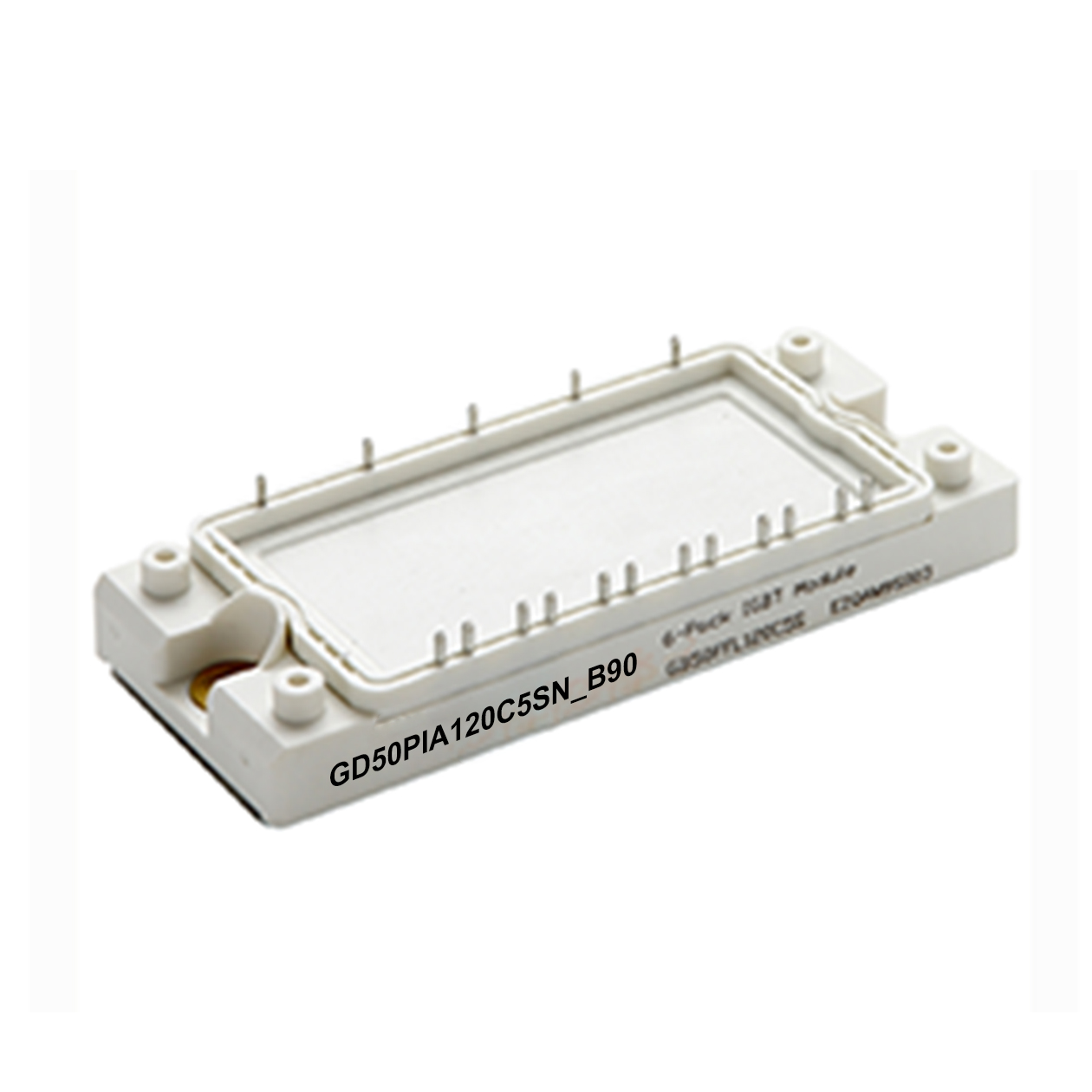

1200V/50A IGBT Trench-FS Gen2, C5, GD50PIA120C5SN_B90

1200V/50A IGBT Trench-FS Gen2
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD50PIA120C5SN_B90

  • Merry

1200V/50A IGBT Trench-FS Gen2, C5, GD50PIA120C5SN_B90
Package: C5
Rated Current: 50A
Chip Type: Trench-FS Gen2
Rated Voltage: 1200V
Circuit Structure: PIM
Hallmark: Flat Substrates


Features :
- Low VCE(sat) Trench IGBT technology
- 8μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology

Typical Applications :
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply

GD50PIA120C5SN_B90Name1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

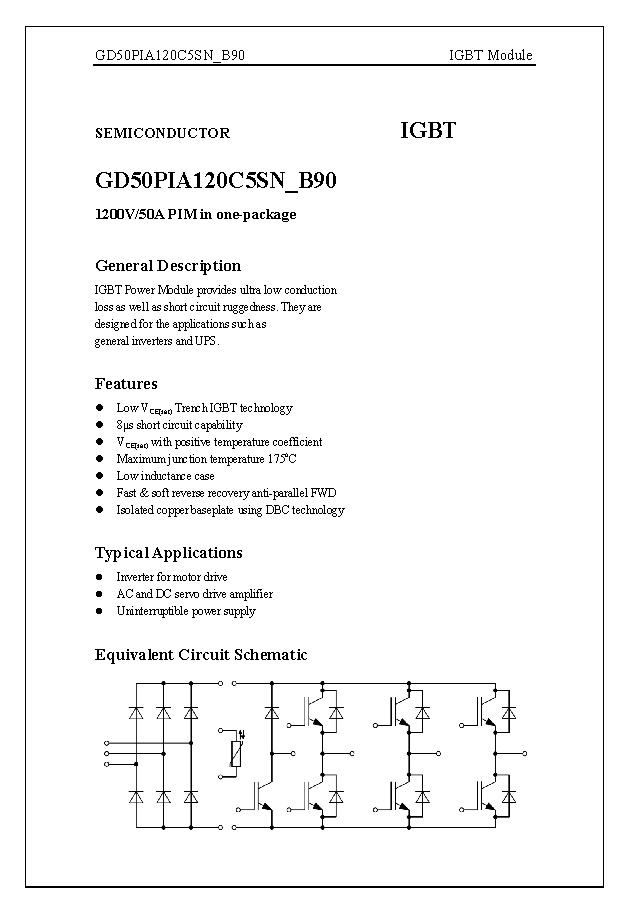

GD50PIA120C5SN_B90-1_页面_01

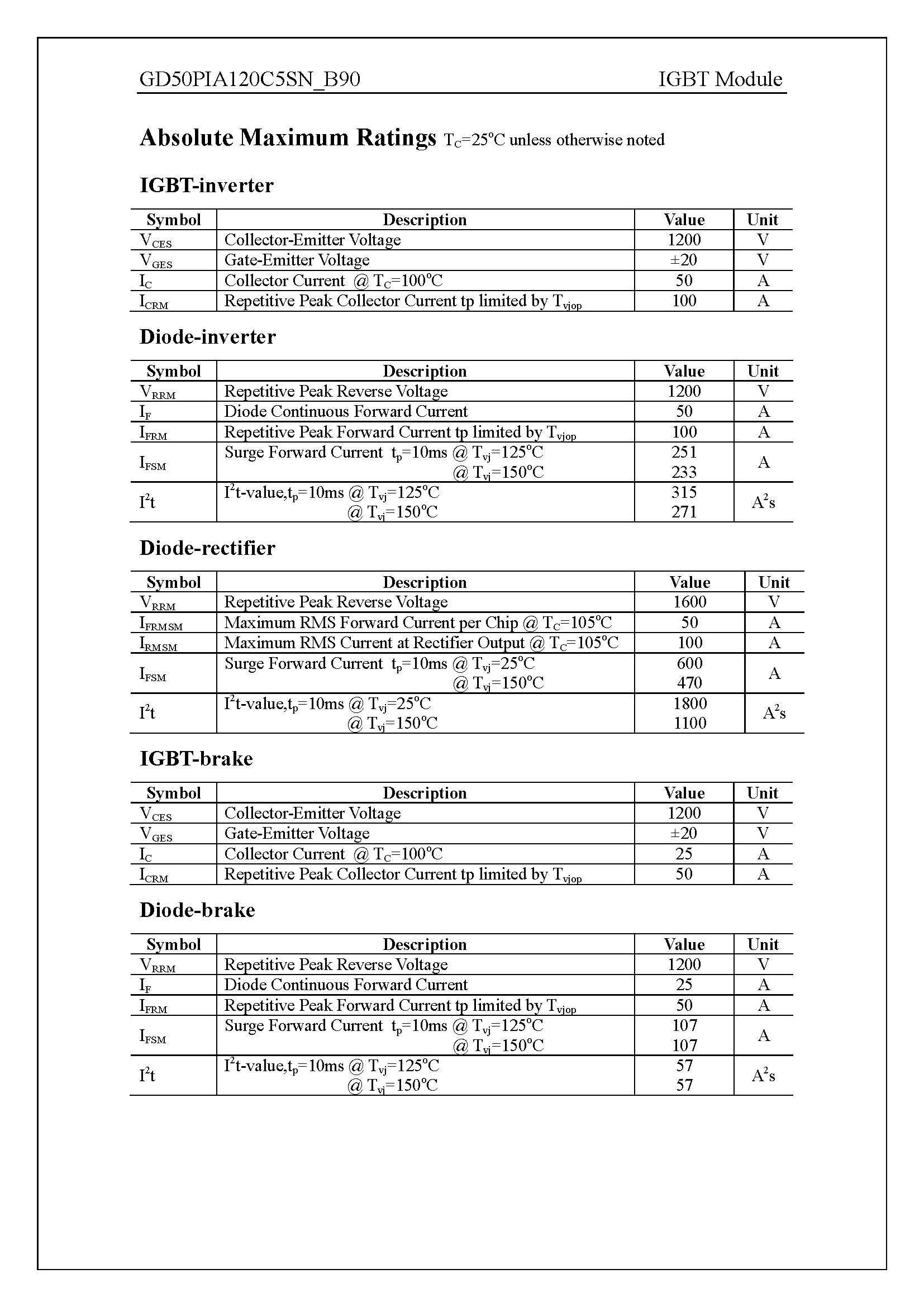

GD50PIA120C5SN_B90-1_页面_02

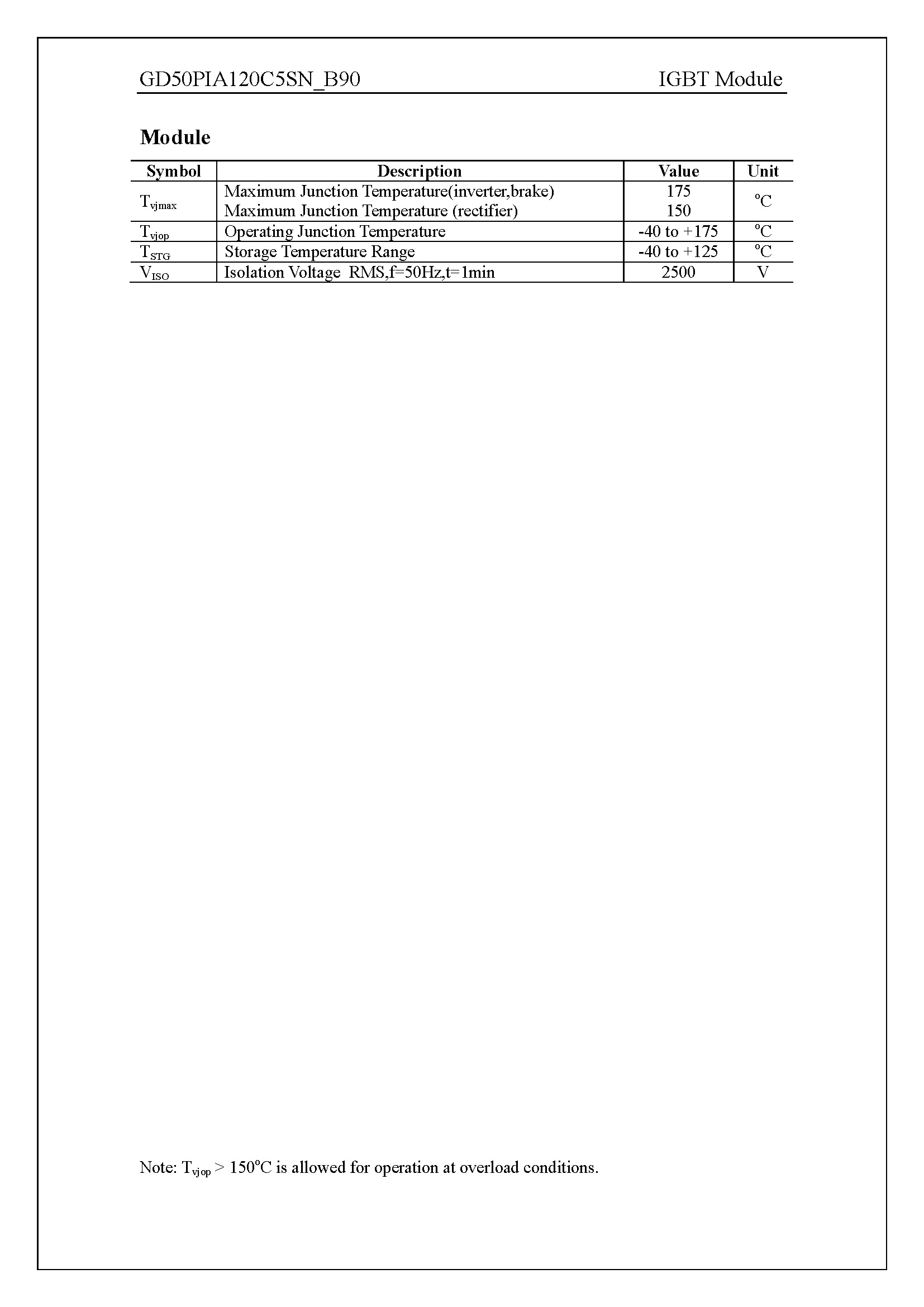

GD50PIA120C5SN_B90-1_页面_03
