Home » Products » IGBT » Module » Switch Module » 1200V/50A IGBT Trench-FS Gen2, L3, GD50PHA120L3S_B20

loading

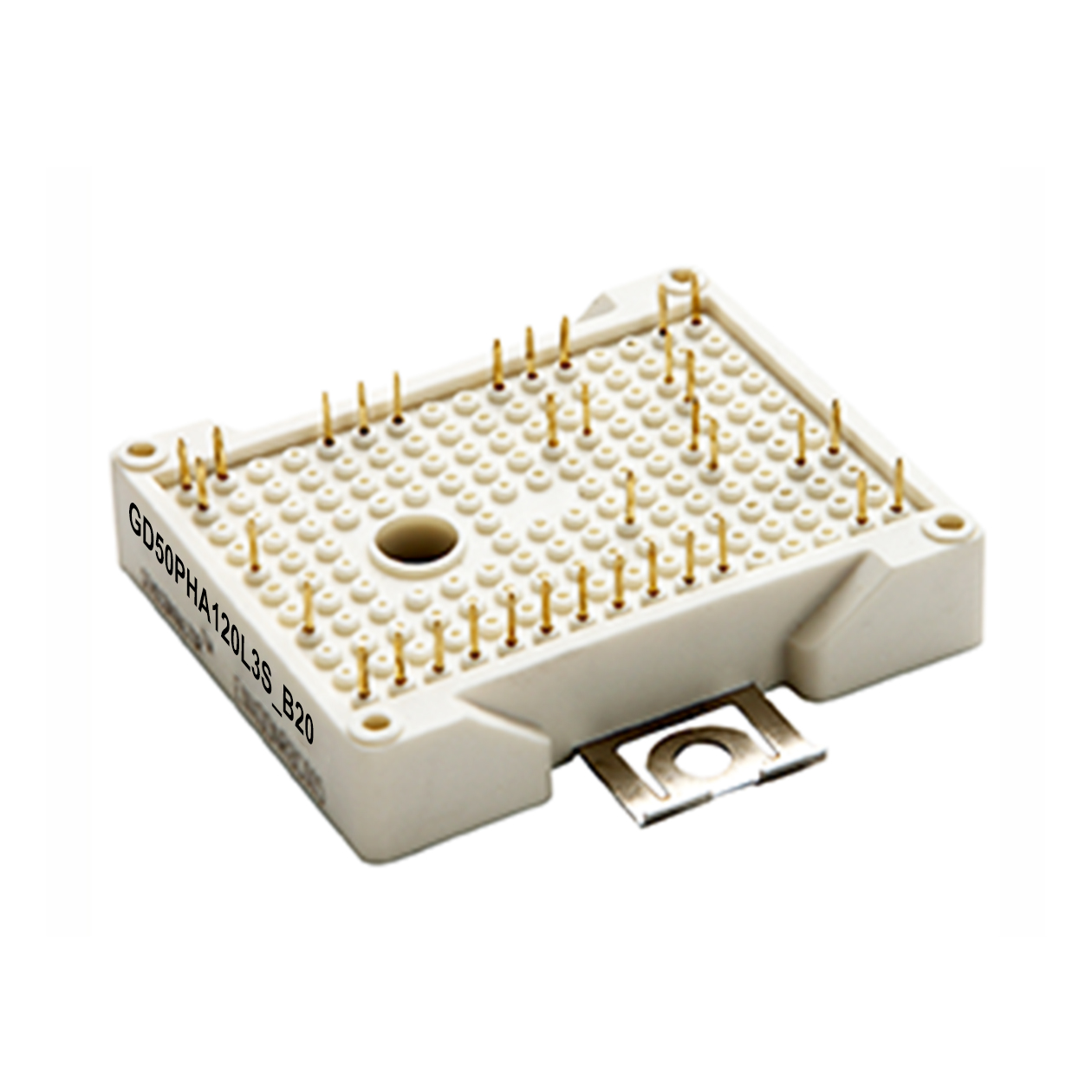

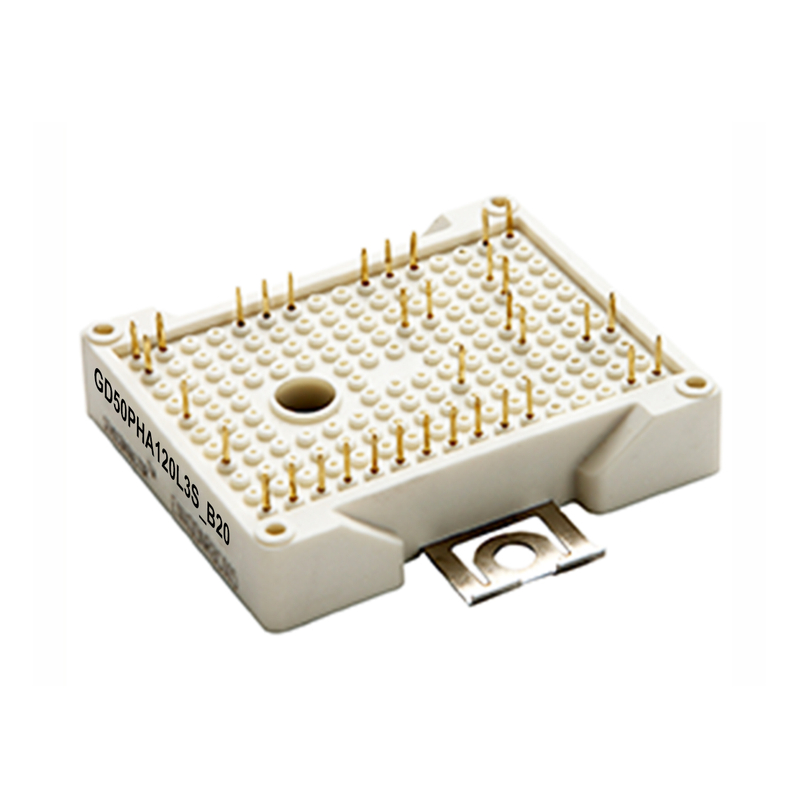

1200V/50A IGBT Trench-FS Gen2, L3, GD50PHA120L3S_B20

1200V/50A IGBT Trench-FS Gen2
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD50PHA120L3S_B20

  • Merry

1200V/50A IGBT Trench-FS Gen2, L3, GD50PHA120L3S_B20
Package: L3
Rated Current: 50A
Chip Type: Trench-FS Gen2
Rated Voltage: 1200V
Circuit Structure: PIM
Hallmark:

Features :
- Low VCE(sat) Trench IGBT technology
- 8μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated heatsink using DBC technology

Typical Applications :
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply

GD50PHA120L3S_B20Name1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

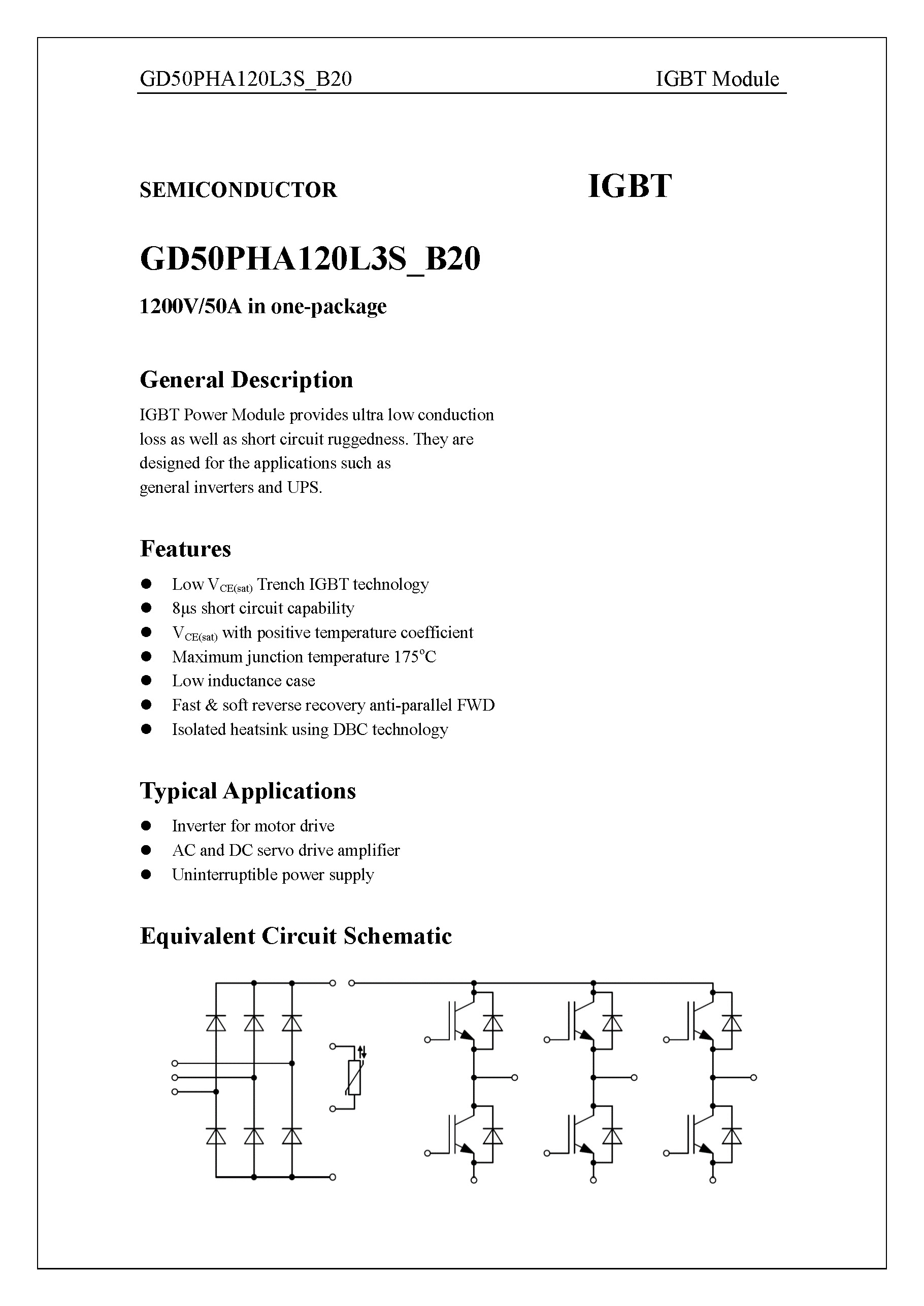

GD50PHA120L3S_B20-1_页面_1

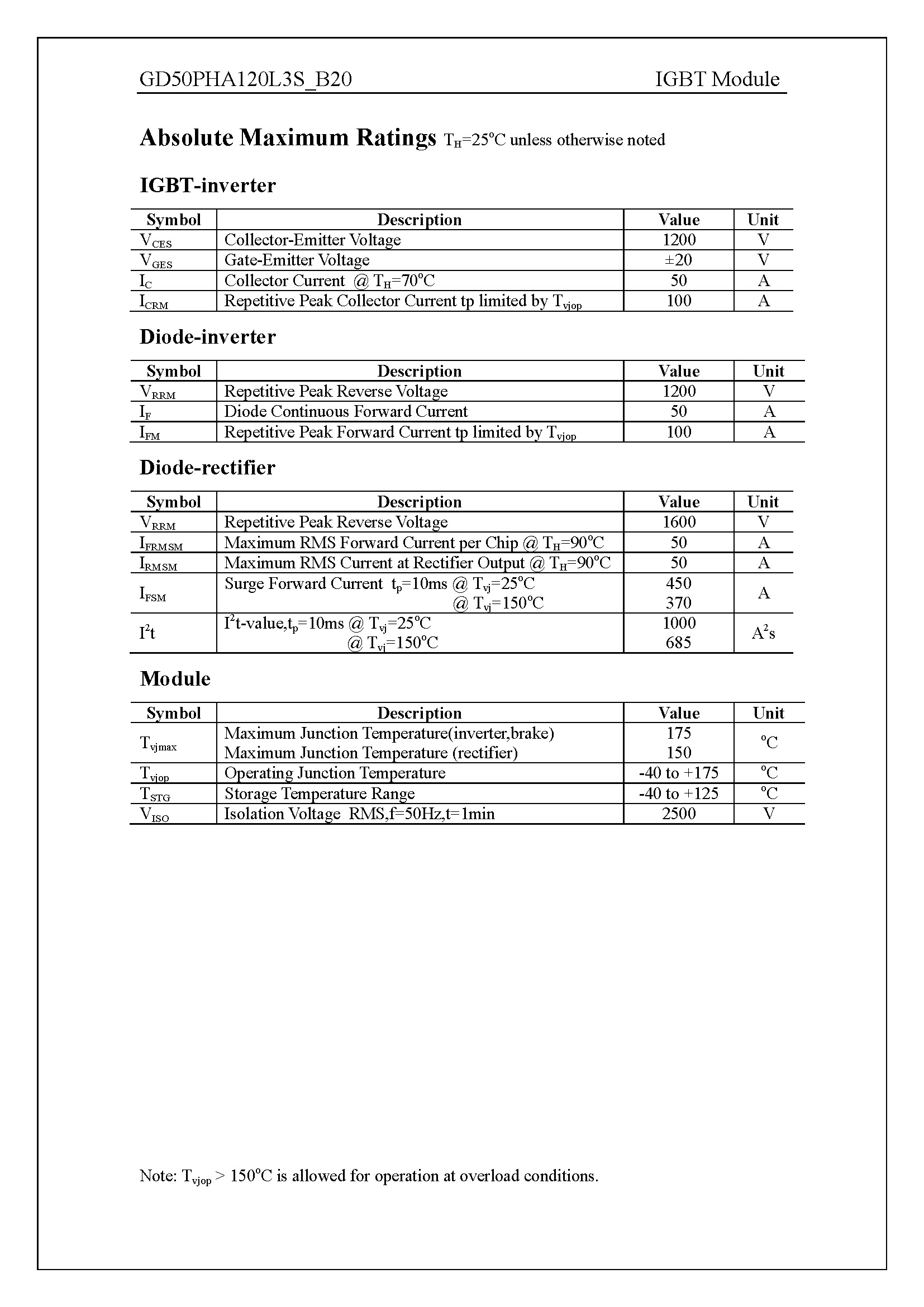

GD50PHA120L3S_B20-1_页面_2

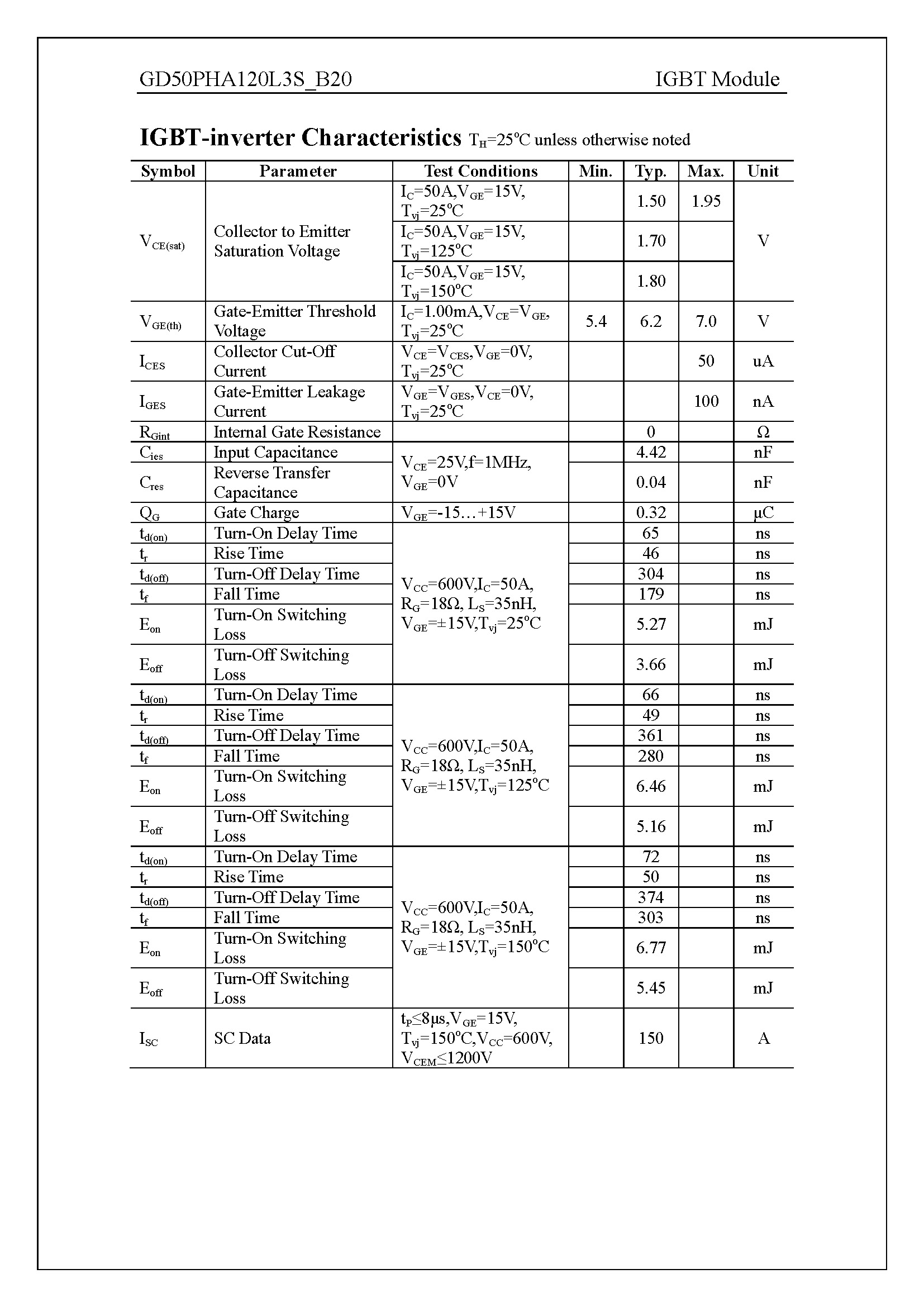

GD50PHA120L3S_B20-1_页面_3

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01


Previous:
Next:
1200V/50A IGBT Trench-FS Gen2 GD50PHA120L3S_B20 IGBT L3 IGBT PIM Fast Recovery Diode Rectifier
