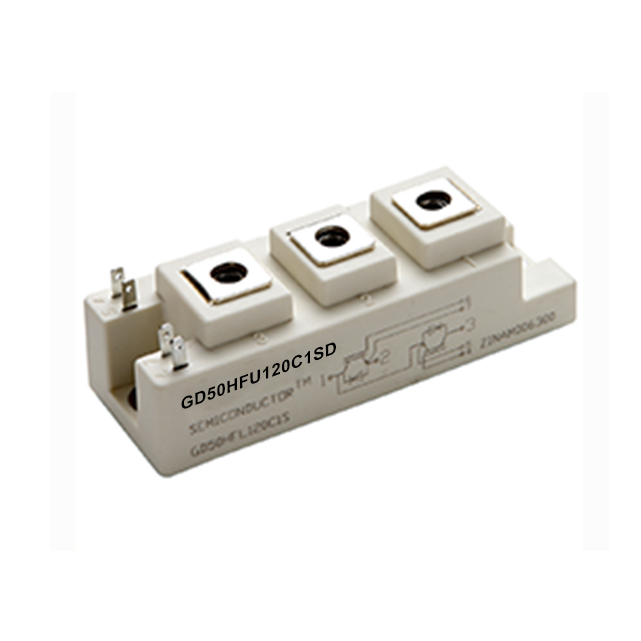

1200V/50A Planar NPT IGBT, C1, GD50HFU120C1SD

1200V/50A Planar NPT IGBT
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD50HFU120C1SD

  • Merry

1200V/50A Planar NPT IGBT, C1, GD50HFU120C1SD
Package:C1
Rated Current:50A
Chip Type:Planar NPT IGBT
Rated Voltage:1200V
Circuit Structure:Half Bridge
Hallmark:Flat Substrates


Features :
- NPT IGBT technology
- 10μs short circuit capability
- Low switching losses
- VCE(sat) with positive temperature coefficient
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology

Typical Applications :
- Switching mode power supply
- Inductive heating
- Electronic welder

GD50HFU120C1SDName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

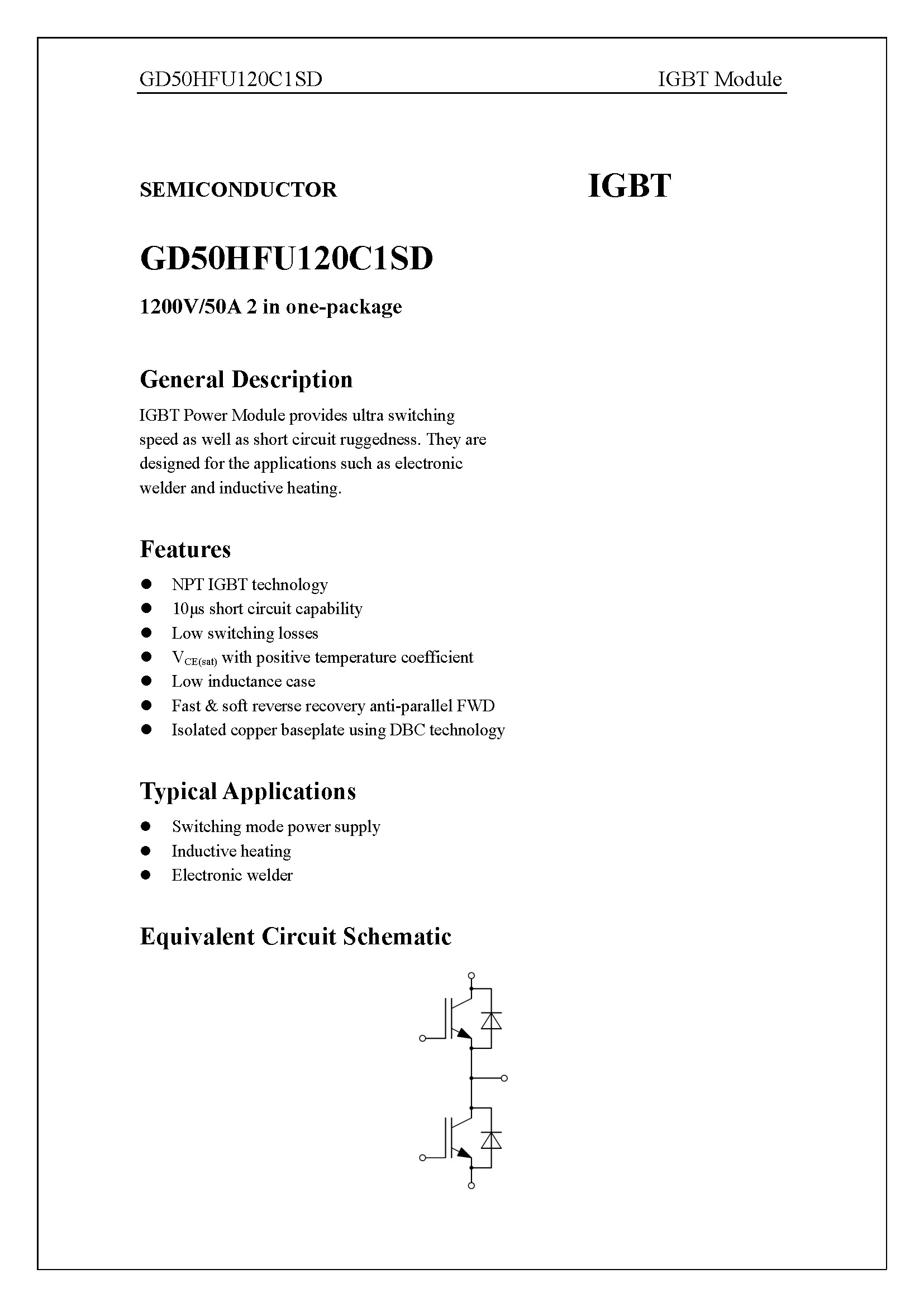

GD50HFU120C1SD-1_页面_1

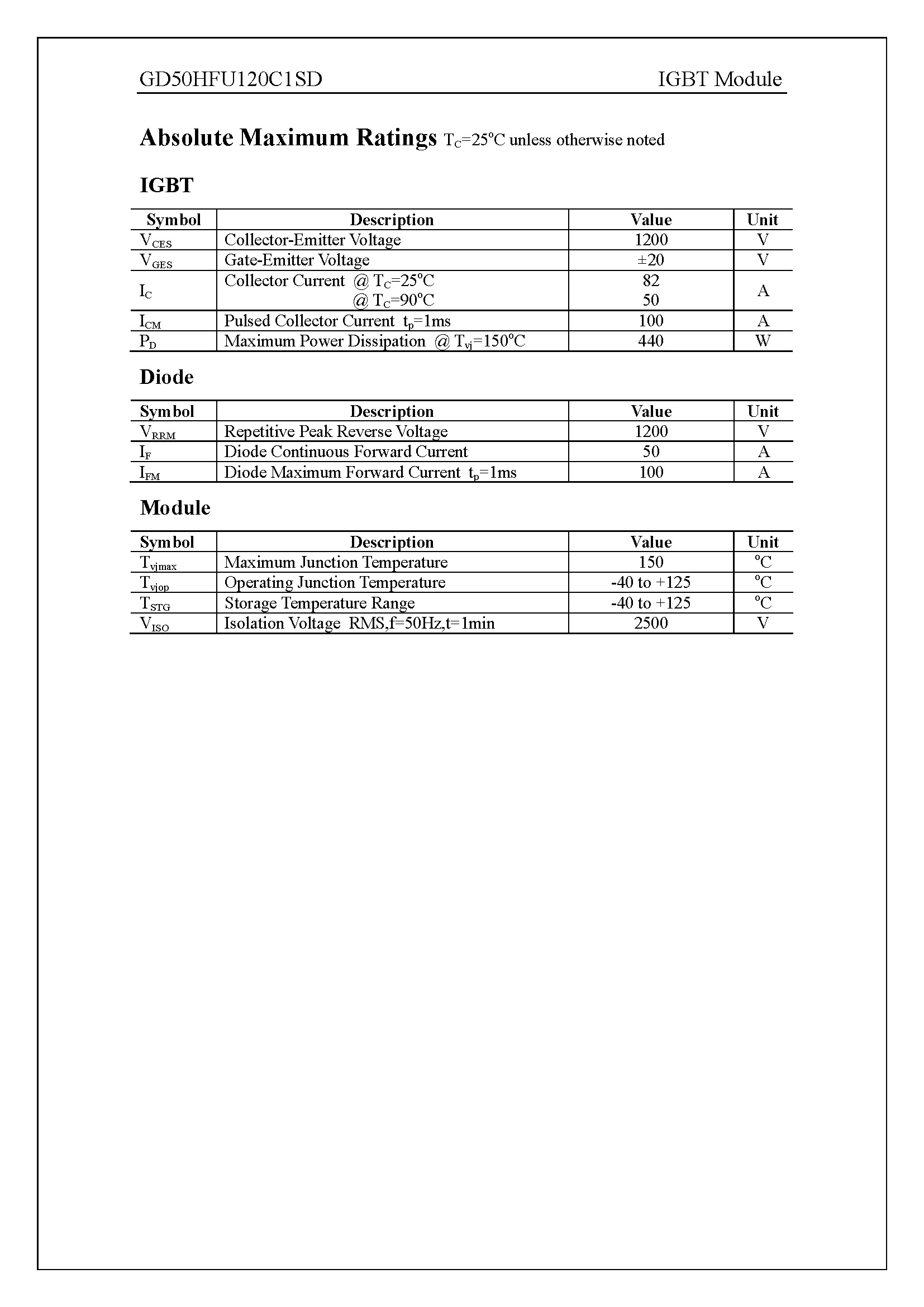

GD50HFU120C1SD-1_页面_2

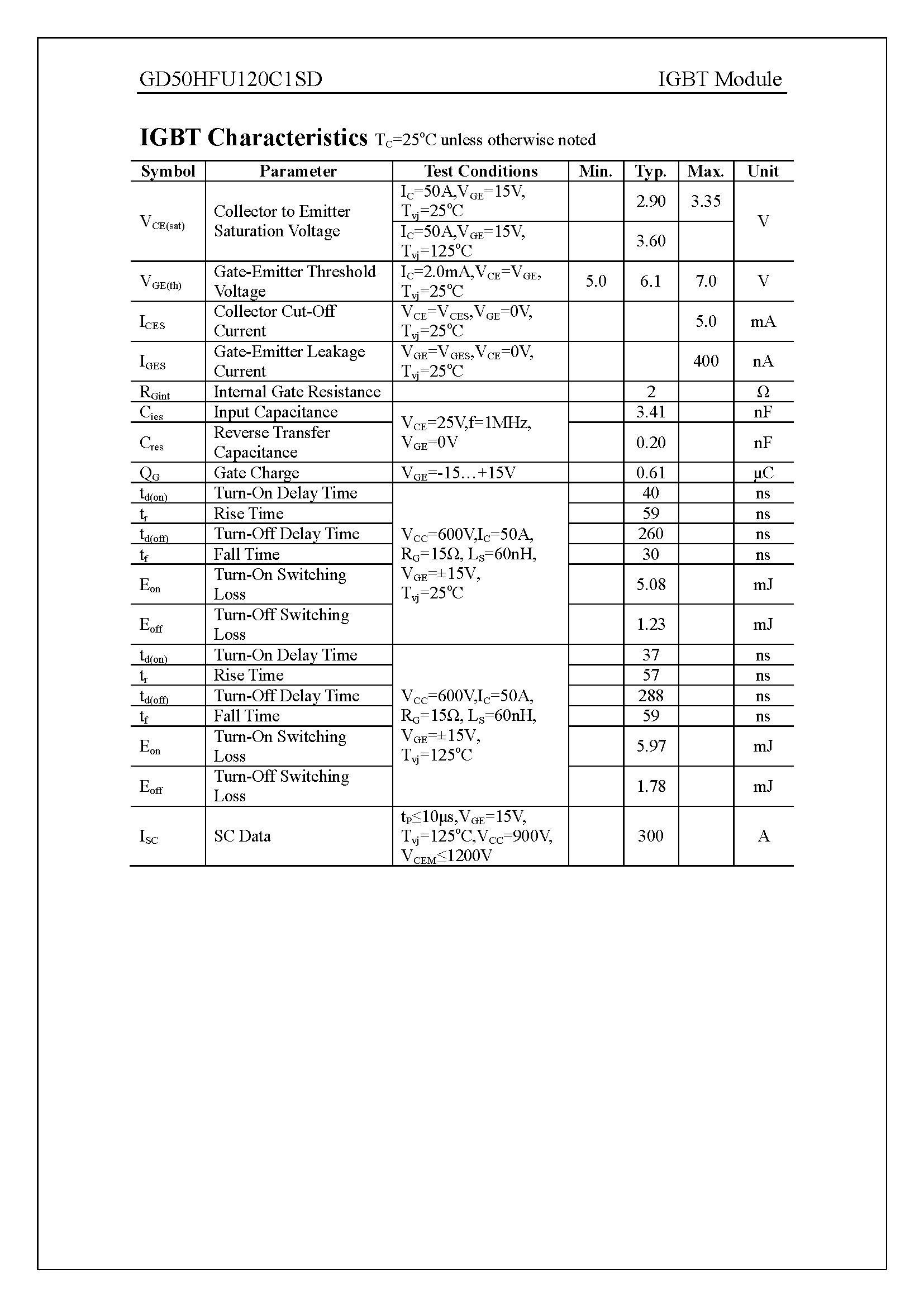

GD50HFU120C1SD-1_页面_3

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01


Previous:
Next:
1200V 50A Planar NPT IGBT GD50HFU120C1SD IGBT C1 IGBT Half Bridge Fast Recovery Diode Rectifier
