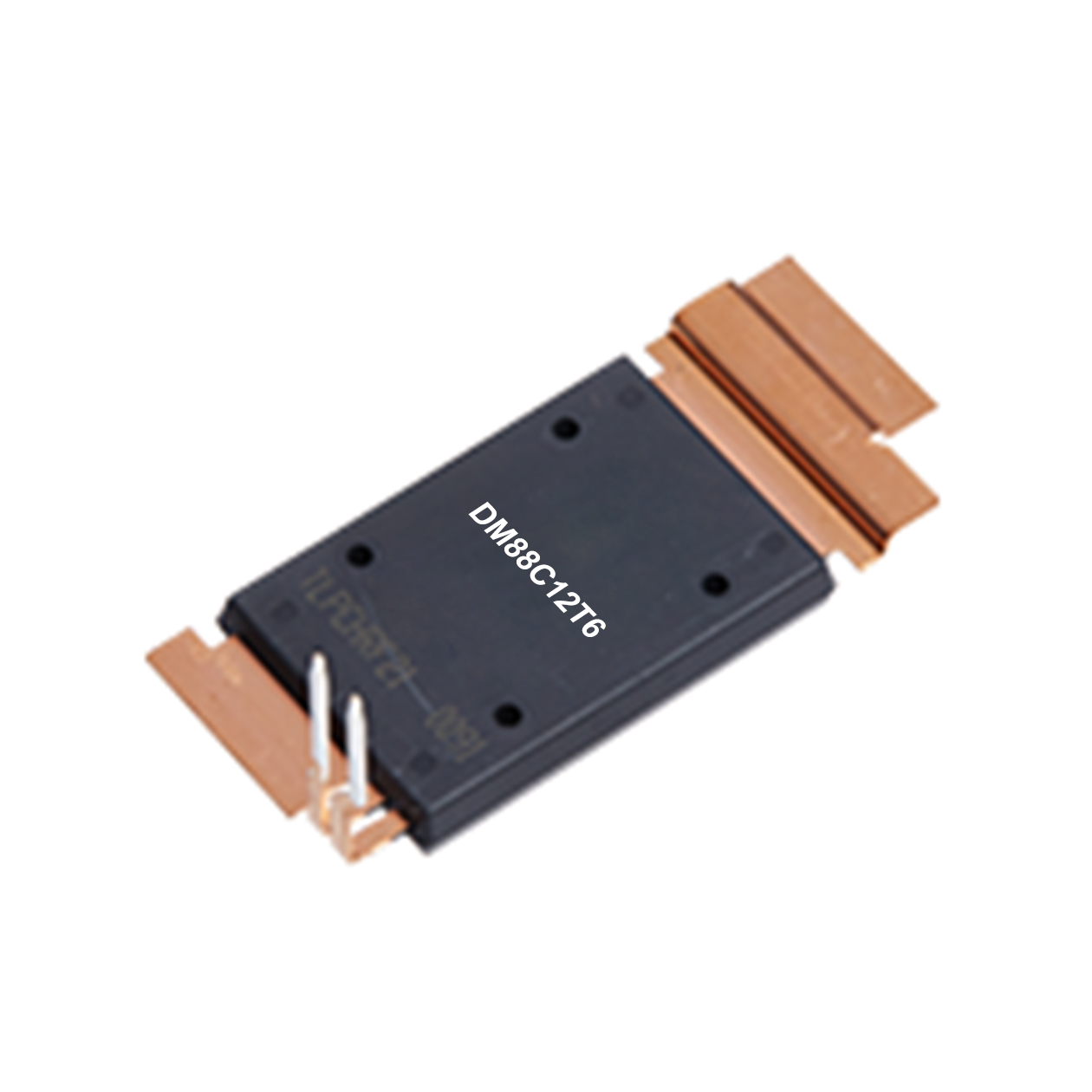

1200V/8.86 mΩ SiC MOSFET, T6, DM88C12T6

1200V/8.86 mΩ SiC MOSFET
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • DM88C12T6

  • Merry

1200V/8.86 mΩ SiC MOSFET, T6, DM88C12T6
Package: T6
Rated Current: -
Chip Type: SiC
Rated Voltage: 1200V
Circuit Structure: Single Phase
Hallmark: Injection Molding


Features :
- SiC power MOSFET
- Low RDS(on)
- Chip sintering technology
- Low inductance case avoid oscillations
- Isolated heatsink using Si3N4 AMB technology
- ROHS

Typical Applications :
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive
