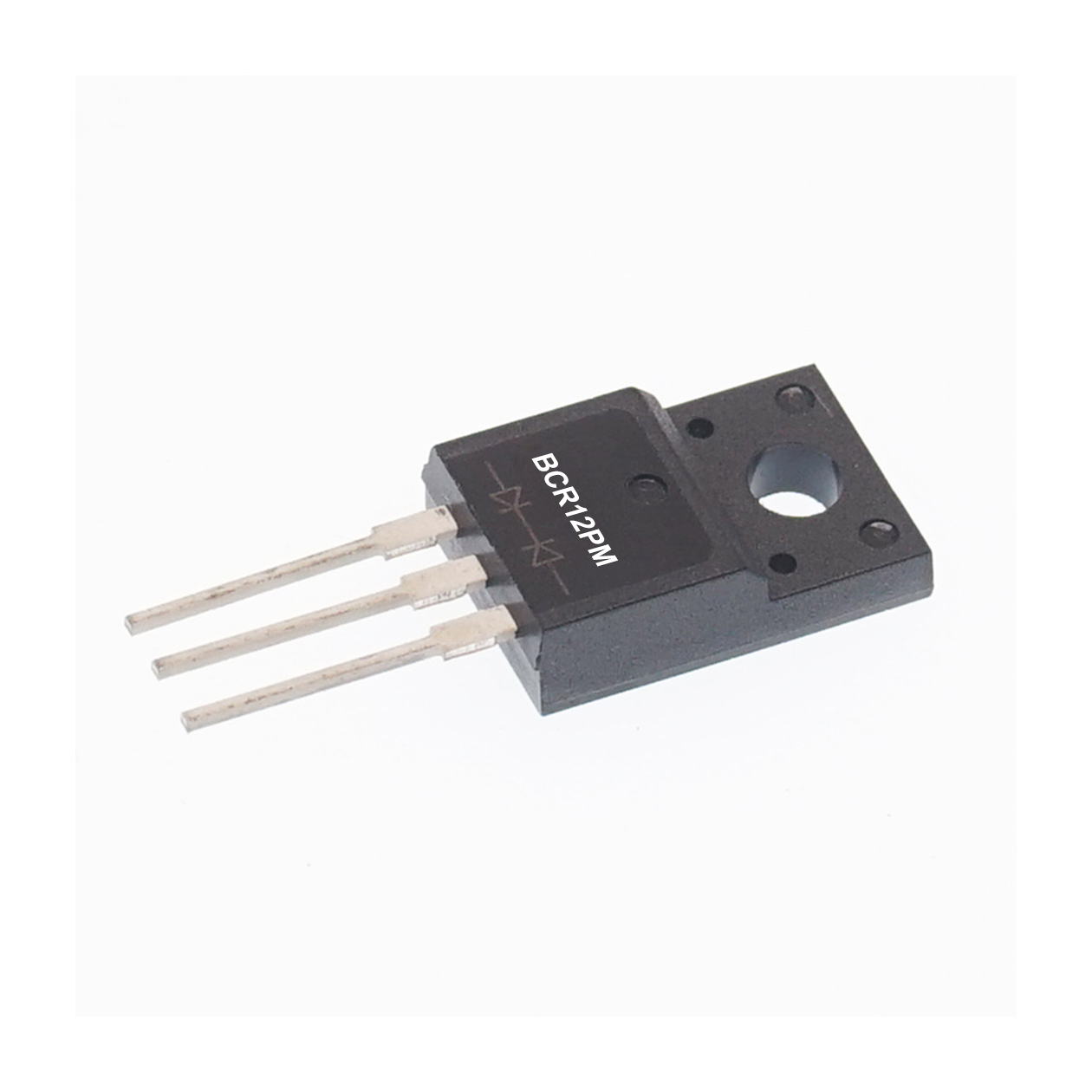

12A/1.5V High temperature junciton TRIACs, 4 Quadrants TRIACS, TO-220F, BCR12PM
Part number : BCR12PM
IT(RMS)(A) : 12
VDRM(V) : 600/800
IGT(mA) Max  : 1-35mA
VGT(V) : 1.5
IH(mA) : 15
Package : TO-220F

Features :
- IT(RMS): 12A
- VGT: 1.5V
- VDRM VRRM: 600V and 800V

Applications :
- Washing machine,vacuums, massager,solid state relay, AC Motor speed regulation and so on..
