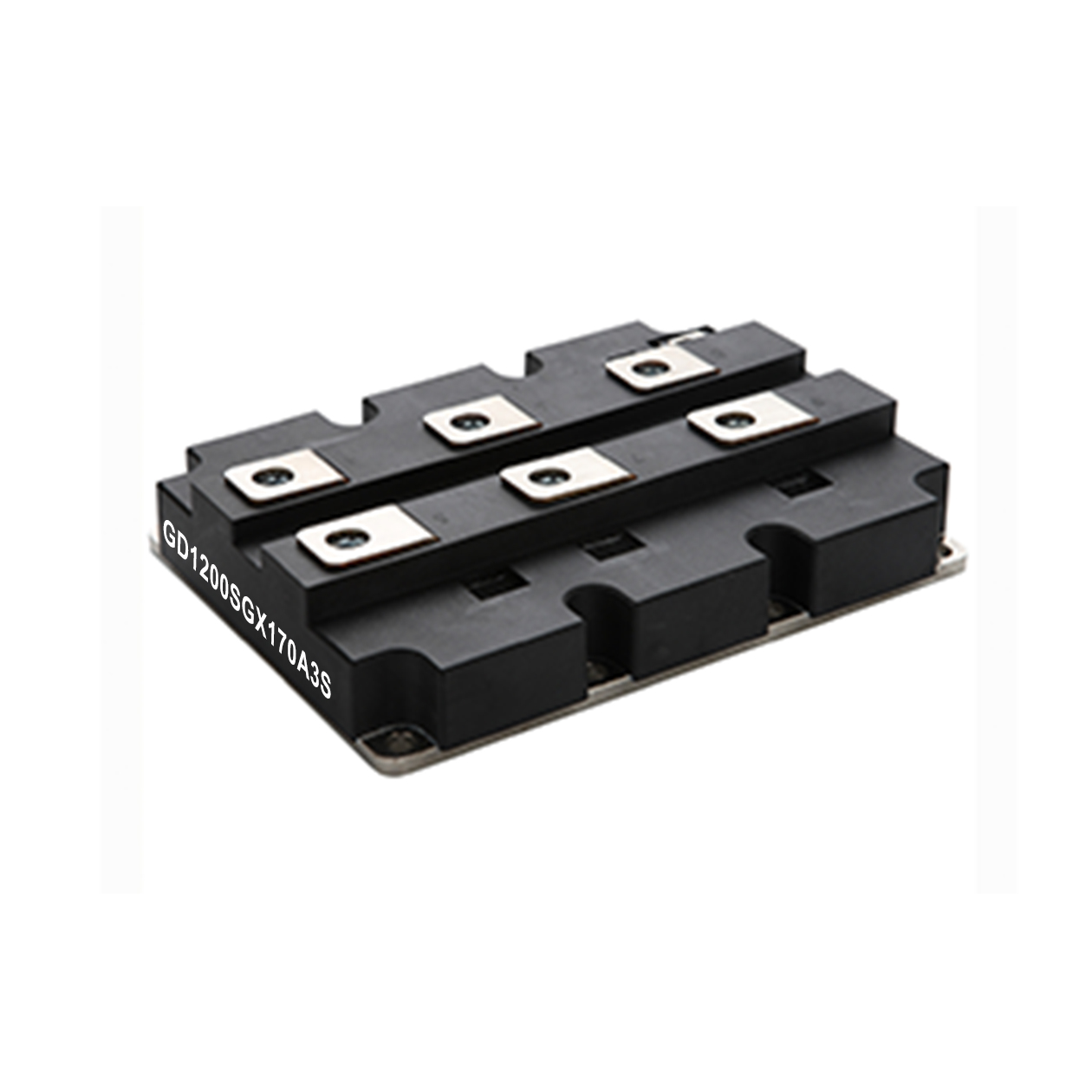

1700V/1200A Trench-FS Gen1 IGBT, A3, GD1200SGX170A3S

1700V/1200A Trench-FS Gen1 IGBT
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD1200SGX170A3S

  • Merry

1700V/1200A Trench-FS Gen1 IGBT, A3, GD1200SGX170A3S
Package:A3
Rated Current:1200A
Chip Type:Trench-FS Gen1
Rated Voltage:1700V
Circuit Structure:Single Phase
Hallmark:Flat Substrates

Features :
- Low VCE(sat) Trench IGBT technology
- 10μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- AlSiC baseplate for high power cycling capability
- AlN substrate for low thermal resistance

Typical Applications :
- AC inverter drives
- Switching mode power supplies
- Electronic welders

GD1200SGX170A3SName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

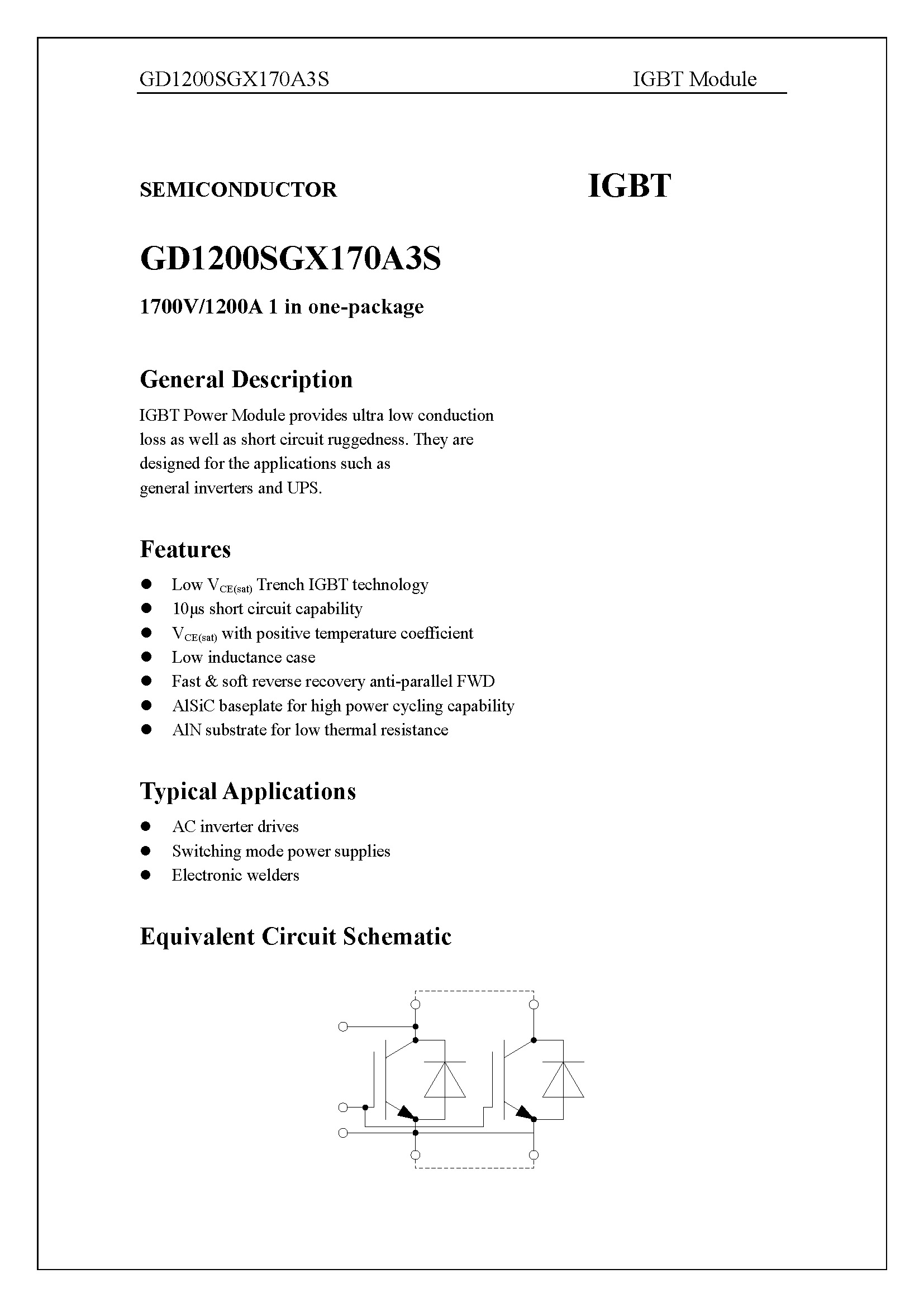

GD1200SGX170A3S-1_页面_1

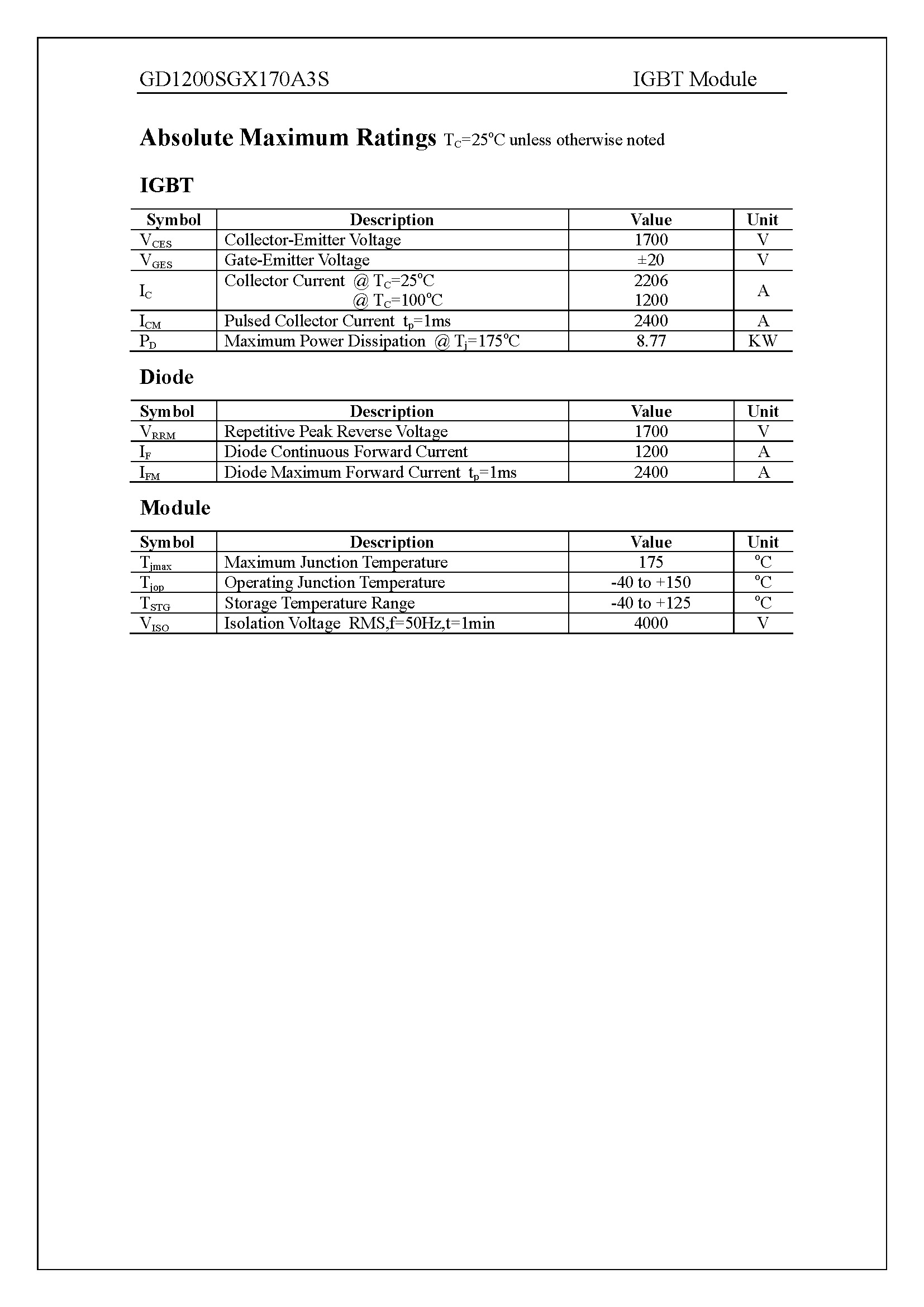

GD1200SGX170A3S-1_页面_2

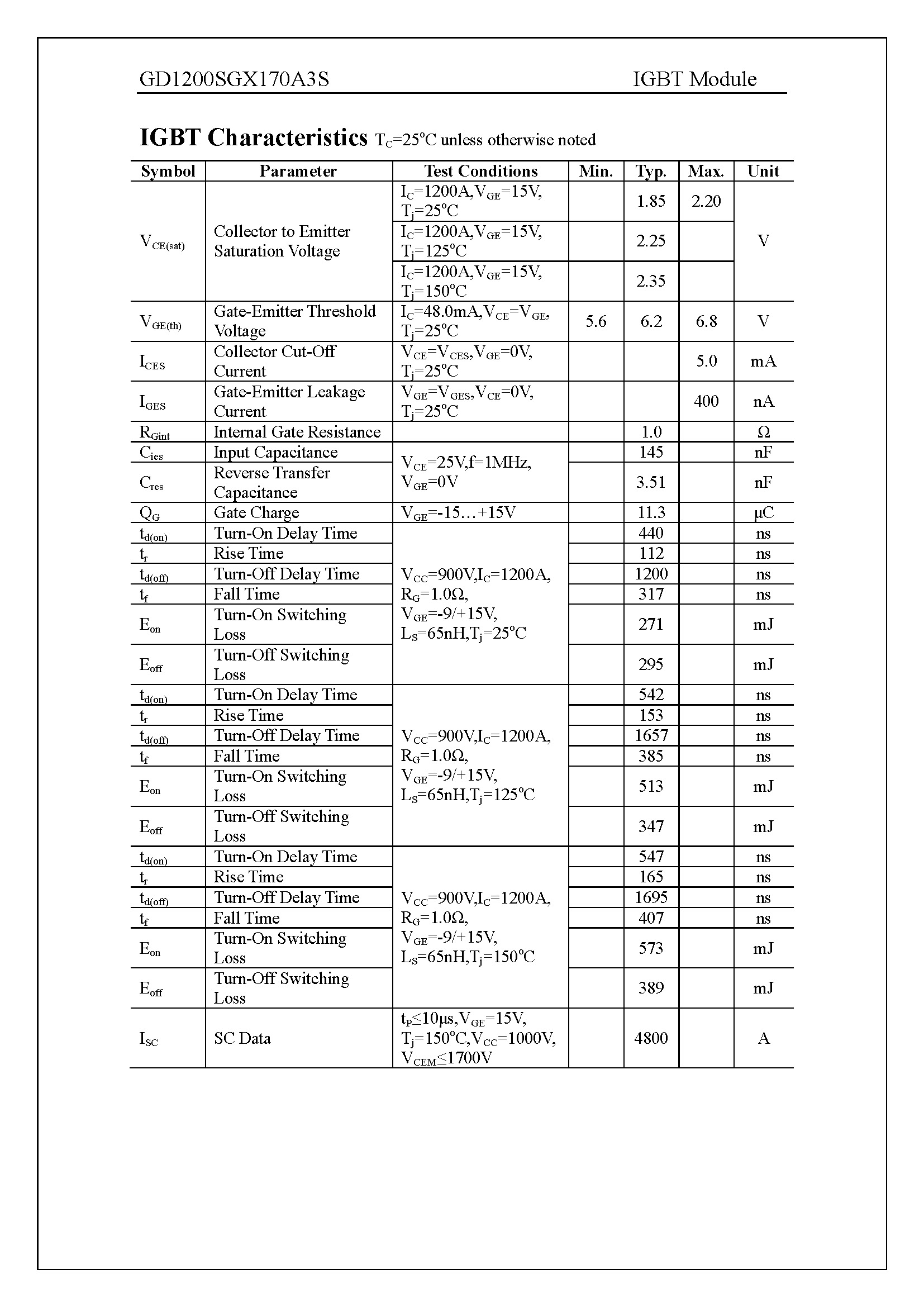

GD1200SGX170A3S-1_页面_3
