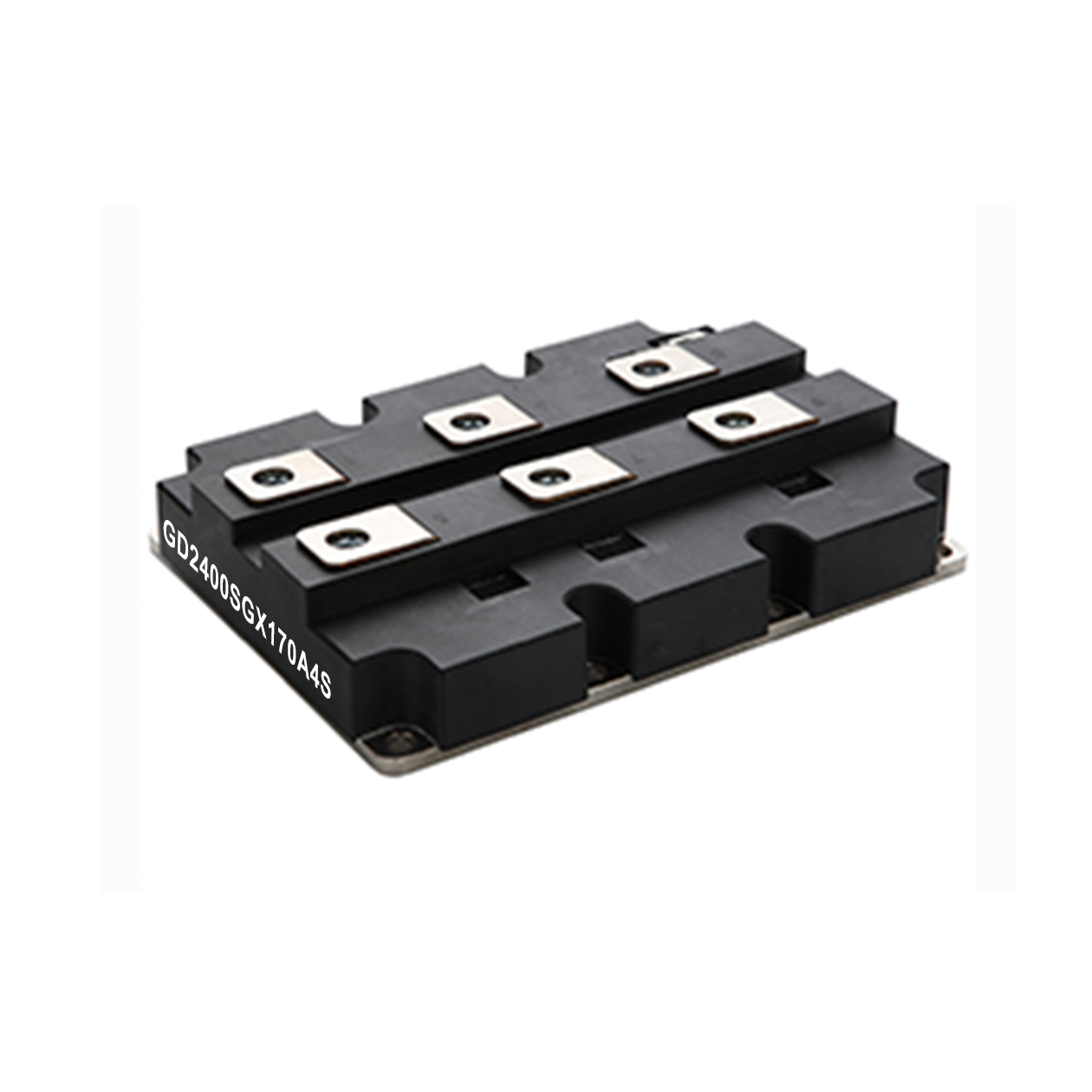

1700V/2400A Trench-FS Gen1 IGBT, A4, GD2400SGX170A4S

1700V/2400A Trench-FS Gen1 IGBT
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD2400SGX170A4S

  • Merry

1700V/2400A Trench-FS Gen1 IGBT, A4, GD2400SGX170A4S
Package:A4
Rated Current:2400A
Chip Type:Trench-FS Gen1
Rated Voltage:1700V
Circuit Structure:Single Phase
Hallmark:Flat Substrates

Features :
- Low VCE(sat) Trench IGBT technology
- 10μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- AlSiC baseplate for high power cycling capability
- AlN substrate for low thermal resistance

Typical Applications :
- High power converters
- Motor drives

GD2400SGX170A4SName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

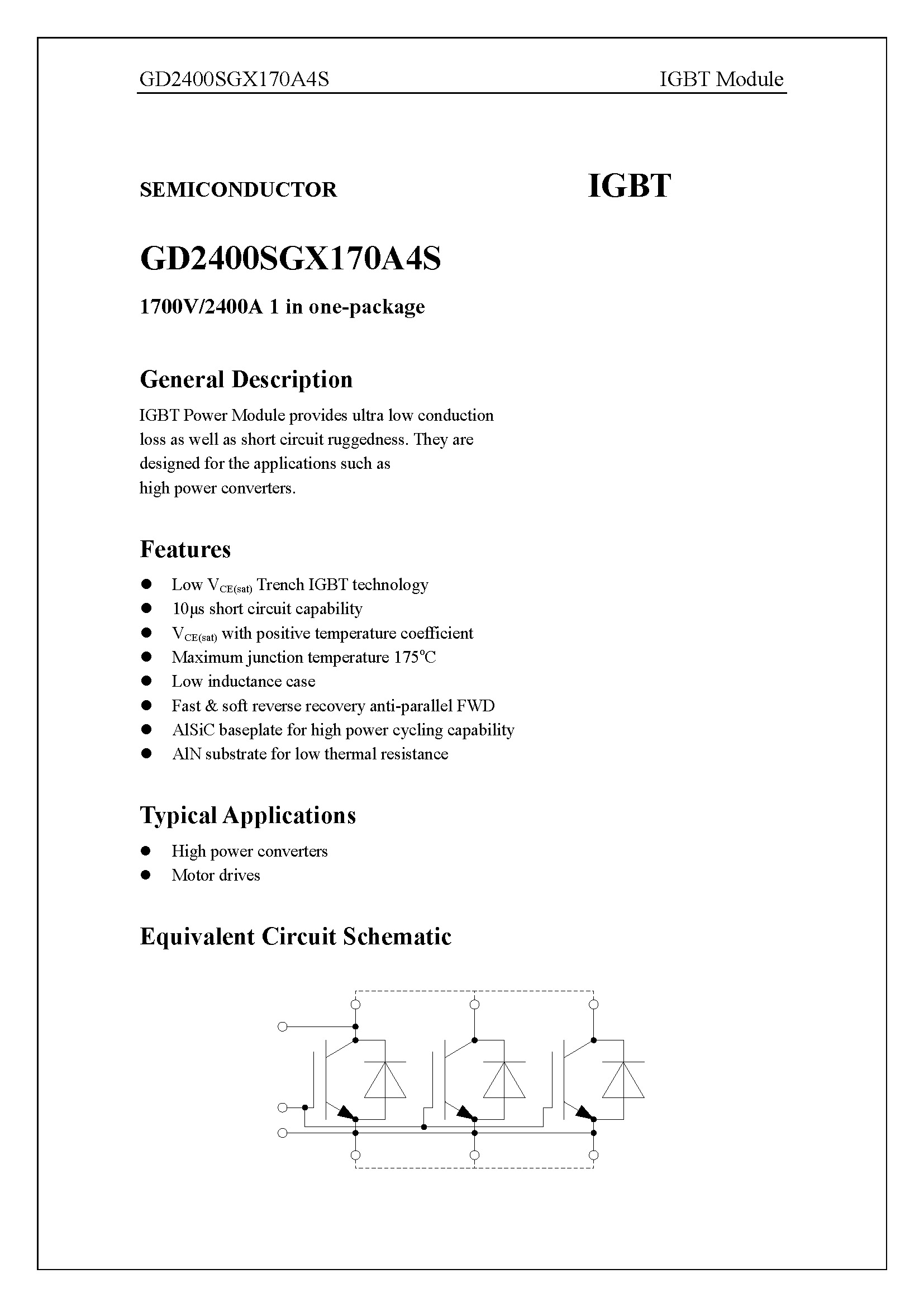

GD2400SGX170A4S-1_页面_1

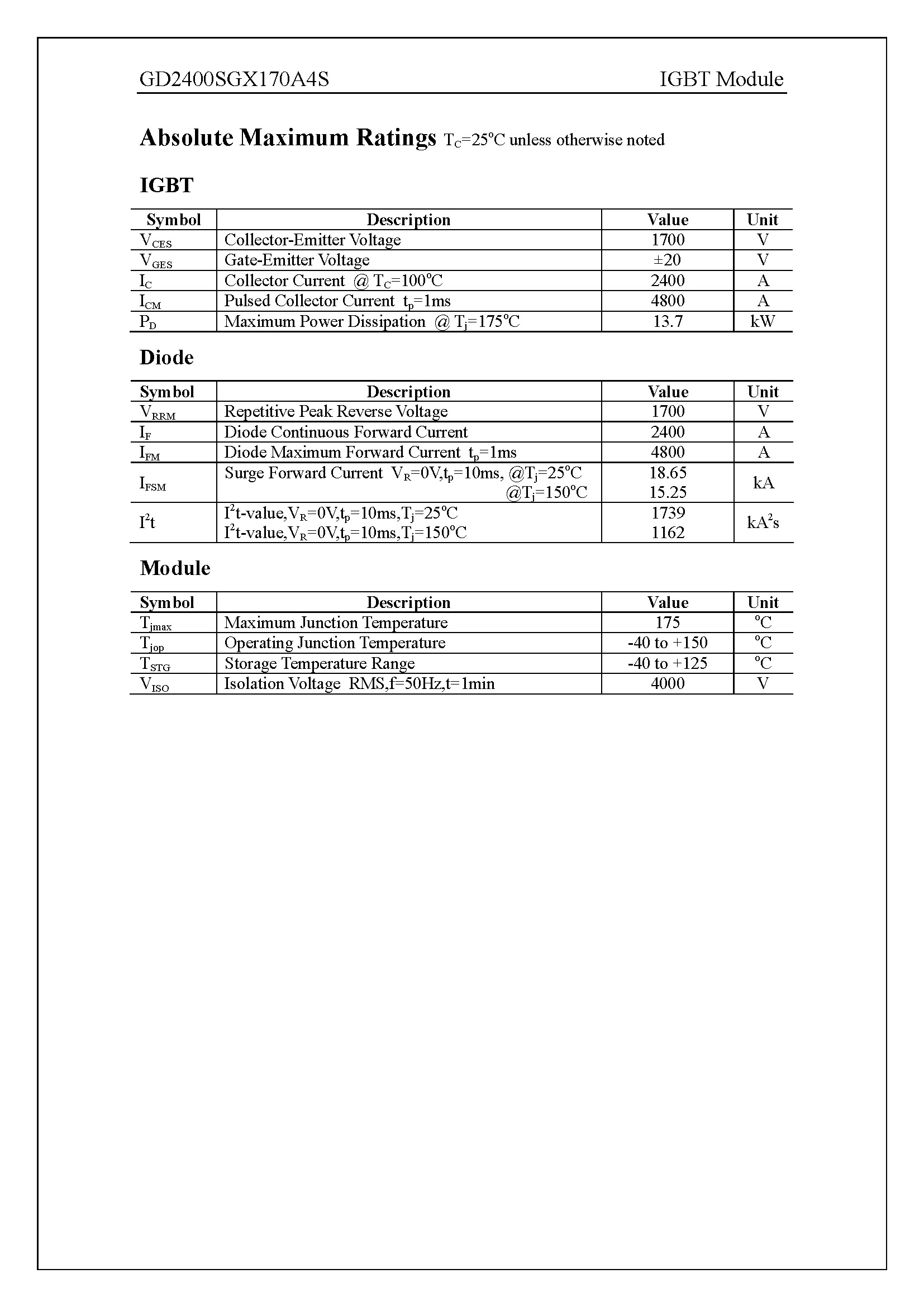

GD2400SGX170A4S-1_页面_2

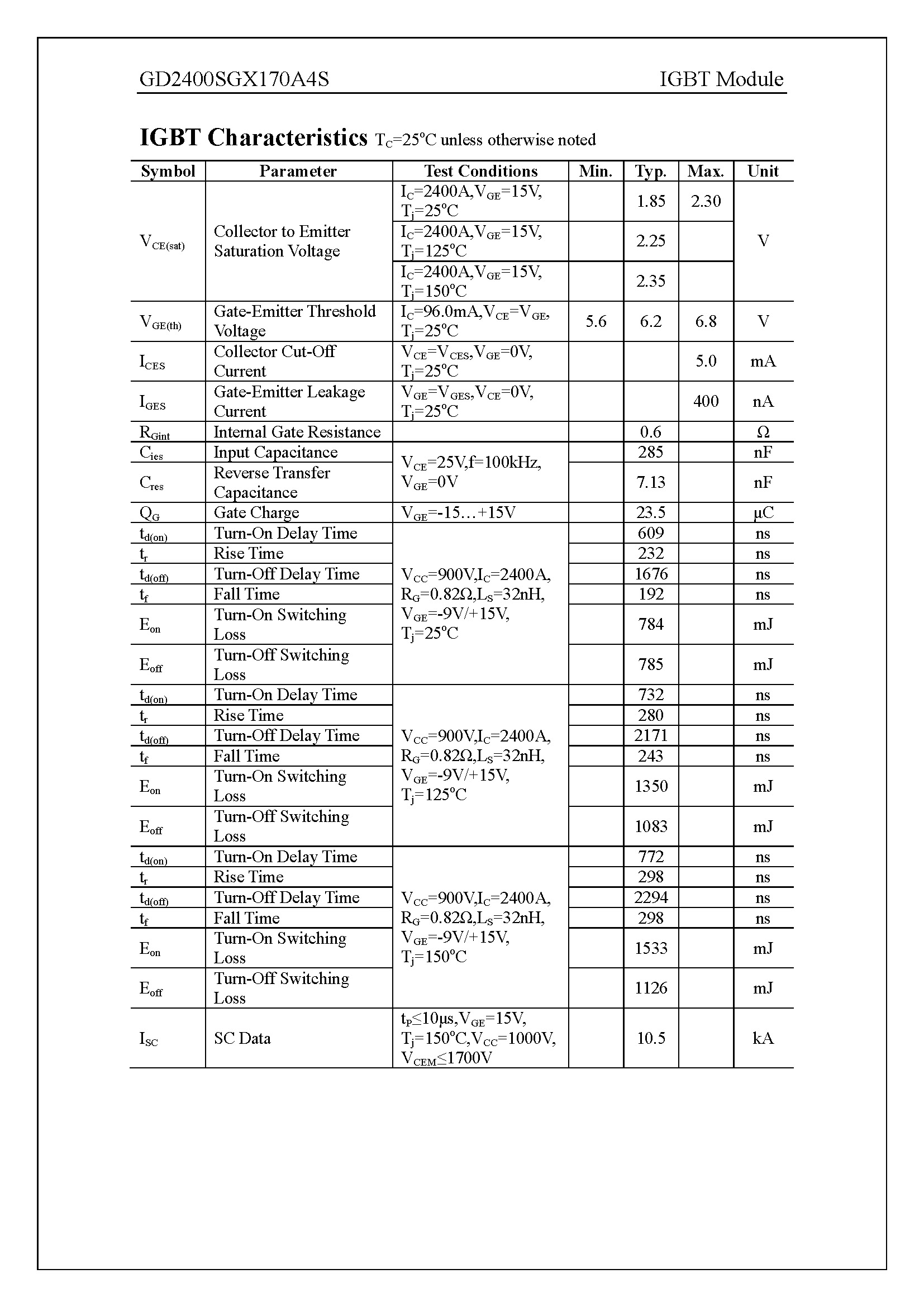

GD2400SGX170A4S-1_页面_3

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01


Previous:
Next:
1700V/2400A Trench-FS Gen1 IGBT GD2400SGX170A4S IGBT A4 IGBT Single Phase Fast Recovery Diode Rectifier
