GD3600SGX170C4S
Merry

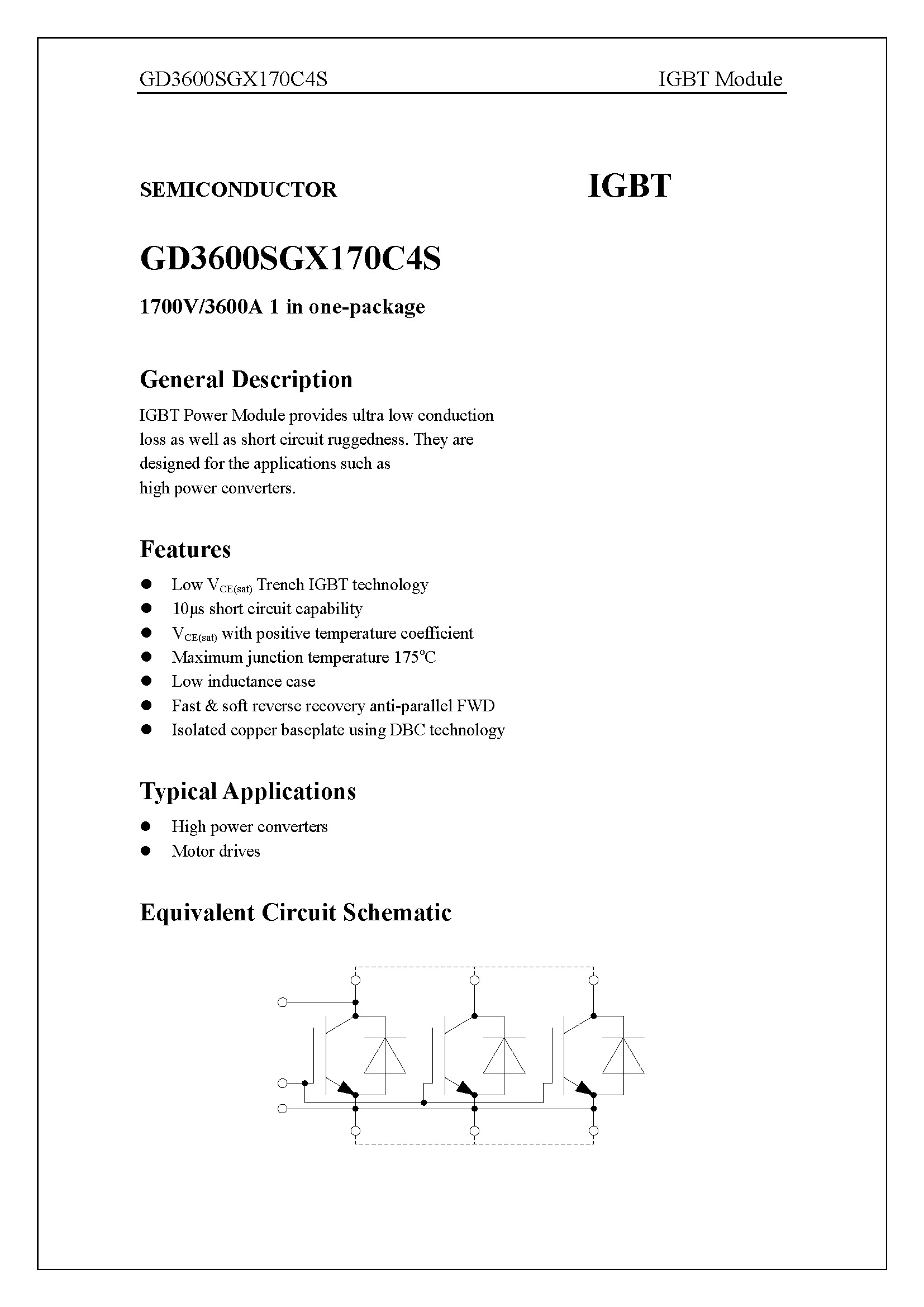

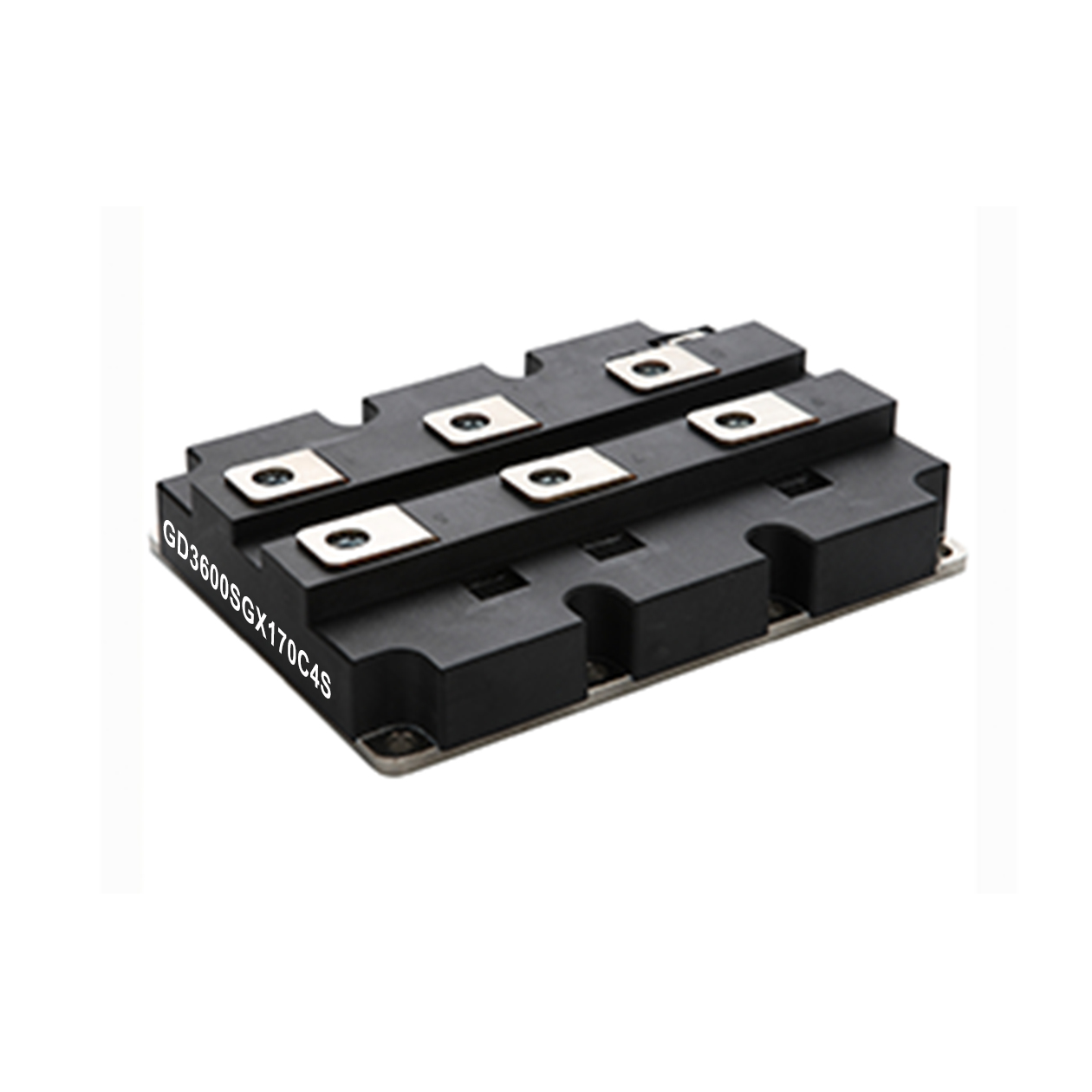

1700V/3600A Trench-FS Gen1 IGBT, C4, GD3600SGX170C4S
Package:C4
Rated Current:3600A
Chip Type:Trench-FS Gen1
Rated Voltage:1700V
Circuit Structure:Single Phase
Hallmark:Flat Substrate
Features :
- Low VCE(sat) Trench IGBT technology
- 10μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology
Typical Applications :
- High power converters
- Motor drives
Name1
Name2
Name1
Name2
Name1
Name2
Name1
Name2
1700V/3600A Trench-FS Gen1 IGBT, C4, GD3600SGX170C4S
Package:C4
Rated Current:3600A
Chip Type:Trench-FS Gen1
Rated Voltage:1700V
Circuit Structure:Single Phase
Hallmark:Flat Substrate
Features :
- Low VCE(sat) Trench IGBT technology
- 10μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology
Typical Applications :
- High power converters
- Motor drives
