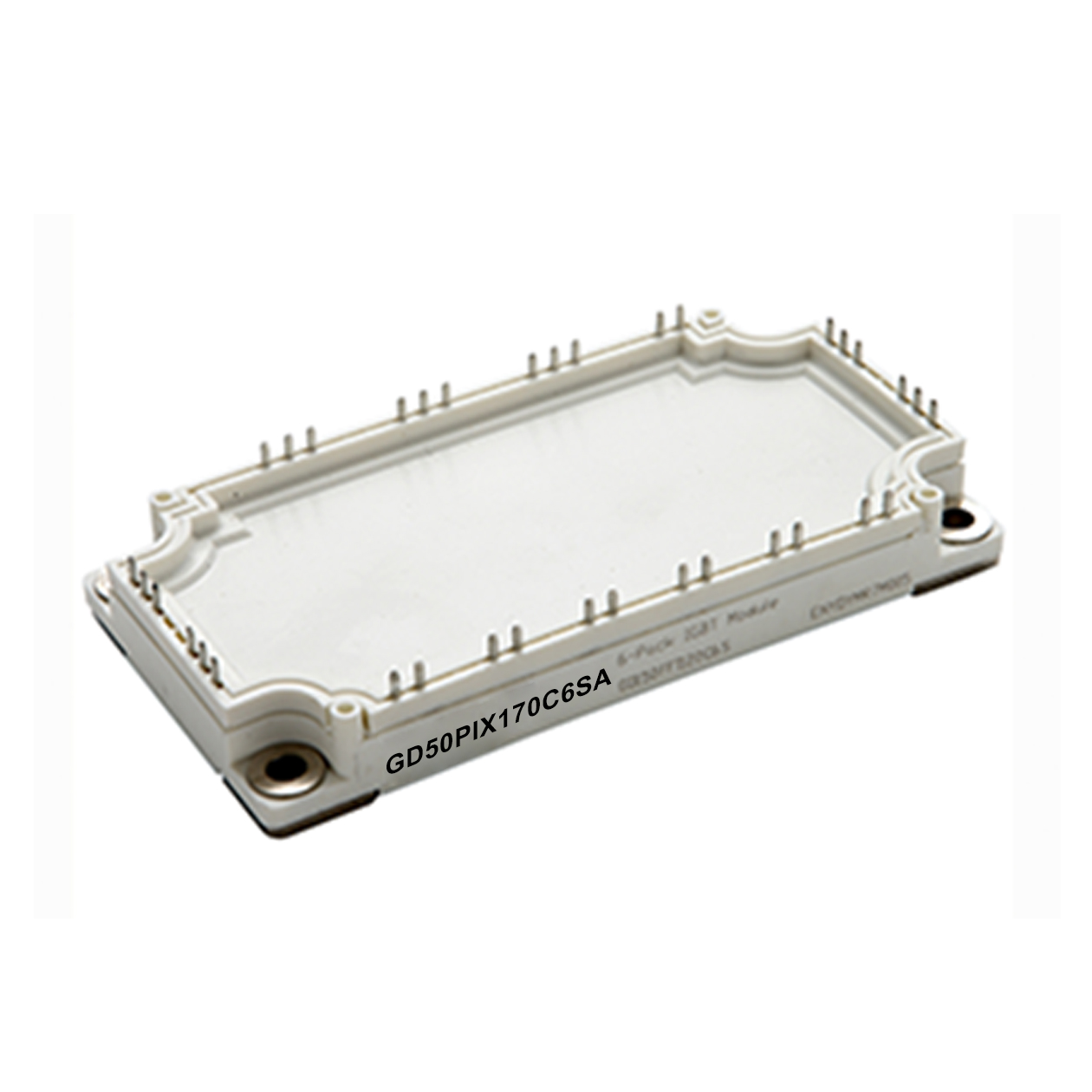

1700V/50A PIM Trench-FS Gen1 IGBT, C6, GD50PIX170C6SA

1700V/50A PIM Trench-FS Gen1 IGBT
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD50PIX170C6SA

  • Merry

1700V/50A PIM Trench-FS Gen1 IGBT, C6, GD50PIX170C6SA
Package:C6
Rated Current:50A
Chip Type:Trench-FS Gen1
Rated Voltage:1700V
Circuit Structure:PIM
Hallmark:Flat Substrates

Features :
- Low VCE(sat) Trench IGBT technology
- 10μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology

Typical Applications :
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply

GD50PIX170C6SAName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

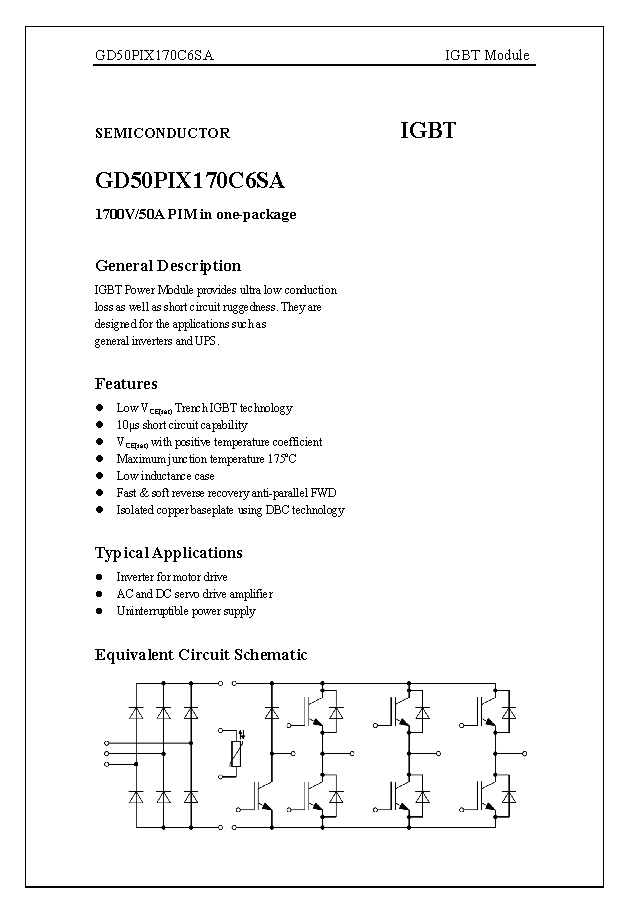

GD50PIX170C6SA-1_页面_01

GD50PIX170C6SA-1_页面_02

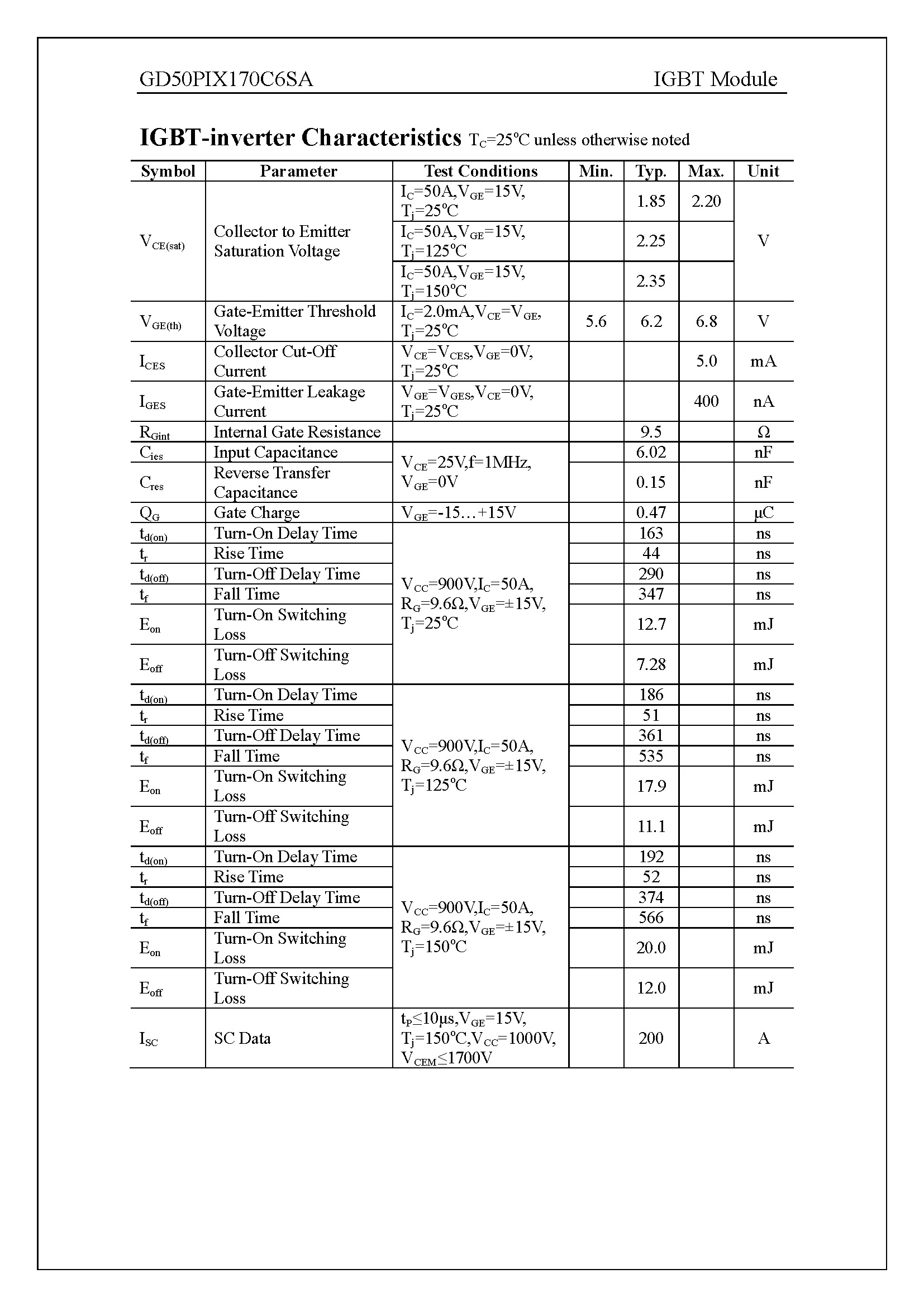

GD50PIX170C6SA-1_页面_03
