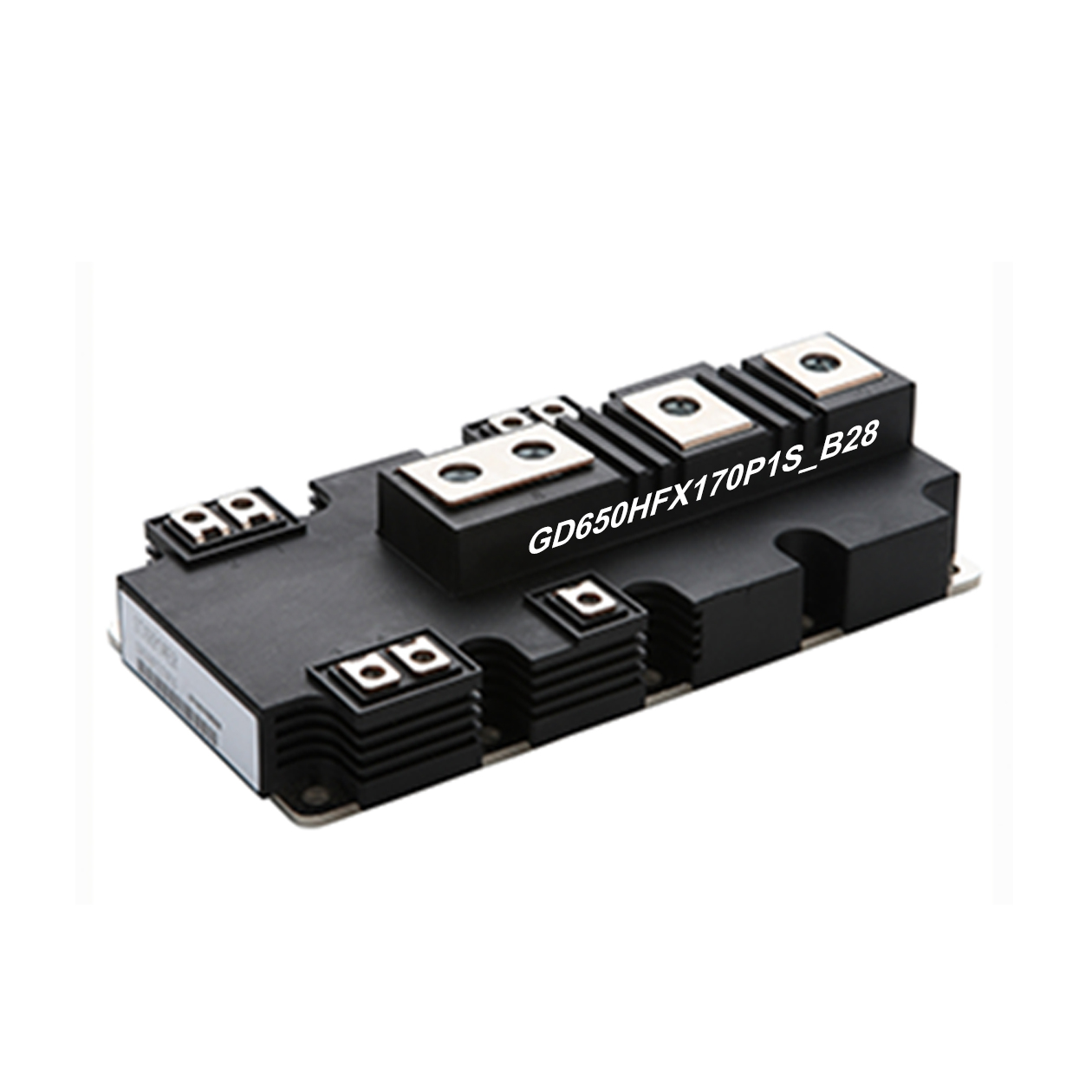

1700V/650A IGBT Trench-FS Gen1, P1, GD650HFX170P1S_B28

1700V/650A IGBT Trench-FS Gen1, P1
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD650HFX170P1S_B28

  • Merry

1700V/650A IGBT Trench-FS Gen1, P1, GD650HFX170P1S_B28
Package: P1
Rated Current: 650A
Chip Type: Trench-FS Gen1
Rated Voltage: 1700V
Circuit Structure: Half Bridge
Hallmark: Flat Substrates


Features :
- Low VCE(sat) Trench IGBT technology
- 10μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Enlarged Diode for regenerative operation
- Isolated copper baseplate using DBC technology
- High power and thermal cycling capability

Typical Applications :
- High Power Converter
- Wind and Solar Power
- Traction Drive

GD650HFX170P1S_B28Name1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

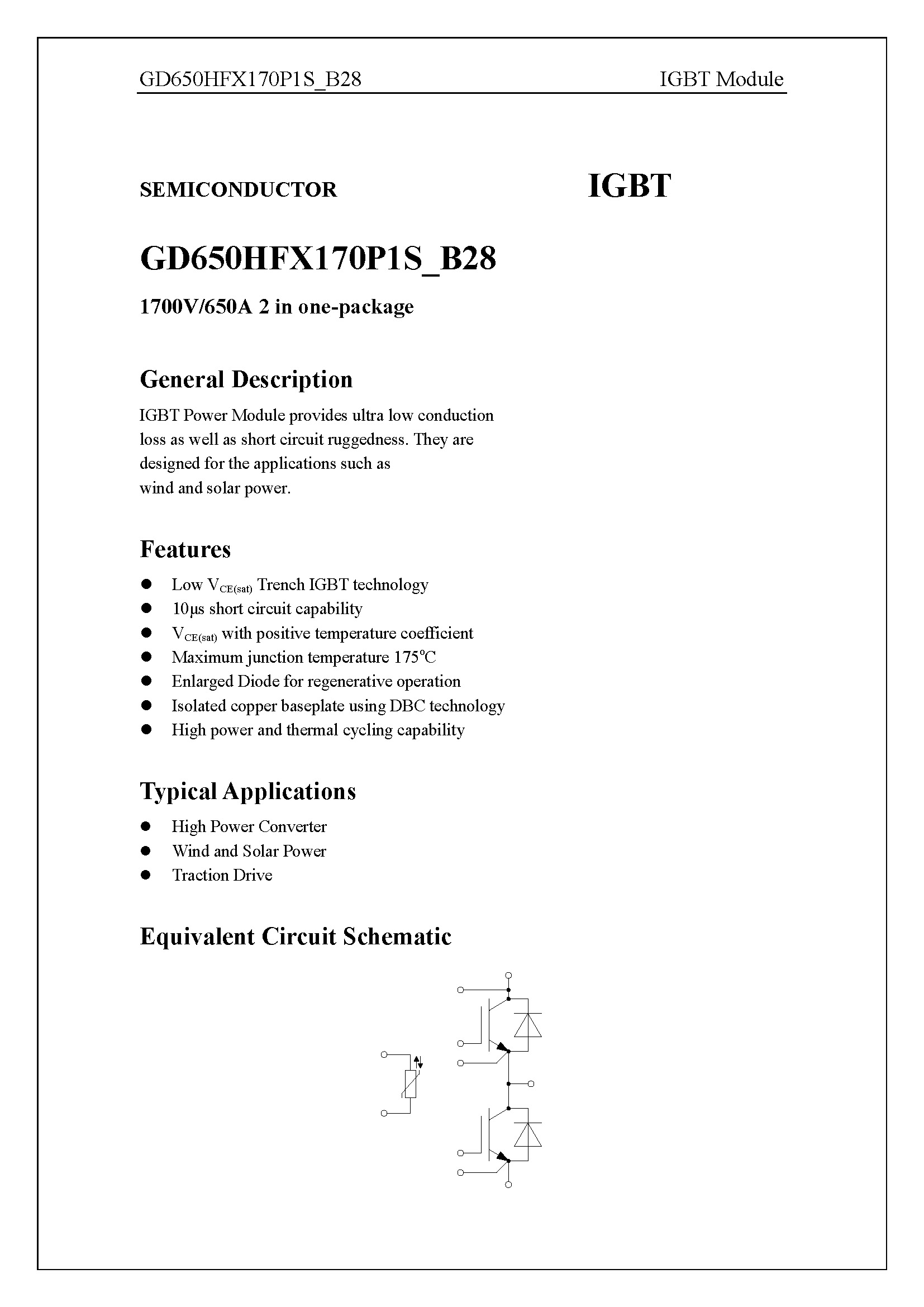

GD650HFX170P1S_B28-1_页面_1

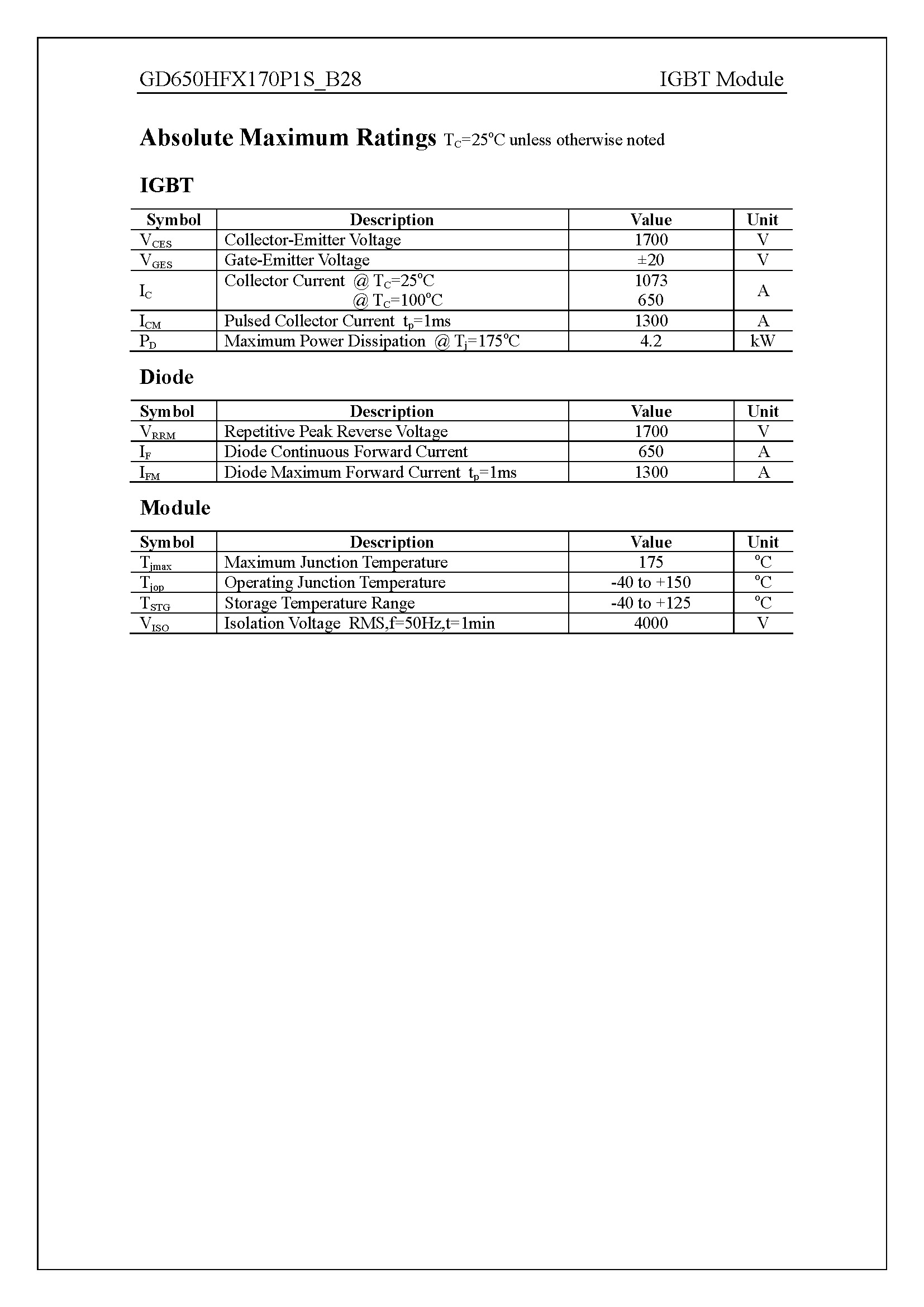

GD650HFX170P1S_B28-1_页面_2

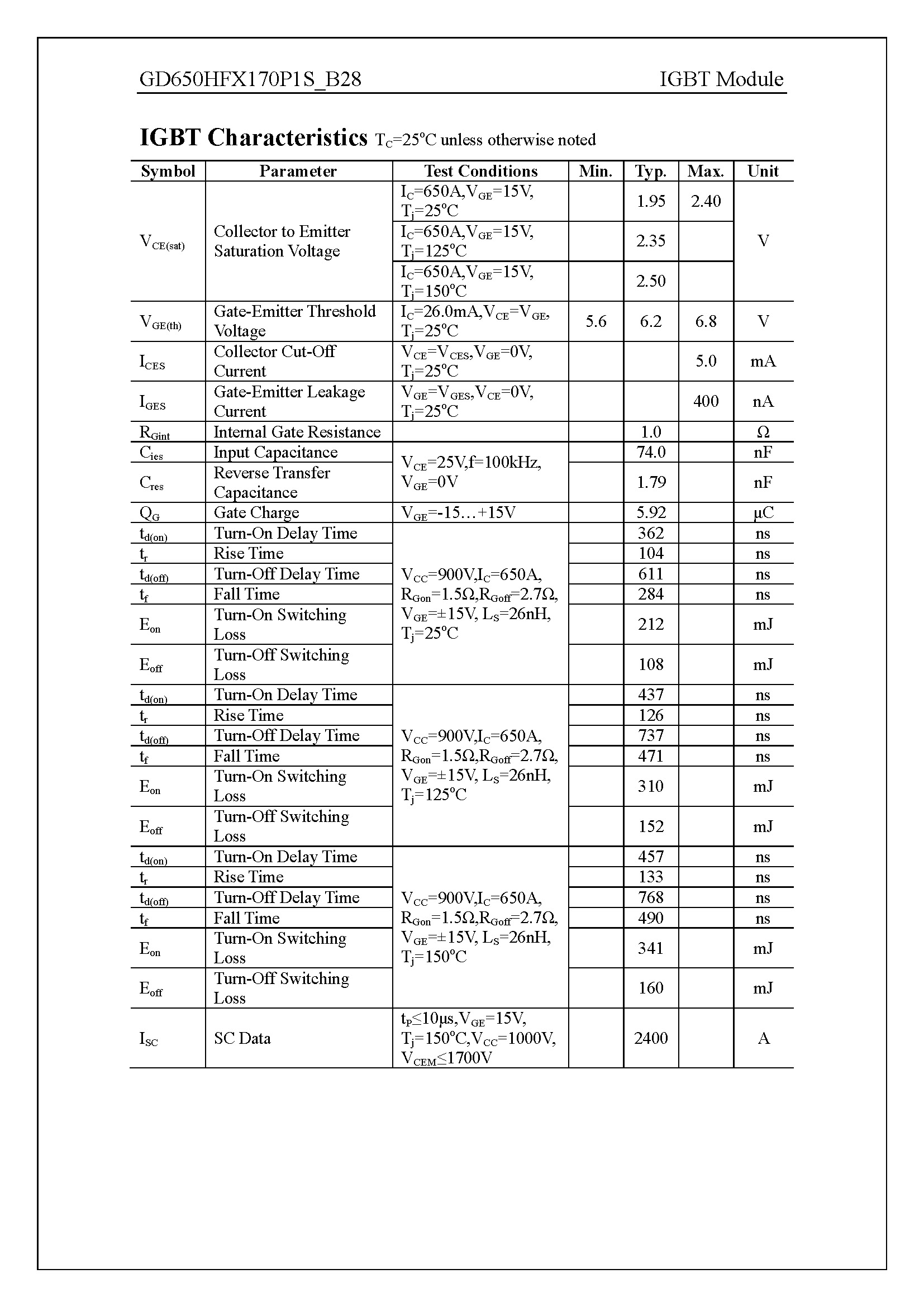

GD650HFX170P1S_B28-1_页面_3

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01


Previous:
Next:
1700V/650A Trench-FS Gen1 IGBT GD650HFX170P1S_B28 IGBT P1 IGBT Half Bridge Fast Recovery Diode Rectifier
