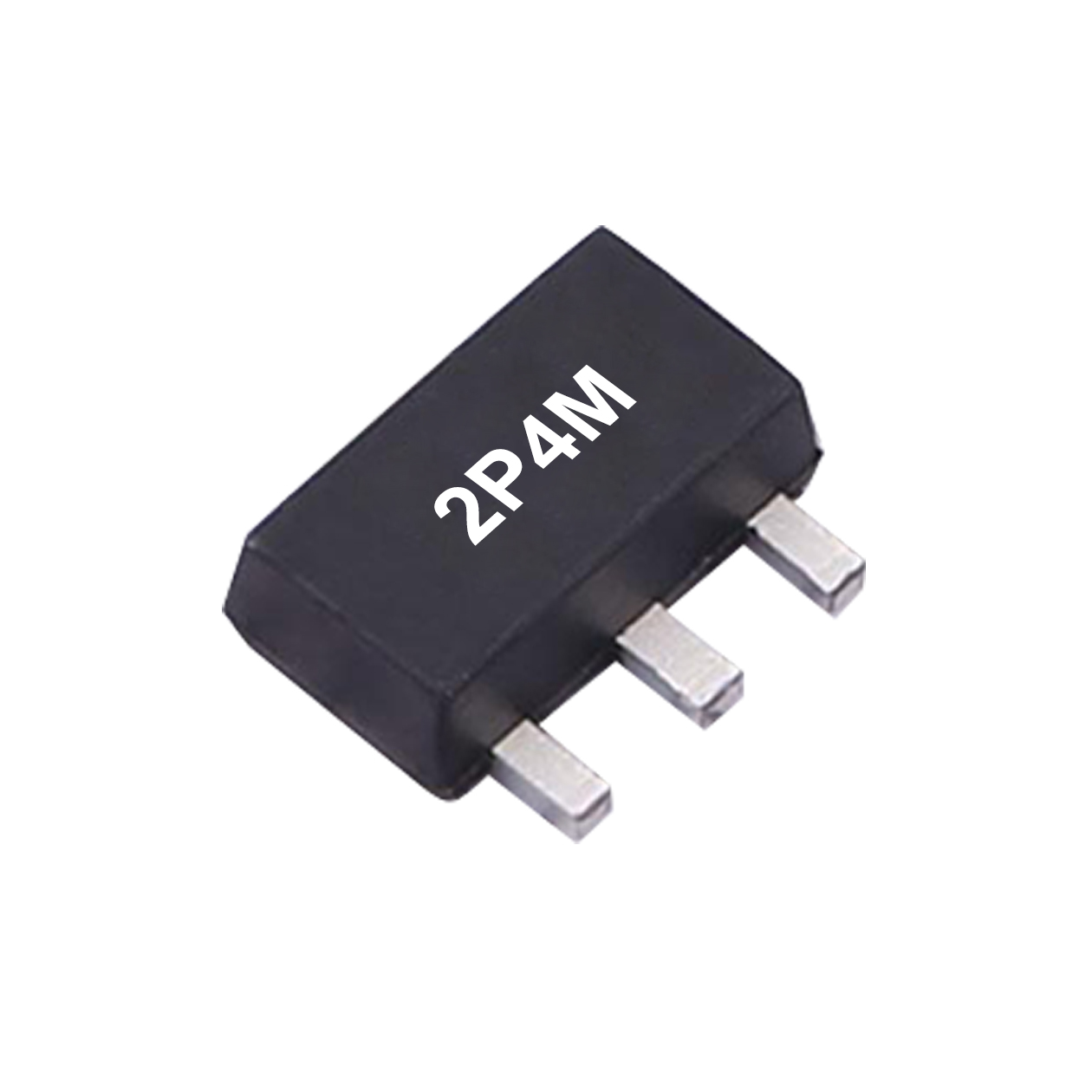

4A/0.8V SCRs, Sensitive Gate SCRs, TO-202, 2P4M

4A/0.8V SCRs, Sensitive Gate SCRs
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 2P4M

  • Merry

4A/0.8V SCRs, Sensitive Gate SCRs, TO-202, 2P4M

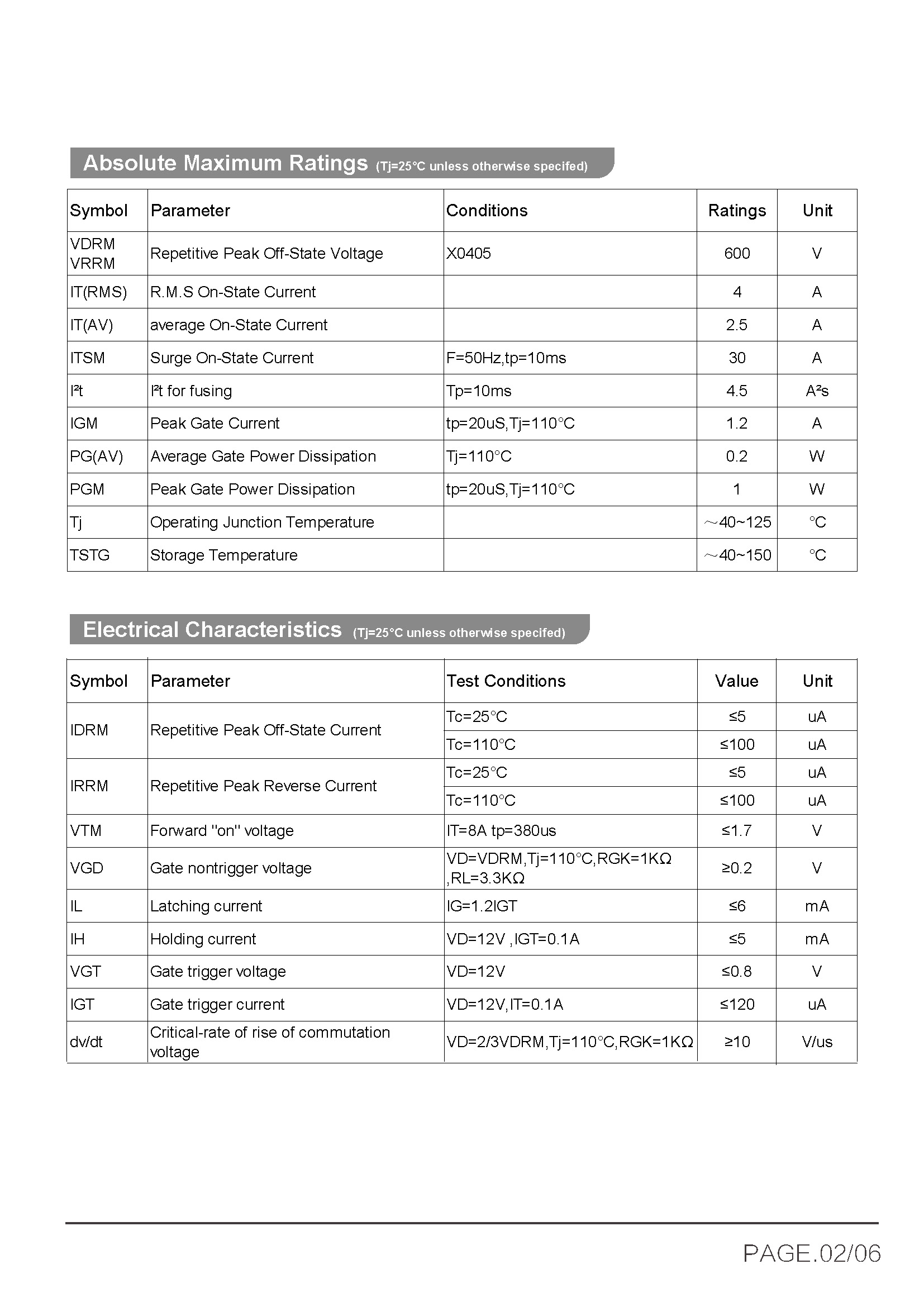

Part number : 2P4M
IT(RMS)(A) : 4
VDRM(V) : 600/800
IGT(mA) Max  : 10-80 uA
VGT(V) : 0.8
IH(mA) : 5

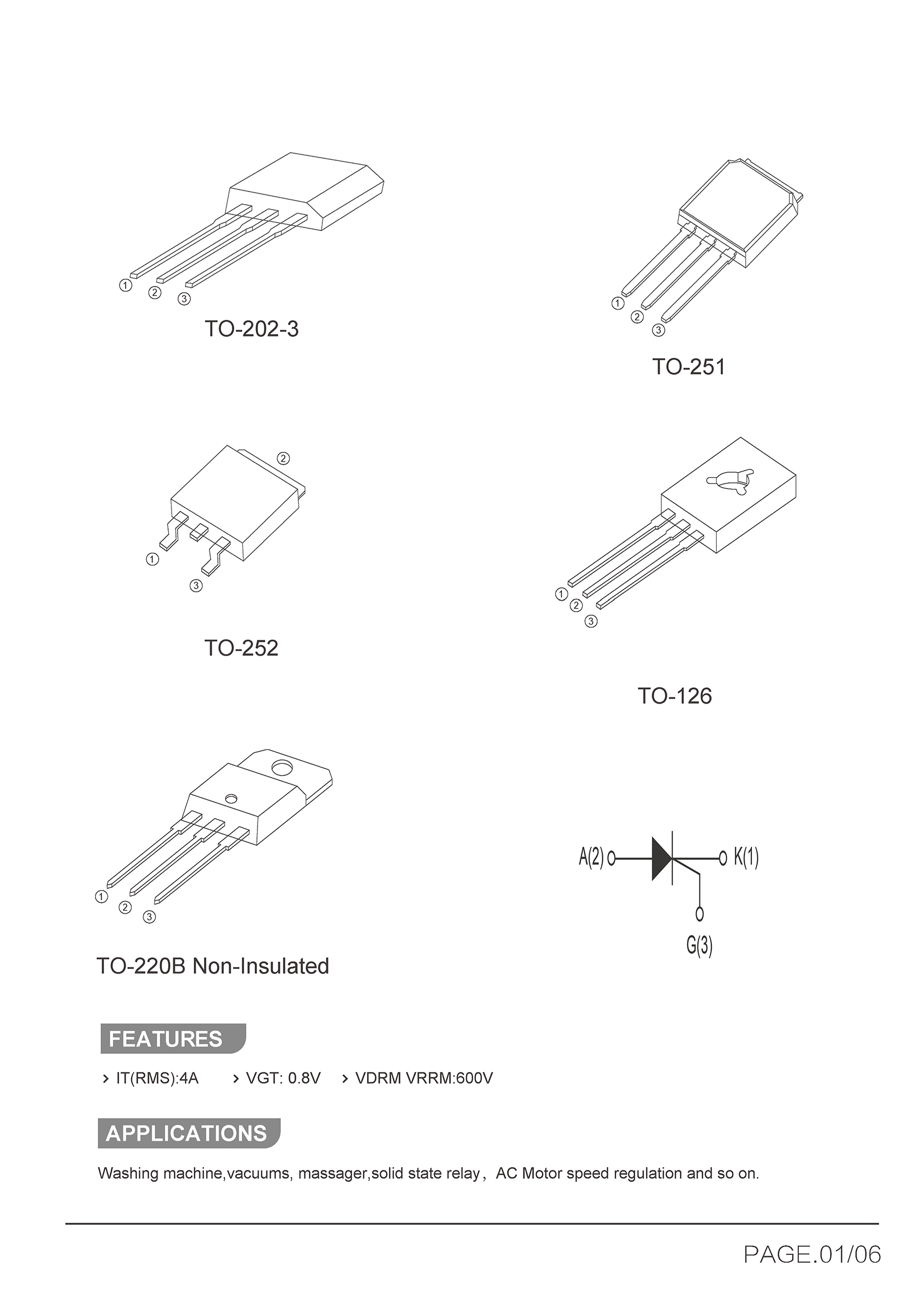

Package : TO-202 TO-252 TO-126 TO-92

Features :
- IT(RMS): 4A
- VGT: 0.8V
- VDRM VRRM: 600V

Applications :
- Washing machine,vacuums, massager,solid state relay, AC Motor speed regulation and so on.
