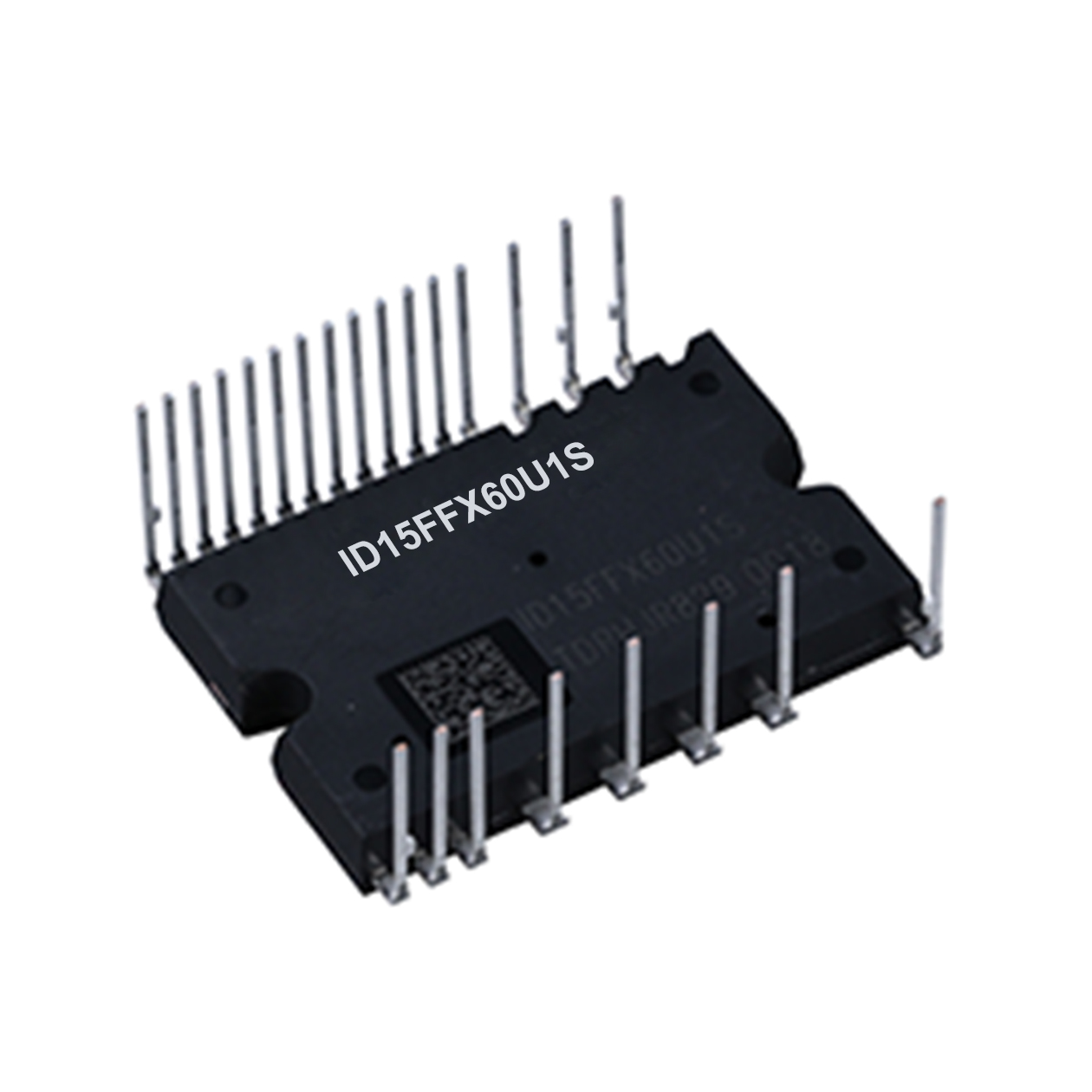

600V/15A IPM Module Trench-FS Gen1, U1, ID15FFX60U1S

600V/15A IPM Module Trench-FS Gen1
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ID15FFX60U1S

  • Merry

600V/15A IPM Module Trench-FS Gen1, U1, ID15FFX60U1S
Package: U1
Rated Current: 15A
Chip Type: Trench-FS Gen1
Rated Voltage: 600V
Circuit Structure: Sixpack
Hallmark: Injection Molding

Features :
- UL 1557 Certified.
- Adopt the latest trench IGBT technology to get a good overall loss trade-off.
- Open Emitter on N terminal for low cost current sensing application.
- Matched propagation delay and arm shooting through prevention.
- Built-in bootstrap diodes with current limiting resistor.
- Provide a fault signal (FO pin) and shut-off internal IGBT when suffer S.C. and under-voltage faulty event
- RoHS compatible.

ID15FFX60U1SName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

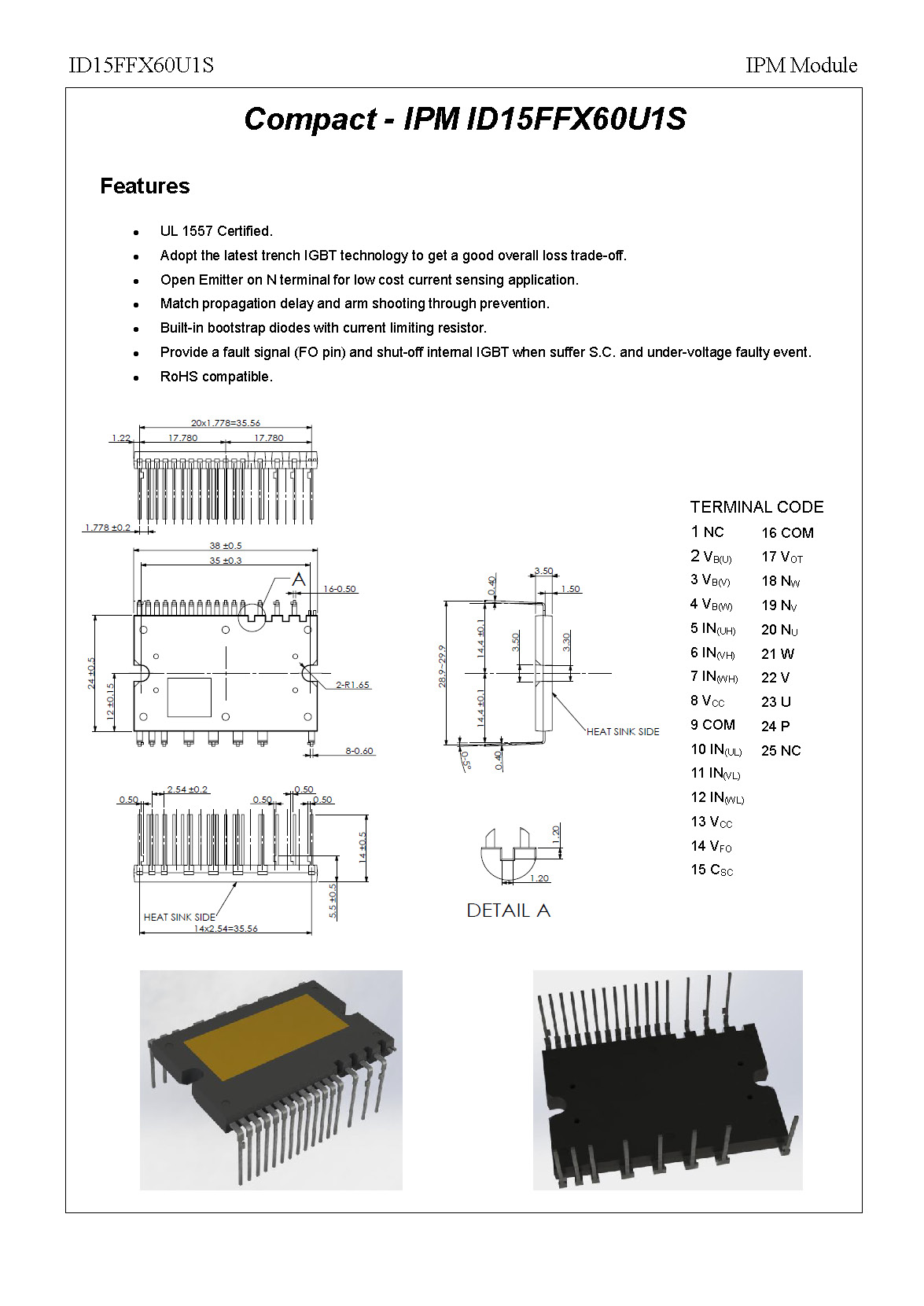

ID15FFX60U1S-1_页面_01

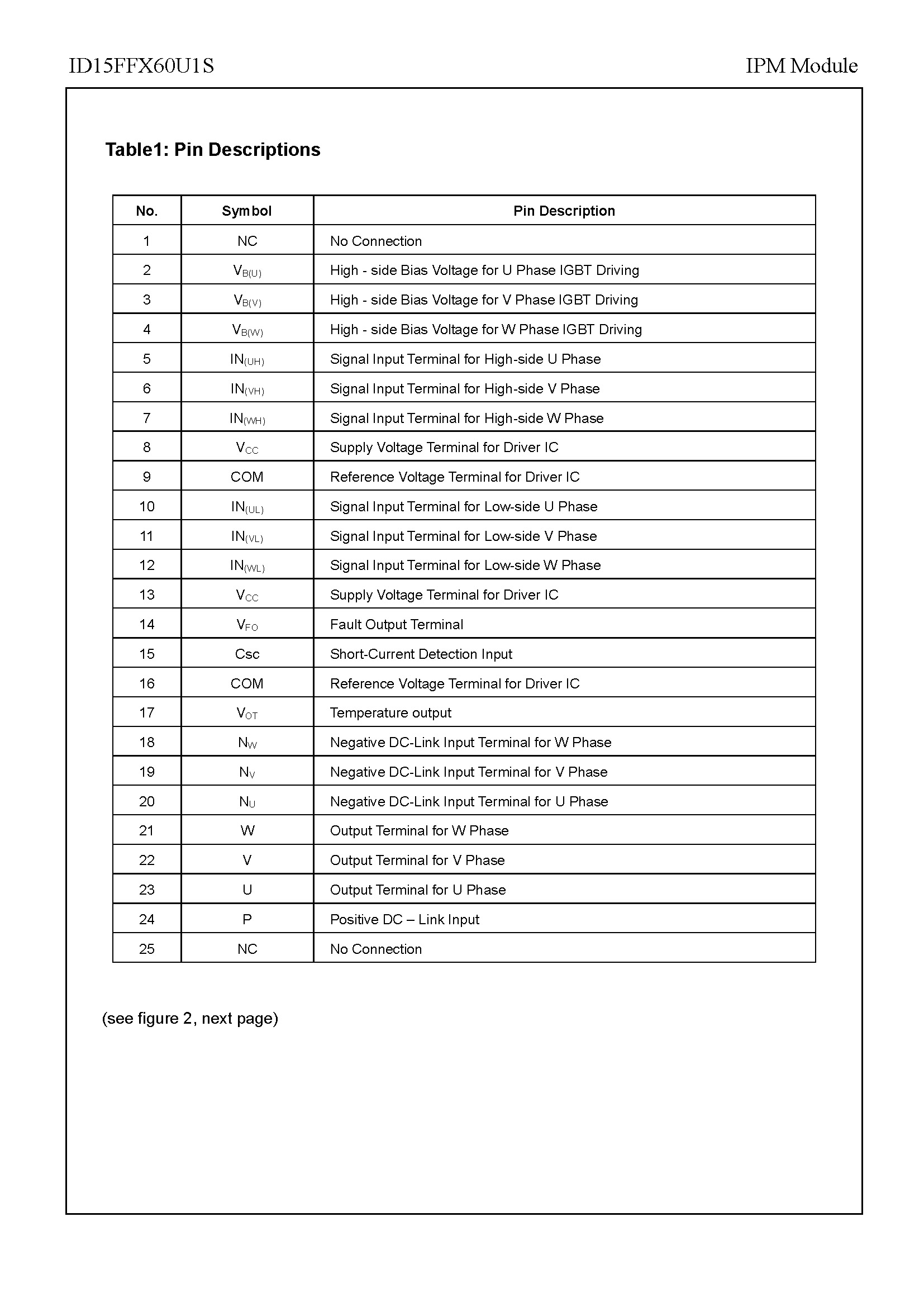

ID15FFX60U1S-1_页面_02

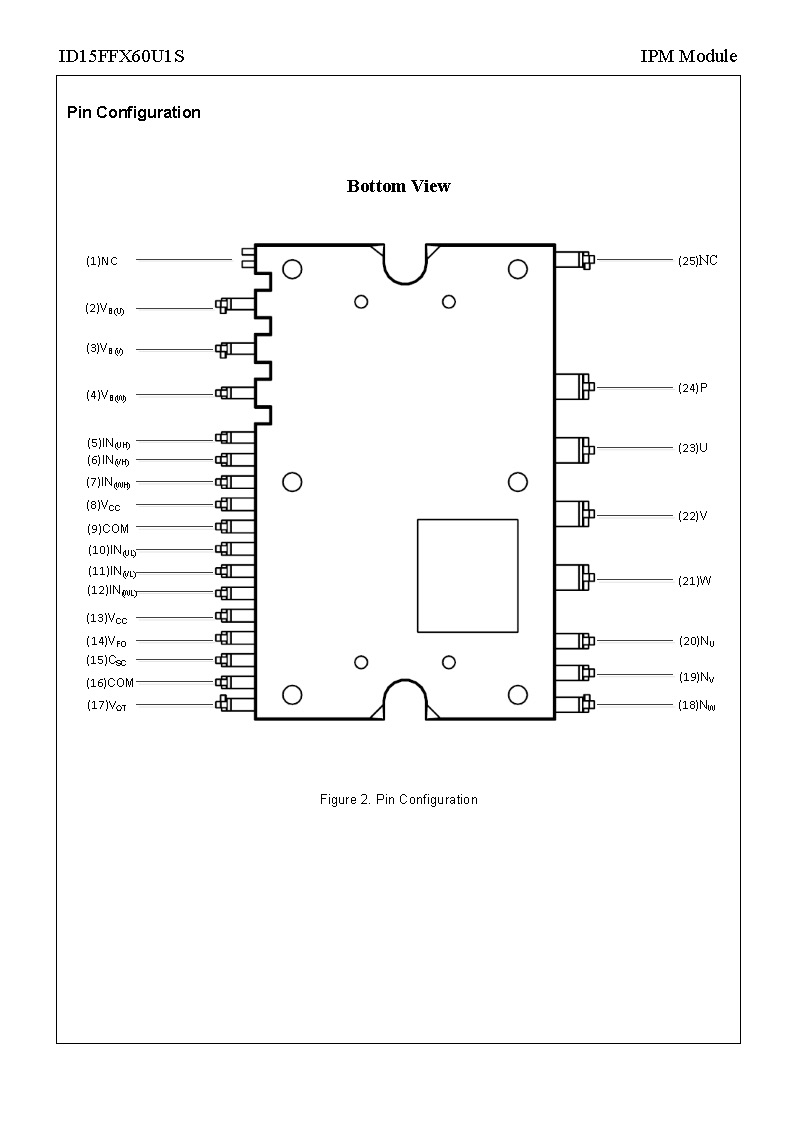

ID15FFX60U1S-1_页面_03
