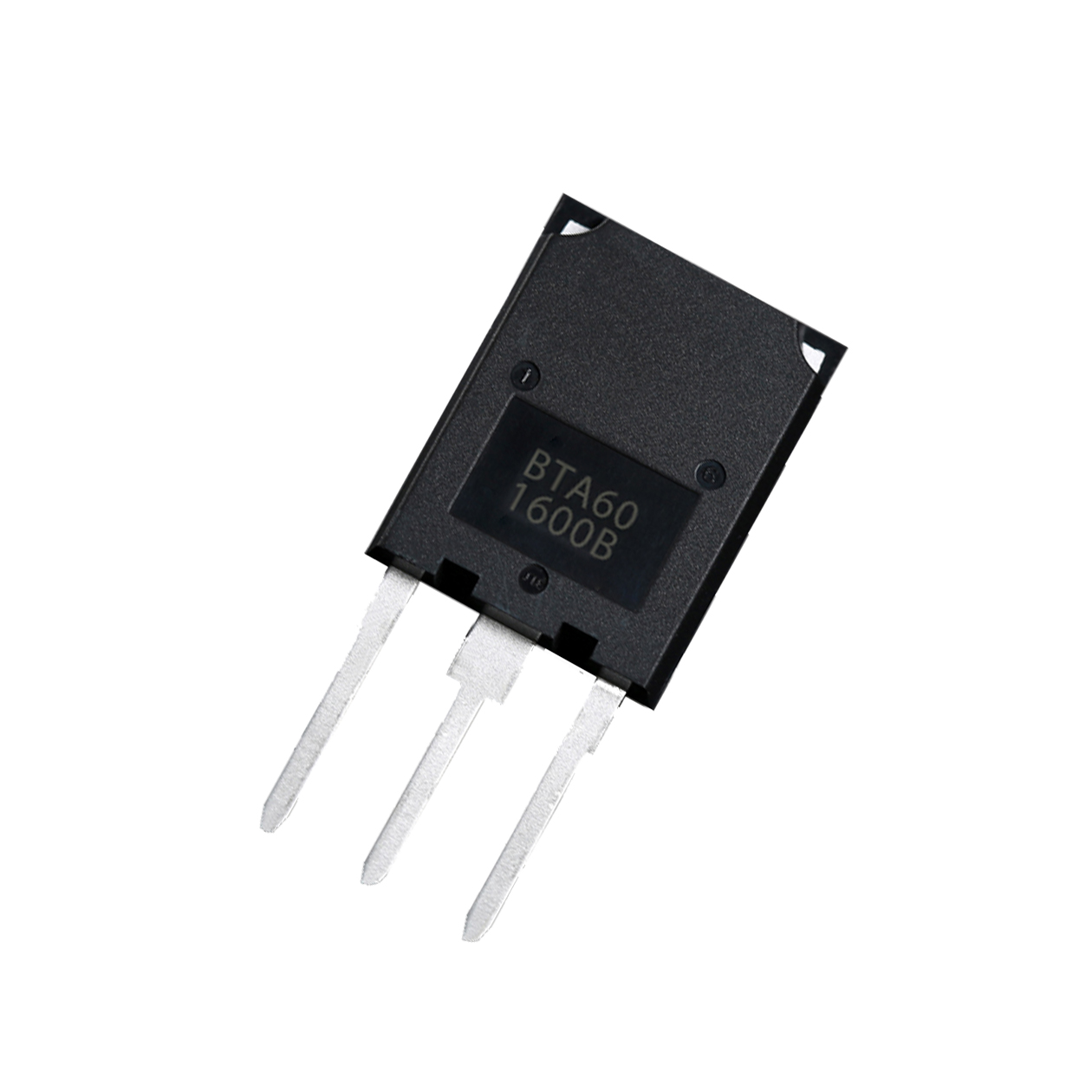

60A/1.3V TRIACs, 3 Quadrants, BTA60 Series, TO-247S, BTA60/BTB60
Part number : BTA60
IT(RMS)(A) : 60
VDRM(V) : 1200/1600
IGT(mA) Max  : 20-80mA
VGT(V) : 1.3
IH(mA) : 80
Package :  TO-247S,ITO-247

Features :
- IT(RMS): 60A
- VGT: 1.5V
- VDRM VRRM: 1200V and 1600V


Applications :
- Washing machine,vacuums, massager,solid state relay, AC Motor speed regulation and so on
