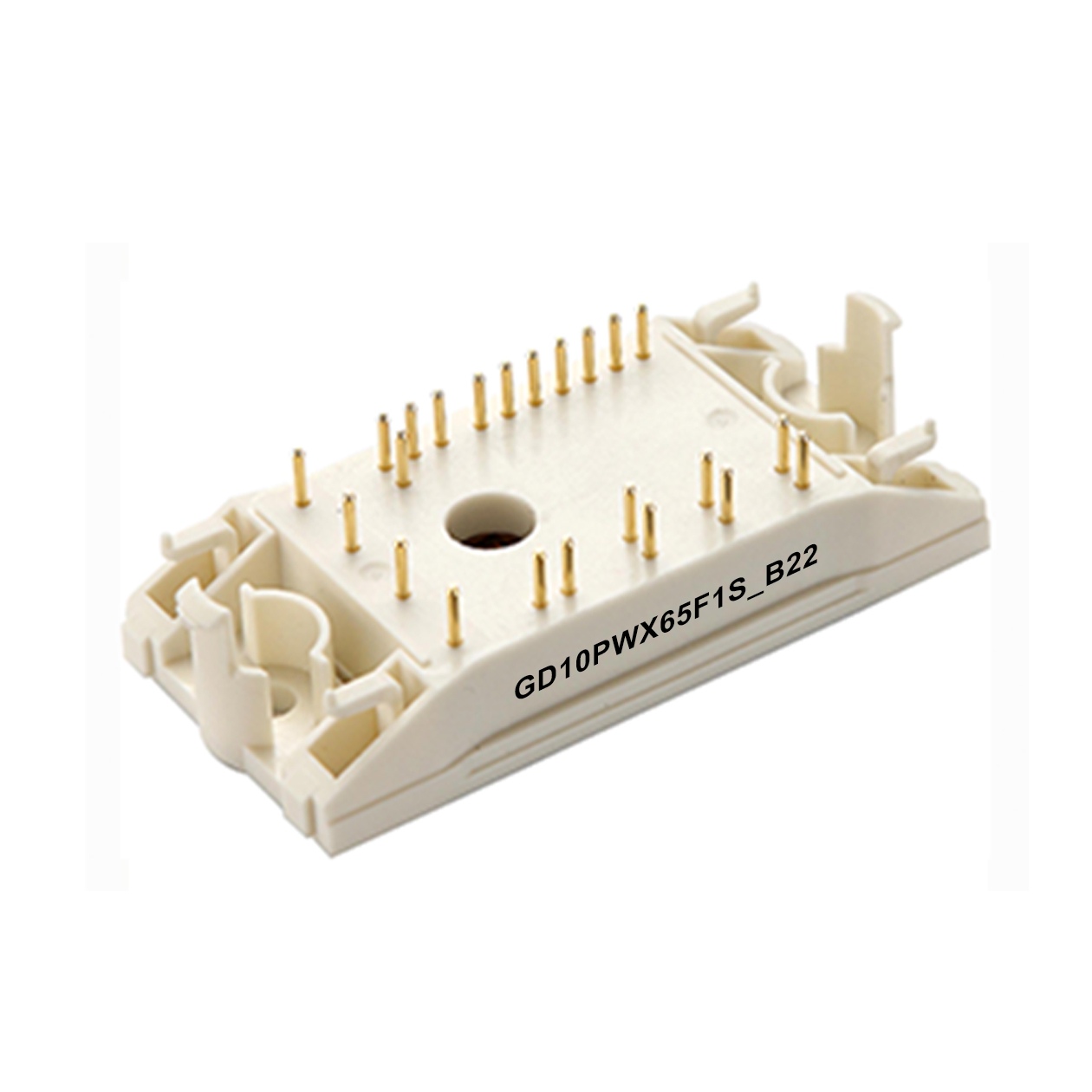

650V/10A Trench-FS Gen1 IGBT, F1, GD10PWX65F1S_B22

650V/10A Trench-FS Gen1 IGBT
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD10PWX65F1S_B22

  • Merry

650V/10A Trench-FS Gen1 IGBT, F1, GD10PWX65F1S_B22
Package:F1
Rated Current:10A
Chip Type:Trench-FS Gen1
Rated Voltage:650V
Circuit Structure:PIM
Hallmark:-

Features :
- Low VCE(sat) Trench IGBT technology
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated heatsink using DBC technology
- Pre-applied phase change material

Typical Applications :
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply

GD10PWX65F1S_B22Name1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

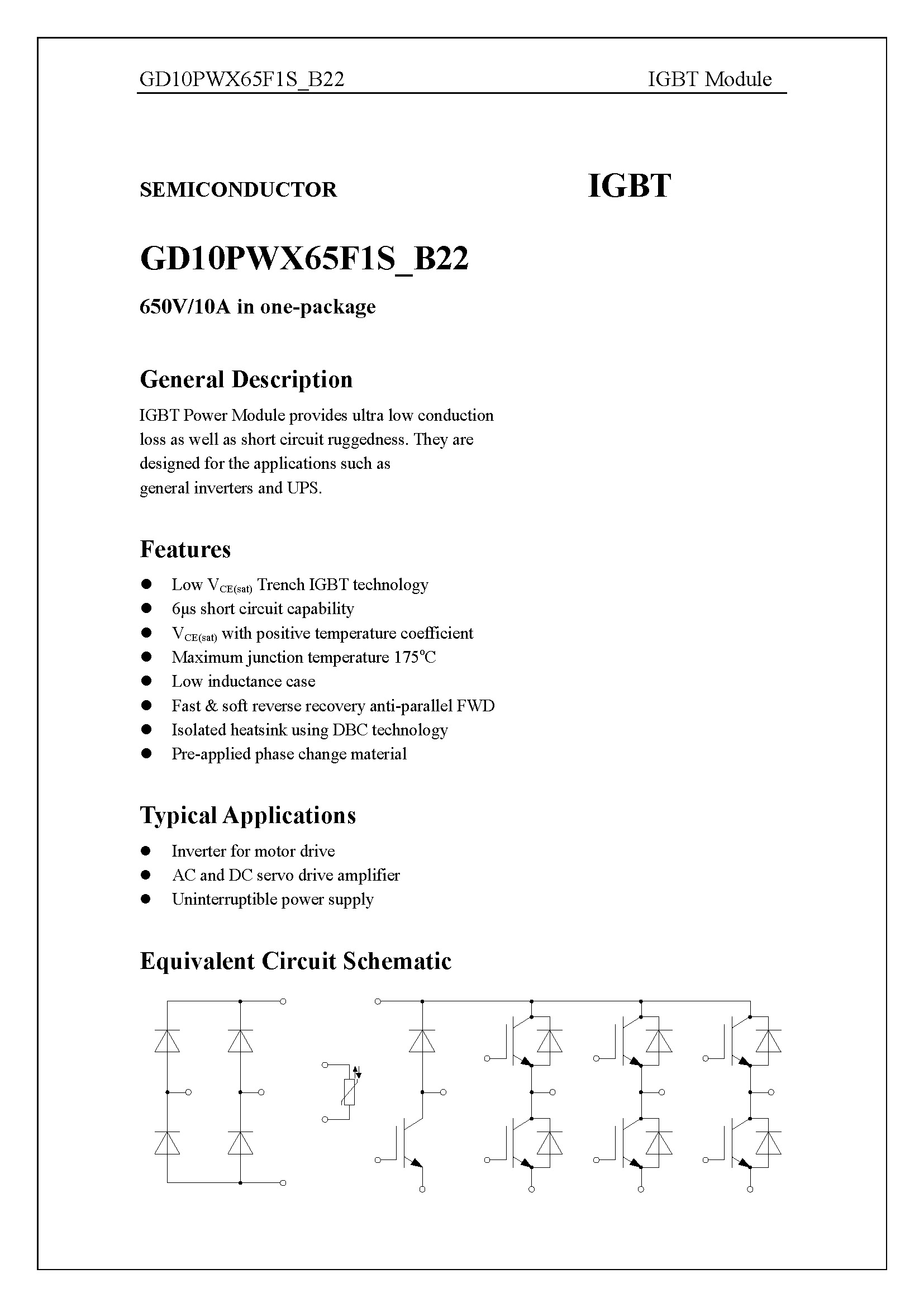

GD10PWX65F1S_B22-1_页面_01

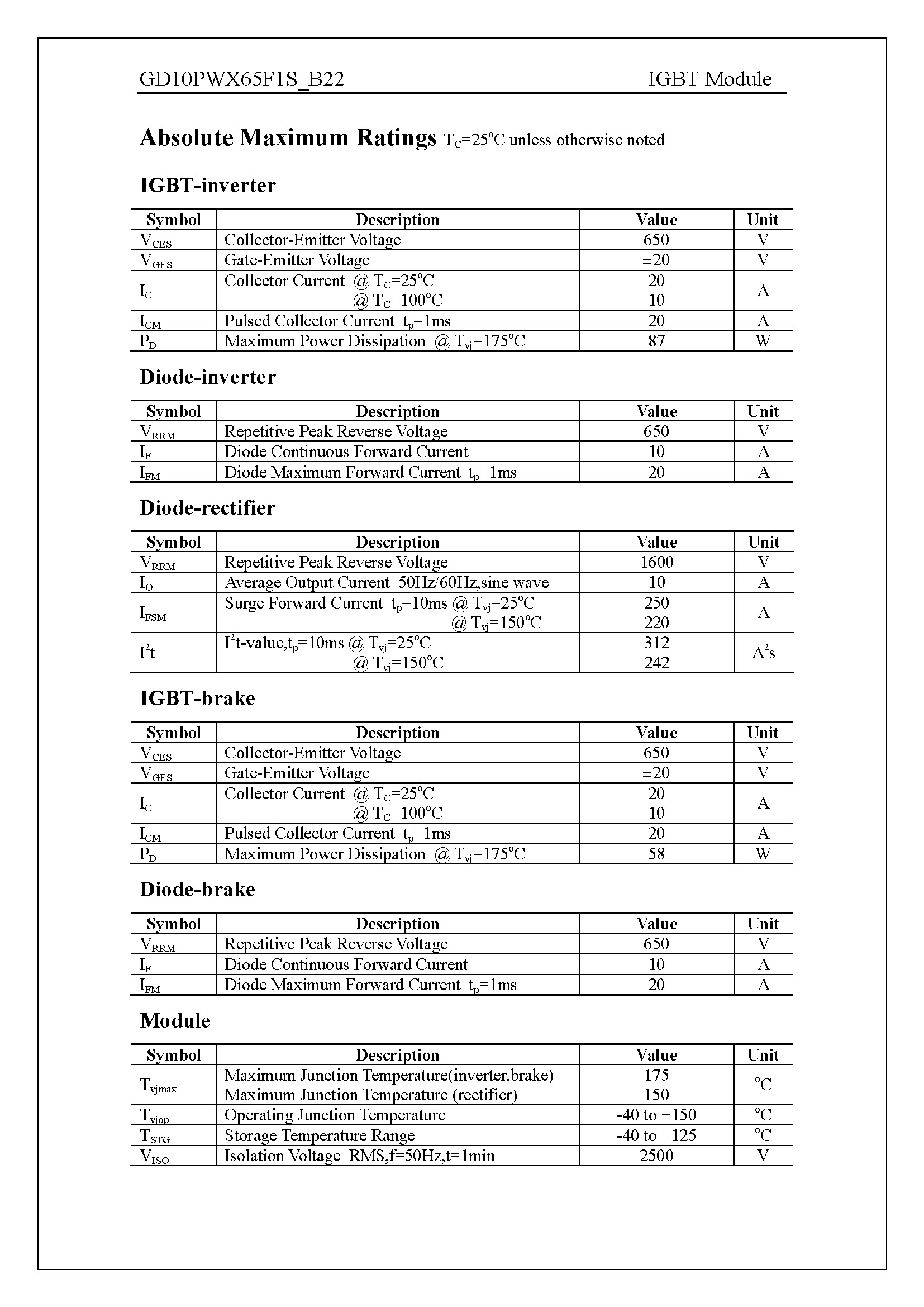

GD10PWX65F1S_B22-1_页面_02
