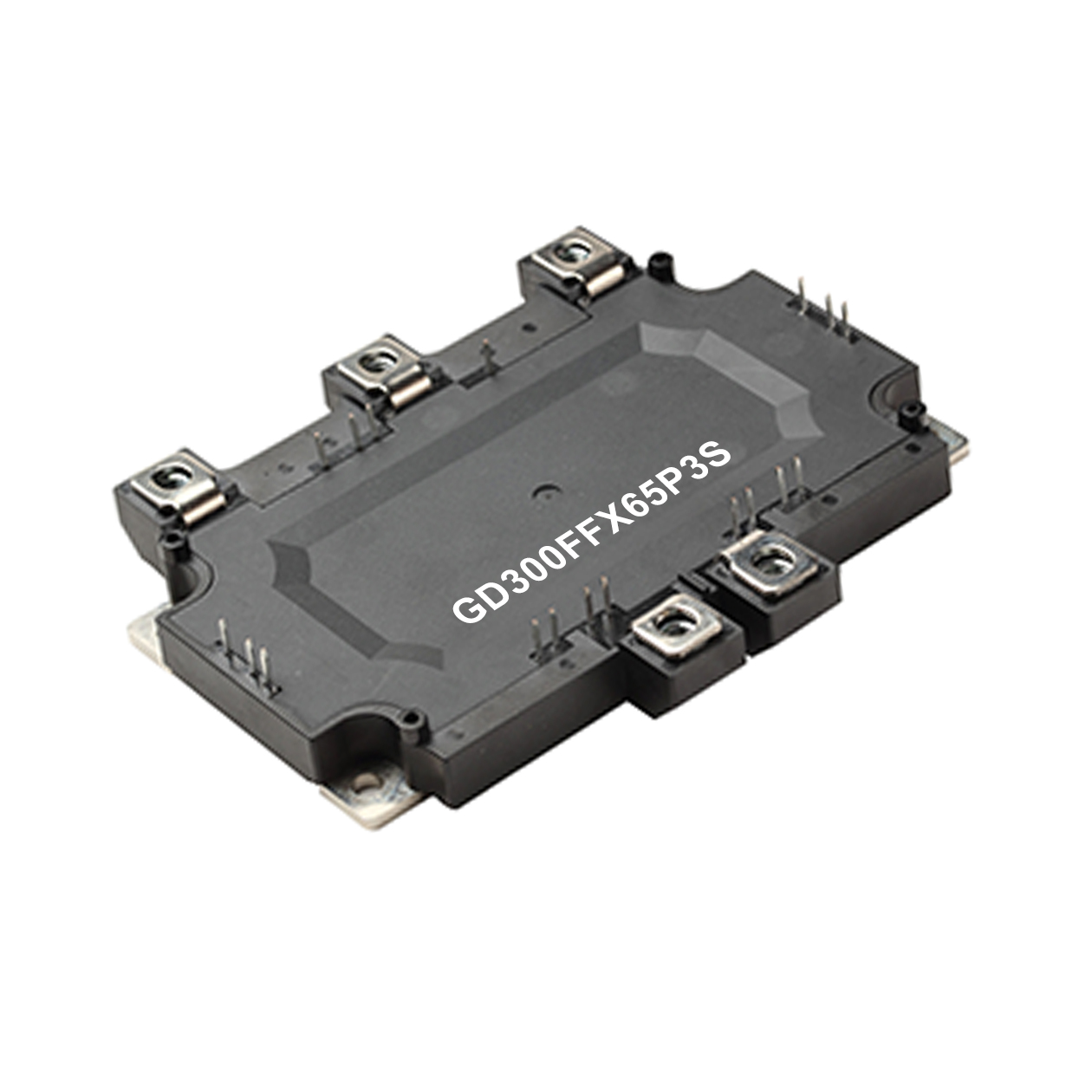

650V/300A IGBT Trench-FS Gen1, P3, GD300FFX65P3S

650V/300A IGBT Trench-FS Gen1
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD300FFX65P3S

  • Merry

650V/300A IGBT Trench-FS Gen1, P3, GD300FFX65P3S
Package: P3
Rated Current: 300A
Chip Type: Trench-FS Gen1
Rated Voltage: 650V
Circuit Structure: Sixpack
Hallmark: Flat Substrates


Features :
- Low VCE(sat) Trench IGBT technology
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper pinfin baseplate using DBC technology
- Low inductance case

Typical Applications :
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive

GD300FFX65P3SName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

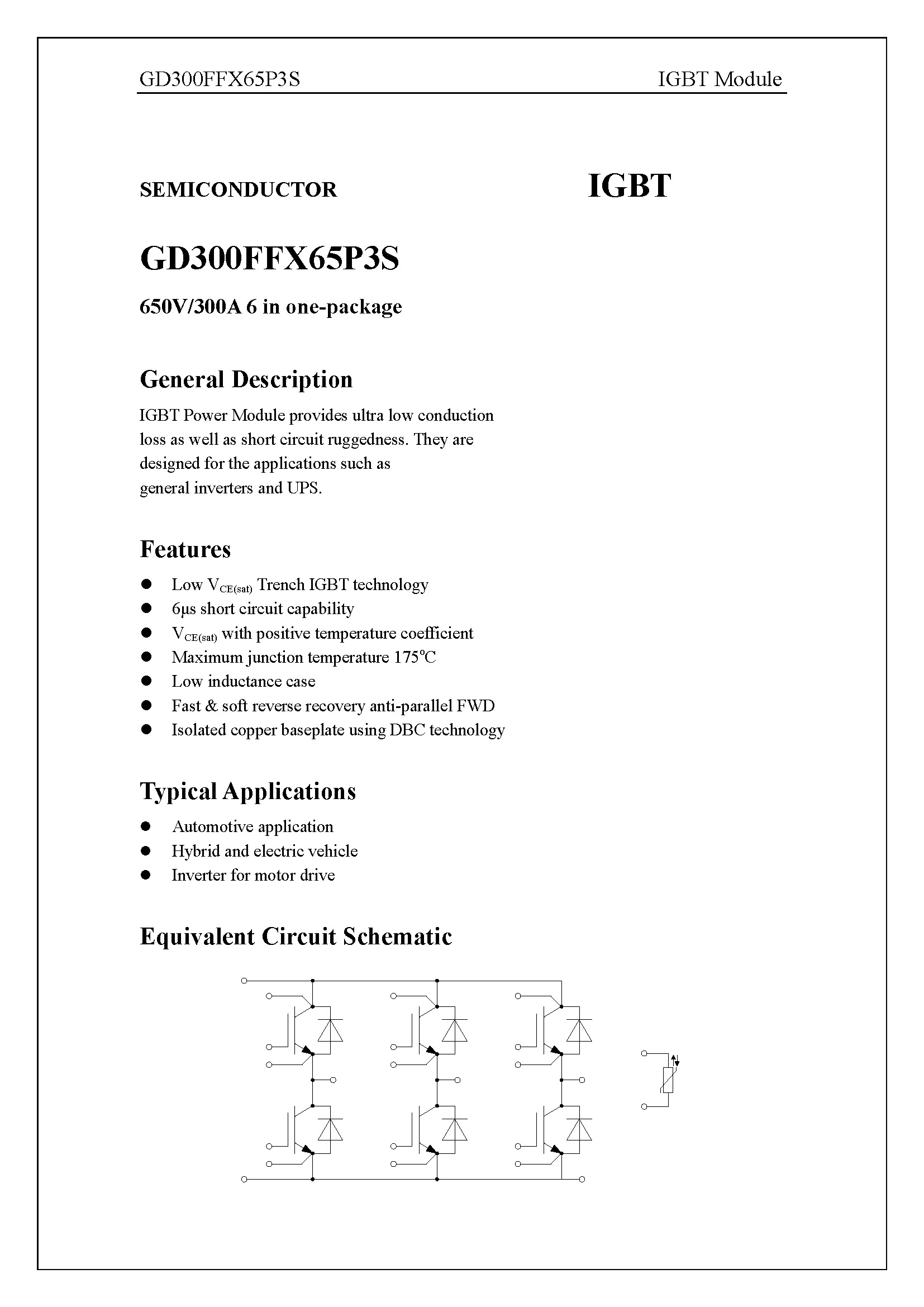

GD300FFX65P3S-1_页面_1

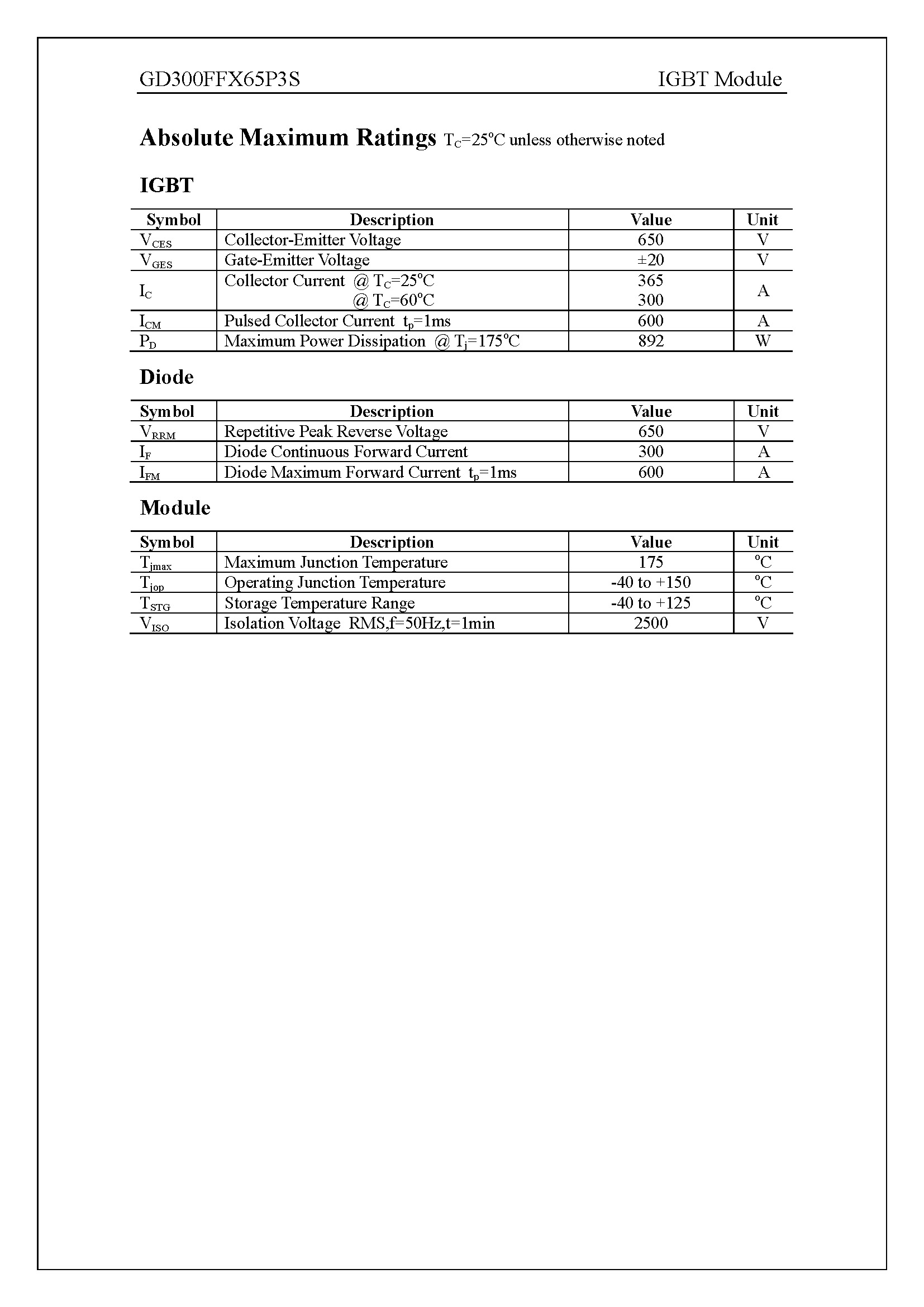

GD300FFX65P3S-1_页面_2

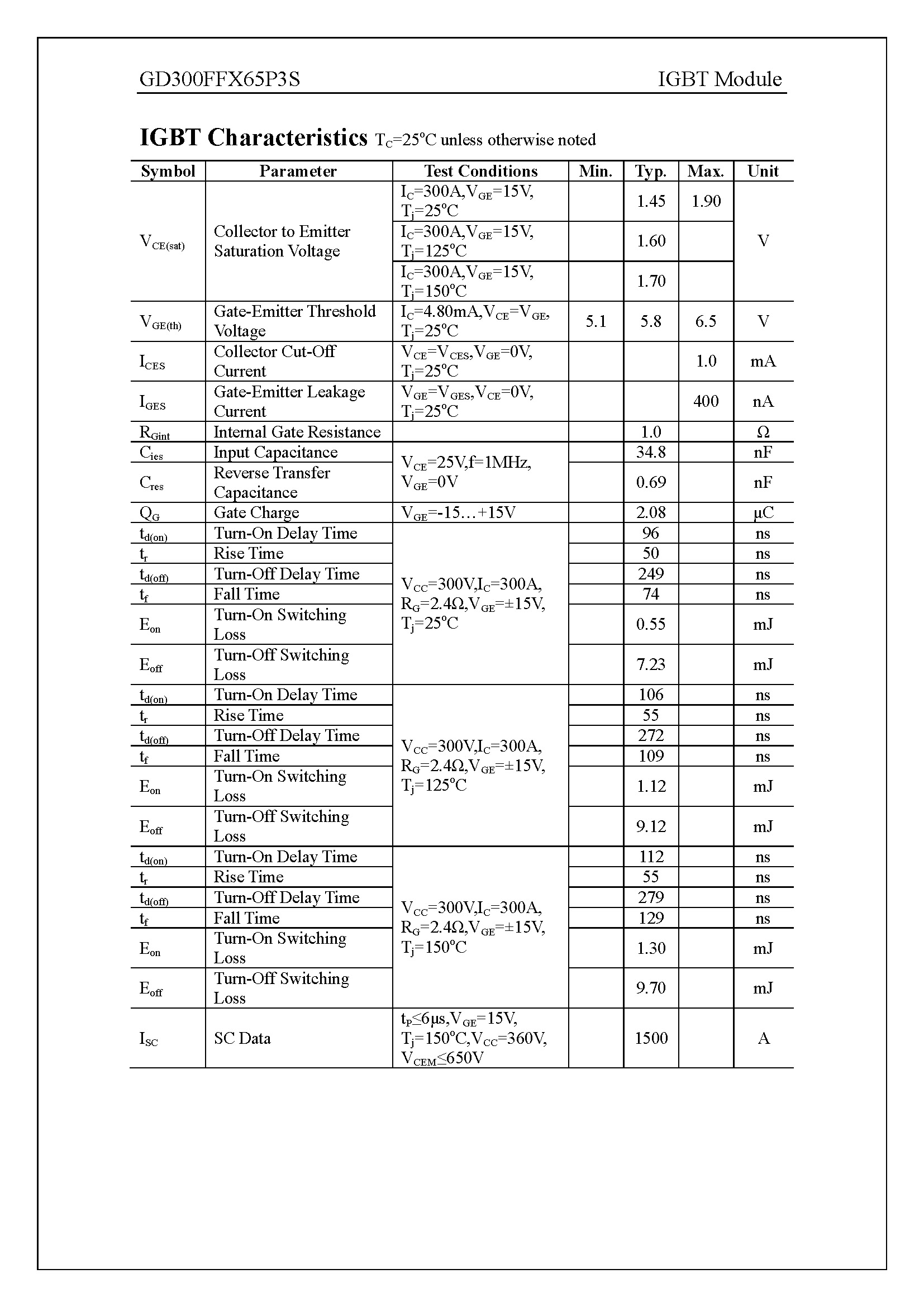

GD300FFX65P3S-1_页面_3
