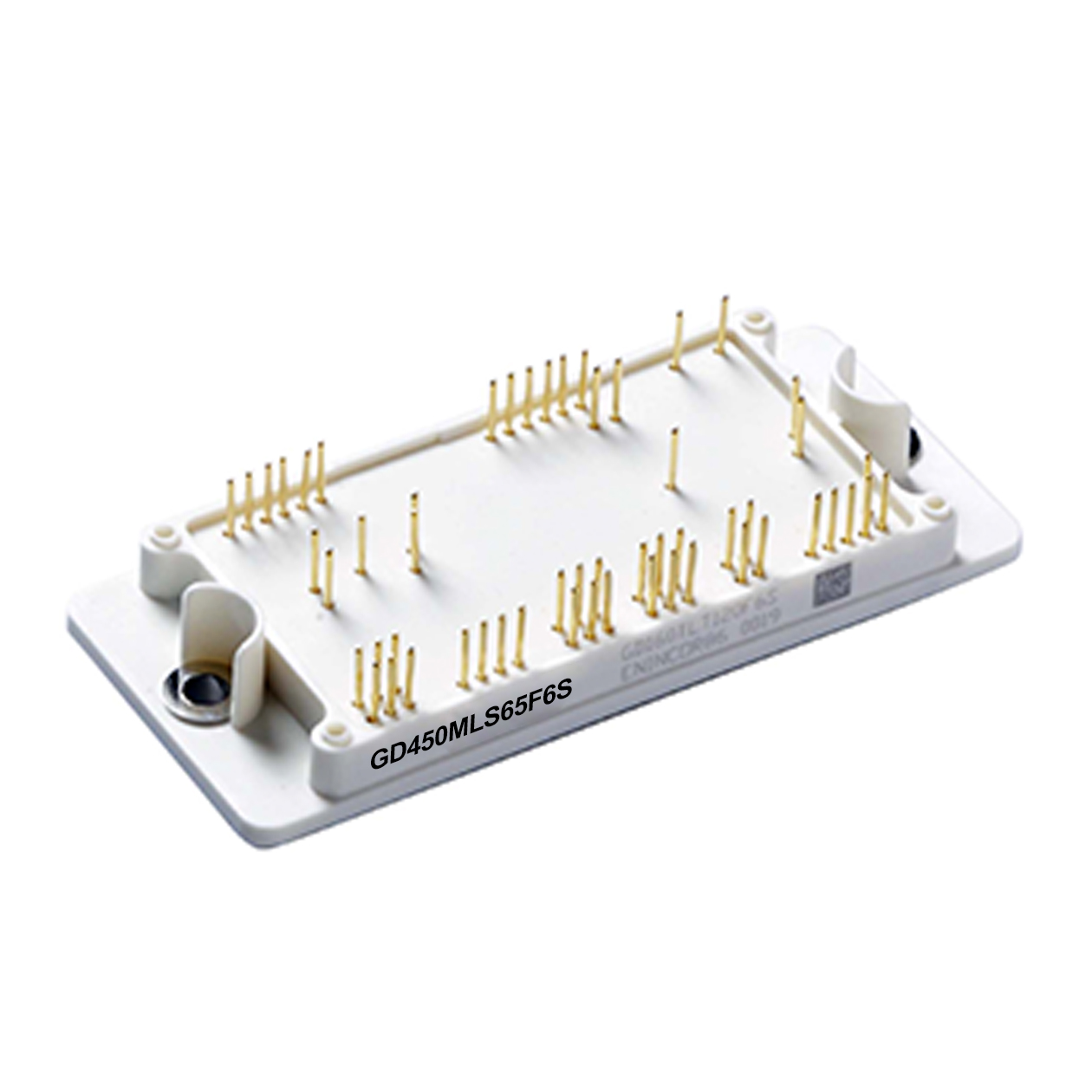

650V/450A IGBT Trench-FS Gen1, F6, GD450MLS65F6S

650V/450A IGBT Trench-FS Gen1
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD450MLS65F6S

  • Merry

650V/450A IGBT Trench-FS Gen1, F6, GD450MLS65F6S
Package: F6
Rated Current: 450A
Chip Type: Trench-FS Gen1
Rated Voltage: 650V
Circuit Structure: 3-level I-NPC
Hallmark: Flat Substrates

Features :
- Low VCE(sat) Trench IGBT technology
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology

Typical Applications :
- Solar power
- 3-level-application


GD450MLS65F6SName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

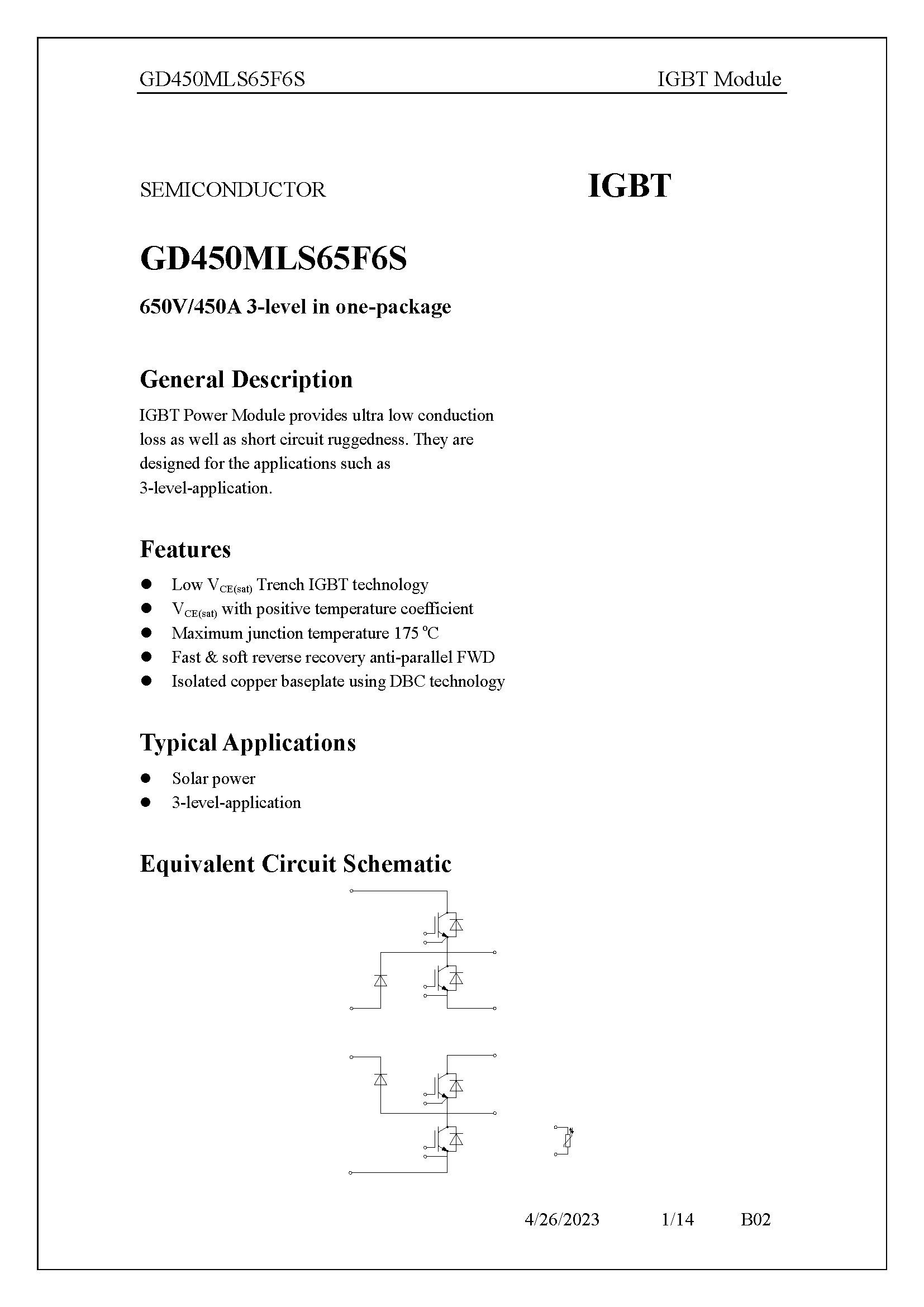

GD450MLS65F6S-1_页面_01

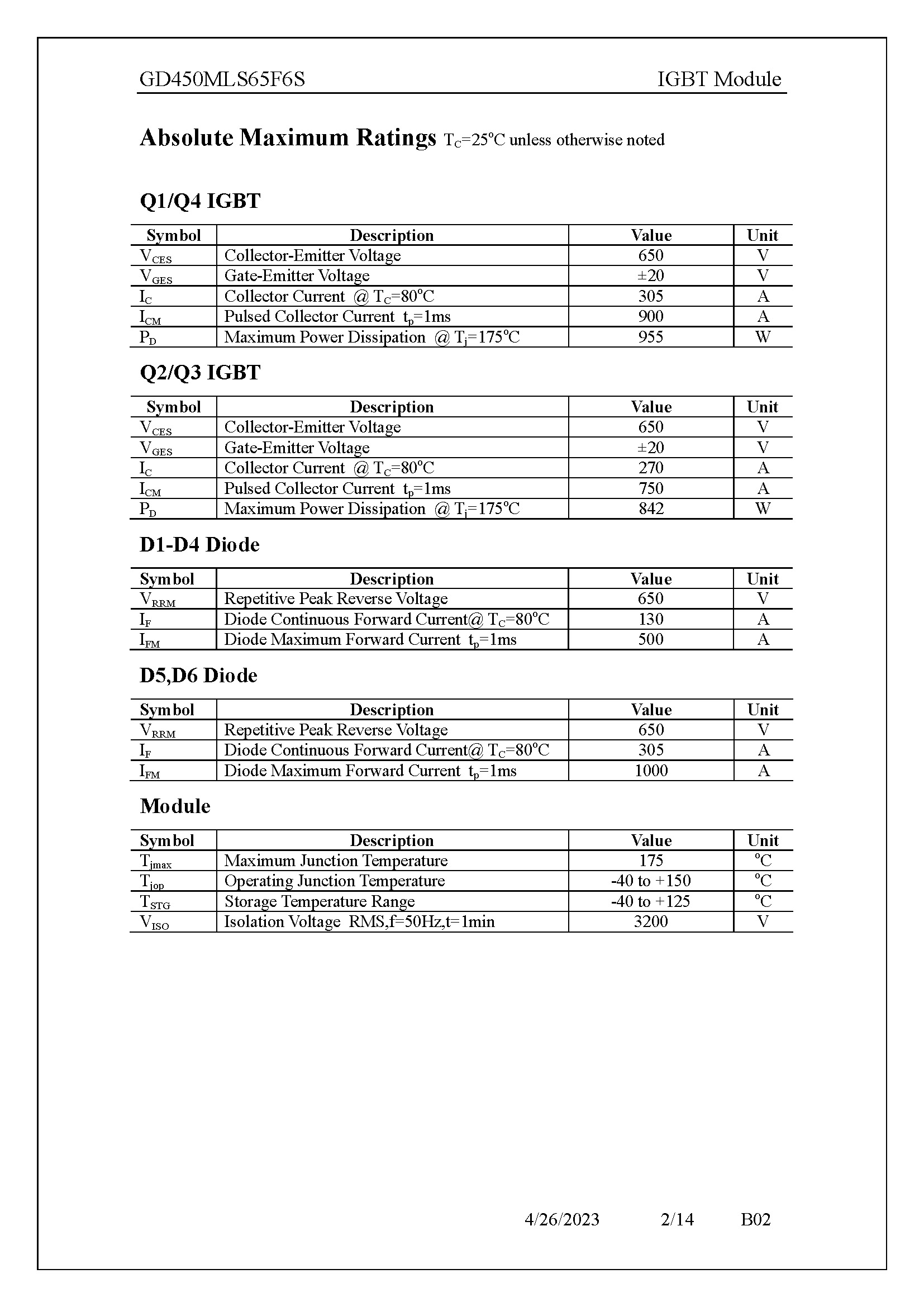

GD450MLS65F6S-1_页面_02

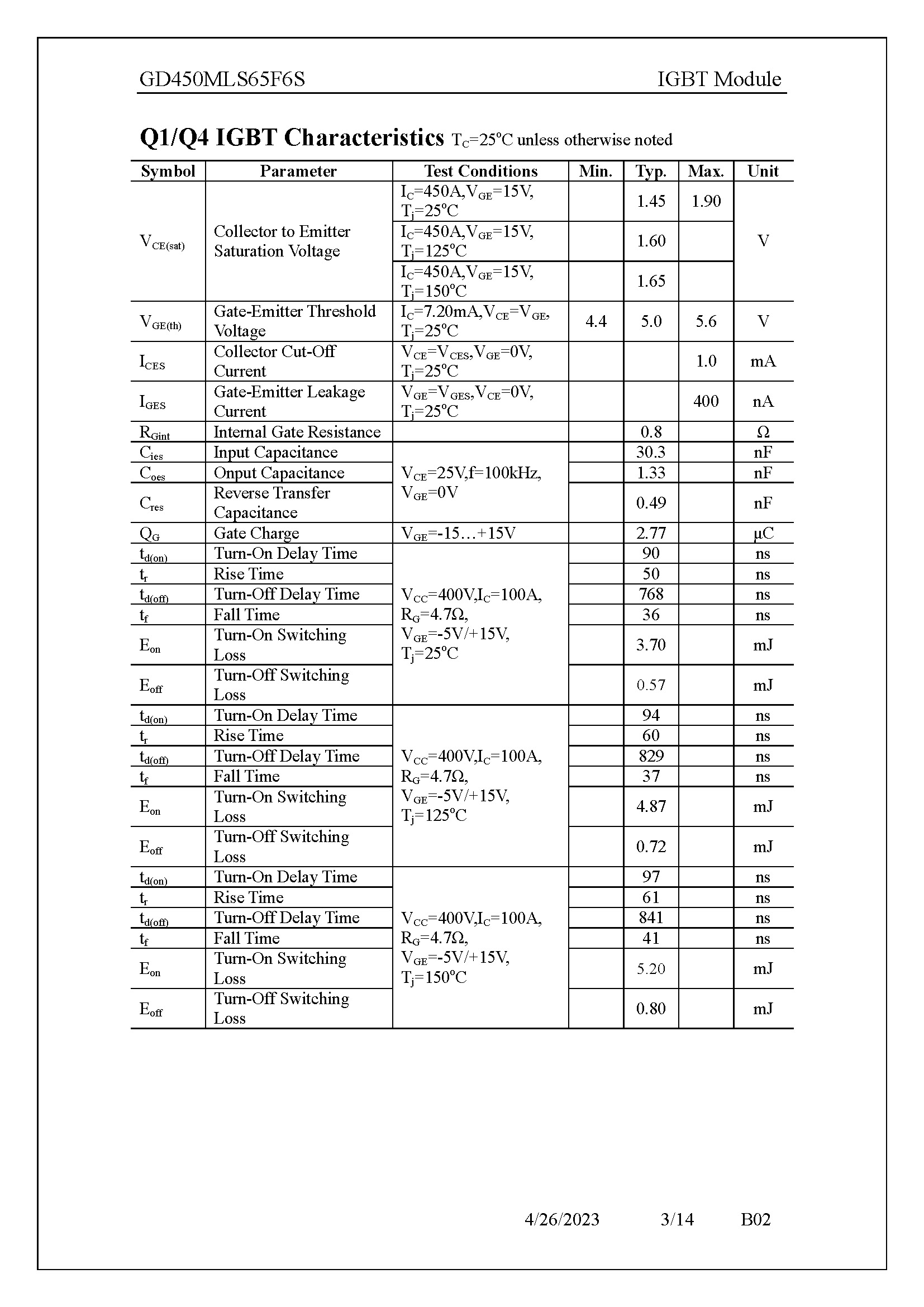

GD450MLS65F6S-1_页面_03

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01


Previous:
Next:
650V/450A Trench-FS Gen1 IGBT GD450MLS65F6S IGBT F6 IGBT 3-level I-NPC Fast Recovery Diode Rectifier
